Tudor House Plan 5445-00264

Sq Ft2,827
1/2 Baths0
Width34' 0"
Depth60' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

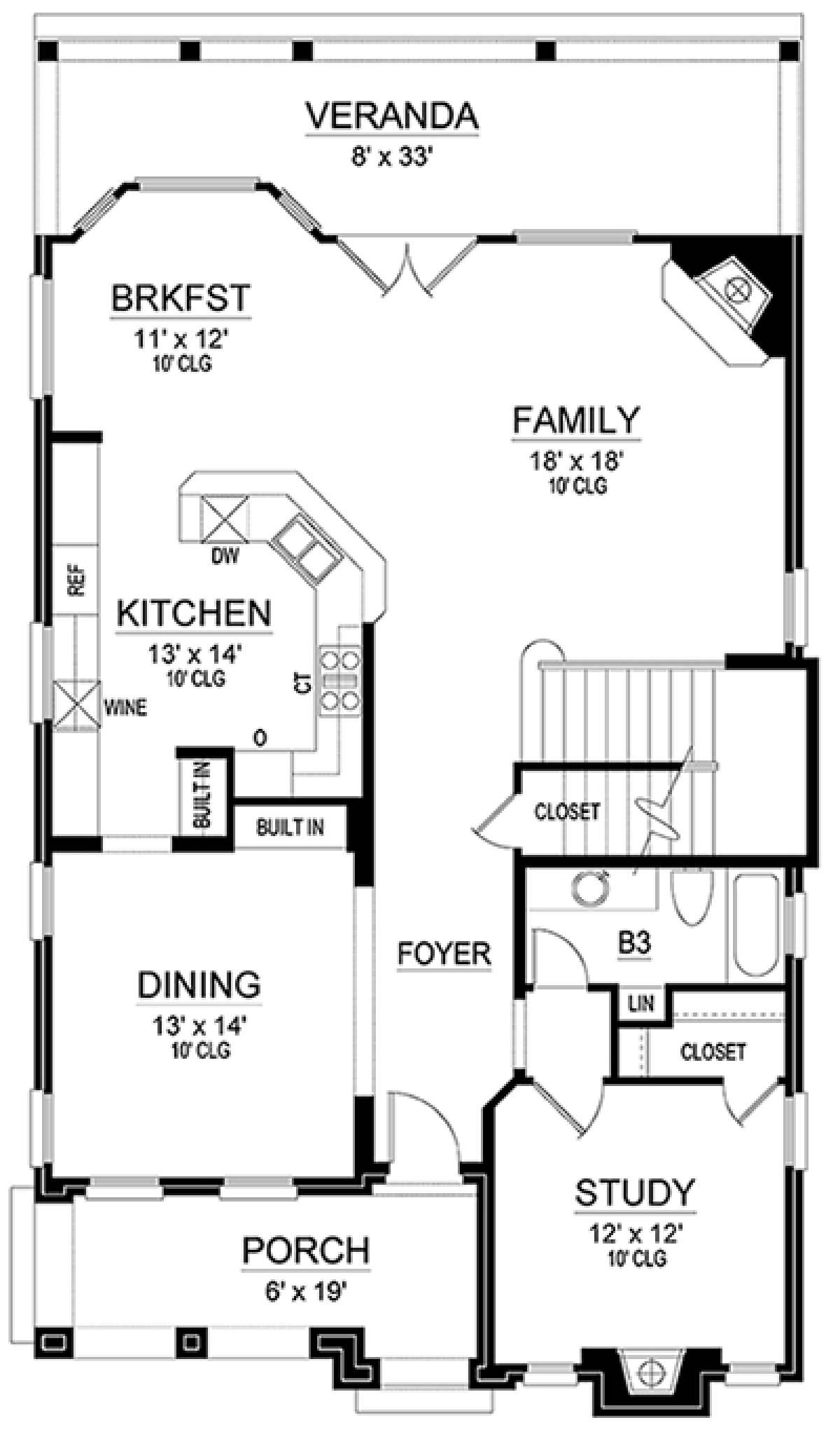

Main for House Plan #5445-00264

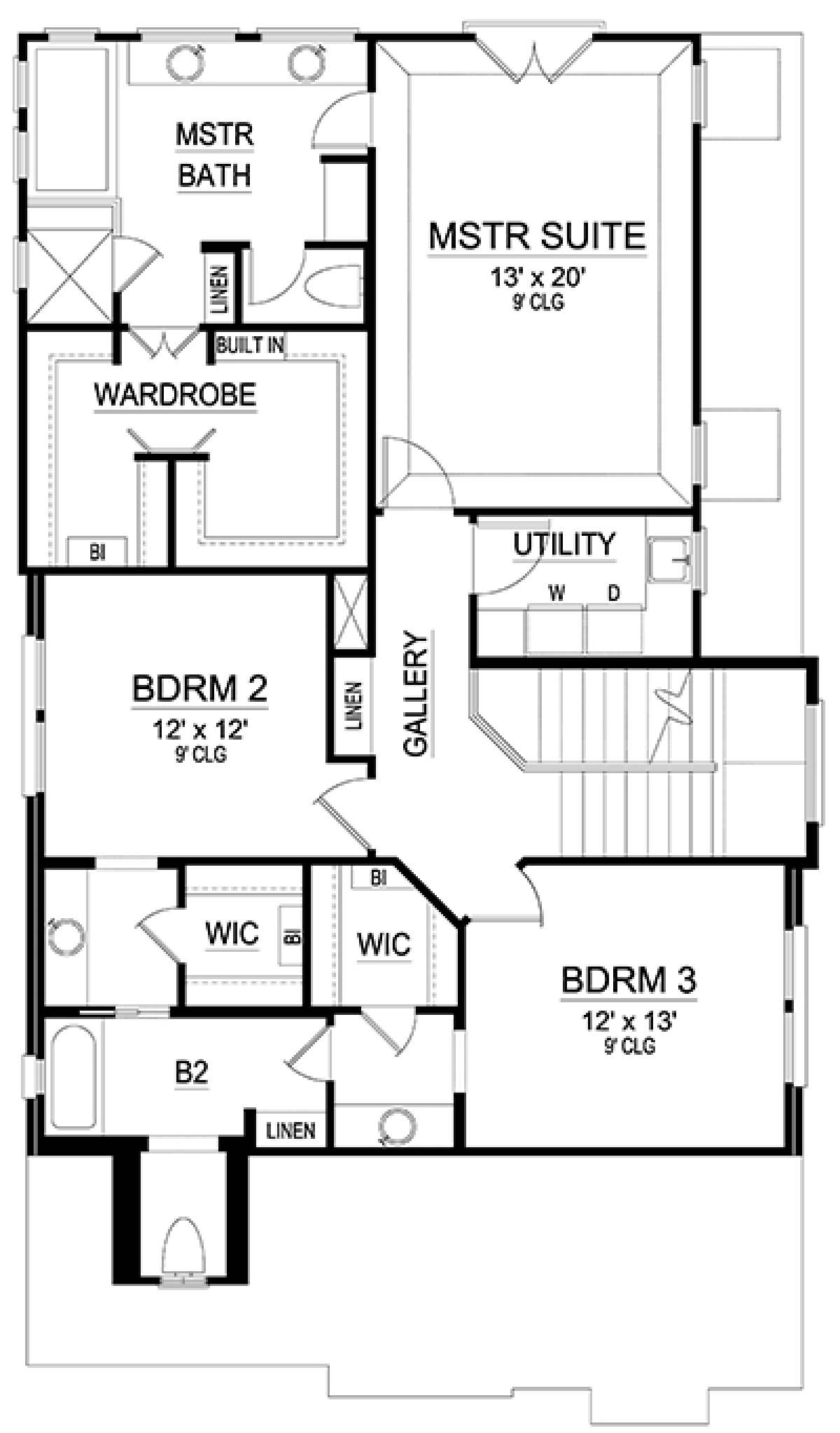

Upper for House Plan #5445-00264
Main for House Plan #5445-00264
Upper for House Plan #5445-00264

Frequently Asked Questions


What's Included in these plans?

  • Cover Page:
    Showing the house plan name, an elevation or rendering of the plan, and the designers contact information.
  • Foundation Plan
  • Floor Plan(s):
    The floor plans provide all dimensions and notes for the first and second floor (If plan has a second floor).
  • Electrical Plan:
    Schematic layout of lights, electrical plugs, phone locations and code items such as smoke detectors.
  • Elevations:
    Front, side and rear elevations with notes and exterior dimensions.  All elevations are drawn to 1/4 scale.
  • Roof Plan:
    Drawn to 1/4 scale.
  • Sections Page


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This elegant Tudor inspired house plan features an exterior comprised of lovely design elements which heightens the curb appeal of the home. There is brick and stone work, smooth stucco and timbered wood elements along with latticed window designs that add grace and charm to the façade. The front covered porch is enhanced with lovely column work, plenty of space to greet family and friends and a gorgeous Old World front wooden door in which to enter the home. The interior floor plan is two storied, offers three bedrooms and three baths in approximately 2,827 square feet of living space. The main floor of the home features an open floor plan that is entirely devoted to entertaining and family living while the sleeping quarters are located above. This is a perfect plan for a narrow lot with its 34’ width dimension whether situated on an urban or suburban property lot. Entering the home from the front porch there is an elongated entry foyer and hallway which is flanked by the formal dining room and study. The study is ideal for a home office and allows for business associates and close friends to be entertained; there is a warming fireplace, picturesque window views and a closet is available if a fourth bedroom is needed. There is a nearby full bath which features an oversized vanity, a toilet area, linen closet and a tub/shower combination. The grand dining room is quite large with 10’ ceiling heights, built-in cabinetry and an abundance of window views. There is a pass-thru to the kitchen where an angled breakfast bar, a separate pantry and plenty of counter and cabinet space is revealed. The adjoining breakfast nook is surrounded by lovely window views and opens onto the family room where there is a corner fireplace. French doors are located on the rear wall and offer access onto the covered veranda which spans the width of the home.

The second floor of the home features three bedrooms and two full baths along with the conveniently located laundry room. Bedroom two is spacious with double window views while the third bedroom is slightly larger and offers great window views as well. The jack and jill bath features separate vanity areas for the bedrooms and each has an attached walk-in closet. An enclosed linen closet is found with the toilet area and tub/shower combination and there is an additional linen closet located in the gallery hallway. The master suite is located at the rear of the floor and features a large master bedroom with a trey ceiling, wonderful window views and French door access onto the accompanying balcony. The master bath enjoys excellent floor space with dual vanities, a separate shower, garden tub, a linen closet and a compartmentalized toilet area. The master walk-in closet is highlighted with built-ins, delineation between his and hers and loads of space for clothing and assorted other accessories. This Tudor house design showcases a lovely exterior, a well-designed interior and is suitable for a narrow property lot.
