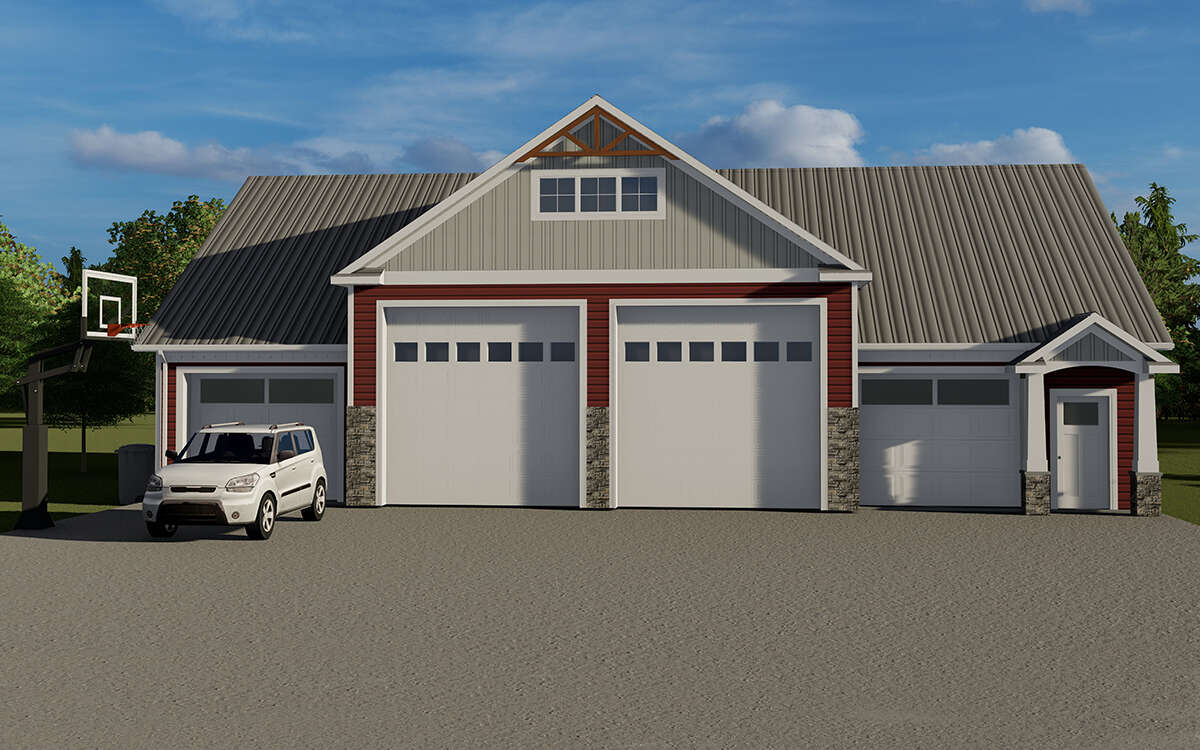

Craftsman Garage Plan 5032-00289

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 1,810
Fin Sq Ft 920
Cars 4
Beds 0
Width 60'
Depth 40'

Floorplan Drawings

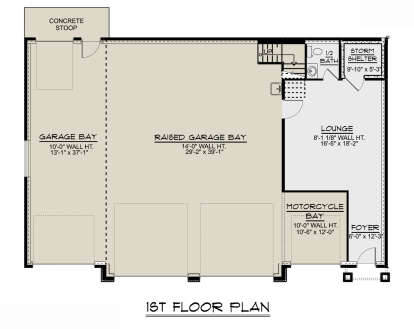

Garage Floor
Garage Floor for House Plan #5032-00289

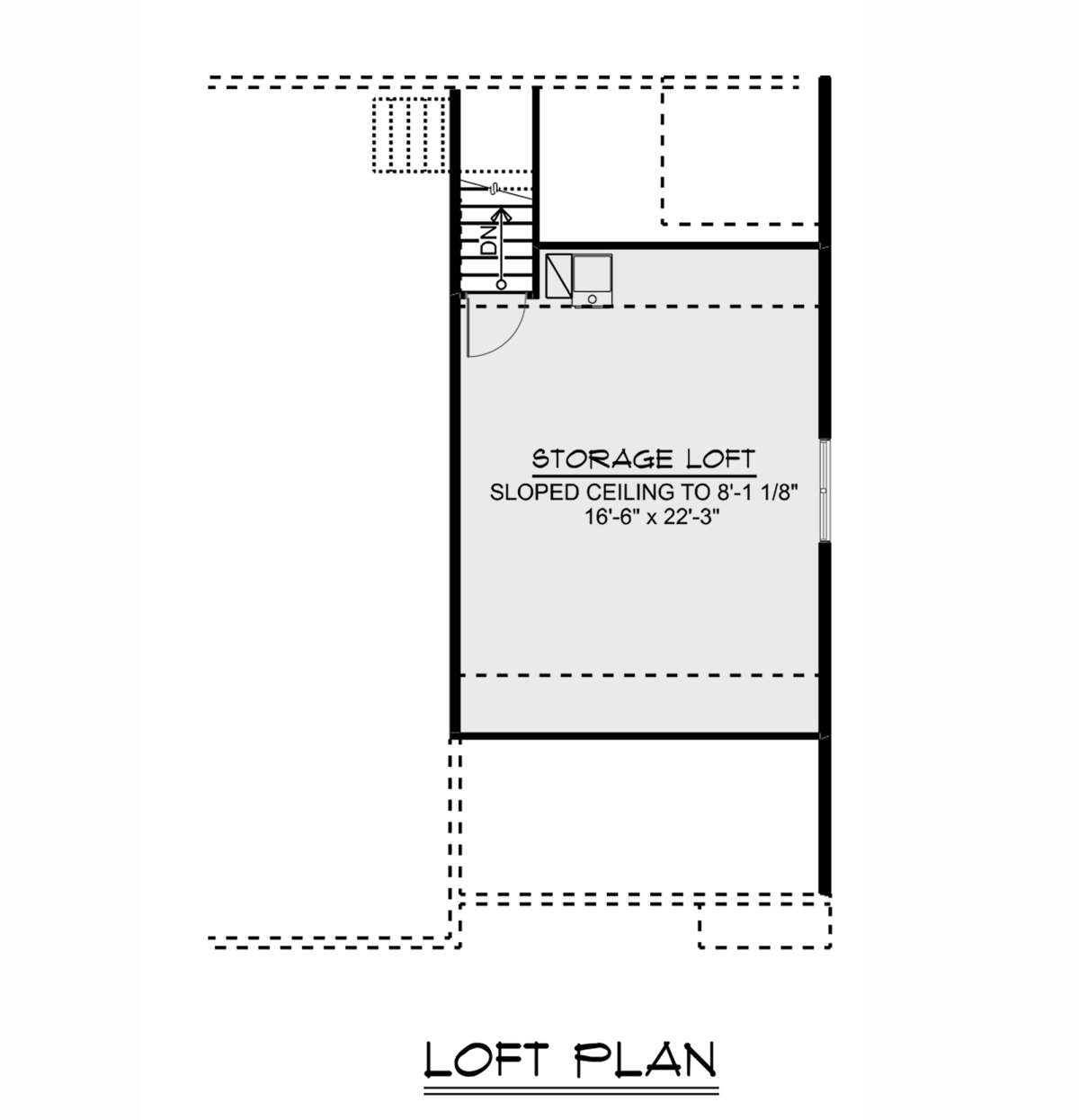

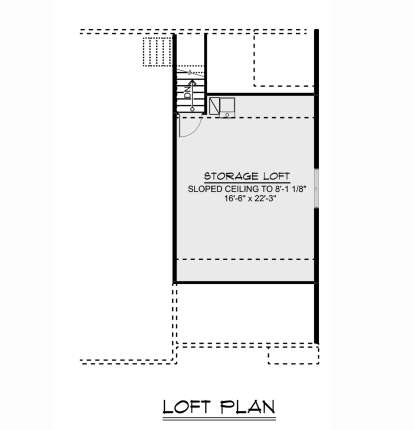

Second Floor
Second Floor for House Plan #5032-00289


What's Included in these plans?

  • Title Sheet
  • 4 Detailed Elevations, fully dimensioned and noted
  • Floor Plans
  • Roof Plan
  • Typical Wall Section or Cross Section
  • Foundation Plan & Details
  • General Notes Page
  • Electrical Plan for each floor





What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 Car Craftsman Garage Plan features 1,810 unfinished sq. ft., and 920 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
