Cottage Multi-Family Plan 4848-00437

What's Included in these plans?

• Cover Page
  This home plan features the front elevation and informative reference sections including general notes and design criteria.
• Elevations
  Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
• Foundations
  Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

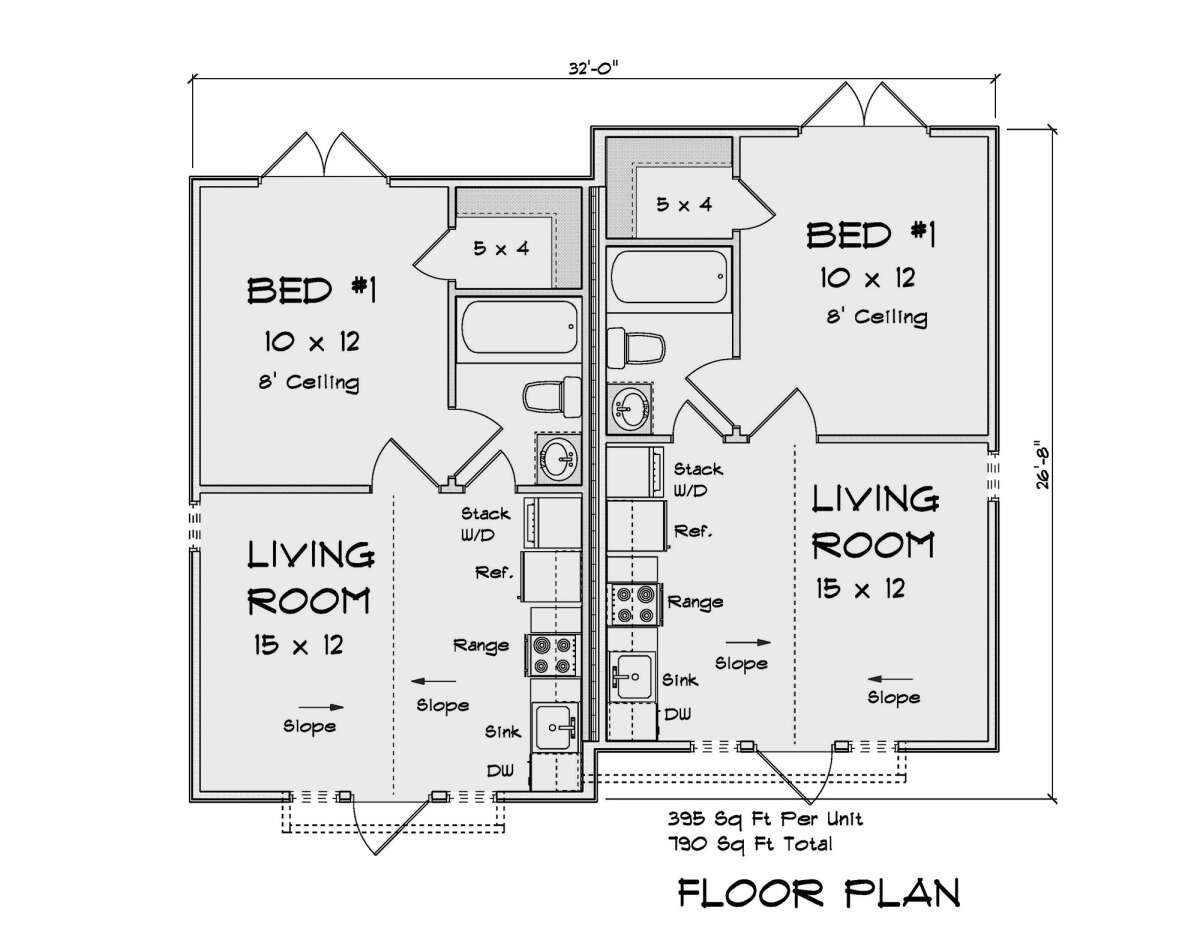

• Main Level Floor Plan
  Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
• Second Level Floor Plan
  Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
• Sections
  The plans include two pages of sections; a typical wall section, stair section and foundation details.
• Roof Plan
  A Roof plan showing roof pitches, valleys, ridges and rafters.
• No Re-use Fee
  As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.
