Vacation House Plan 4177-00014

Sq Ft1,644
Beds2
Baths2
1/2 Baths0
Stories2
Cars0
Width36' 0"
Depth50' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #4177-00014
Floorplan 2 for House Plan #4177-00014

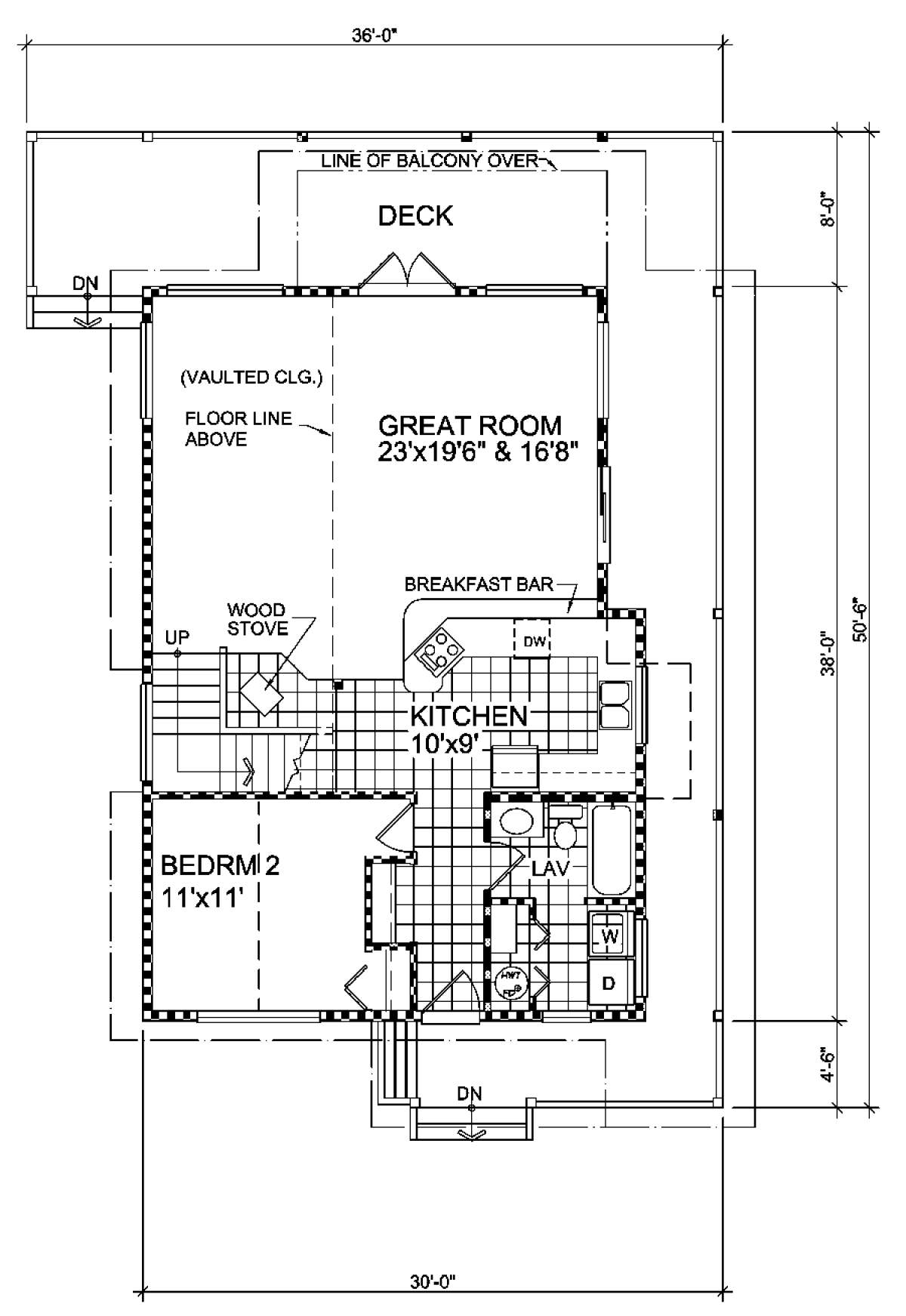

Floorplan 1
Floorplan 1 for House Plan #4177-00014

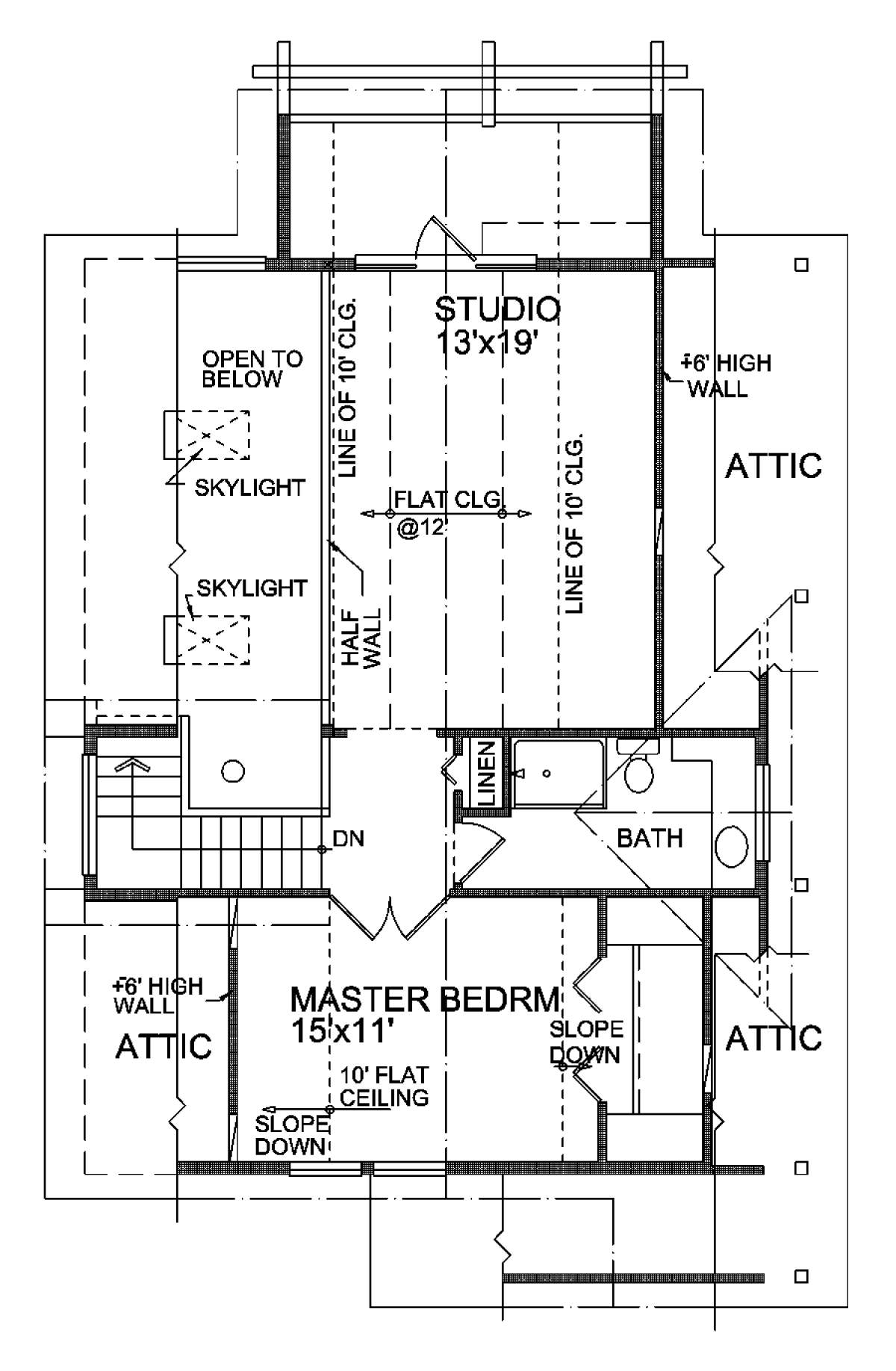

Floorplan 2
Floorplan 2 for House Plan #4177-00014


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan at 1/4"=1'-0". (Some plans have foundation options, client to specify at time of order.)
  • Main floor plan at 1/4"=1'-0".
  • Second floor plan at 1/4"=1'-0", if applicable.
  • Roof information indicated either on the floor plans or separate framing plans for complicated designs.
  • Electrical floor plans.
  • Minimum of two cross sections at 1/4"=1'-0".
  • Details as required.
  • All four elevations at 1/4"=1'-0".
  • Generic detail sheet.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This amazing house plan would make a perfect Vacation or permanent residence; a warm rustic “vibe” and plenty of space for a small family, young professionals or empty nesters is featured. The exterior façade features an abundance of charm and character with beautiful warm woods, open and covered outdoor spaces and gorgeous window views. Drawn to capture panoramic views and a specific lifestyle, this home’s exterior is highlighted with loads of outdoor space for those who value “Mother Nature” and all her inherent possibilities. The light filled interior is equally stunning and is highlighted with approximately 1,644 square feet of living space with two bedrooms, two baths and an overhead loft/studio space. Perfectly sized for a narrow lot with its 36’ width dimension, this plan would be suitable for a variety of lots; mountain, lakefront or nestled somewhere along a “forgotten” path, this home would be a fabulous solution for those seeking to escape the “rat race” and live with intention and purpose. Front and rear entrances into the home’s interior are connected by an elongated walking deck and there are open and covered decks/porches available for wonderful entertaining and relaxing possibilities. The front entrance opens onto an expanded foyer flanked on either side by the oversized bath/utility room and a second bedroom. The bathroom features space for a washer/dryer, full bath amenities with a tub/shower combination and there is mechanical space as well. The second bedroom is spacious with great window views and ample closet space. At the rear of the home is where all the “action” is; there is a large great room with French door access onto the deck with a partial balcony overhang, amazing window views, side slider access to the deck as well and a wood stove. The open kitchen features a peninsula bar for casual dining, plenty of counter and cabinet space and double sink window views.

Upstairs, is an entire suite of rooms devoted to the homeowner’s pleasure and comfort. The master bedroom is accessed through French doors where there is a large walk-in closet and picturesque window views. The hallway contains a linen closet and the nearby bath offers wraparound vanity space, a toilet area and a tub/shower combination. On the opposite end of the floor is a generously sized studio which could function as a master suite sitting room, a home office/study or as an artist’s studio. The space overlooks the common rooms below, has loads of natural sunlight from the overhead skylights and there is private access to the outdoor deck which is also generously proportioned. This lovely home features an abundance of rustic charm, warmth and character and the floor plan is delightfully accommodating for small families and couples.
