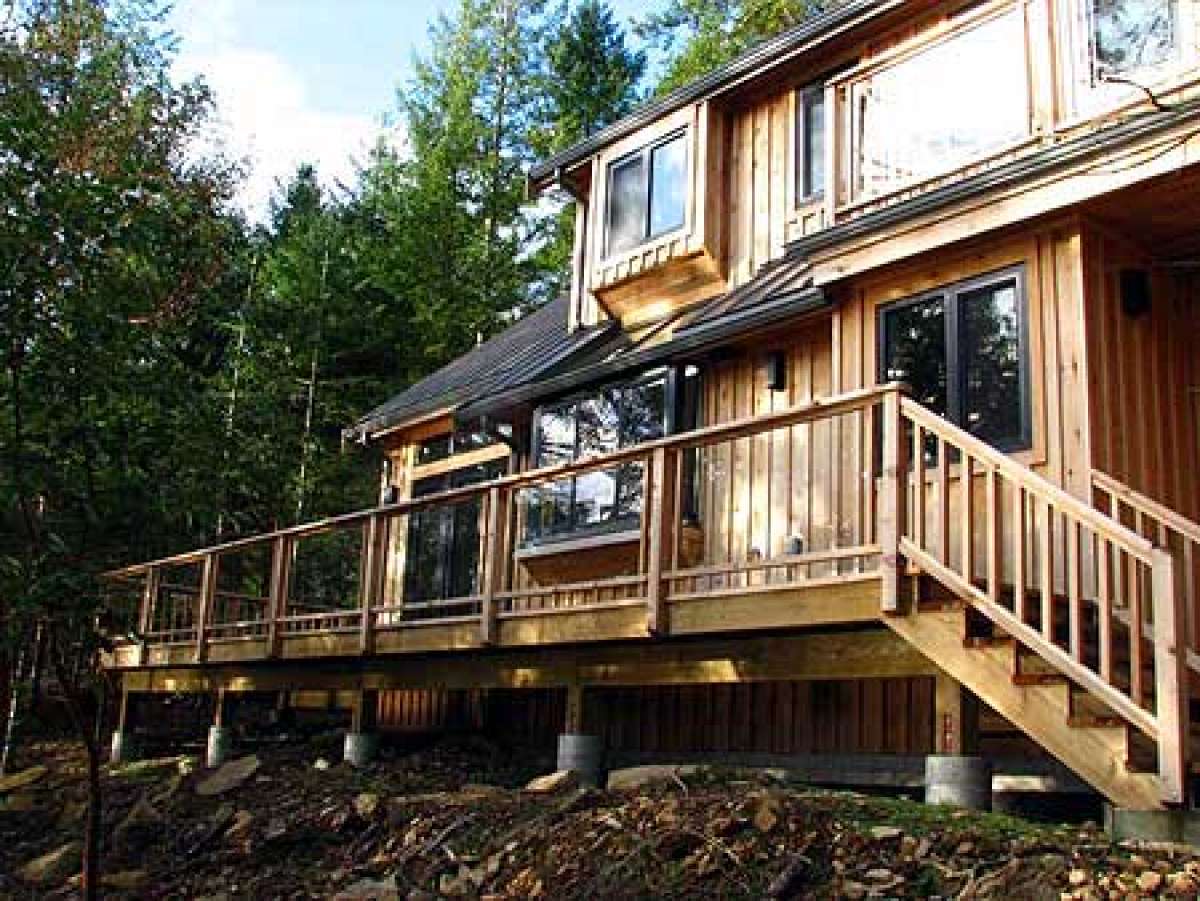

Vacation Plan 4177-00005

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,235
Beds 3
Bath 2
1/2 Baths 0
Car 0
Stories 2
Width 46'
Depth 30'

Floorplan Drawings

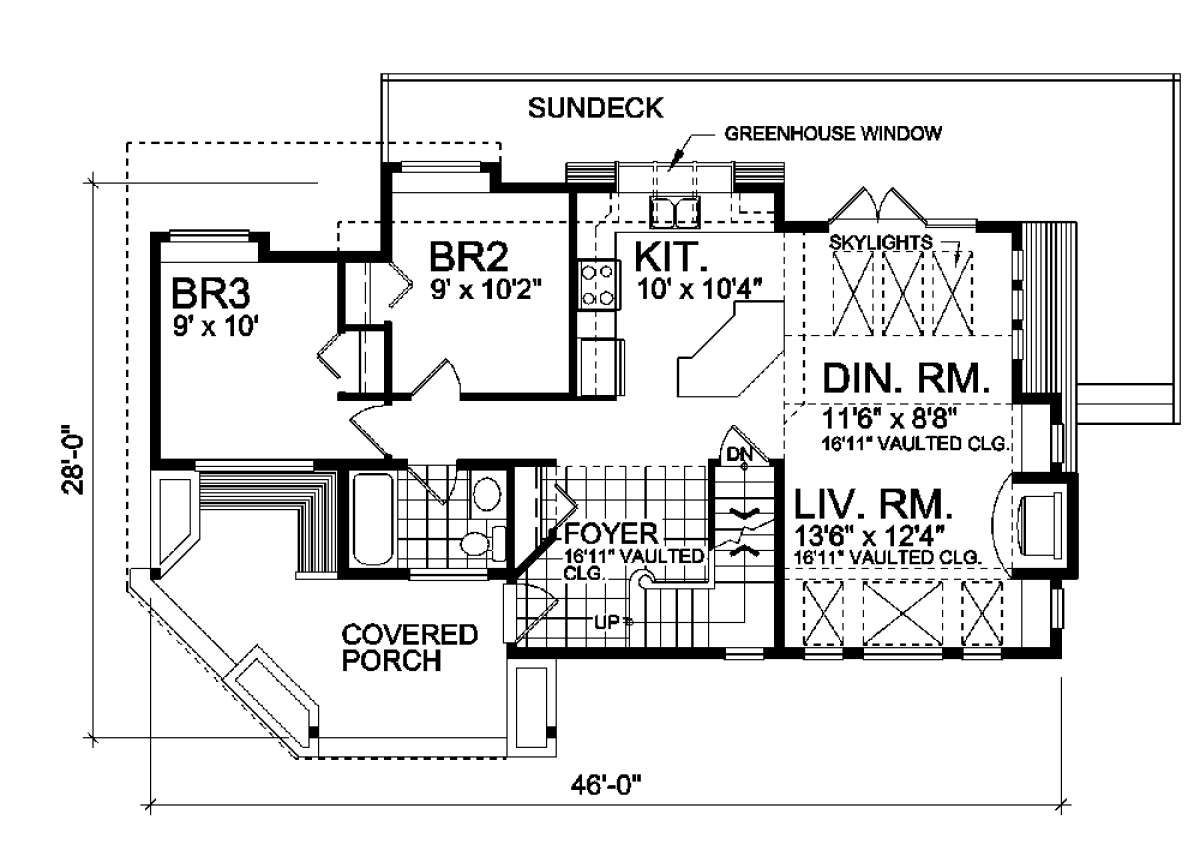

Floorplan 1
Floorplan 1 for House Plan #4177-00005

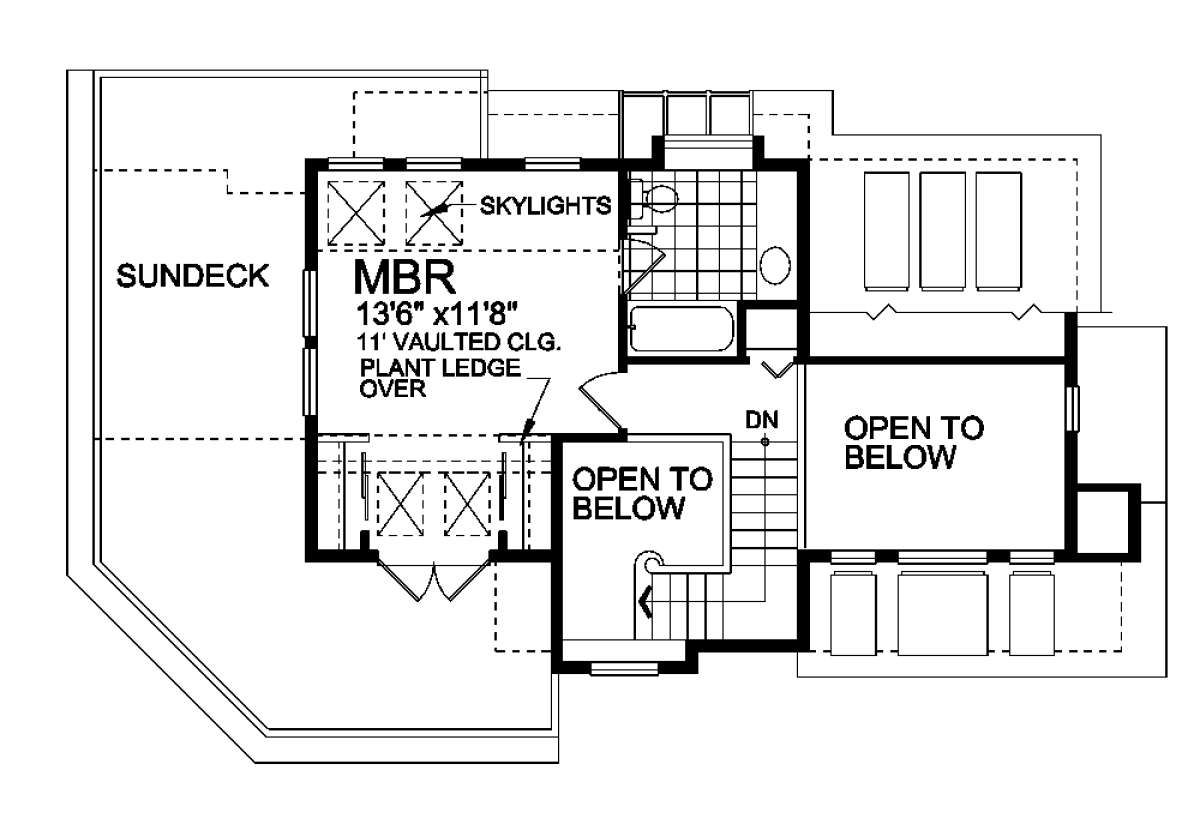

Floorplan 2
Floorplan 2 for House Plan #4177-00005


What's Included in these plans?

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan at 1/4"=1'-0". (Some plans have foundation options, client to specify at time of order.)
  • Main floor plan at 1/4"=1'-0".
  • Second floor plan at 1/4"=1'-0", if applicable.
  • Roof information indicated either on the floor plans or separate framing plans for complicated designs.
  • Electrical floor plans.
  • Minimum of two cross sections at 1/4"=1'-0".
  • Details as required.
  • All four elevations at 1/4"=1'-0".
  • Generic detail sheet.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Vacation house plan features 1,235 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
