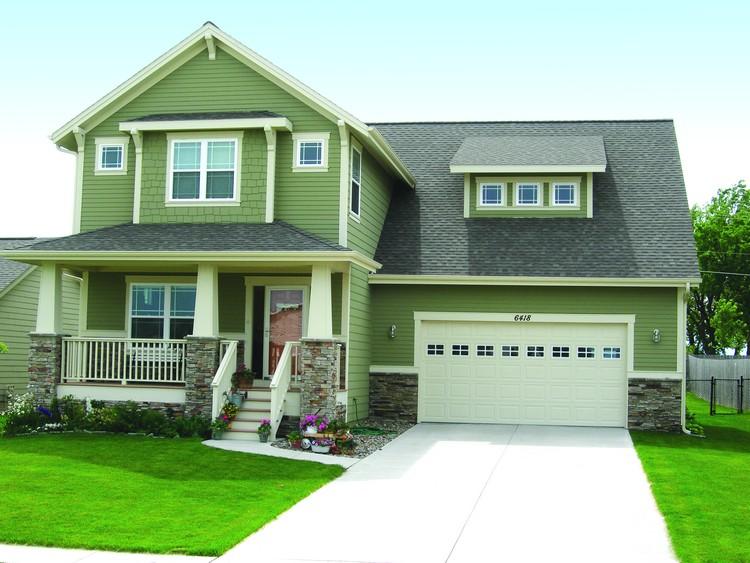

Craftsman House Plan #402-00900 Elevation Photo

Alternate Second Floor for House Plan #402-00900

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,568

Beds 3

Bath 2

1/2 Baths 1

Car 2

Stories 2

Width 40'

Depth 46'

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

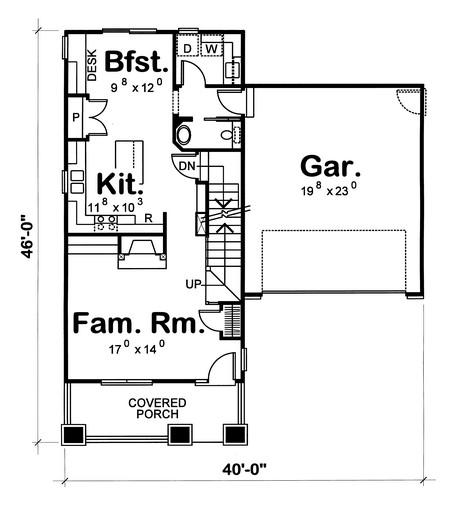

Main Floor

Second Floor

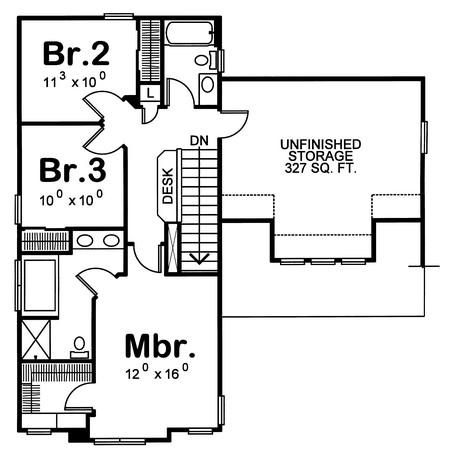

Alternate Second Floor

Images copyrighted by the designer.

What's Included in these plans?

Most plans include the following:
Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
Foundations. Foundations are engineered for each design, whether slab or basement, however they may not meet the requirements of your local code and may need additional engineering.
Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*
Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Full technical support is provided to purchasers of each plan to answer your plan-related questions.
*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Ask Us A Question

About This Plan

This warm, character filled front exterior is highlighted with a fabulous front covered porch detailed with open railing, stacked stone supports and tapered beams. Horizontal siding, a triple window dormer and cedar shakes continue the Craftsman theme and lend an authentic quality to the façade. The interior floor plan features approximately 1,568 square feet of living space and there is an additional 327 square feet in the second level bonus room. The home’s drawings also include a basement foundation for future expansion and the 40’ width and 46’ depth dimensions present possibilities for building on a narrow and/or small lot for urban living. The front covered porch opens onto the home’s spacious family room with handsome fireplace and built-in cabinetry. There is a centrally located staircase which offers access to the lower and upper level of the home in practical fashion. The grand kitchen is highlighted with a center island, a separate pantry and plenty of cabinet/counter space. Beyond the kitchen is a sun drenched breakfast room and access to the rear yard. The two car front loading garage features access into the home’s laundry room and guest powder room.
The second floor landing features a computer/study nook with a built-in desk area and simultaneous access to the bonus room. The bonus room offers privacy and plenty of space for a home office, a reading library or playroom for the children. The remainder of the floor features two spacious bedrooms with plentiful closet space, a hall linen closet and a shared hall bath with extended vanity. The master suite is situated at the hall end cap for privacy and is highlighted with great master bedroom window views, an attached walk-in master closet with plenty of space for clothing and accessories and an en suite bath. The master bath features modern amenities that today’s homeowners seek including dual vanities, a large soaking tub and separate shower. This home’s square footage is perfect for a small family and yet, yields an enormous amount of additional bonus space and unfinished basement space for future expansion.
