Narrow Lot House Plan 348-00198

Sq Ft2,510
Beds4
Baths3
1/2 Baths1
Stories1.5
Cars2
Width44' 0"
Depth80' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

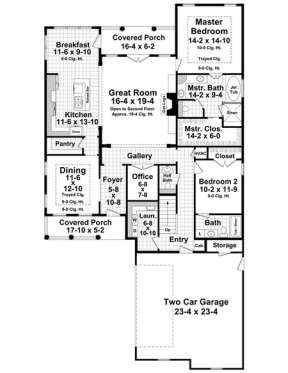

Main Floor for House Plan #348-00198

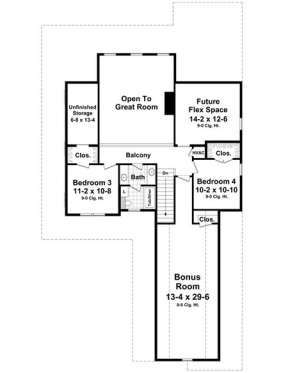

Second Floor for House Plan #348-00198
Main Floor
Main Floor for House Plan #348-00198
Second Floor
Second Floor for House Plan #348-00198


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautiful narrow lot design offers traditional neighborhood styling along with great floor plan features. The first floor includes a large great room complimented by two story ceilings, a gas log fireplace, built-in cabinets, and great views. A well-equipped kitchen offers easy access to the formal dining room as well as the casual breakfast area and large walk-in pantry. The master suite features a large walk-in closet, trayed ceiling, dual vanities, jet tub, and separate shower. A guest bedroom is also provided on the first floor with private bath. A large laundry room and half bath are also provided with easy access to the two car garage with additional storage. Two covered porches also provide the perfect environment for outdoor entertaining. The second floor boasts two well-sized bedrooms complete with ample closet space and plenty of room for additional storage or expansion. The functional floorplan and attractive exterior combine to make this a plan that you and your family can be proud to call home.
