Narrow Lot House Plan 348-00041

Sq Ft1,650
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width35' 0"
Depth73' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

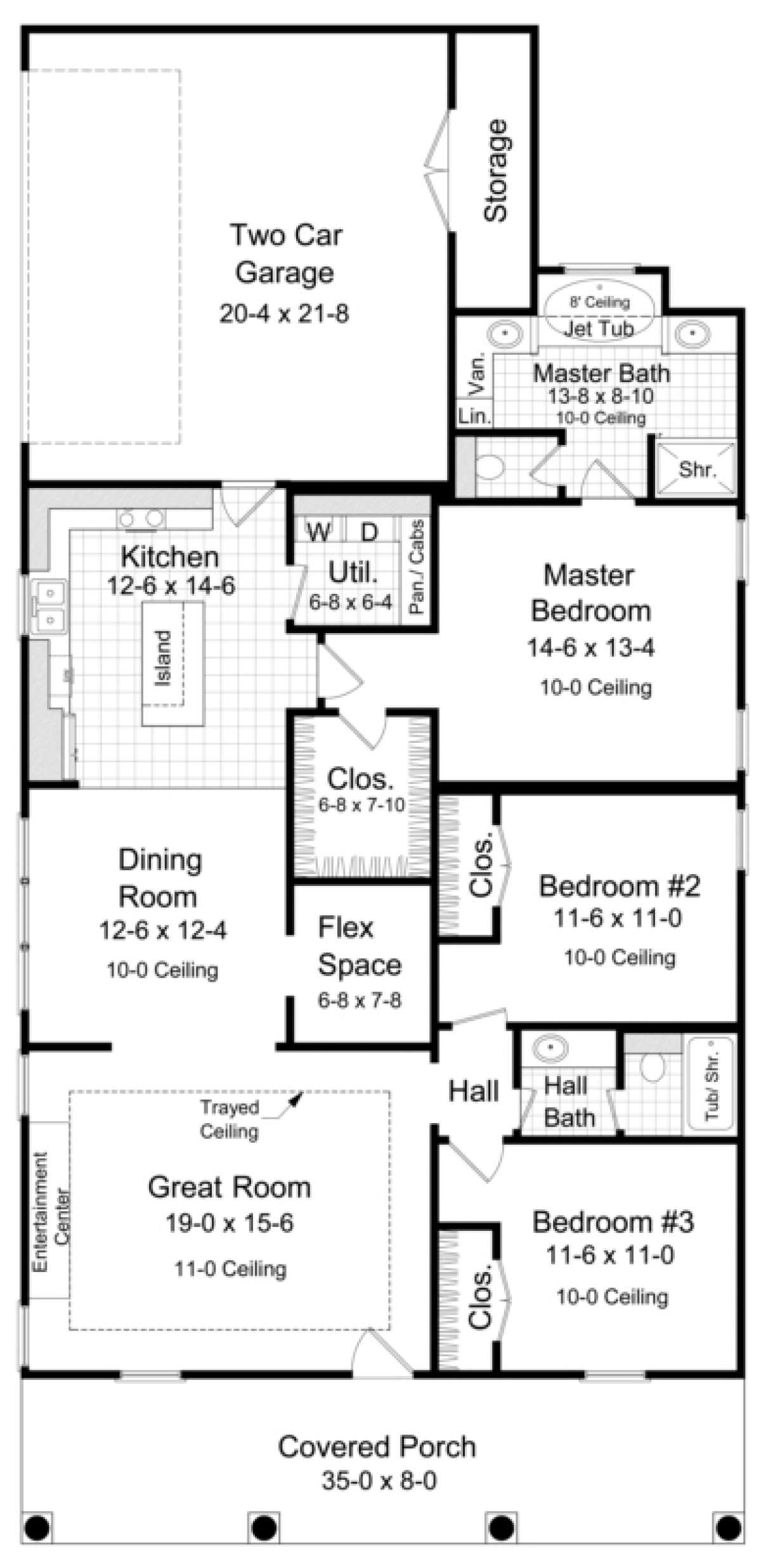

Main Floor for House Plan #348-00041
Main Floor
Main Floor for House Plan #348-00041


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

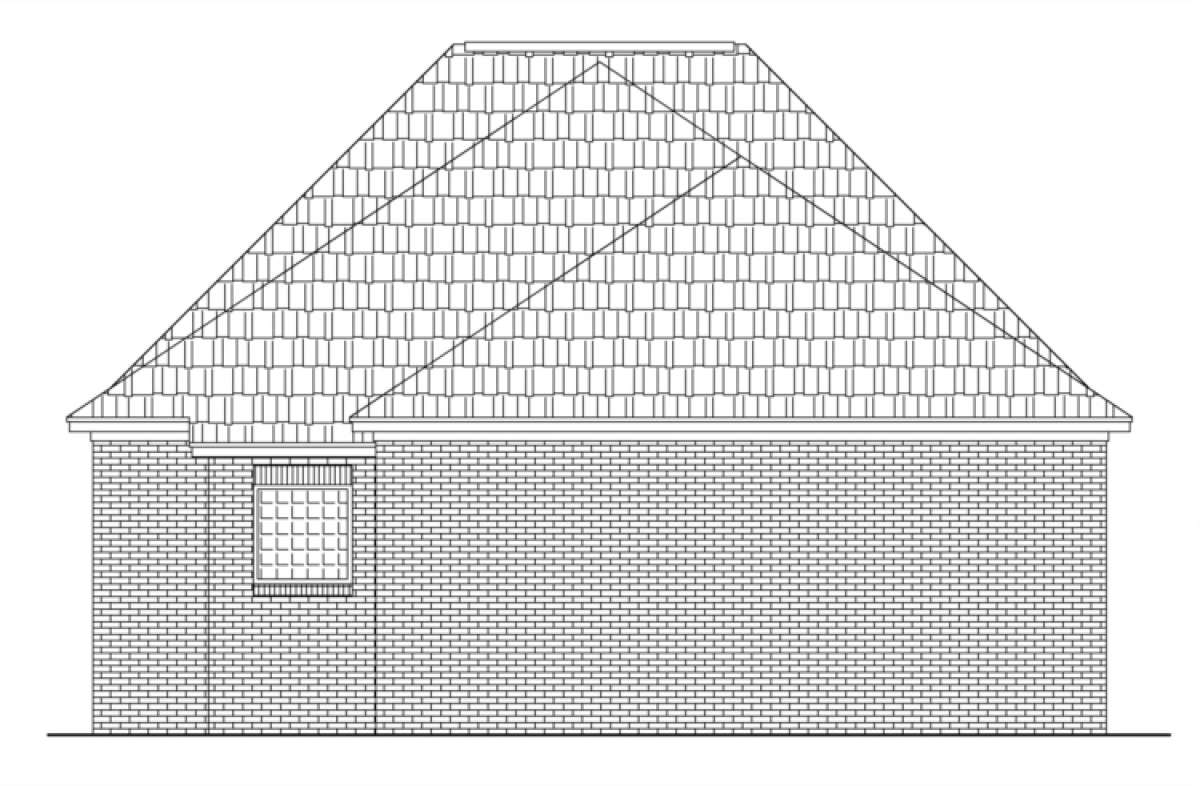

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch style home features a classic interior design and aesthetically pleasing exterior; perfect for a narrow lot. From the stately front porch, you enter into a beautifully appointed great room with a trey ceiling and built-in entertainment center. The open concept design is continued into the dining room and extends into the kitchen. The kitchen is large with an island featuring a raised bar area to accommodate a large gathering of family and/or friends. The kitchen includes a plethora of cabinets and counter space making for a large, functional space for entertaining or everyday living. The laundry room is located off the kitchen and there is a an additional flex space off the dining room making this home truly functional for family enjoyment. Two bedrooms and a bath are located towards the front of the home and the master is secluded towards the back. The master bath includes a jetted tub, separate shower and dual vanities. The two car garage is located at the side of the home and offers additional storage space at the back of the garage. This home offers many amenities you would find in much larger homes and affords the homeowner luxury design and efficiency.
