Country Plan 341-00004

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,570
Beds 5
Bath 3
1/2 Baths 0
Car 2
Stories 2
Width 40'
Depth 83'

Floorplan Drawings

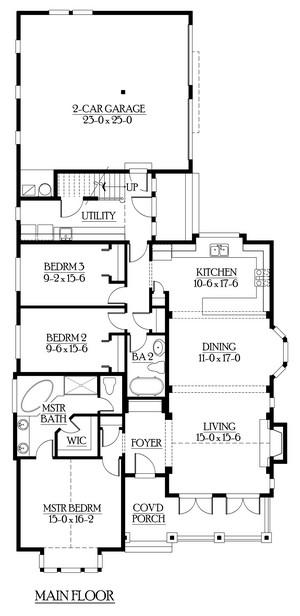

Floorplan 1
Floorplan 1 for House Plan #341-00004

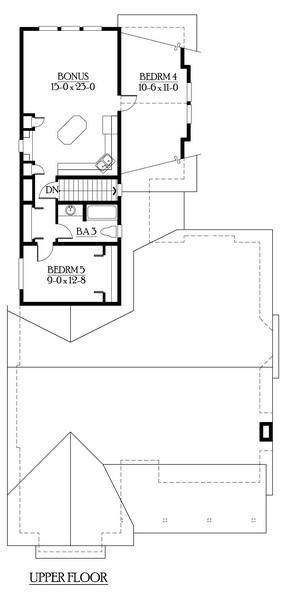

Floorplan 2
Floorplan 2 for House Plan #341-00004


What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.
  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Plan FAQs

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.

Generous interior and exterior proportions are found in this lovely Country house plan. The front covered porch is deep set offering plenty of space to relax, visit with neighbors and greet family and friends as they enter the home. Additionally, clean lines accent the home and the stone chimney features adds visual interest and a focal point. The multiple gables are lined with exposed rafters and wide eaves which blend beautifully with the remainder of the exterior. The interior of the home features compelling space and an abundance of room to entertain; there are approximately 2,570 square feet of usable living space with five bedrooms and three baths. The two car garage is side loading and positioned at the rear of the home for unobstructed sight lines and the home design is a perfect match for a narrow lot with its 40’ width dimension. The front covered porch features triple entry/exit points into the living room; there are a set of double French doors and the main foyer entrance. The living room is spacious with a warming fireplace and columned beams separate the space between the living and dining rooms. Again, the dining room is great space and features the added elegance of a large bay window before opening onto the kitchen where there is a tremendous sized peninsula bar, plenty of counter/cabinet space and a separate pantry. There is an oversized laundry room directly off the garage and two bedrooms as well which could be utilized as guest rooms, a craft/hobby room or a home office. Nearby is a full bath and a hall linen closet. The master suite is situated on this floor and is highlighted with great floor space and a “bump out” surrounded by window views. There is an attached master walk-in closet and an en suite bath featuring a corner garden tub, a separate shower, dual vanities and a compartmentalized toilet.
Upstairs, are two family styled bedrooms and a shared bath with an extended vanity area. Between the two bedrooms is an enormous bonus space measuring in excess of 15’x23’. This would make a great teen-age lounge where young people could gather to “hang out” or watch movies. The entire second floor could function as a self-contained suite whether for older children or as a private in-law suite. This beautiful home has a functional and versatile floor plan and an exterior that is utterly delightful.
