Contemporary Recreation Plan 2802-00304

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 518
Fin Sq Ft 0
Bath 0
1/2 Baths 1
Width 20' 4"
Depth 25' 4"

Floorplan Drawings

Main Floor
Main Floor  for House Plan #2802-00304


What's Included in these plans?

  • Notes
  • Foundation/Basement Layout
  • Main Floor Layout
  • Upper Floor Layout (If Applicable)
  • Main Floor Floor Framing
  • Upper Floor Floor Framing (If Applicable)
  • Roof Framing
  • Front/Rear Elevations
  • Left Right Elevations
  • Cross Sections
  • Main Floor Electrical
  • Basement Electrical
  • Upper Floor Electrical (If Applicable)
  • Details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

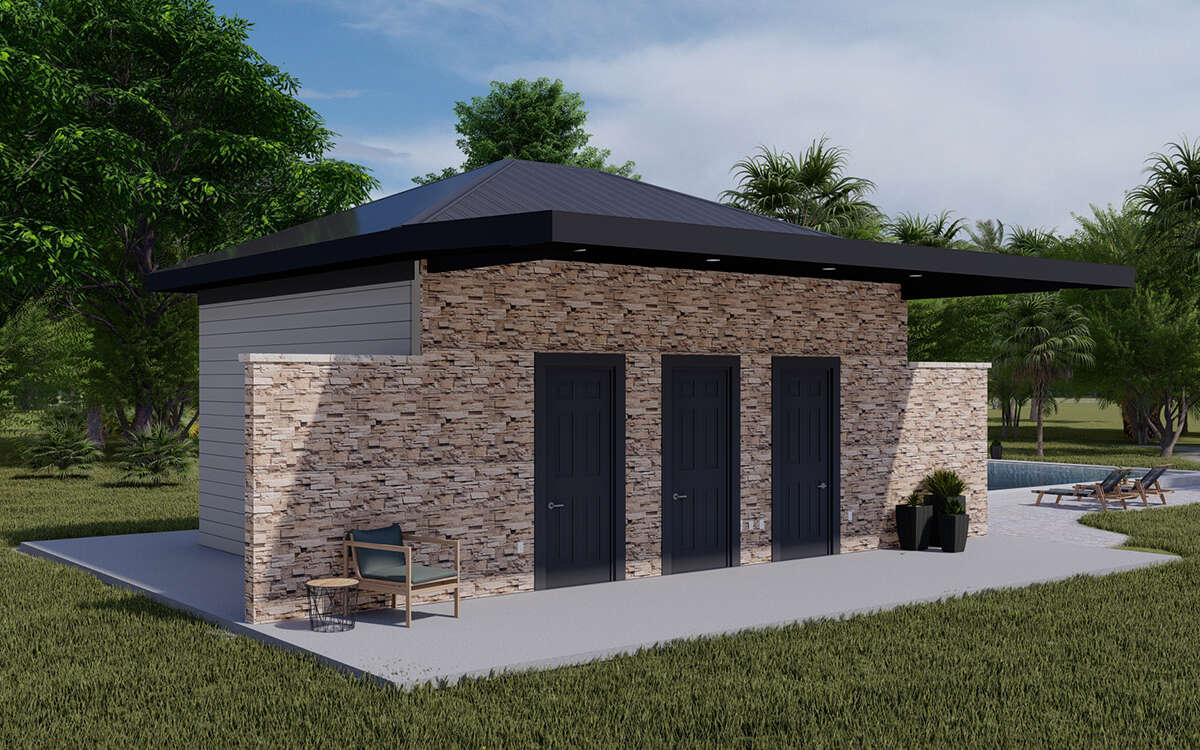

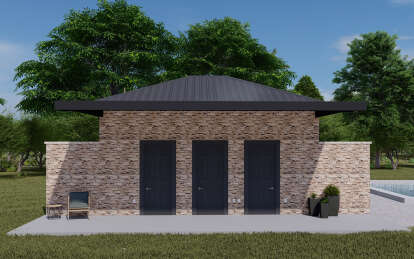

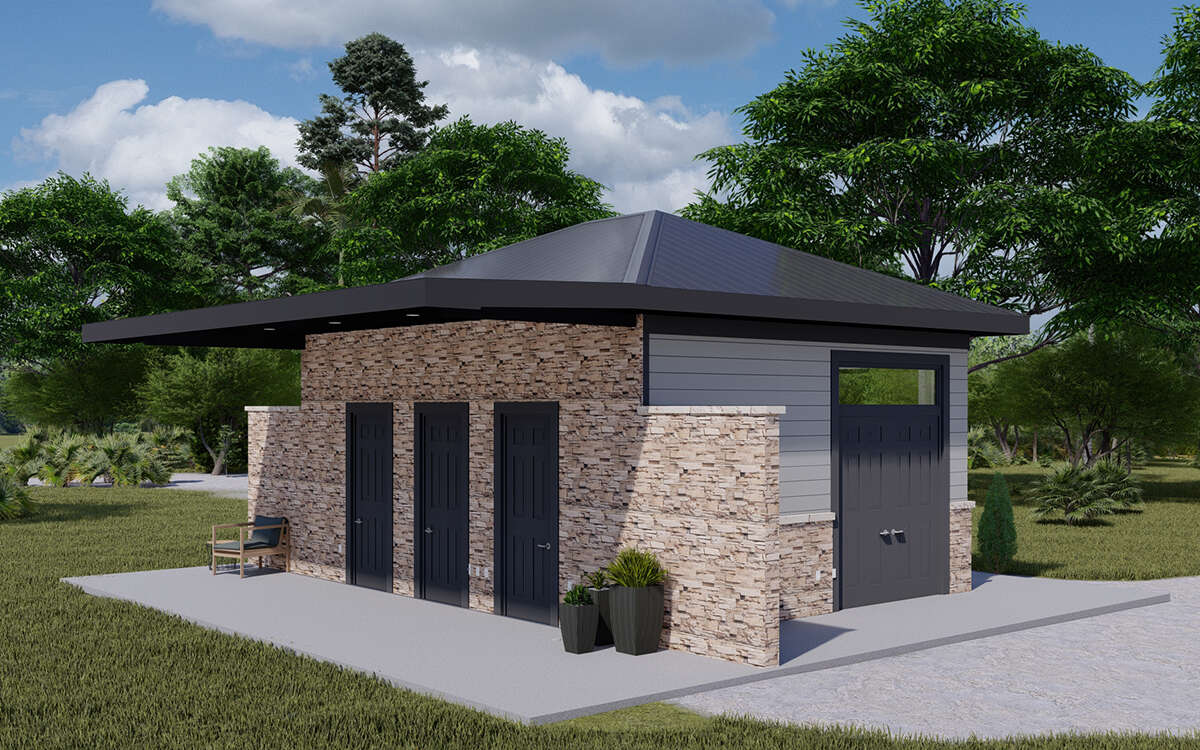

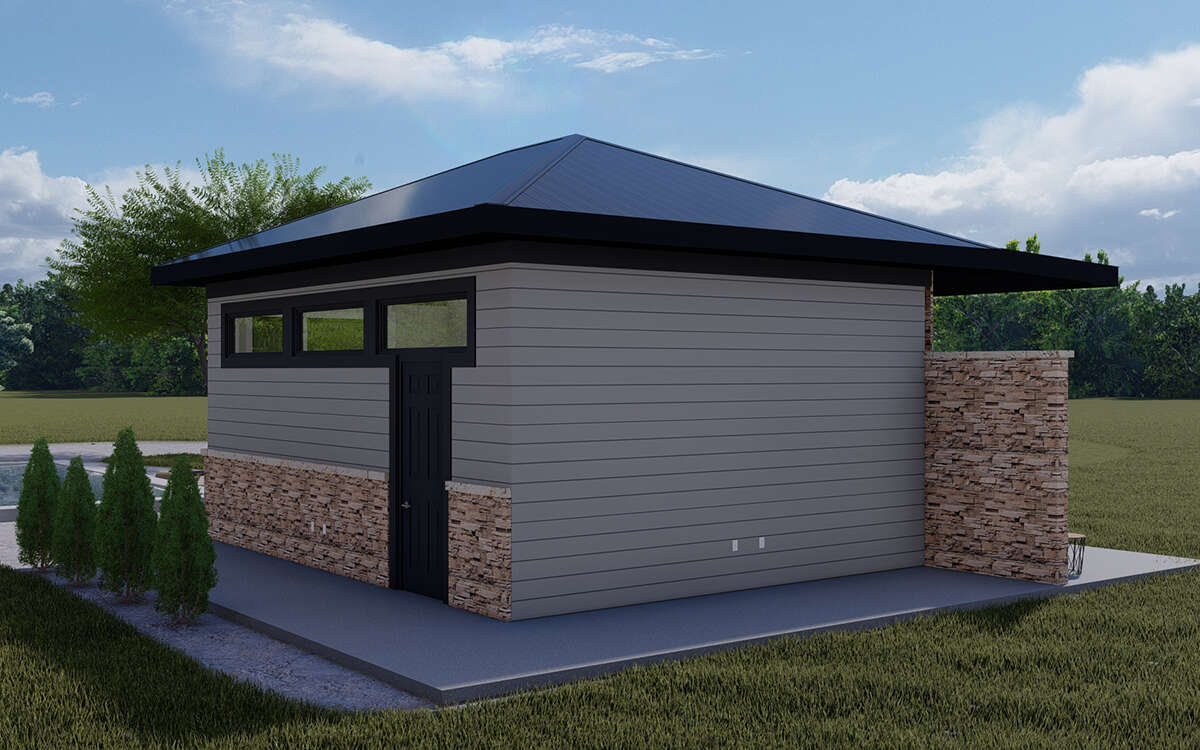

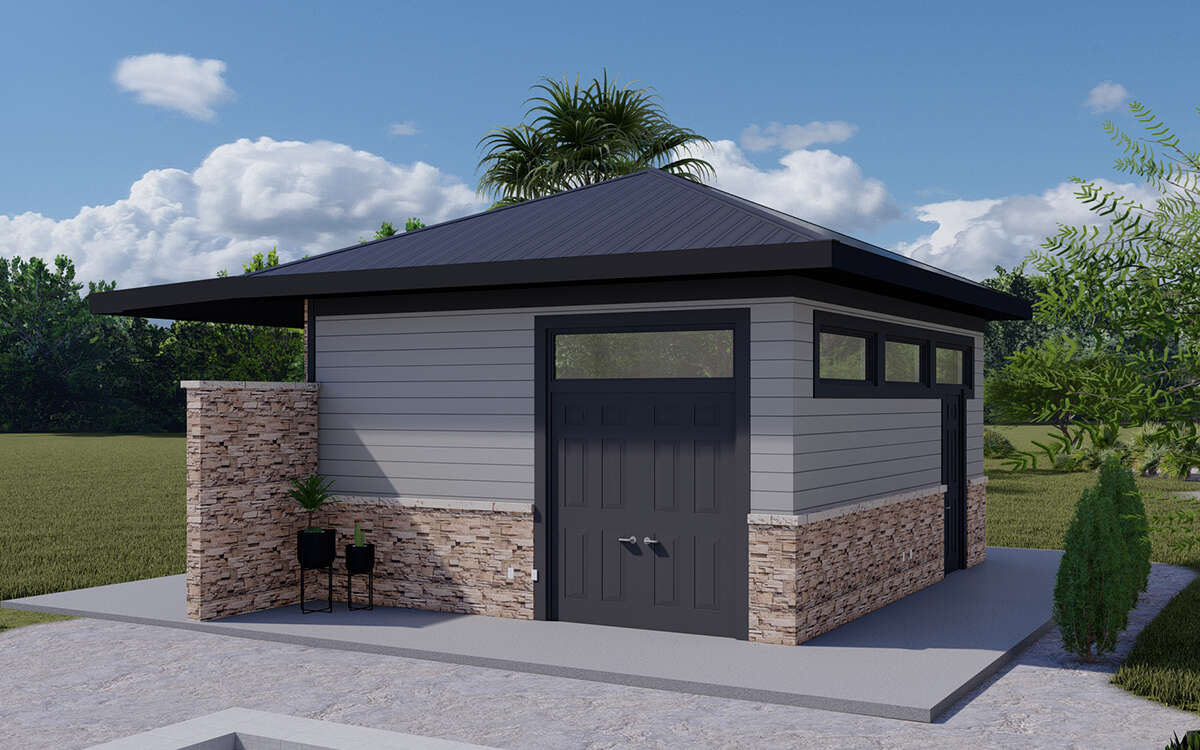

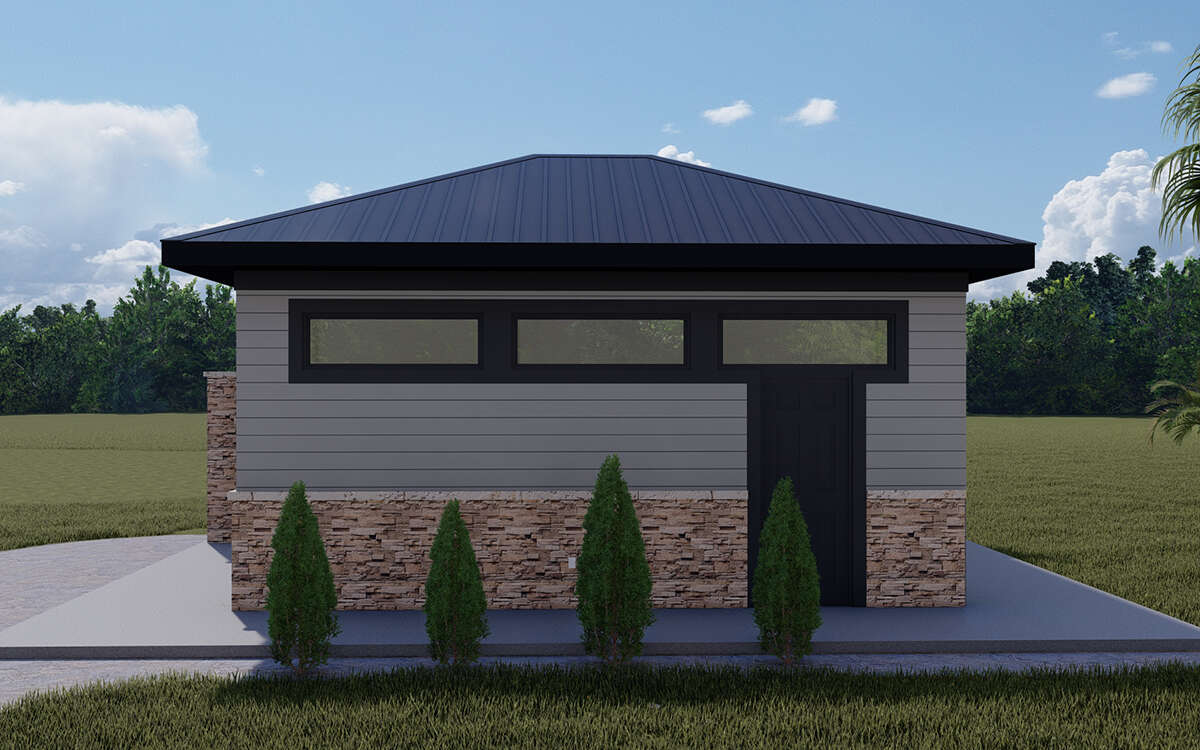

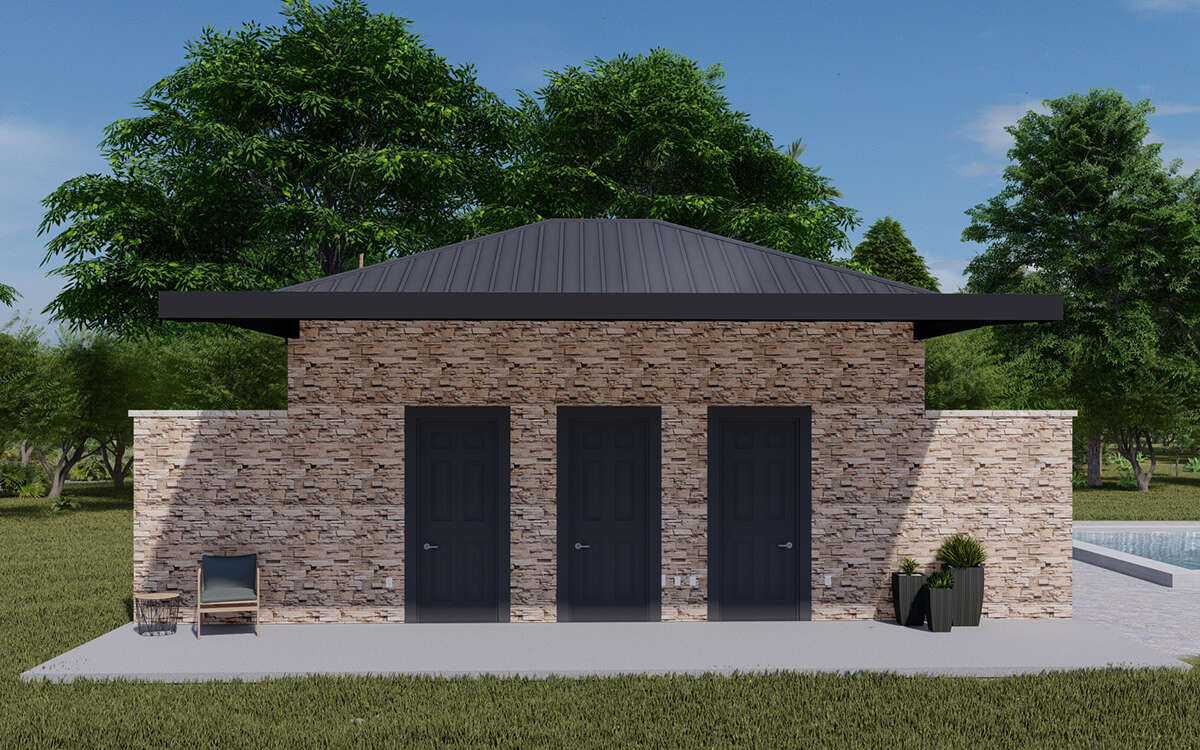

This Contemporary Recreation Plan offers a total covered area of 518 sq. ft. Plan 2802-00304 has the following features: Storage, Bathroom and Pool House. America's Best House Plans offers high-quality Recreation plans from professional architects and home designers across the country with a best-price guarantee. All of our Recreation Plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
