Traditional Recreation Plan 2802-00287

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 384
Fin Sq Ft 0
Bath 0
1/2 Baths 0
Width 16'
Depth 24'

Floorplan Drawings

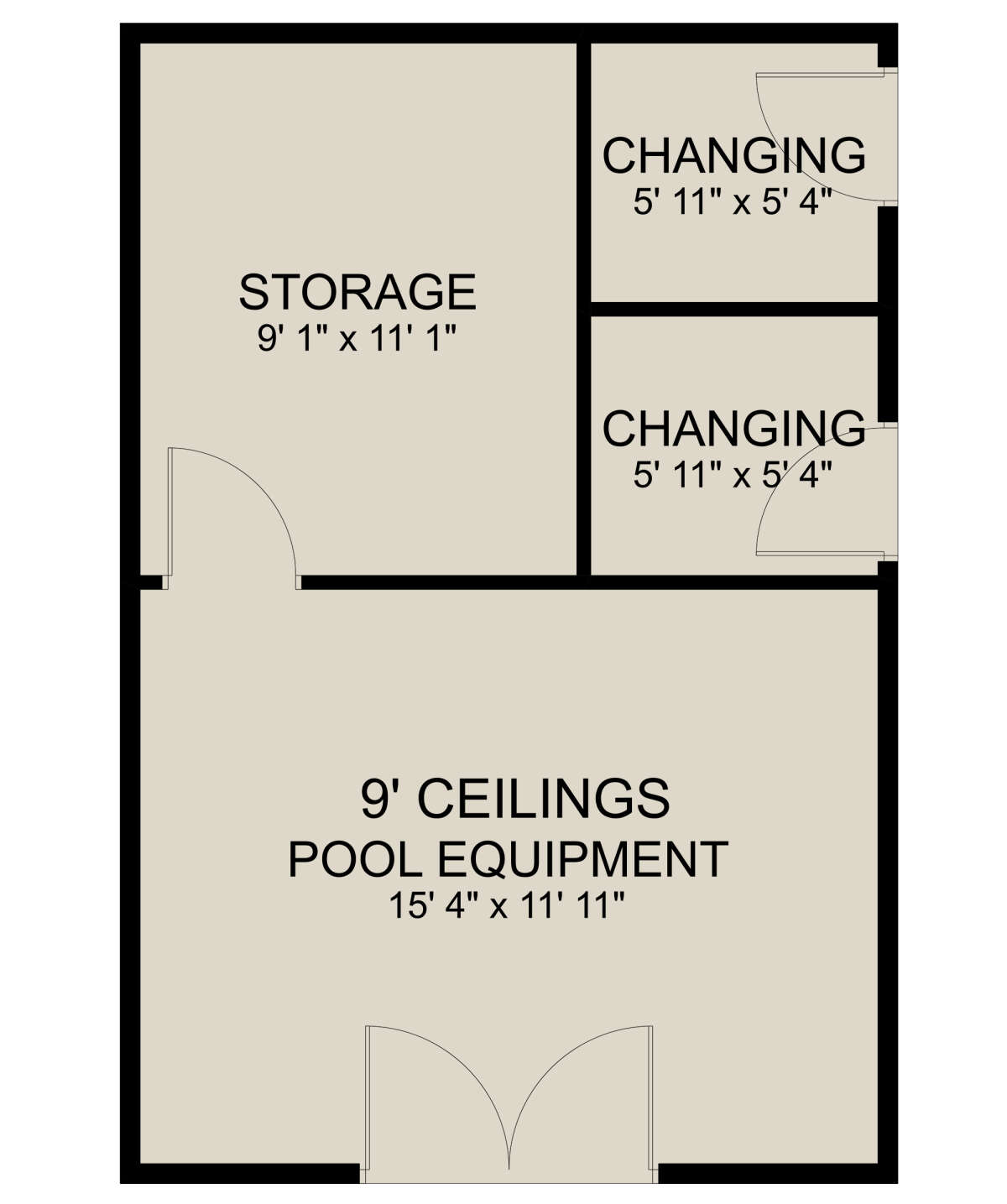

Main Floor
Main Floor  for House Plan #2802-00287


What's Included in these plans?

  • Notes
  • Foundation/Basement Layout
  • Main Floor Layout
  • Upper Floor Layout (If Applicable)
  • Main Floor Floor Framing
  • Upper Floor Floor Framing (If Applicable)
  • Roof Framing
  • Front/Rear Elevations
  • Left Right Elevations
  • Cross Sections
  • Main Floor Electrical
  • Basement Electrical
  • Upper Floor Electrical (If Applicable)
  • Details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Traditional Recreation Plan offers a total covered area of 384 sq. ft. Plan 2802-00287 has the following features: Storage and Pool House. America's Best House Plans offers high-quality Recreation plans from professional architects and home designers across the country with a best-price guarantee. All of our Recreation Plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
