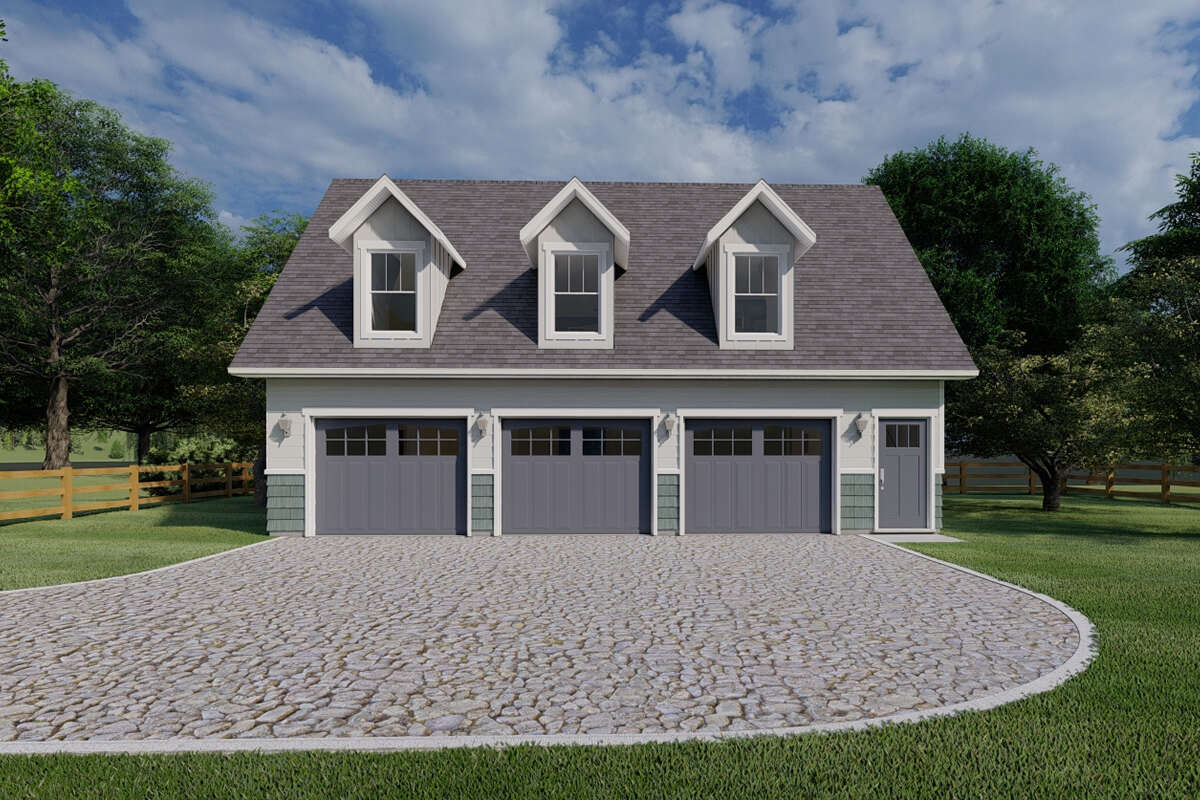

Craftsman Garage Plan 2699-00052

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 1,109
Fin Sq Ft 1,123
Cars 3
Beds 2
Width 40'
Depth 30'

Floorplan Drawings

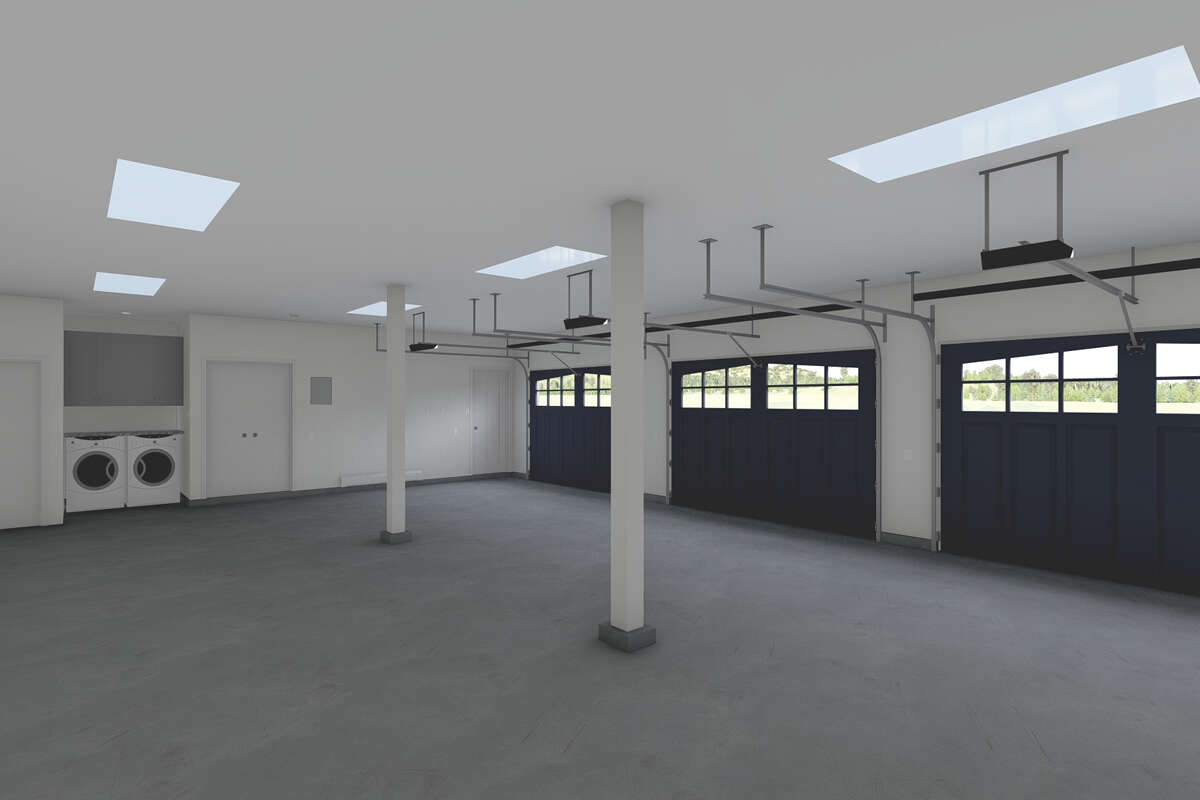

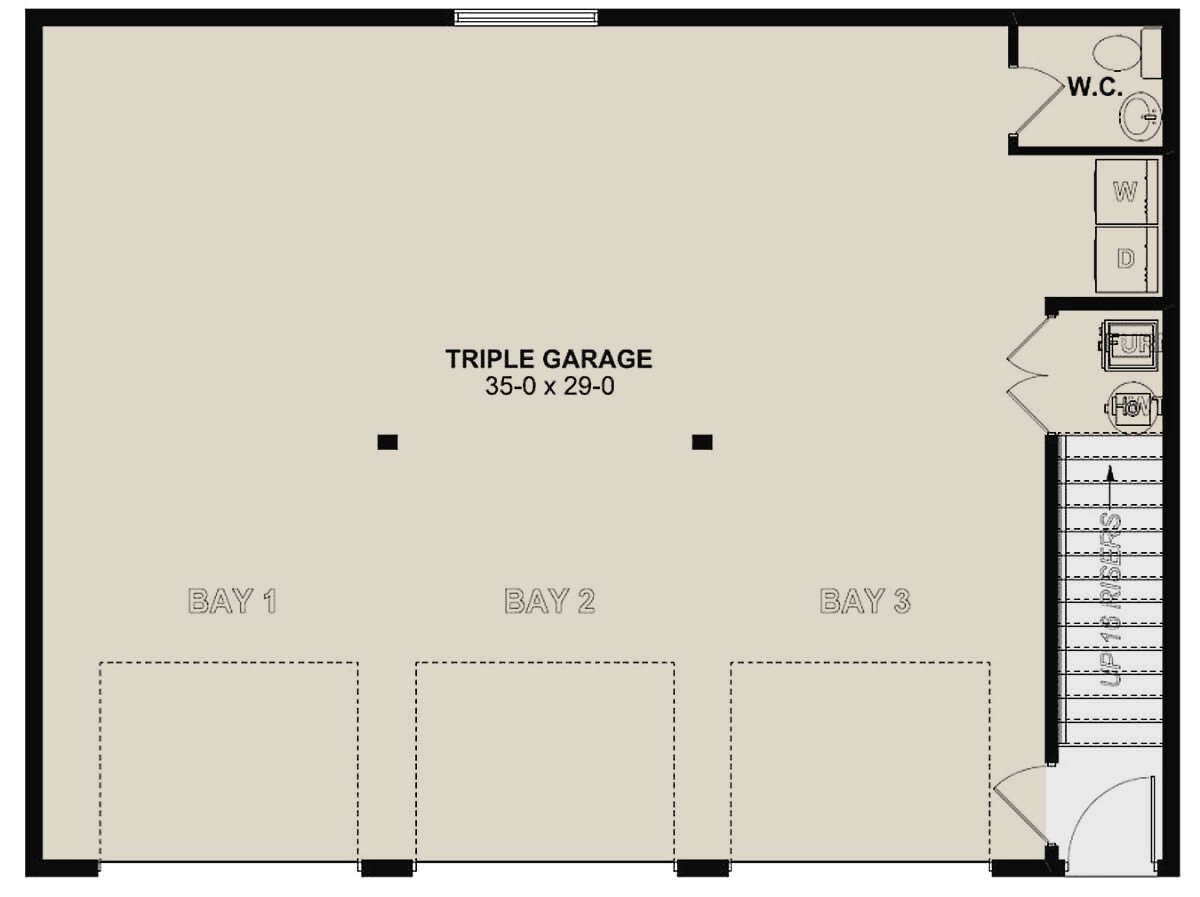

Garage Floor
Garage Floor for House Plan #2699-00052

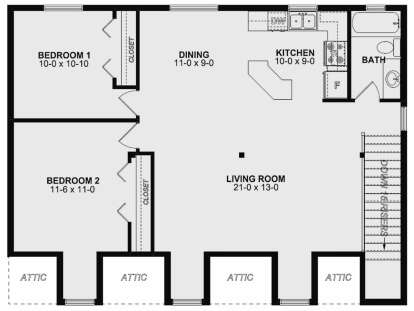

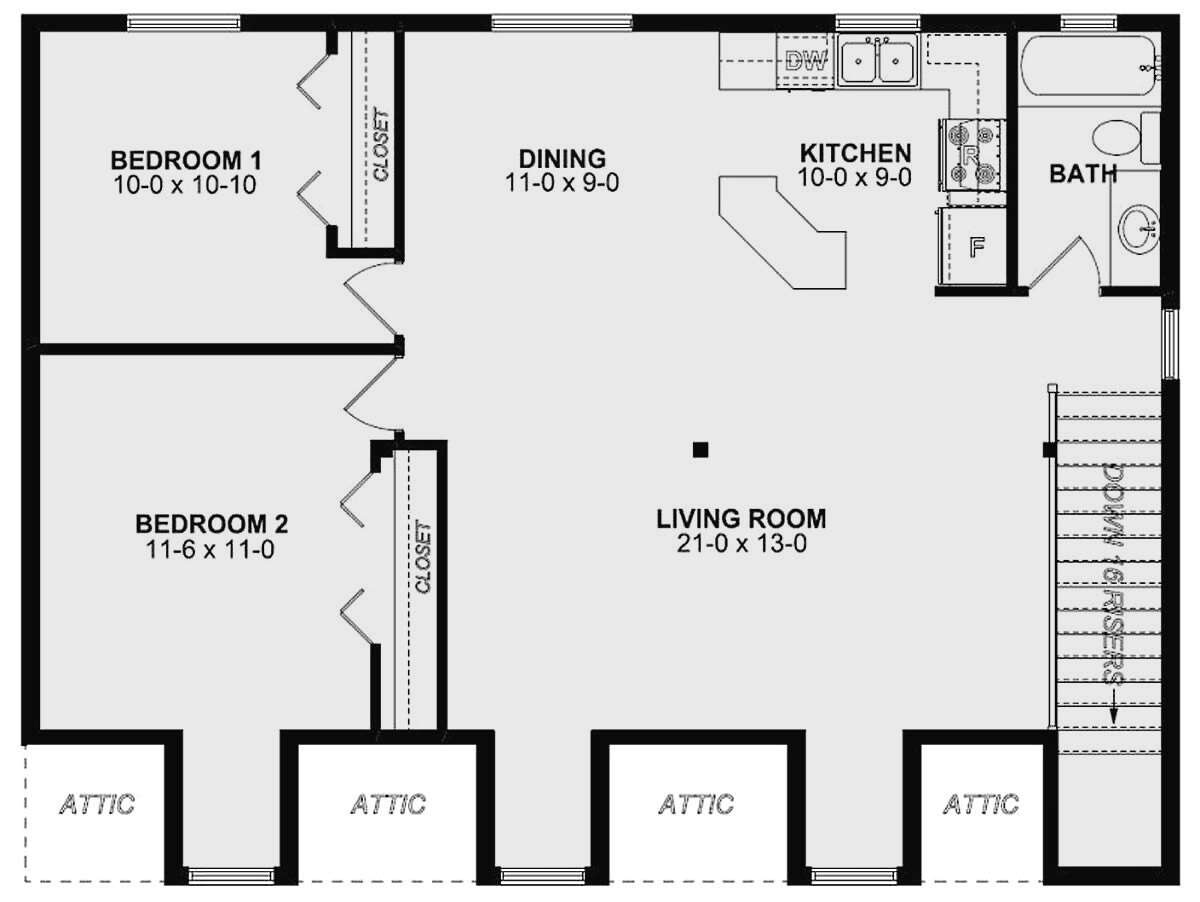

Second Floor
Second Floor for House Plan #2699-00052


What's Included in these plans?

  • Cover Sheet
  • Foundation Plan
  • Floor Plan(s)
  • Exterior Elevations
  • Roof Plan
  • Building Section(s) and Wall Section(s)
  • Construction Notes
  • Staircase Details
  • Electrical Plan

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 Car Craftsman Garage Plan features 1,109 unfinished sq. ft., and 1,123 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
