Craftsman Garage Plan 2559-00664

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 0
Fin Sq Ft 1,000
Cars 1
Beds 0
Width 20'
Depth 53'

Floorplan Drawings

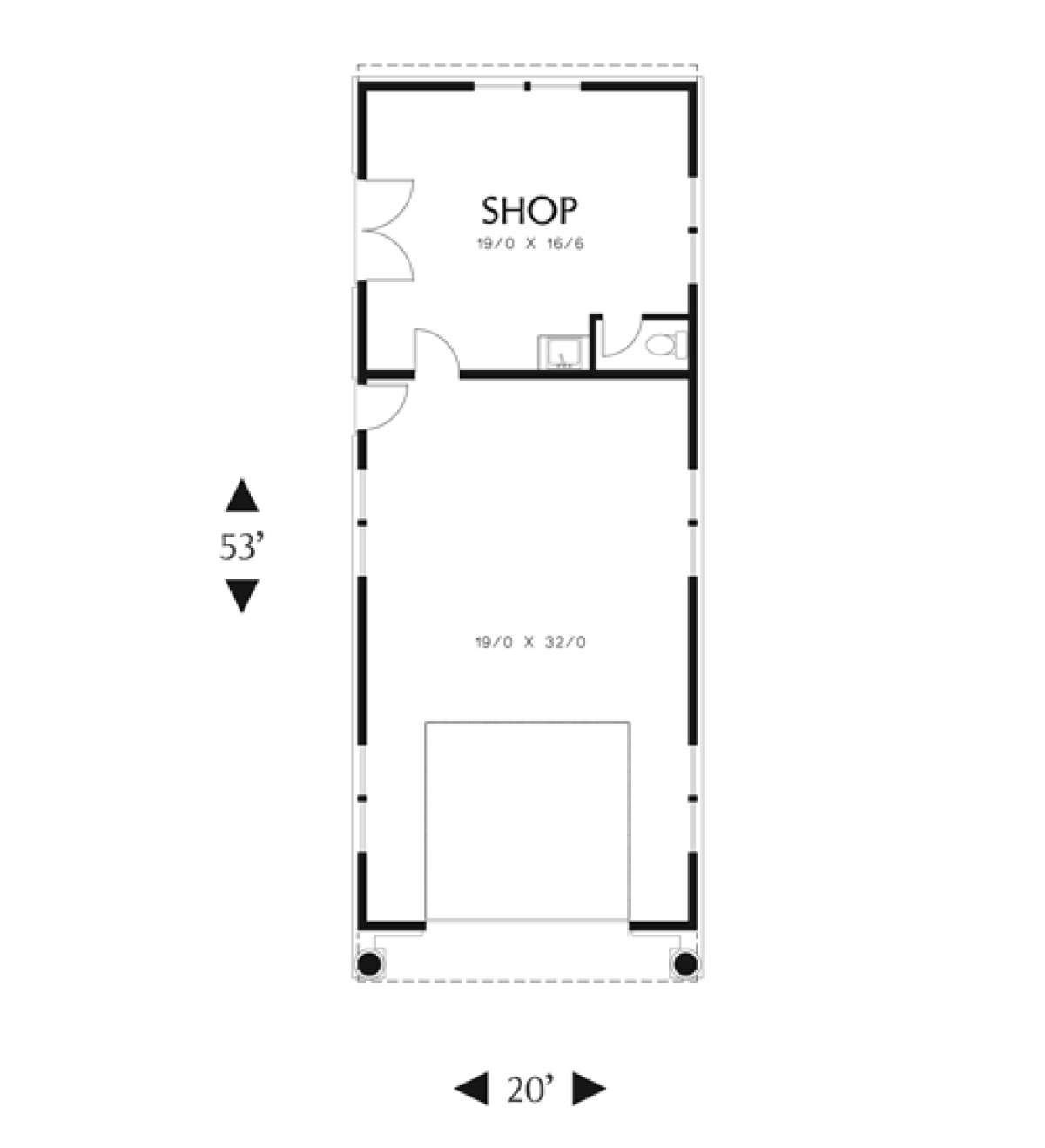

Floorplan 1
Floorplan 1 for House Plan #2559-00664


What's Included in these plans?

  • Exterior Elevations - all at 1/4" scale and - usually two sheets.
  • Floor Plans - fully detailed with structural elements sized.
  • Cabinet Elevations - often included on the floor plans.
  • Electrical Fixture Layout - usually included on the floor plans.
  • Foundation Plan - crawlspace is standard but basements & slabs are available.
  • Wall Section - usually included on the foundation plans.
  • Building Sections - usually at least three or four but most different conditions are illustrated.
  • Roof Plan - 1/4" scale with structural sizes and often including both tile & comp/shake versions.
  • General Notes & Details - includes structural and insulation specifications and standard details.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 1 Car Craftsman Garage Plan features 0 unfinished sq. ft., and 1,000 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
