Narrow Lot House Plan 2559-00045

Sq Ft1,520
1/2 Baths0
Width38' 0"
Depth72' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

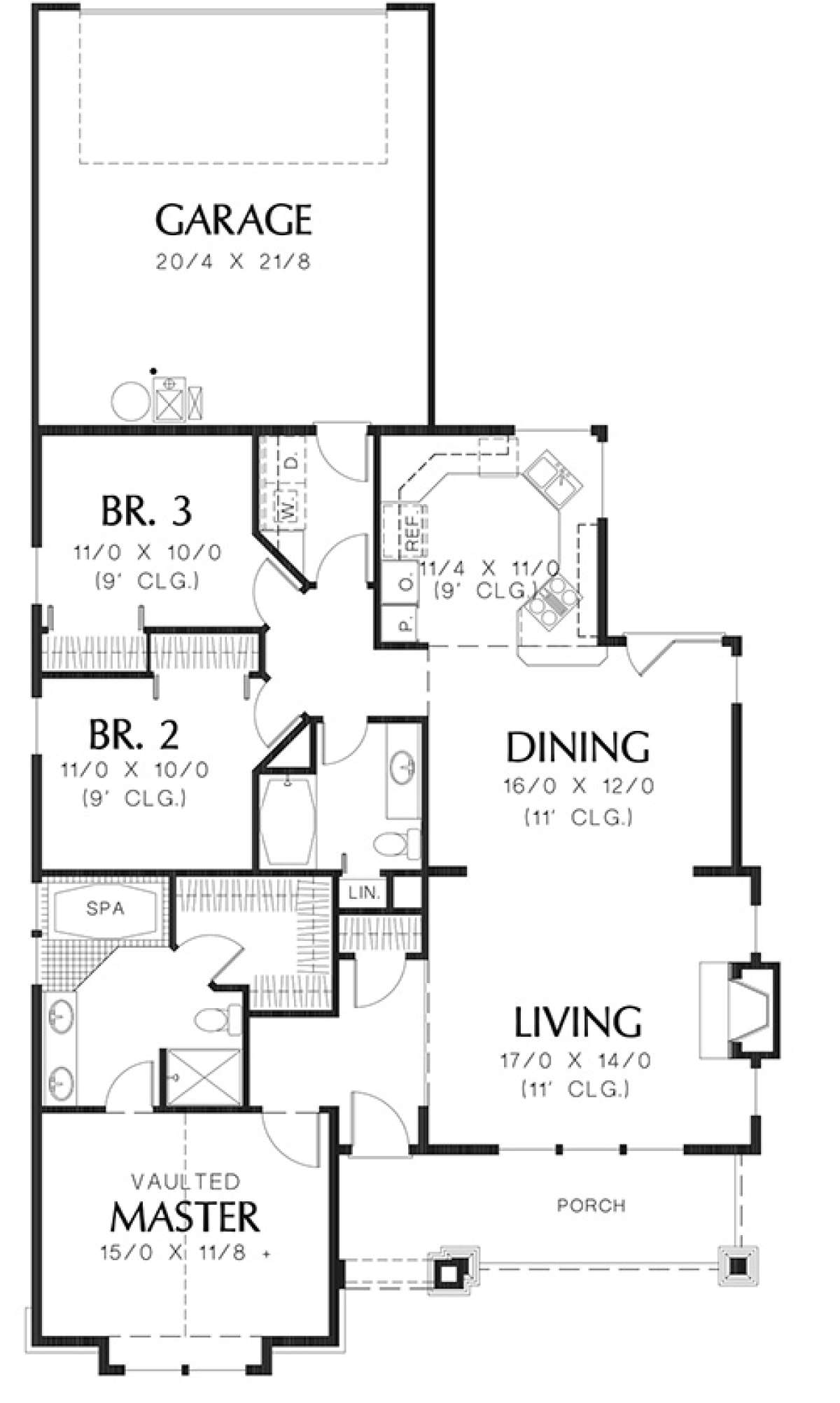

Floorplan 1 for House Plan #2559-00045
Floorplan 1
Floorplan 1 for House Plan #2559-00045

Frequently Asked Questions


What's Included in these plans?

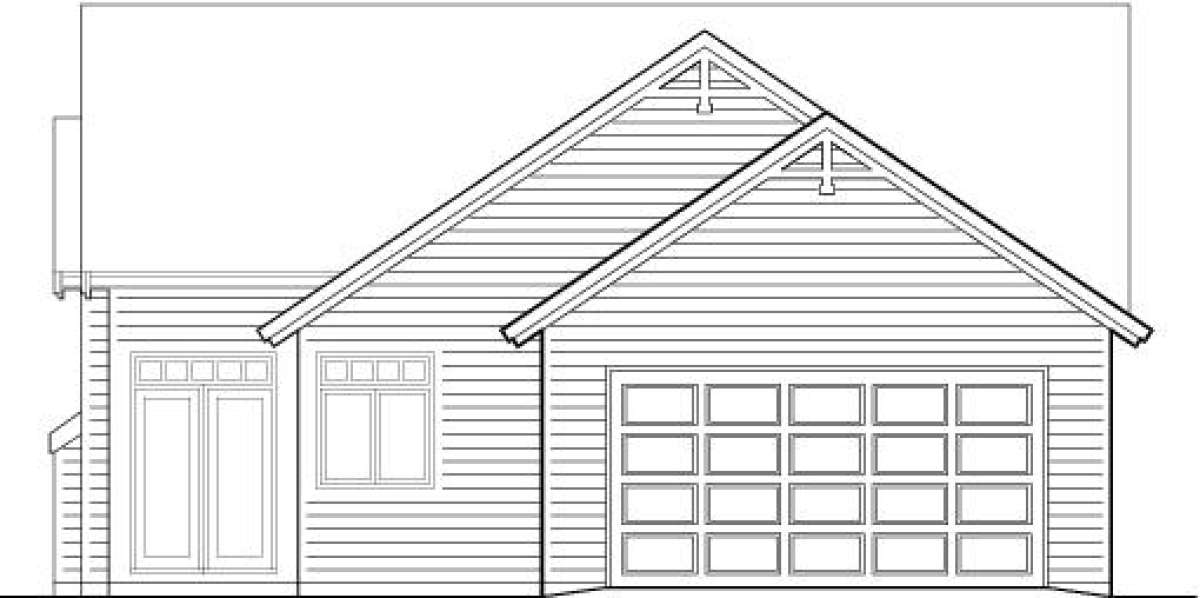

  • Exterior Elevations - all at 1/4" scale and - usually two sheets.
  • Floor Plans - fully detailed with structural elements sized.
  • Cabinet Elevations - often included on the floor plans.
  • Electrical Fixture Layout - usually included on the floor plans.
  • Foundation Plan - crawlspace is standard but basements & slabs are available.
  • Wall Section - usually included on the foundation plans.
  • Building Sections - usually at least three or four but most different conditions are illustrated.
  • Roof Plan - 1/4" scale with structural sizes and often including both tile & comp/shake versions.
  • General Notes & Details - includes structural and insulation specifications and standard details.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

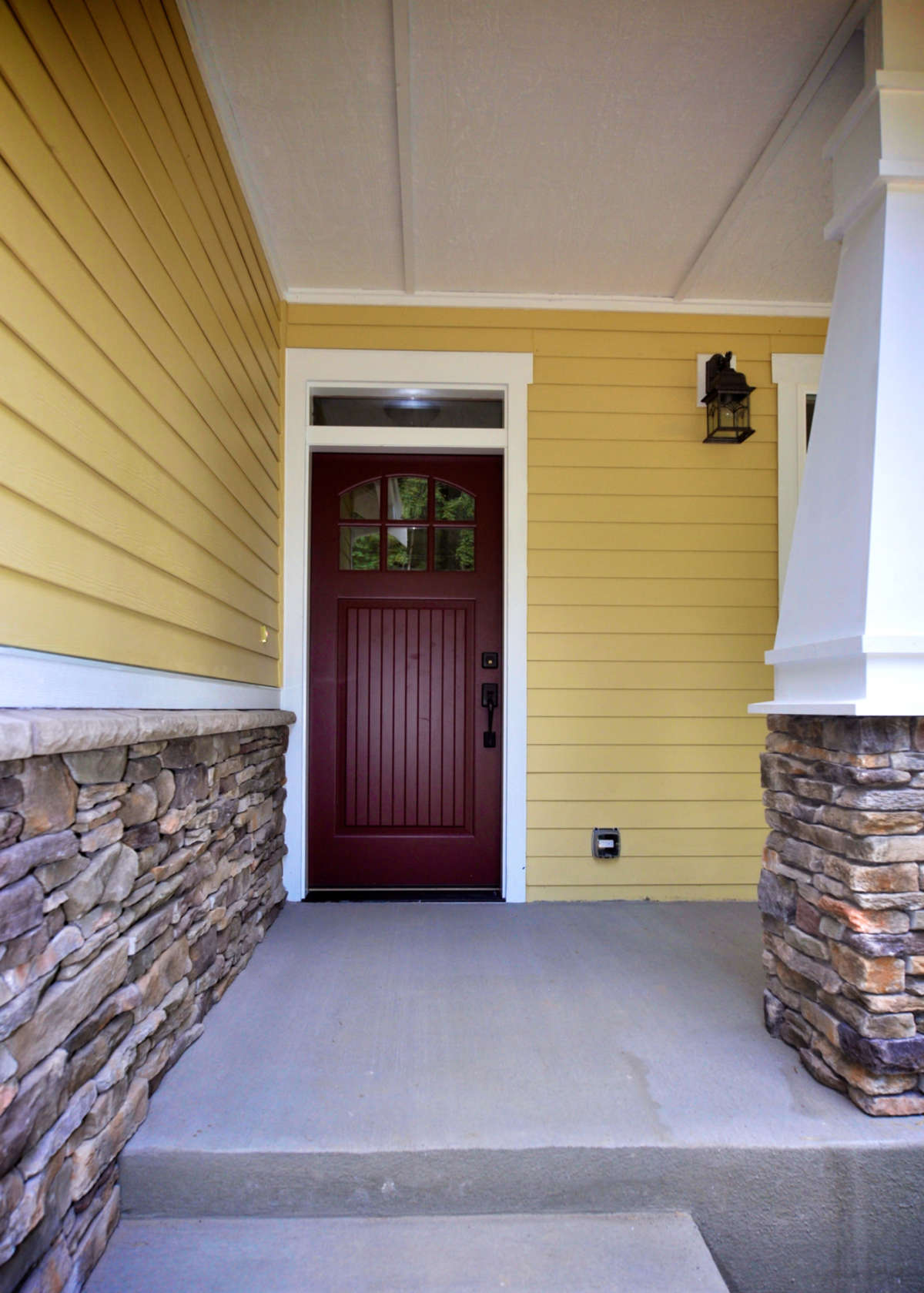

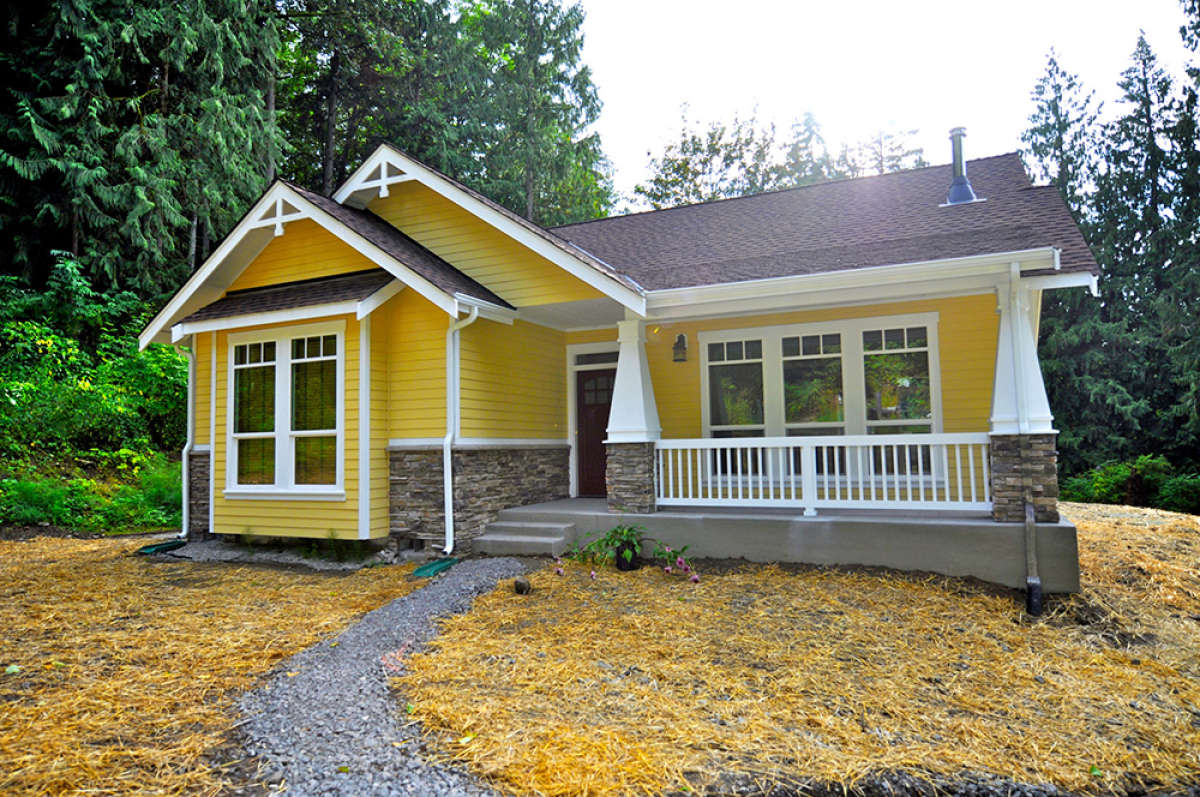

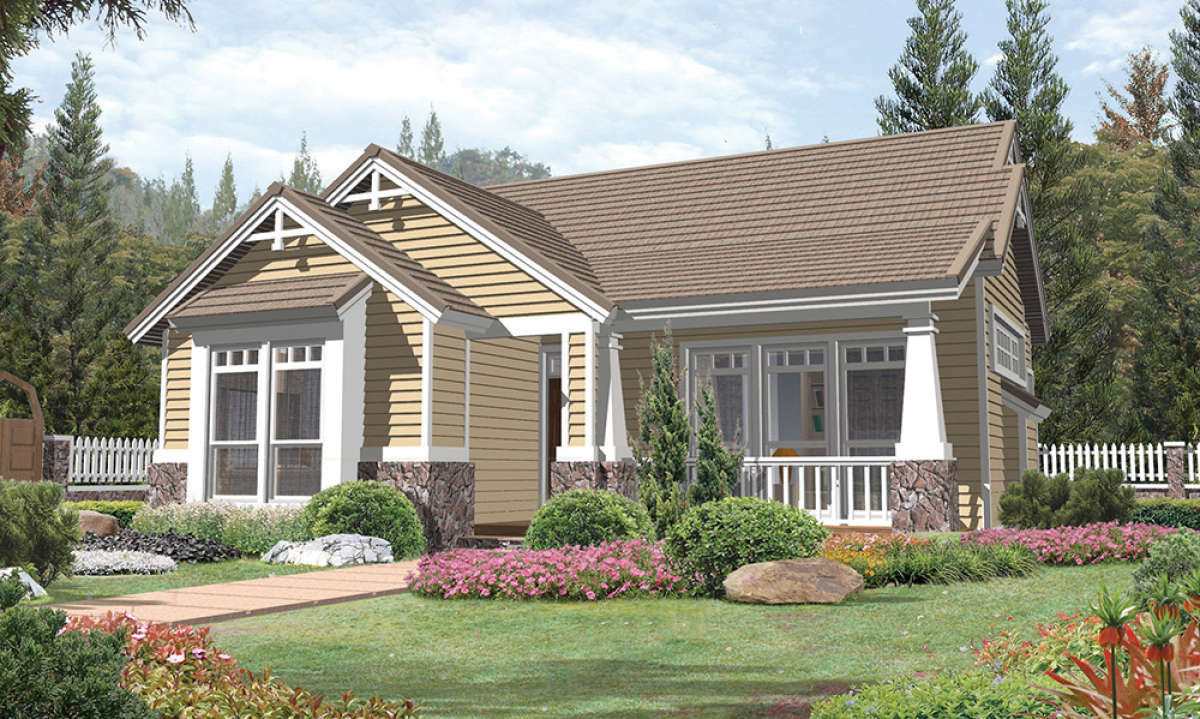

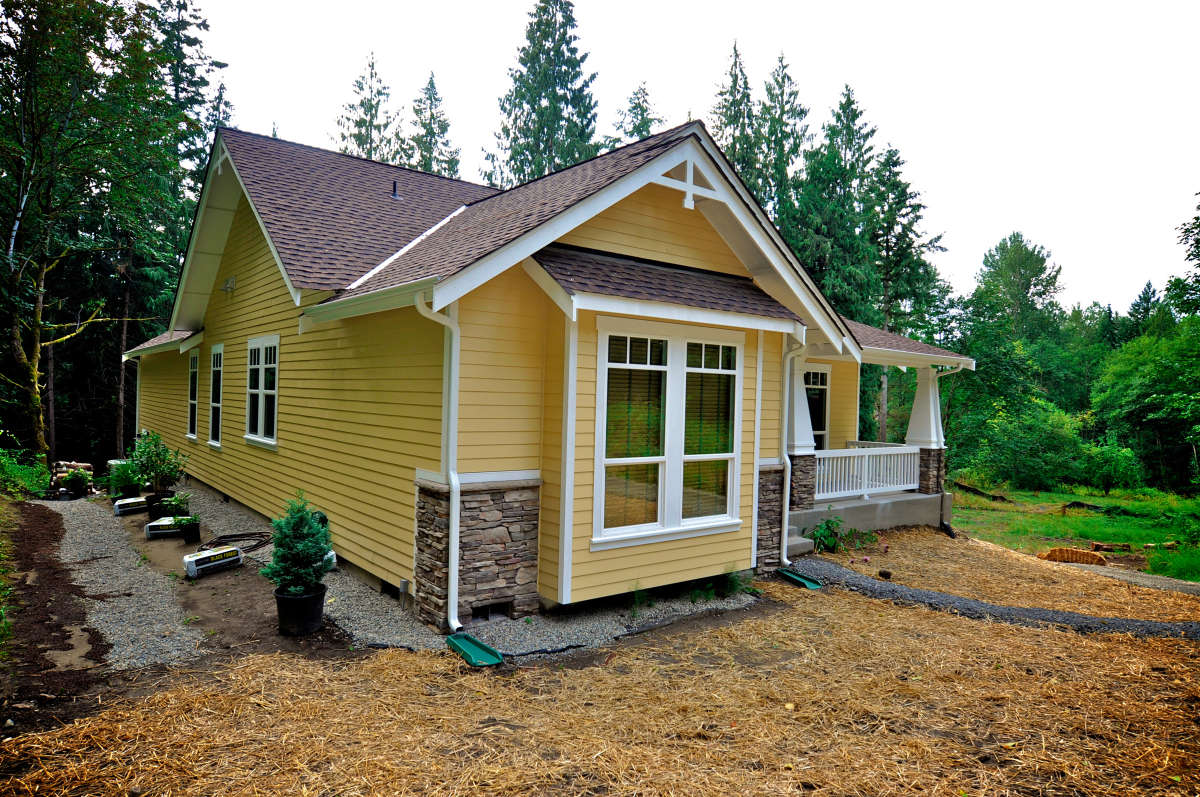

This lovely Cottage house design features an alluring exterior façade and is ideal for a narrow lot with its 38’ width dimension. Decorative gables, transom window accents and stonework highlight the exterior with charming detail. The front covered porch is a nice spot to relax and greet family and friends with its open railing, wide tapered beams and stone pillars. The interior layout is comprised of approximately 1,520 square feet of living space featuring three bedrooms and two baths on a single floor. Entering the home off the front covered porch, the open floor plan is revealed. There is a front coat closet located directly off the living room and stepping into the living room, you see a large space with 11’ ceiling heights, a warming fireplace and abundant window views. The adjacent dining room is also a large space with soaring ceiling heights and there is access to the outdoor space as well. The U-shaped kitchen is quite spacious with a peninsula bar, double sink window views, a separate pantry and good counter/cabinet space. The rear positioned garage allows for unobstructed sight lines onto the front of the home as well as good vehicle and storage space. Stepping into the home’s interior from the garage is the laundry room; a perfect location for keeping the home tidy.

The master suite is a nice assortment of well laid-out rooms; the vaulted master bedroom features beautiful window views and generous floor space. The master bath is highlighted with dual vanities, a separate shower and a spa tub. There is a large master walk-in closet located directly off the bath for privacy and convenience. The remaining two bedrooms are situated at the rear of the home and separate from the master suite. The bedrooms are of equivalent size, feature window views and have plentiful closet space. A shared hall bath offers an oversized vanity space, a toilet area, enclosed linen closet and a tub/shower combination. This small family home is compact but features an efficient floor plan and an outstanding facade highlighted with attractive exterior elements.
