Green House Plan 192-00029

Sq Ft1,600
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width66' 0"
Depth38' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

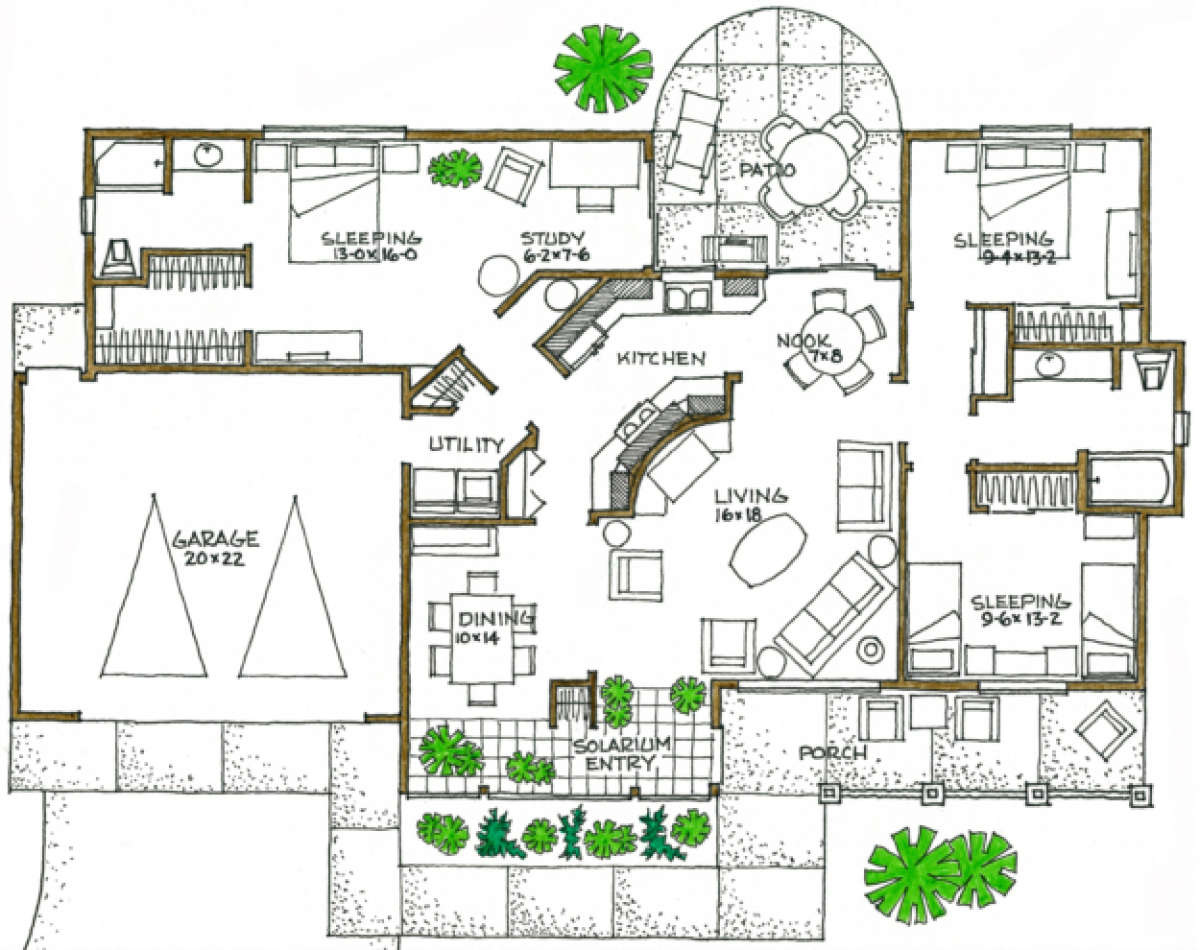

Floorplan 1


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • FOUNDATION
    Slab on Grade: Most of these designers plans are designed with a raised slab to reduce heat loss and give owners the best option for radiant floor heating.
    Crawl Space:  Type of foundation can be viewed on each plan's detail page.
    Basement:  Our basement is indicated as lower level floor plan and detailed appropriately.
  • FLOOR PLAN(S)
    Floor plans are drawn at ¼" scale and incorporate 24" module framing for material conservation.
    Exterior walls are drawn as 2' x 6' framing with optional insulation detail provided in our Conservation Guide included with all plans.
  • ROOF PLAN
    House plans include a roof framing and drainage sheet and truss profiles where appropriate.
  • EXTERIOR ELEVATIONS
    Each house plan includes four sides, elevations as well as any special exterior details.
  • SECTION VIEWS
    Showing interior framing i.e. stairs, structural beams, joists, rafters, truss, and interior elevations.
  • ELECTRICAL PLAN
    In general, each house plan set includes an electrical plan showing lights, fans, switches, special receptacles, and mechanical equipment locations.
  • MECHANICAL PLAN
    Includes energy recovery ventilation design (optional air-to-air heat exchanger).  Where applicable: radiant floor heating layout, solar air distribution system, night flush economizer system, and location of mechanical appliances.
  • CONSERVATION GUIDE
    123-page book and compact disk featuring cost-effective, energy-efficient concepts that won this designer the National Gold Energy Value and Green Builder of the Year awards from the National Association of Home Builders and the US Department of Energy.  This material is included to help you evaluate energy conservation features and equipment you choose to incorporate in your new home.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

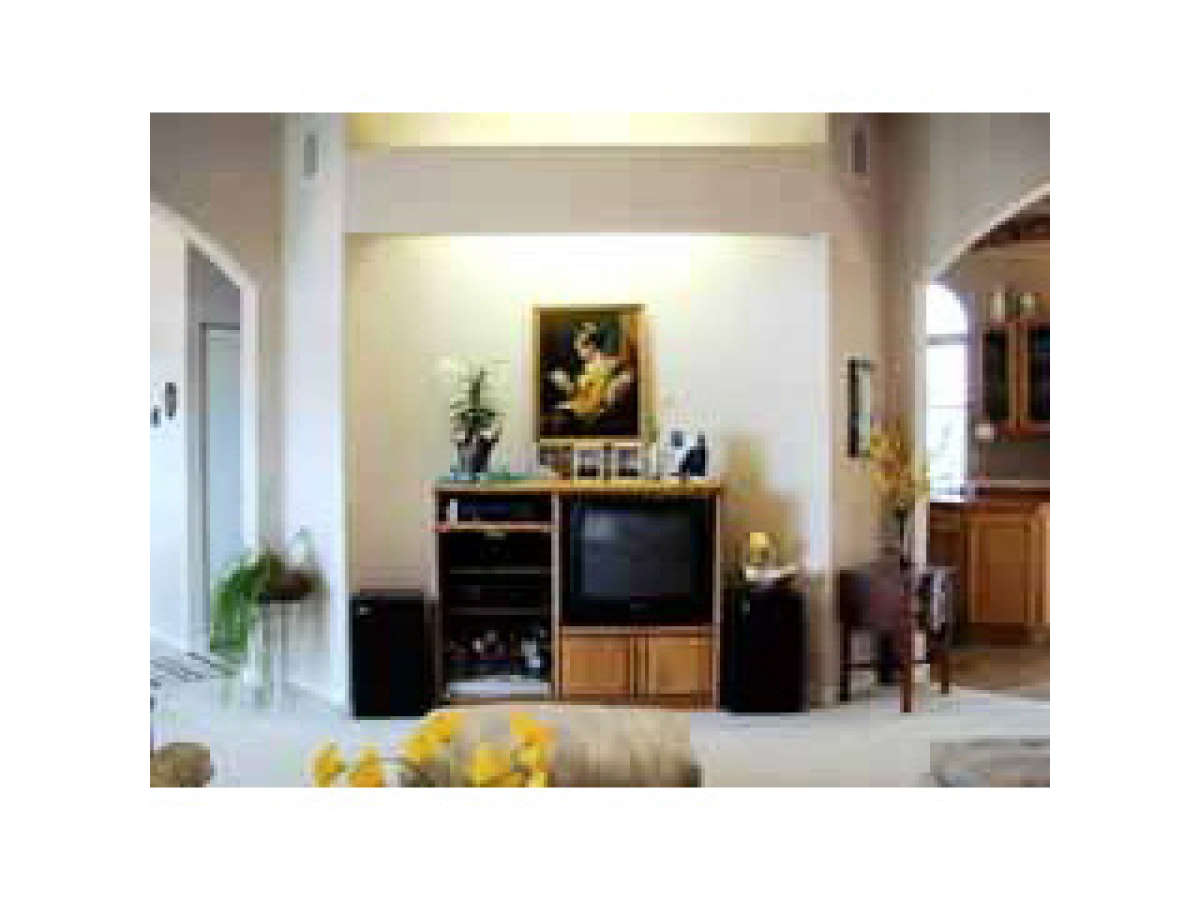

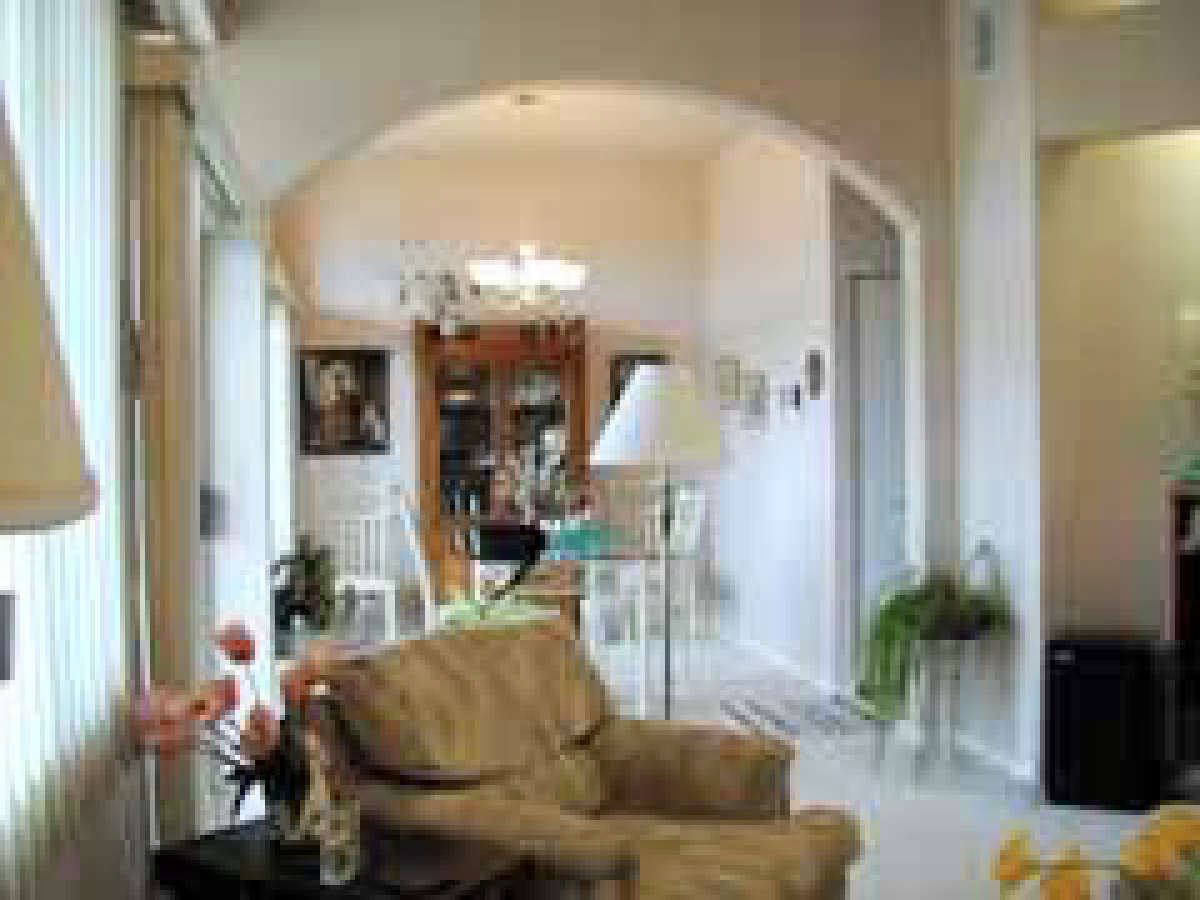

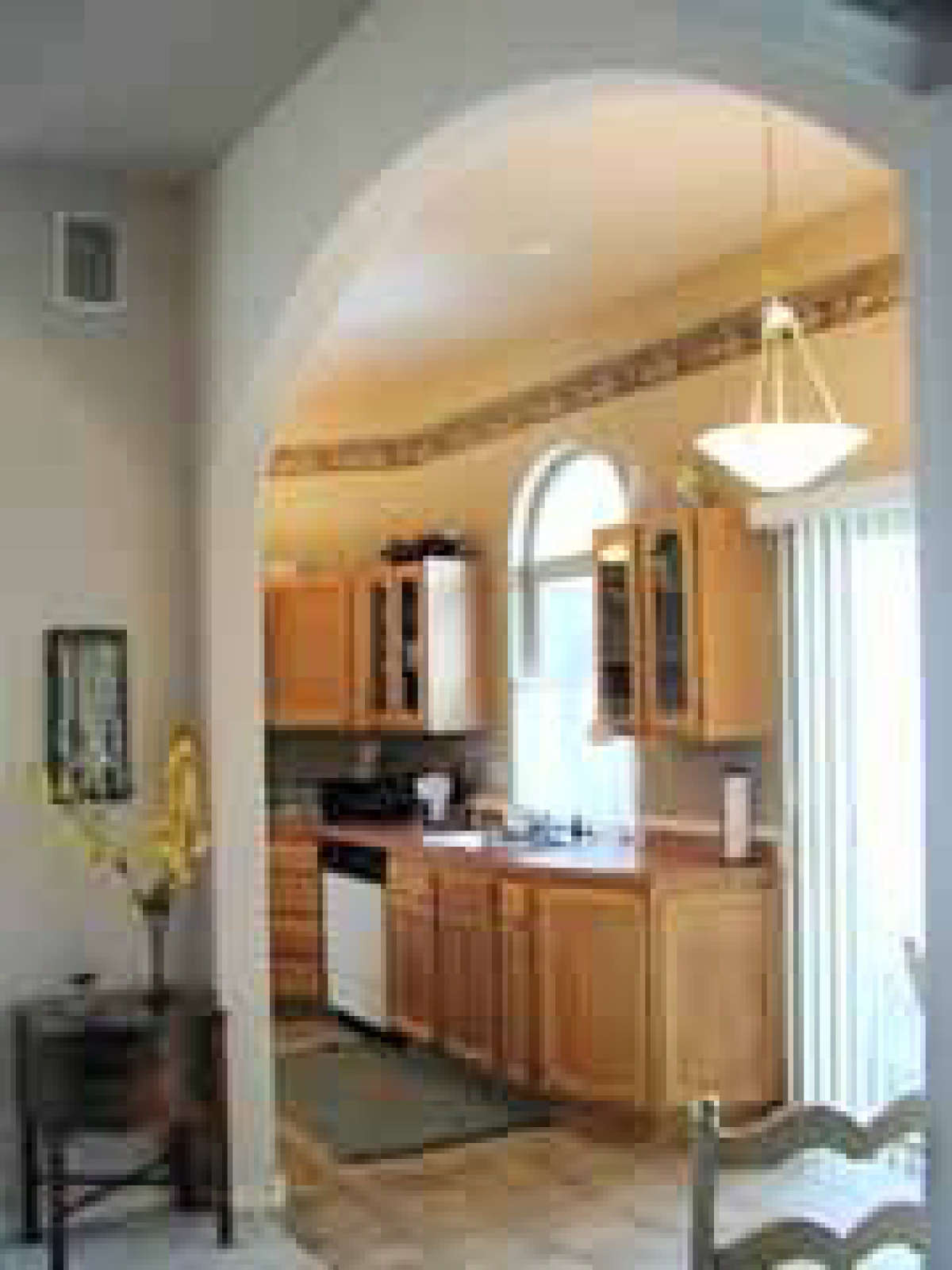

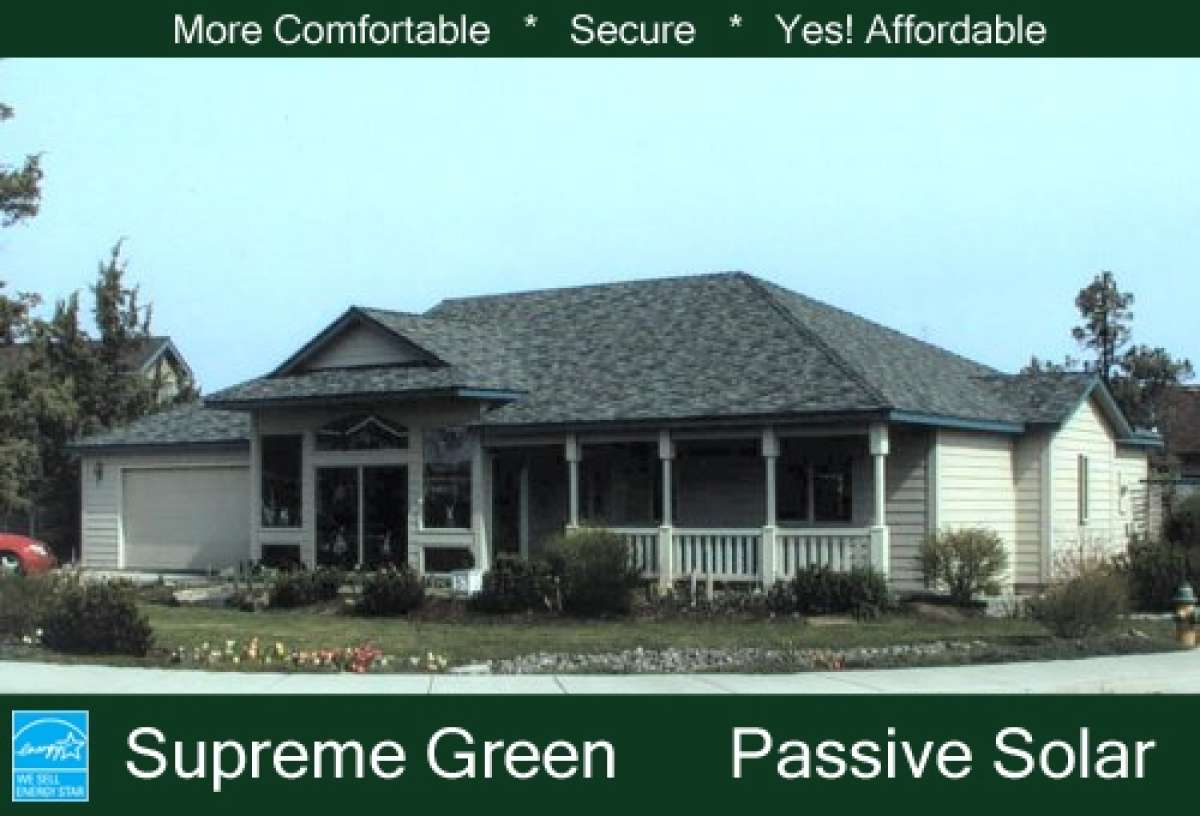

The energy-efficient shape and use of space with this passive-solar home provides outstanding value and comfort. Clean lines, an expansive front covered porch with open railing and supporting columns accentuate the lovely exterior façade. Supreme green and passive solar designs accompany the Energy Star rating; the trusted symbol for energy efficiency helping reduce costs and protect the environment through energy-efficient products and practices. The 1,600 square foot floor plan features three bedrooms and two baths in the Ranch style home. An additional 440 square feet are provided in the two car garage. Entrance off the covered porch is through the solarium, a beautiful space in which to greet family and friends. The open concept design opens onto the spacious dining room and adjoining great room with its 10’ ceiling accentuated by double sided arches transitioning to the radius wall in the living room. Great living and casual dining space are evident and include an angled kitchen bar, a plethora of modern amenities and access to the rear patio. The interior laundry nook and storage closet are situated off the two car garage for convenience.
The split bedroom plan features two spacious family style bedrooms on one side of the home; each contains generous closet space and a shared hall bath. The master suite is elegantly designed and features spacious sleeping space and an adjoining study or sitting room. An oversized walk-in master closet and private full bath completes the master suite. This functional and comfortable home design supports total wheelchair accessibility per the absence of steps or staircases. A two-zone radiant floor heating tube layout and heat recovery ventilation with solar heated air distribution are included with the plan along with our 102-page Conservation Guide also included will teach you the latest in building science and cost-effective, energy-saving features.
