Northwest House Plan 192-00028

Sq Ft1,611
Beds3
Baths2
1/2 Baths0
Stories1
Cars1
Width56' 0"
Depth48' 0"

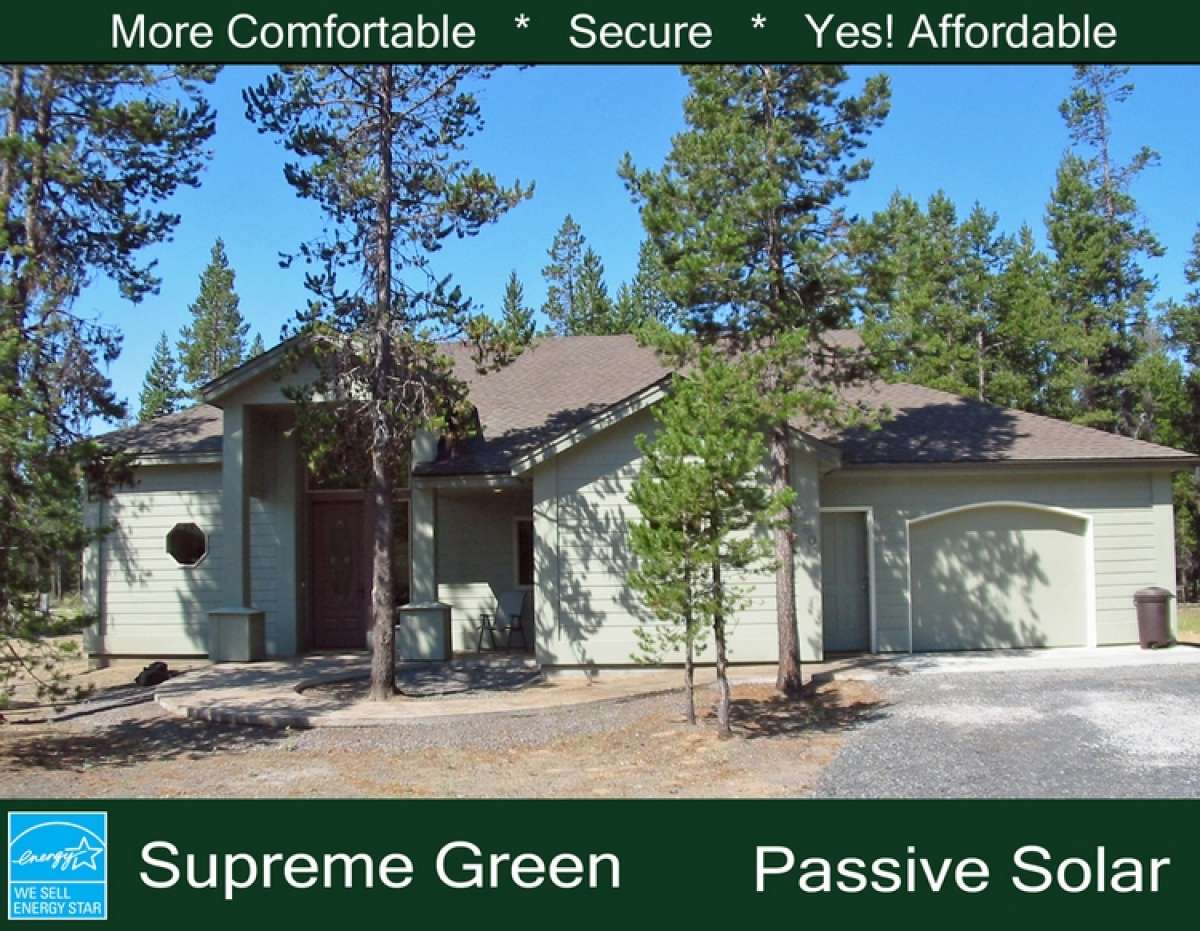

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #192-00028
Floorplan 2 for House Plan #192-00028

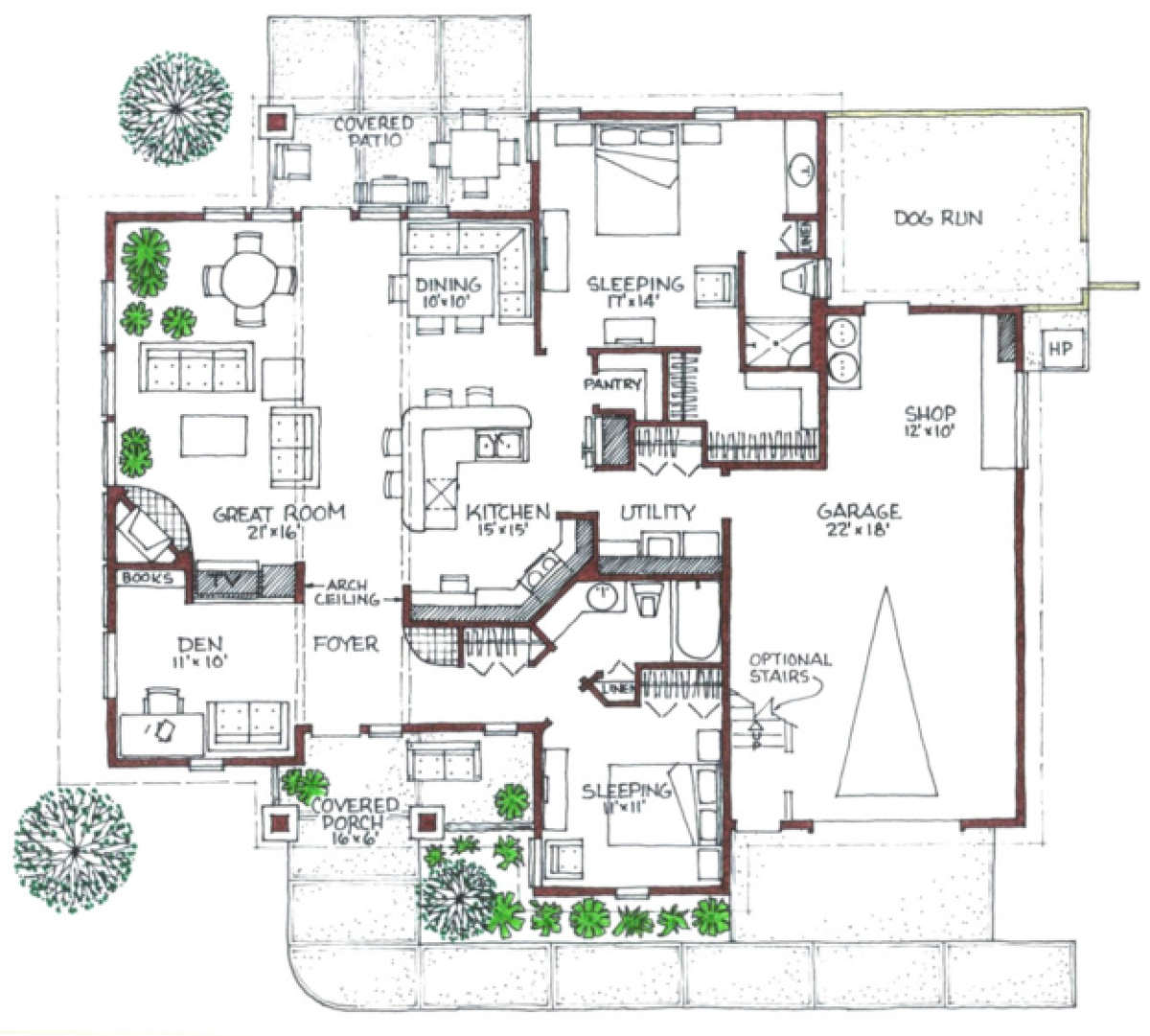

Floorplan 1
Floorplan 1 for House Plan #192-00028

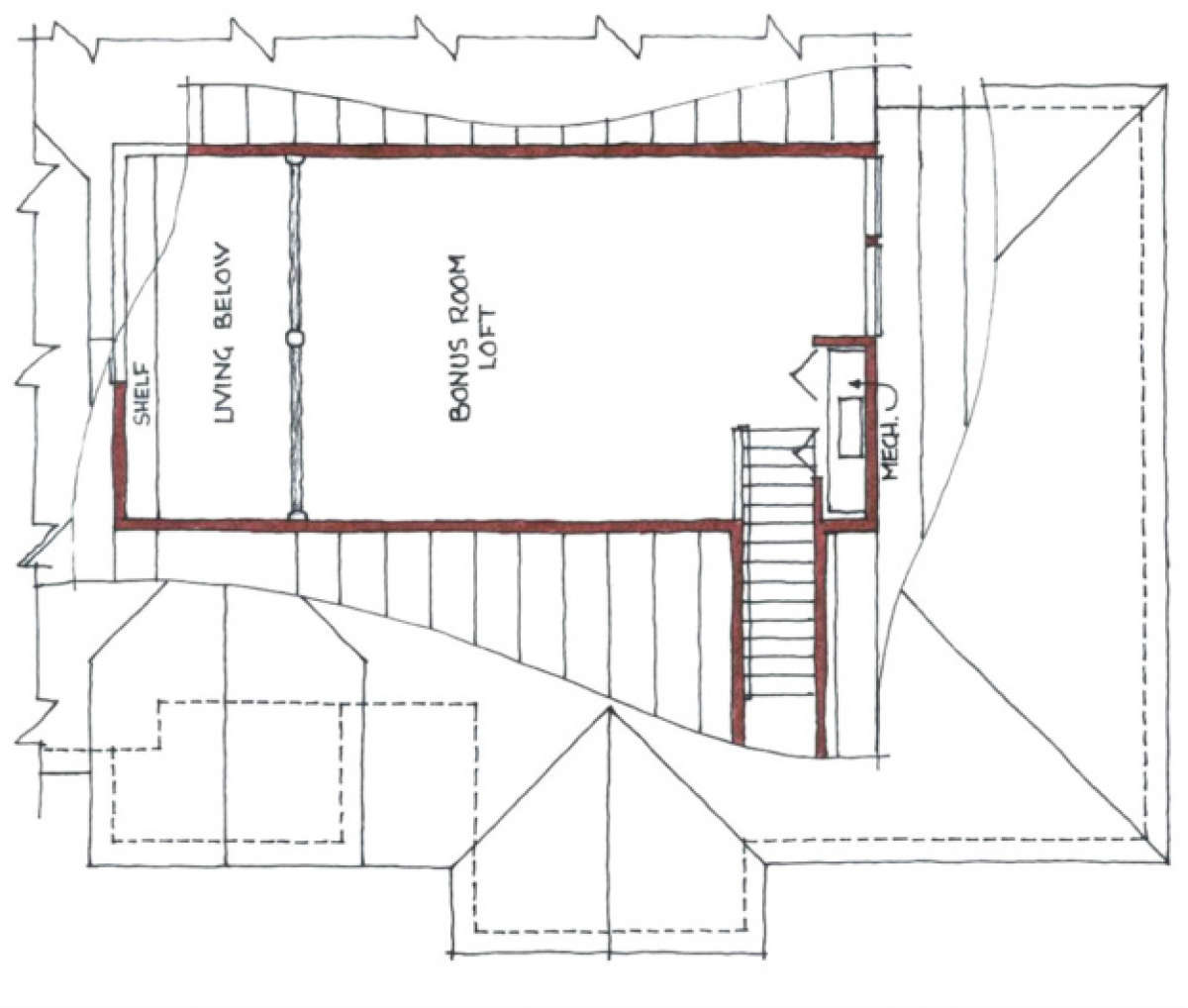

Floorplan 2
Floorplan 2 for House Plan #192-00028


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • FOUNDATION
    Slab on Grade: Most of these designers plans are designed with a raised slab to reduce heat loss and give owners the best option for radiant floor heating.
    Crawl Space:  Type of foundation can be viewed on each plan's detail page.
    Basement:  Our basement is indicated as lower level floor plan and detailed appropriately.
  • FLOOR PLAN(S)
    Floor plans are drawn at ¼" scale and incorporate 24" module framing for material conservation.
    Exterior walls are drawn as 2' x 6' framing with optional insulation detail provided in our Conservation Guide included with all plans.
  • ROOF PLAN
    House plans include a roof framing and drainage sheet and truss profiles where appropriate.
  • EXTERIOR ELEVATIONS
    Each house plan includes four sides, elevations as well as any special exterior details.
  • SECTION VIEWS
    Showing interior framing i.e. stairs, structural beams, joists, rafters, truss, and interior elevations.
  • ELECTRICAL PLAN
    In general, each house plan set includes an electrical plan showing lights, fans, switches, special receptacles, and mechanical equipment locations.
  • MECHANICAL PLAN
    Includes energy recovery ventilation design (optional air-to-air heat exchanger).  Where applicable: radiant floor heating layout, solar air distribution system, night flush economizer system, and location of mechanical appliances.
  • CONSERVATION GUIDE
    123-page book emailed to you in PDF form, which covers energy-efficient concepts that won this designer the National Gold Energy Value and Green Builder of the Year awards from the National Association of Home Builders and the US Department of Energy.  This material is included to help you evaluate energy conservation features and equipment you choose to incorporate in your new home.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

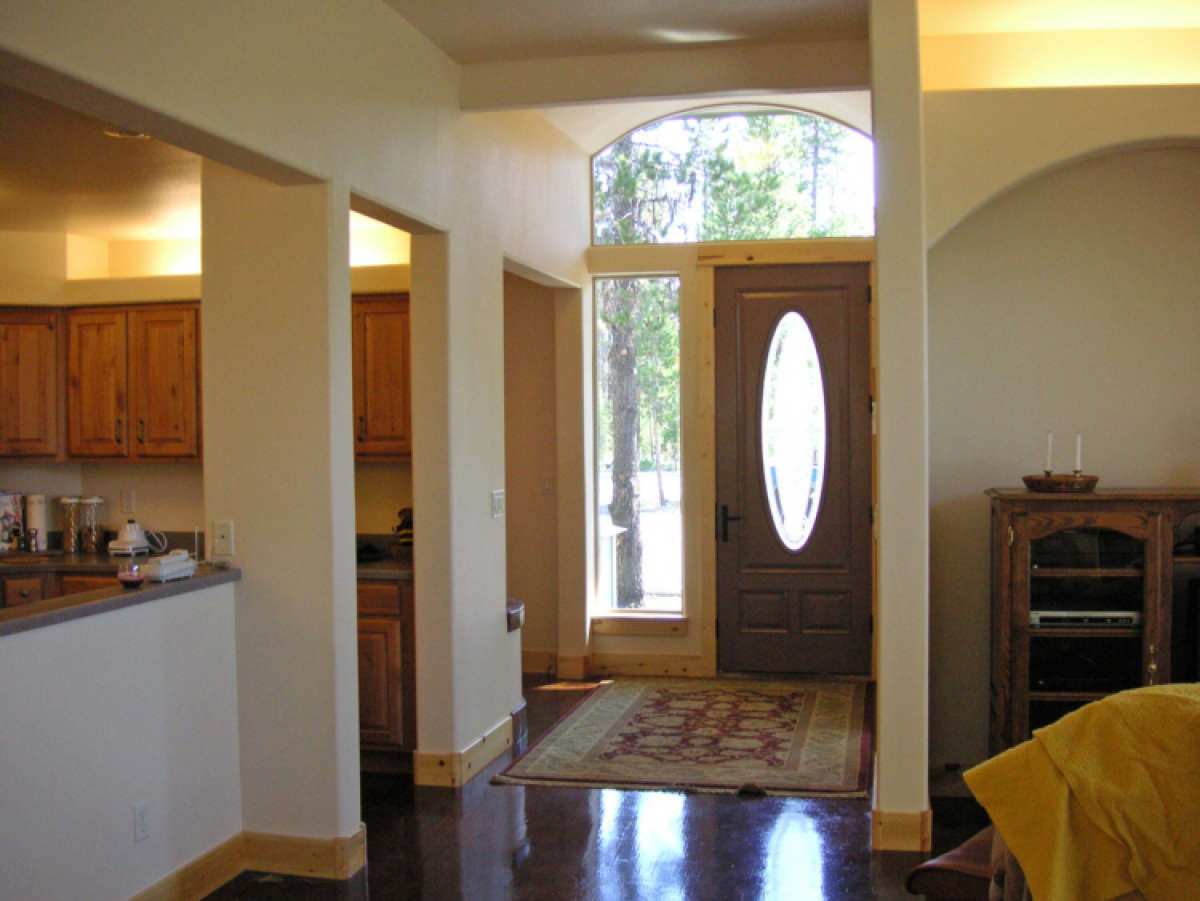

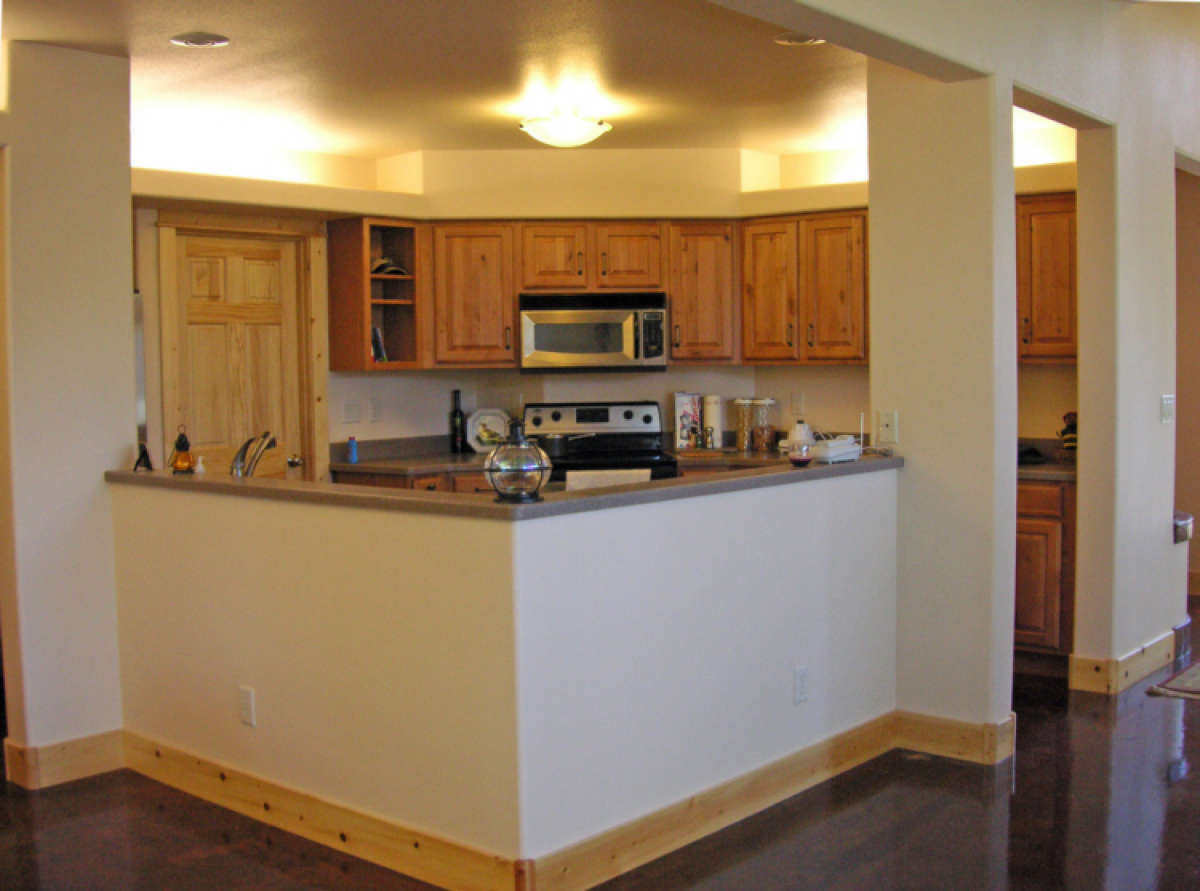

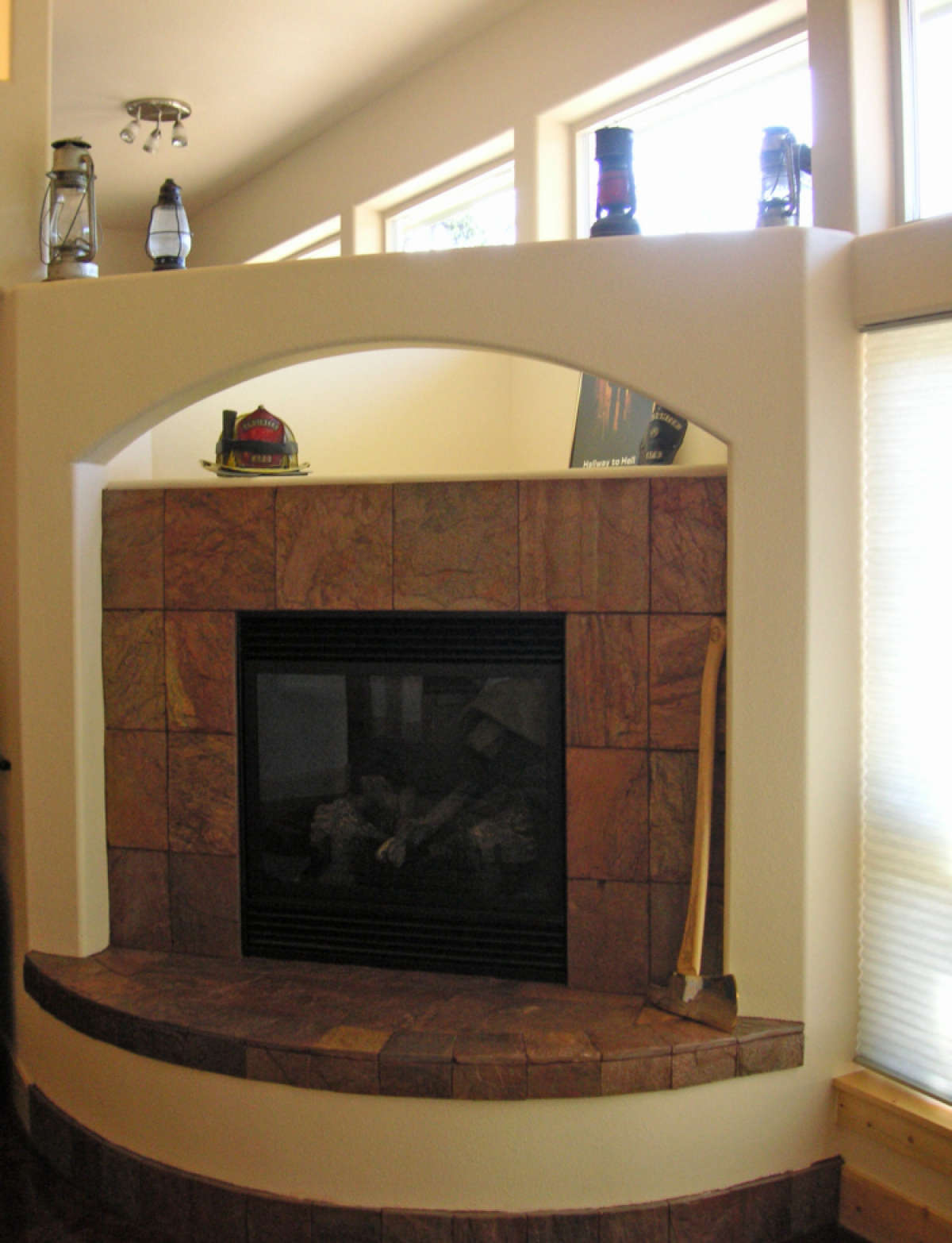

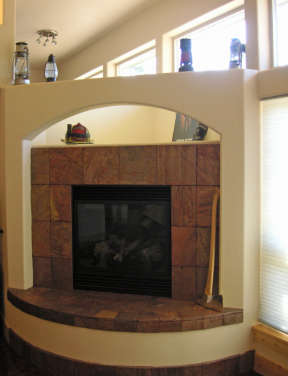

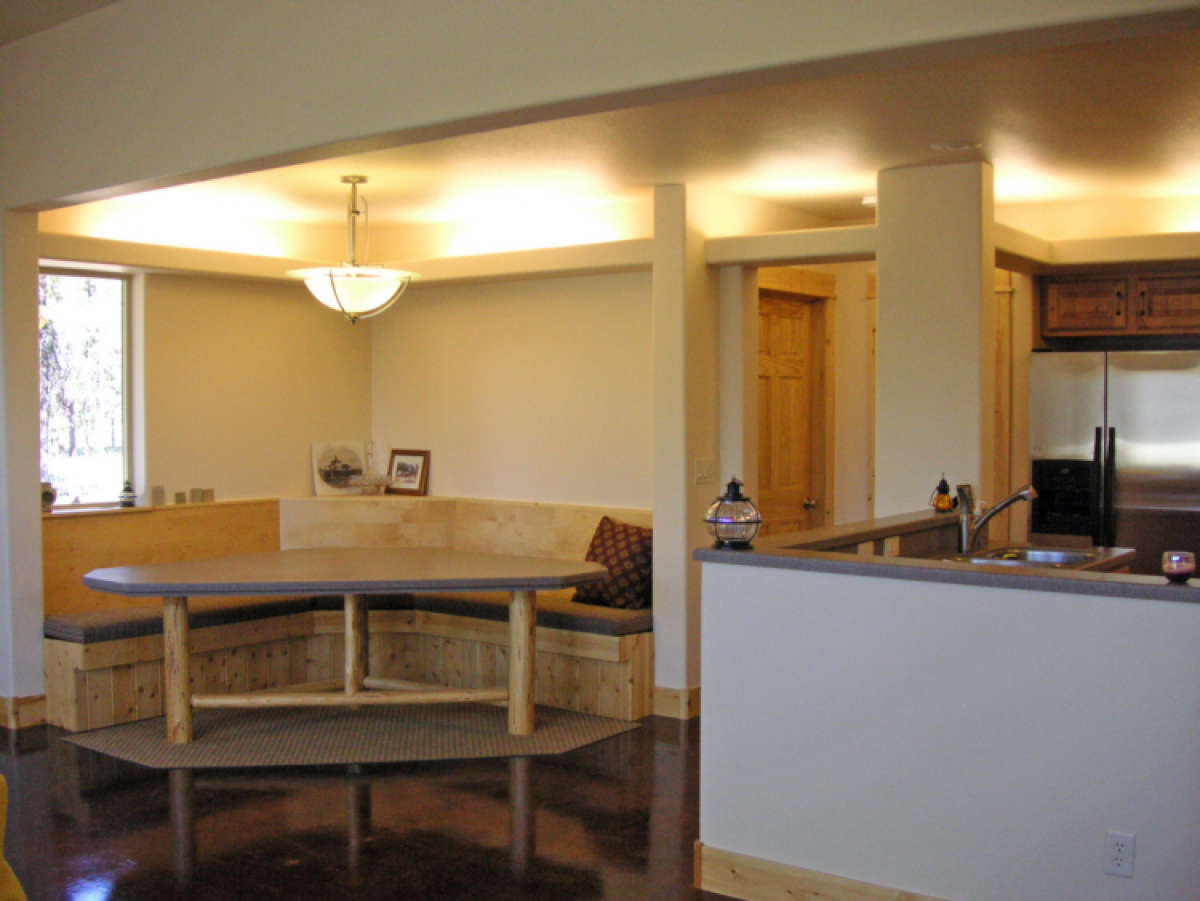

This exciting floor plan has been designated as energy efficient, space efficient, passive solar and carries the Energy Star rating. The Energy Star rating is a trusted symbol for energy efficient designs which reduce costs and protect the environment. The 1,611 square feet of living space is well laid out with an absence of hallways resulting in a cleaner, more efficient floor plan. The single story home features three bedrooms and two baths and includes a 416 square foot garage with a large 12’x10’ workshop area. The front covered porch provides sufficient cover and a handsome entrance into the home. The foyer extends to the rear of the home through an arched 12’ ceiling which leads to the open concept floor design. A private den/family room has built-in cabinetry and great window views and the great room features 10’ ceiling with both spaces providing large, high windows for passive solar gain. The great room measures 21’x16’, has a corner fireplace, entertainment niche and access to the rear patio. The covered patio is fantastic entertaining space ideal for outdoor cooking or dining al fresco. The family friendly kitchen features an L-shaped breakfast bar, plenty of additional counter and cabinet space and a separate walk-in pantry which overlooks the casual dining area. There is a pass-thru to the garage where the laundry facilities and a storage closet are situated and a large dog run sits adjacent to the rear wall of the garage.
Two separate sleeping quarters are featured; bedroom one is spacious with generous closet space and there is an adjacent hall bath and linen closet. The master suite features a large bedroom with an abundance of closet space. The master bath is highlighted by a large shower, linen closet, private toilet area and large vanity. This stylish and efficient house plan comes with an optional second story bonus room featuring an additional 416 square feet which could function as a multi-purpose family room or artist’s studio. Inclusive to the floor plan is radiant floor heating and an energy recovery ventilation design along with our 102-page Conservation Guide that teaches you the latest in building science and cost-effective, energy-saving features.
