Florida Plan 168-00096

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 8,441
Beds 4-5
Bath 5
1/2 Baths 2
Car 3
Stories 3
Width 79' 10"
Depth 69' 10"

Floorplan Drawings

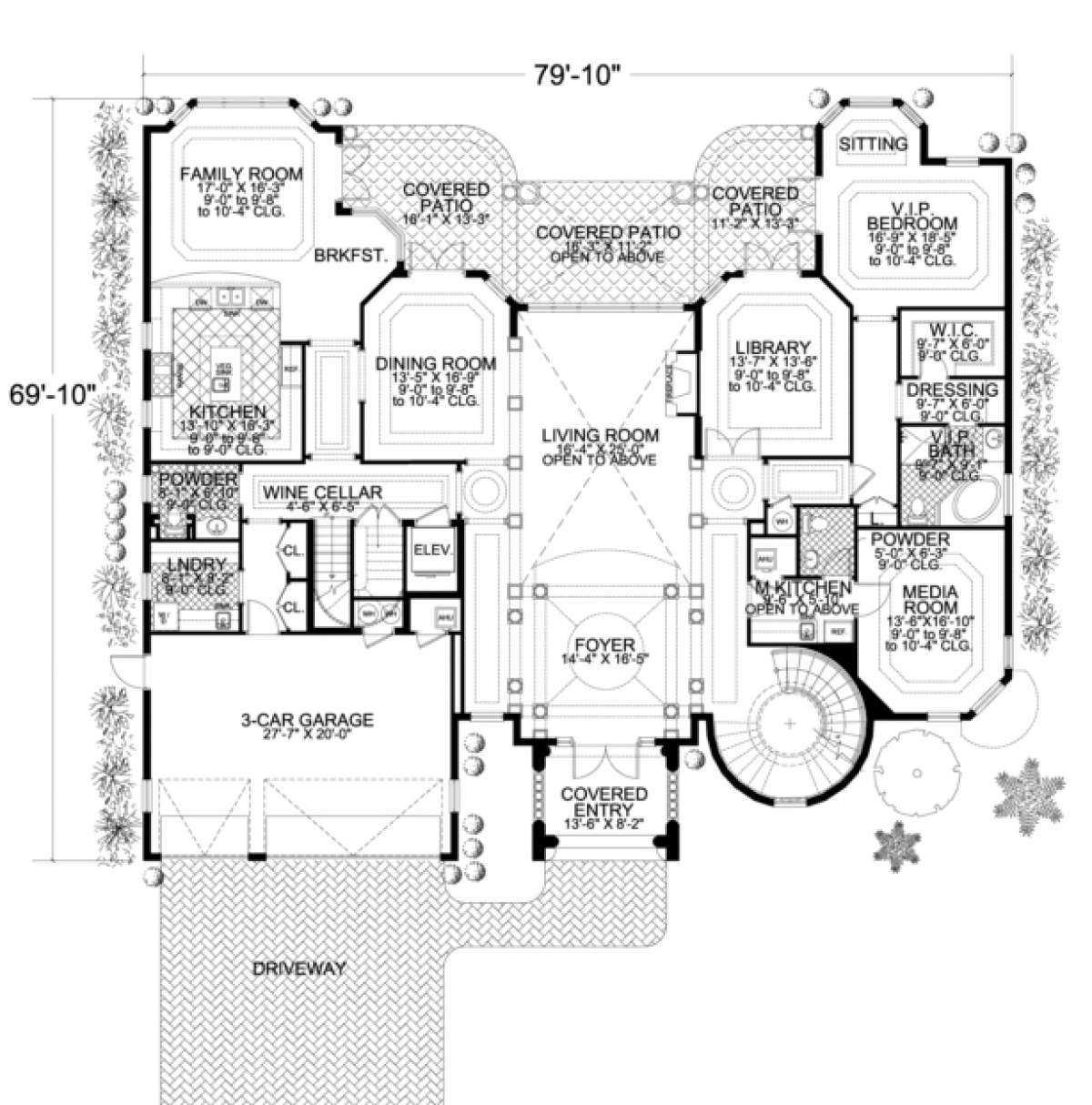

Floorplan 1
Floorplan 1 for House Plan #168-00096

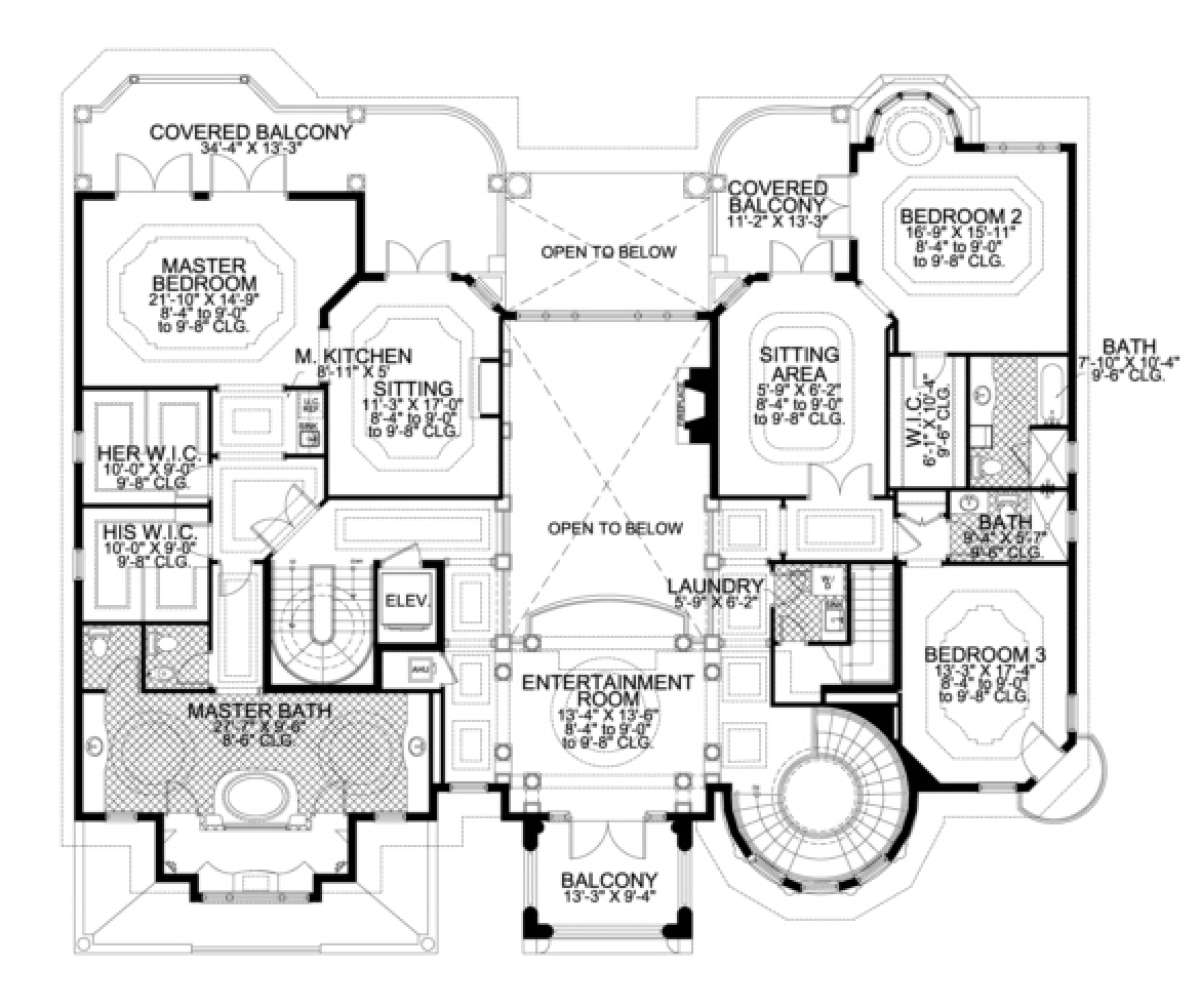

Floorplan 2
Floorplan 2 for House Plan #168-00096

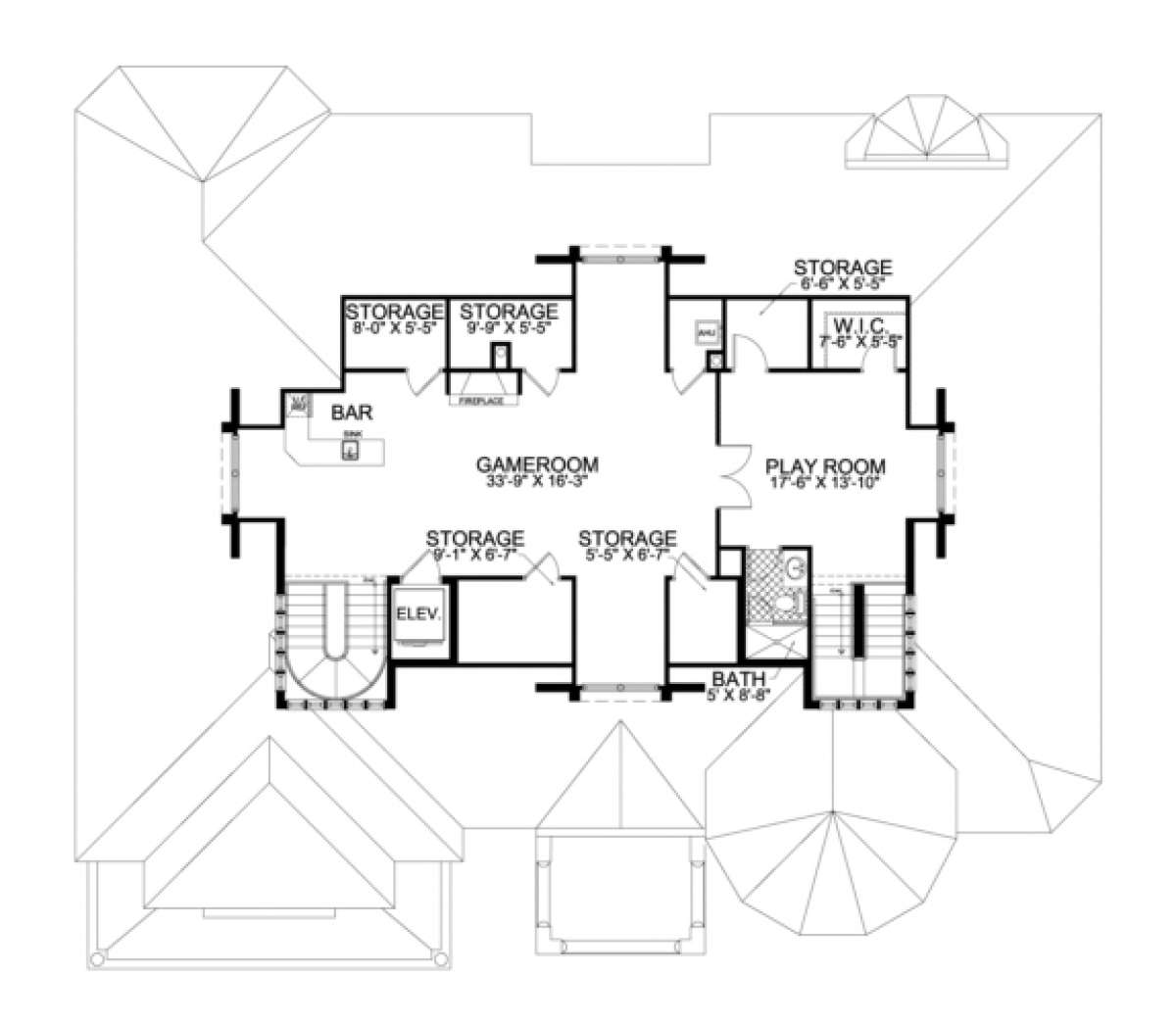

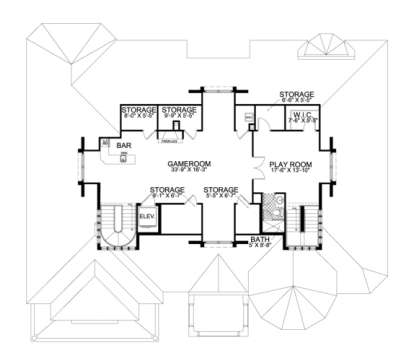

Floorplan 3
Floorplan 3 for House Plan #168-00096


What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

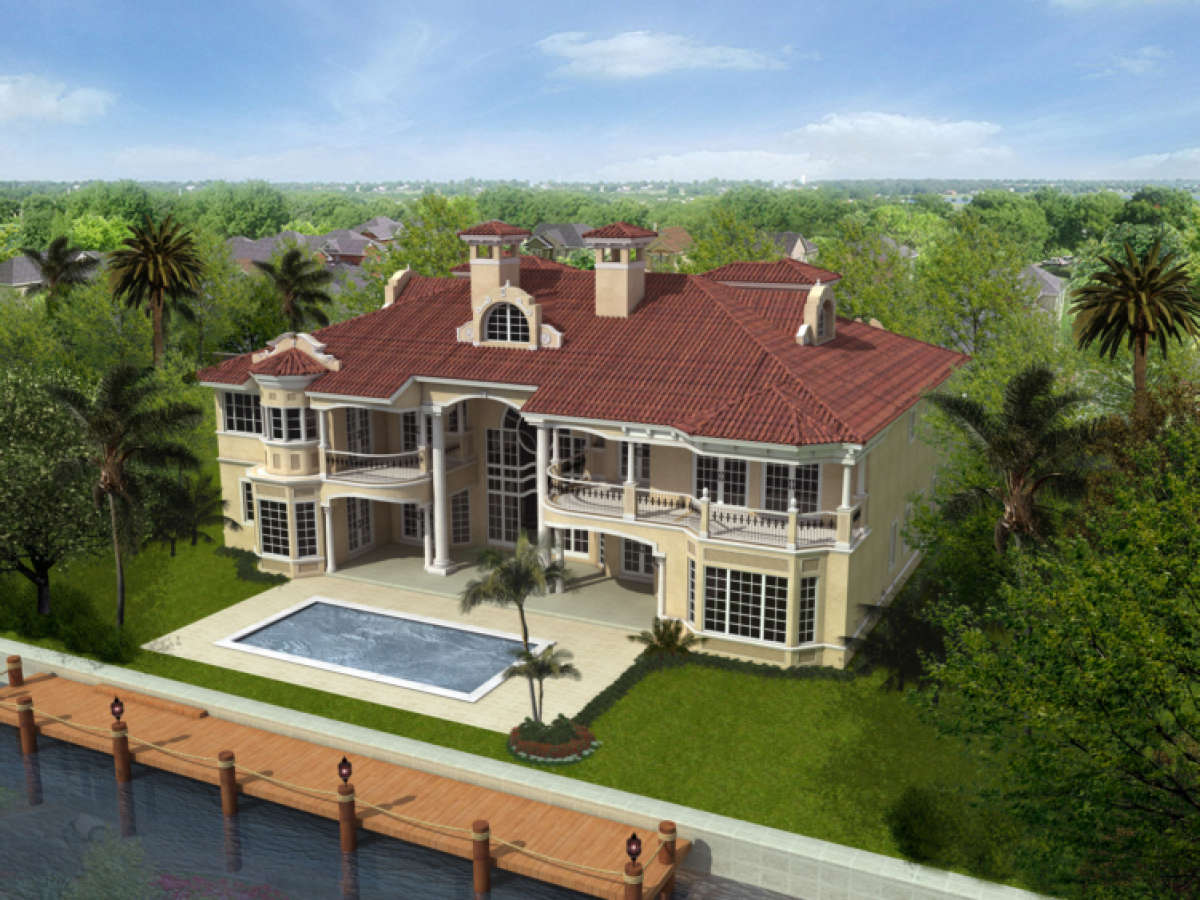

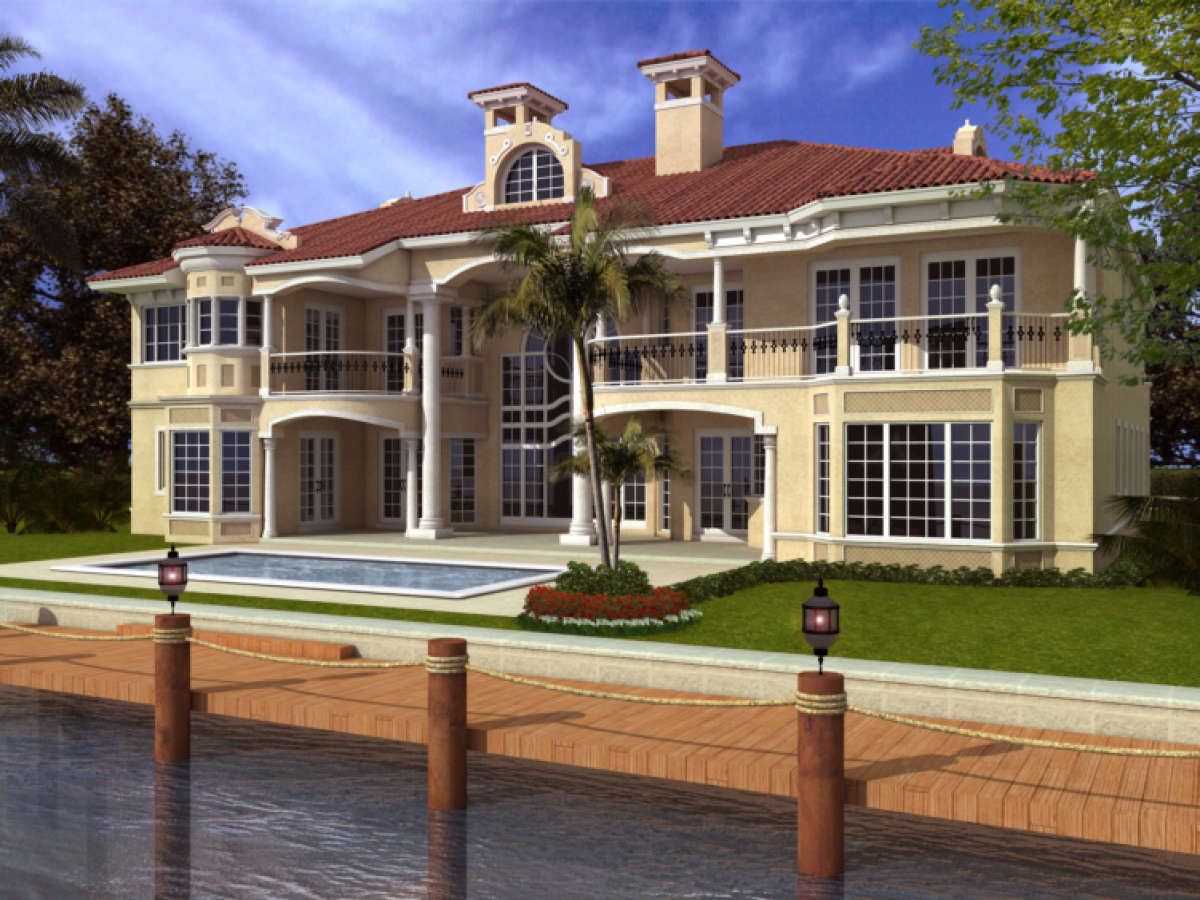

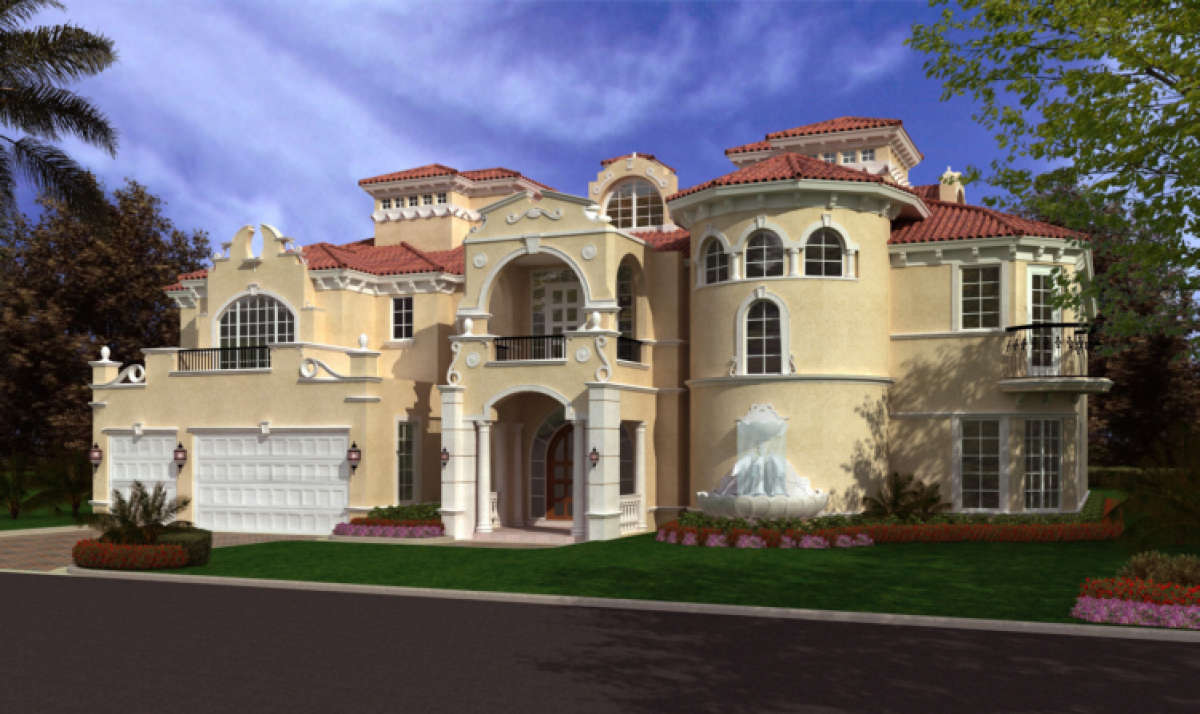

This spectacularly designed Mediterranean home will leave you breathless as you take in the stunning exterior façade of this storybook style home. This artistically detailed three storied home boasts of approximately 8,500 square feet of living space and a grand style of living. The formal entrance features dual galleries and makes a dramatic statement with its marble tile and columns that ultimately lead to the formal living room with massive fireplace and 20’ ceiling that is designed to produce the ultimate “wow” factor. The formal dining room offers a double step trey ceiling and leads to the gourmet kitchen with coffered ceilings, dual dishwashers, a center island and a plethora of additional counter and cabinet space. A cozy breakfast nook and large family room are located off the kitchen. A large library offers patio access while the media room could serve as a multi-purpose room and adds a touch of elegance with it adjacent morning kitchen. The guest wing leads to the storybook feel of the home and will enhance their experience as they relax in the triple window bay sitting area, unwind in the luxurious bedroom and spa like bath and it provides French door access to a covered patio. An elevator, powder rooms, large utility room and a magnificent wine cellar continue to grand feel of this home. Two additional bedrooms, each with oversized walk-in closets and private baths along with a separate sitting room and covered balcony access situated in bedroom two add to the luxury of the second floor. Additionally, you will find an entertainment room with private balcony and another laundry room located on the second floor along with the master retreat which defines grandeur. The master bedroom features double French doors that open onto the spacious private, covered balcony. A sitting room along with a morning kitchen is another feature of this stunning retreat. His and her oversized walk-in closets lead to a European style compartmentalized bath which boasts of a walk-through shower and spa tub along with his and her vanities. The third floor game room with its dormered alcoves, wet bar, fireplace and multiple storage areas is surely one of the exclusive design features of this home. An additional playroom with additional storage, walk-in closet and private bath adds to the value of versatility of the home. This home provides architectural design features designed to make you feel like royalty while living and entertaining in this home.
