Florida House Plan 168-00092

Sq Ft6,904
Beds6
Baths6
1/2 Baths2
Stories2
Cars4
Width129' 4"
Depth99' 8"
SALE
Florida House Plan #168-00092 Elevation Photo
Florida House Plan #168-00092 Elevation Photo
Florida House Plan #168-00092 Elevation Photo
Florida House Plan #168-00092 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

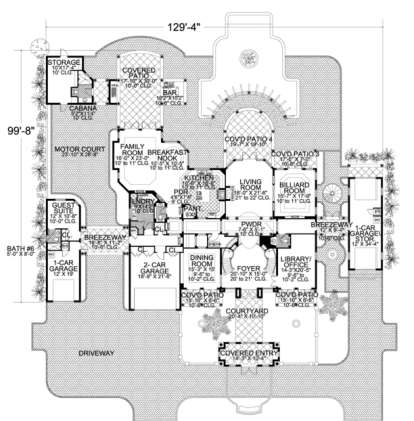

Floorplan 1 for House Plan #168-00092
Floorplan 2 for House Plan #168-00092

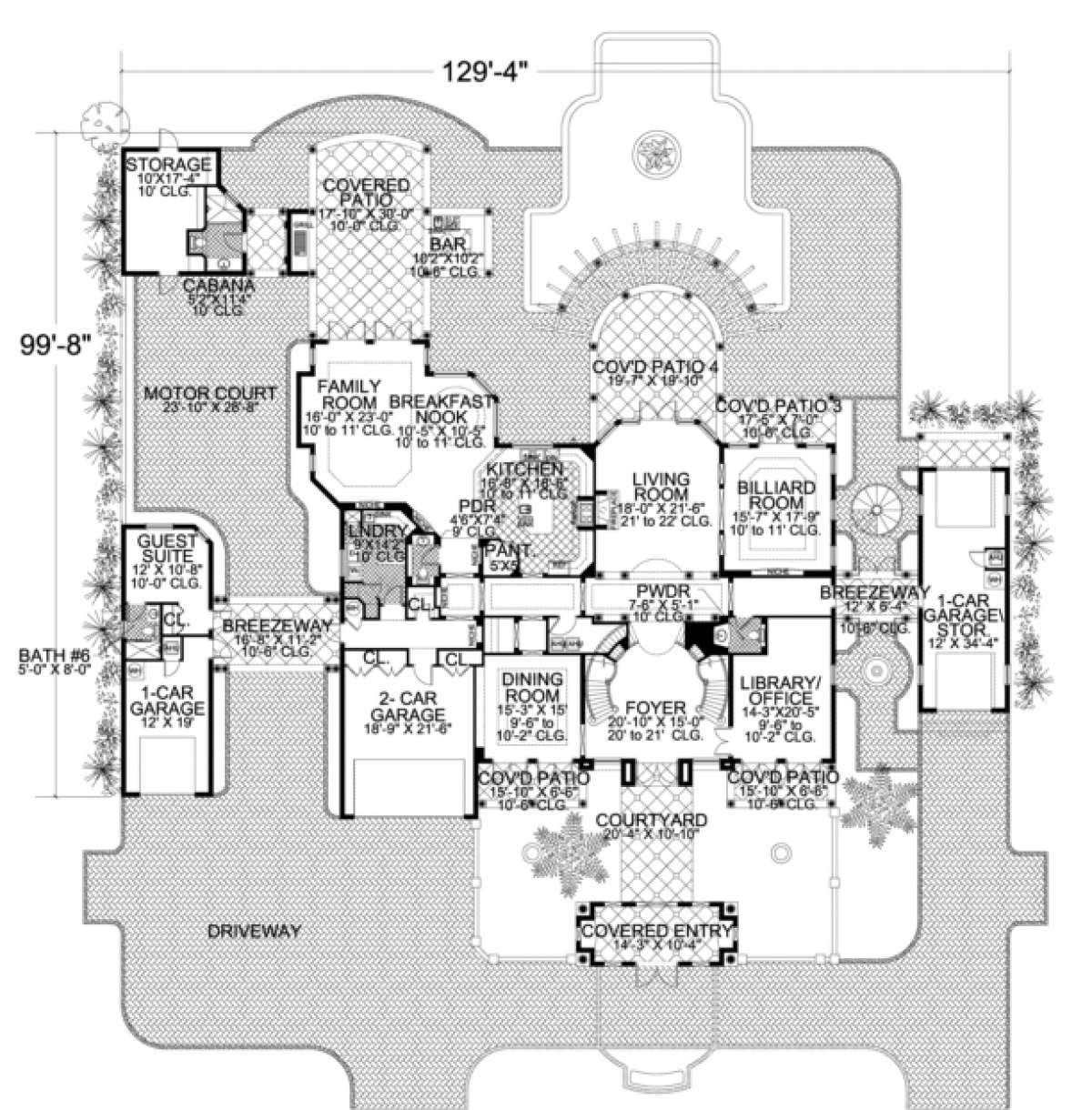

Floorplan 1
Floorplan 1 for House Plan #168-00092

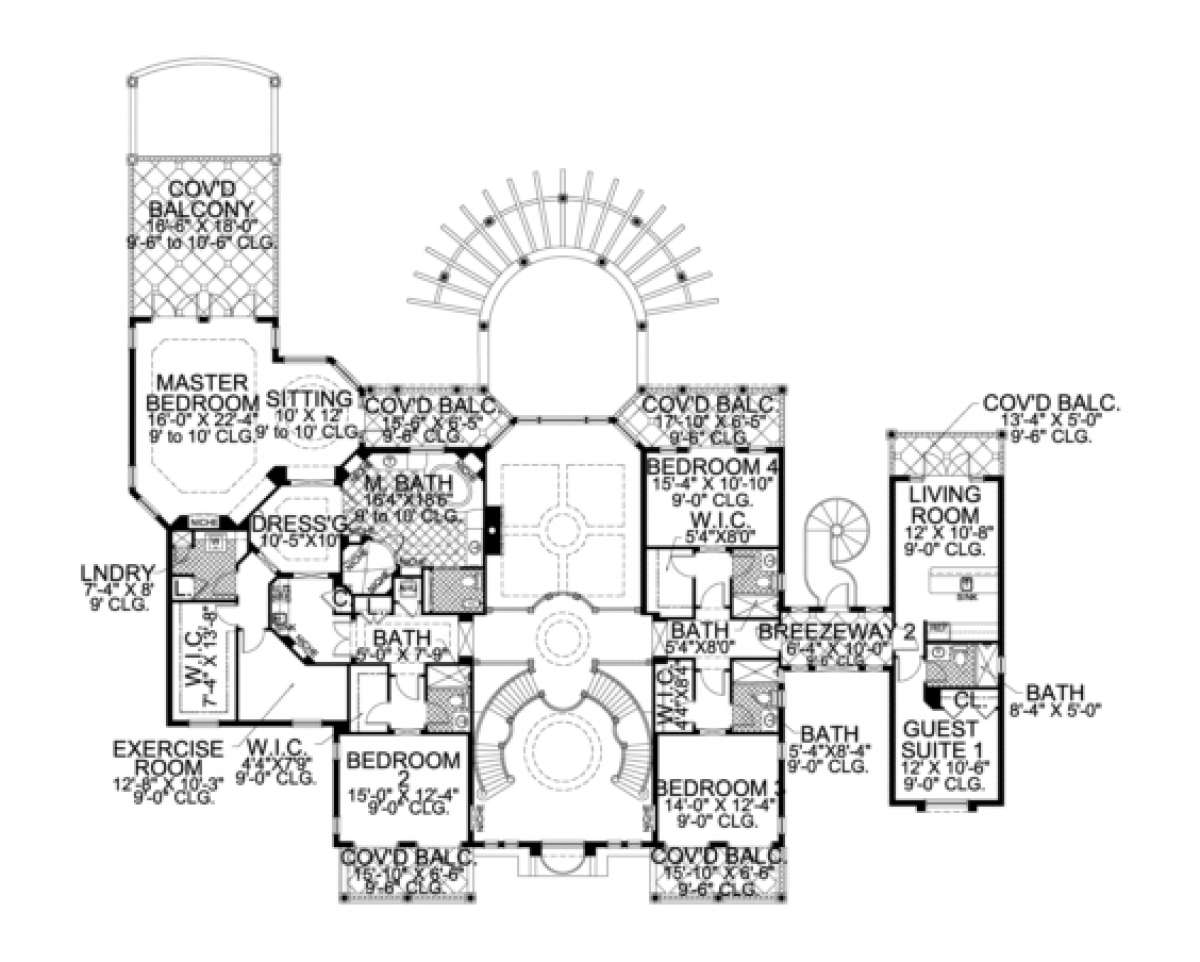

Floorplan 2
Floorplan 2 for House Plan #168-00092


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This palatial Mediterranean house offers six bedrooms and an enormous amount of living space in approximately 7,000 square feet. Contemporary construction combined with traditional Spanish heritage elements such as red tile roofing, arched windows, beautiful ironwork and a myriad of balconies make this home the ultimate in regal living. There are four garage bays, two of which are separate single bays, providing access to the home through breezeways, which maintain the home’s symmetry and balance. One of the single garages provides a private entrance into the guest suite which features a private bath and closet. The grand entrance features a classic towering façade with “Juliet” balcony overhead and double courtyard patios. The magnificent foyer has a double curved staircase and bridges into the equally stunning formal living room which is highlighted by soaring ceiling heights, a fireplace and rear patio access through French doors. The billiard room is situated off the living room making this an ideal location for entertaining and spending time with family, friends and business associates. On either side of the foyer is the formal dining room and library. The gourmet kitchen has a large center island, walk-in pantry and is open to the breakfast nook and family room. This area is semi-self contained making it a lovely spot for intimate gatherings with family and there is double French door access to the private rear courtyard/patio that includes a bar area, cabana bath and an additional storage area. An enormous laundry room with modern amenities is located on the main living floor. The combination of multiple courtyards, covered patios and brick pavers give this home a stunning exterior façade and an excellent space in which to entertain. As you round the curved staircase, you come upon the second story bridge which is open to the living room and provides access to the upstairs living spaces. There is a second guest suite which is accessed through an open air breezeway with beautiful ironwork. This guest suite has a spacious bedroom, private bath, living room and rear covered balcony. Three additional bedrooms, each with a private bath, walk-in closet and covered balcony also grace the second floor. The master retreat is just that, a retreat from the ordinary and a personal sanctuary. The master retreat enjoys an immense footprint and is accessed through French doors. The master bedroom has a private covered balcony and the sitting room is a unique octagon shape with its own private balcony. A large dressing area is adjacent to the master bath which features an oversized shower, garden tub, dual vanities and compartmentalized toilet. An exercise room, walk-in closet and additional laundry facility are featured throughout the master retreat. This magnificent manor offers an abundance of living space while offering private and cozy personal areas making the home the ultimate in modern living.
