Florida Plan 168-00090


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 6,714
Beds 6
Bath 7
1/2 Baths 0
Car 3
Stories 2
Width 75' 2"
Depth 99' 7"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #168-00090

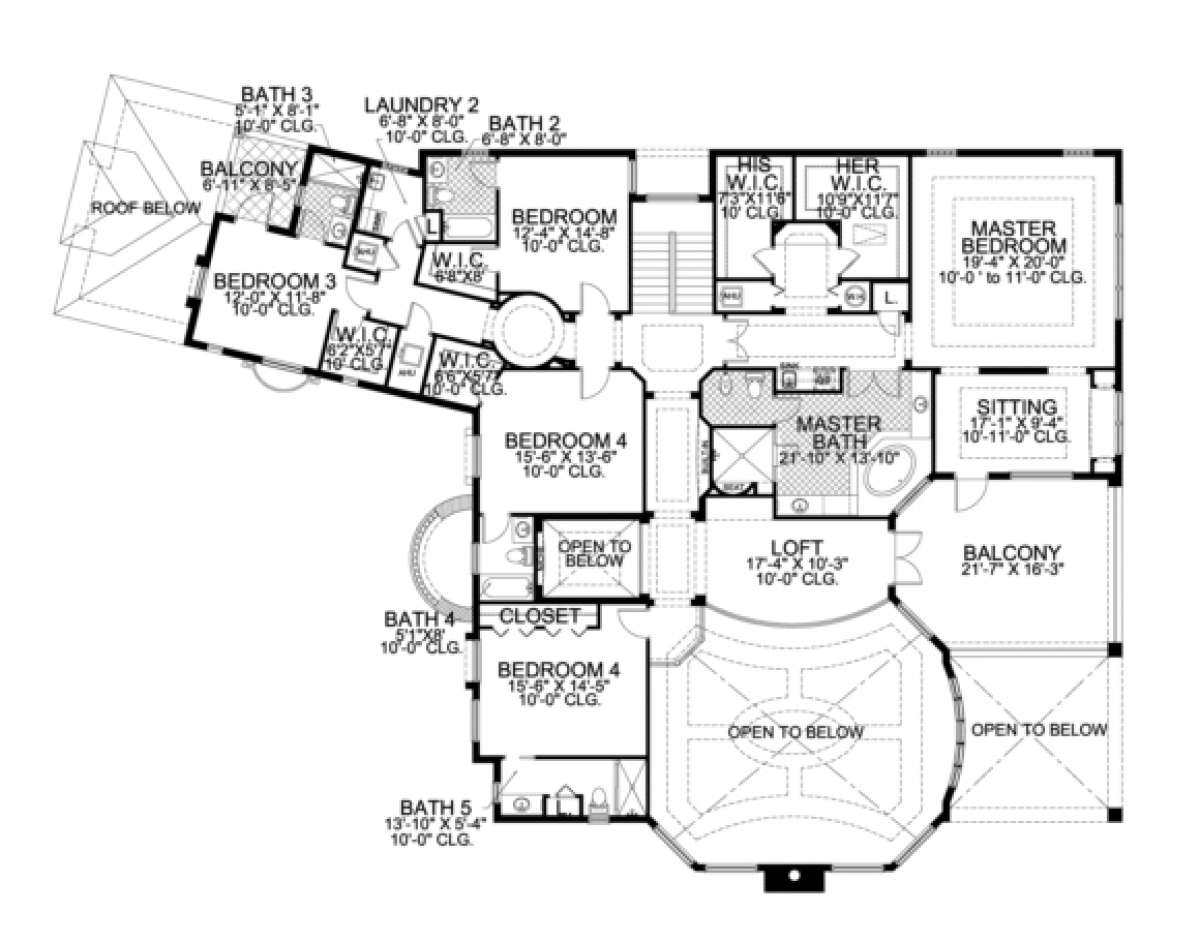

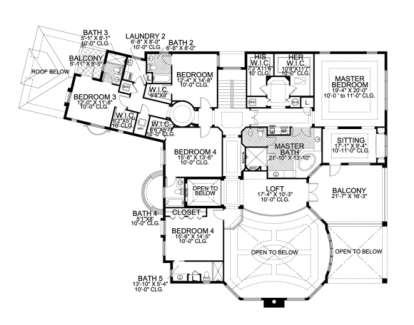

Floorplan 2
Floorplan 2 for House Plan #168-00090

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautiful home is vibrantly warm and evokes the feeling of the Mediterranean coastline. The warm tones, handsome ironwork, arched windows and covered balcony combine to create an exciting and bold exterior façade. The interior floor plan is no less exciting and features approximately 6,700 square feet of usable living space. The grand two story covered entrance is a traditional Mediterranean hallmark of the home and contributes to the overall effect of the manor. The formal living room is a beautiful space marked by a curved wall of windows which leads to the outdoor courtyard and pool area; additionally, it features a full size wet bar and gorgeous fireplace. A cozy den offers a private retreat for business or intimate family time while the media room is a great space for entertaining family and friends. A maid’s or guest private quarters include a walk-in closet and full private bath. The gourmet kitchen has all the modern conveniences you desire such as a walk-in pantry, breakfast bar and is adjacent to the breakfast nook and family room. The outdoor space in this home is outstanding and presents the perfect opportunity to visit and entertain while utilizing the summer kitchen and bar-b-que area. A large utility room and three car garage complete the main level of the home.
Four oversized bedrooms, three of which have walk-in closets and the other ample closet space, have private baths and are situated upstairs. An additional laundry is also located upstairs for convenience. The master retreat is luxury defined and occupies a separate wing of the second floor. His and her walk-in closets, which are huge, line the hallway to the large master bedroom with trey ceiling and separate sitting room. An enormous covered balcony is accessible through the sitting room and provides the ideal spot for relaxing with your morning coffee. The balcony is also accessible through the second floor loft area which is a great space for family relaxing and “hanging out.” The master bath enjoys a large footprint and features a corner garden tub, separate shower, dual vanities and a compartmentalized toilet. This home features a bold exterior and an exciting interior floor plan that is versatile, comfortable and spacious.

Browse Similar PlansVIEW MORE PLANS
