Florida Plan 168-00088

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 6,664
Beds 6
Bath 6
1/2 Baths 1
Car 3
Stories 2
Width 65'
Depth 75'

Floorplan Drawings

Floorplan 1

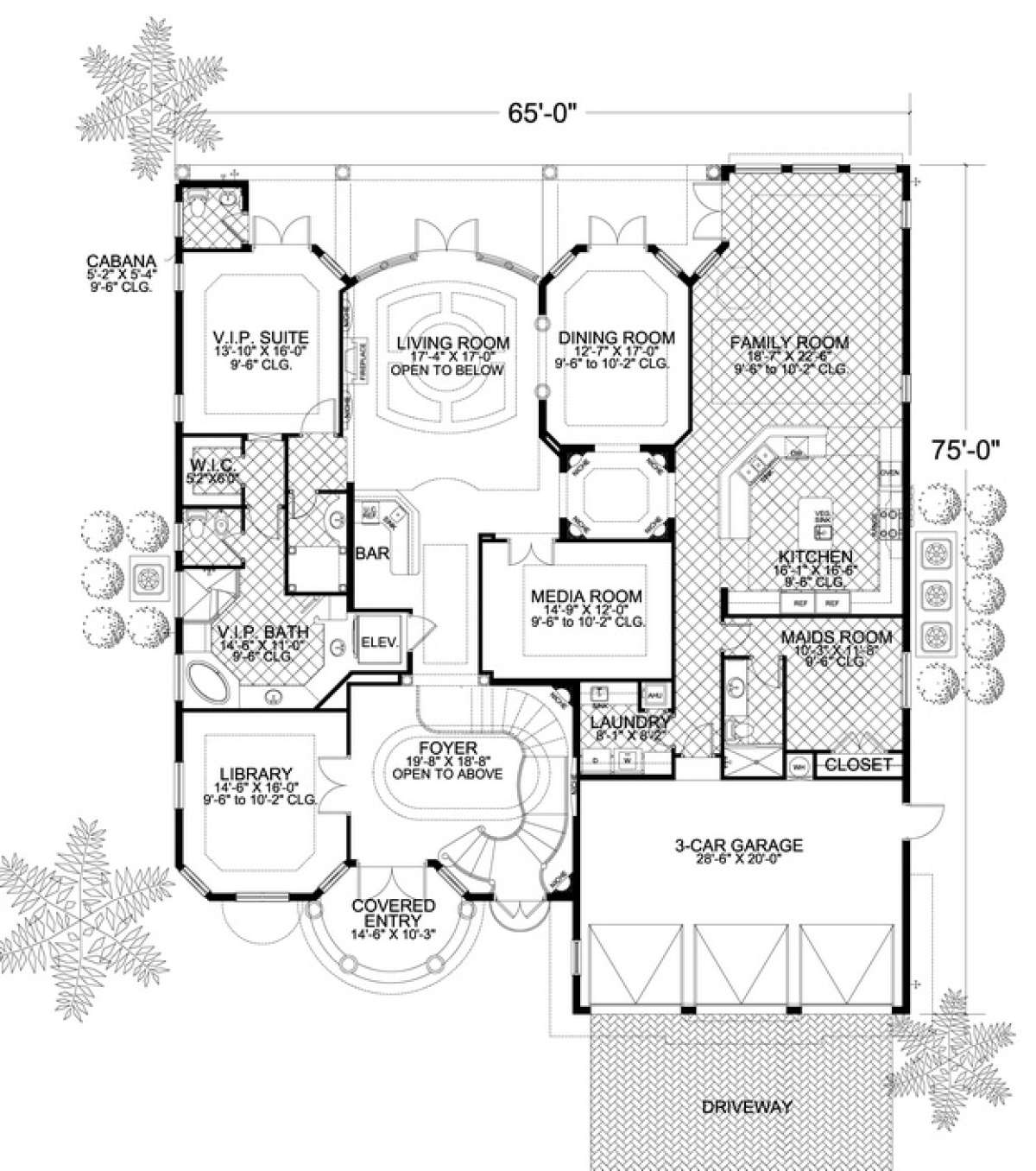

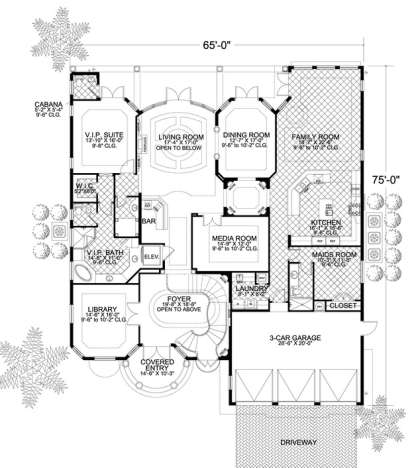

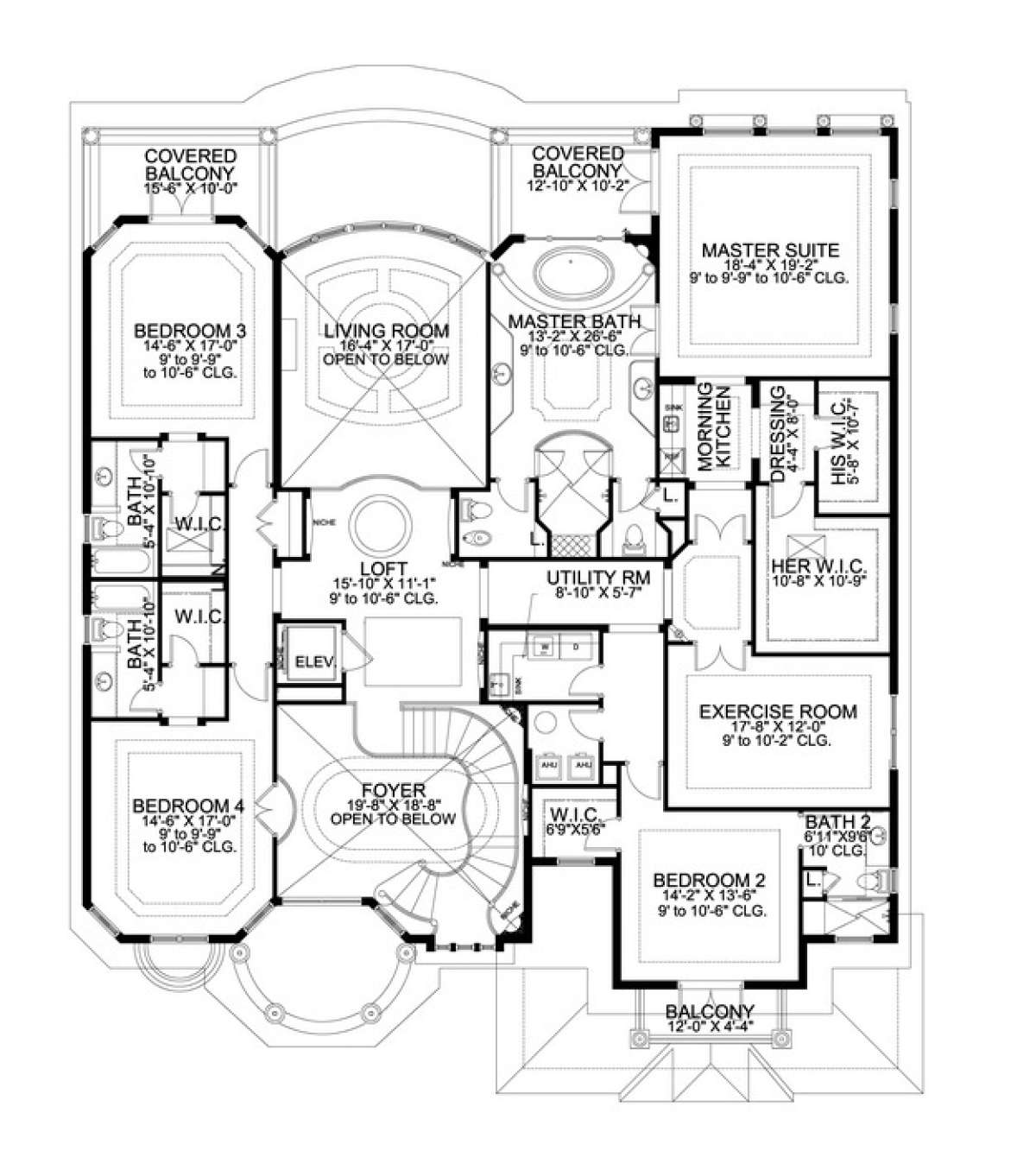

Floorplan 1 for House Plan #168-00088
Floorplan 2

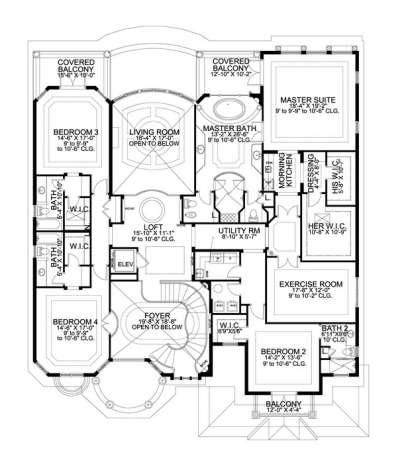

Floorplan 2 for House Plan #168-00088


What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This architecturally stunning classic Mediterranean home design will leave you breathless as your eyes wander from detail to detail. The fabulous towering covered entrance, covered balconies, arches and window details enhance an exterior façade designed to wow your senses and provides an exciting and beautiful curb appeal especially designed for the home. The interior floor plan is no less spectacular and features approximately 6,600 square feet of living space with six bedrooms, six bathrooms and an additional cabana bath, a half bath and a three car garage. Eight foot French doors with arched transoms accent the entrance and provide access into the dramatic two story foyer with curved staircase. A beautifully designed library with trey ceiling is accessible through French doors off the foyer along with an elevator at the end of the foyer. The elegantly designed living room with two story trey ceilings, gas log fireplace and built-in cabinetry is open to the wet bar, media room and billiard room. This is an excellent floor design that enables you to entertain in a manner befitting your personal style and the style of this home. An elegant, formal dining room provides outdoor access through French doors and is adjacent to the living room. The gourmet kitchen features a huge island with eating bar and is open to the oversized family room. There is a private guest quarter which consists of a spacious bedroom, walk-in closet and a bath which is highlighted by dual vanities, an oversized shower, corner garden tub and a compartmentalized toilet. This guest suite also provides a private entrance and cabana bath at the rear of the suite. A maid’s quarter with spacious closet and private bath along with an oversized utility room and the three car garage complete the main level of the home. Upstairs is no less stunning than the first floor of the home and as you either depart from the elevator or ascend the staircase you will be greeted by a loft area perfect for family and guest’s entertainment. Bedroom three features a spacious, trey ceiling bedroom and French door access to a private covered balcony along with a walk-in closet and private bath. Bedroom four offers another spacious, trey ceiling bedroom, walk-in closet and private bath. Bedroom two is highlighted by a walk out balcony, private bath and walk-in closet. An additional utility room is featured upstairs for convenience and has counter space and a sink area. The master retreat is truly luxurious and designed with your comfort and privacy in mind. The exercise room is situated off the hallway on one end while the morning kitchen is ideal for coffee to be taken to the private covered balcony situated off the bedroom. There is also a dressing area and his and her walk-in closets. The master bedroom is spacious and offers a two step trey ceiling and access to the regal master bath which features dual vanities, a linen closet, an elegant roman garden tub, an oversized shower and two compartmentalized toilet areas, one with a bidet. This home exudes elegance and luxury inside and out and will provide you with the forever home of your dreams.
