Florida House Plan 168-00085

Sq Ft6,175
Beds7
Baths7
1/2 Baths1
Stories2
Cars4
Width76' 8"
Depth93' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

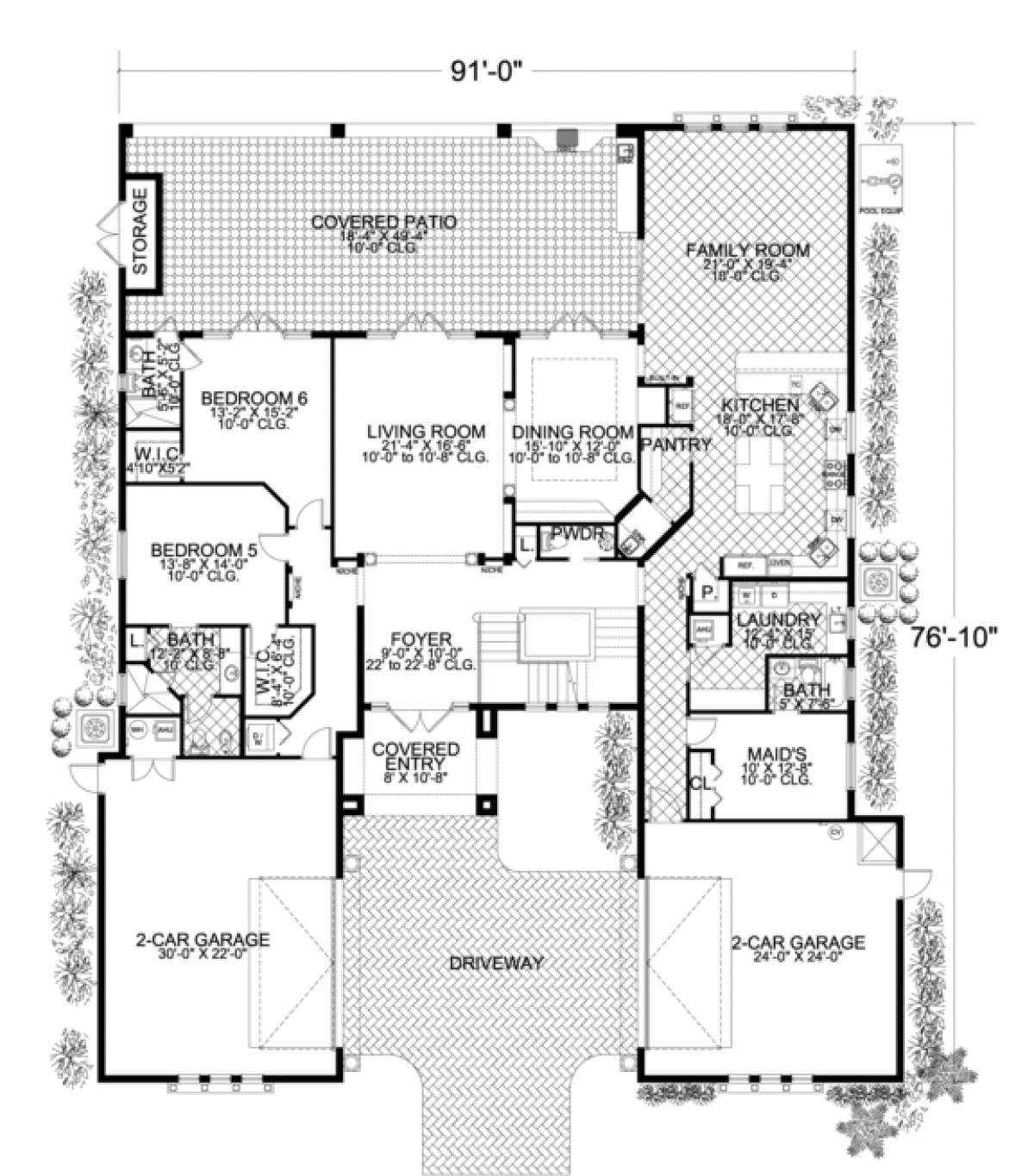

Floorplan 1 for House Plan #168-00085

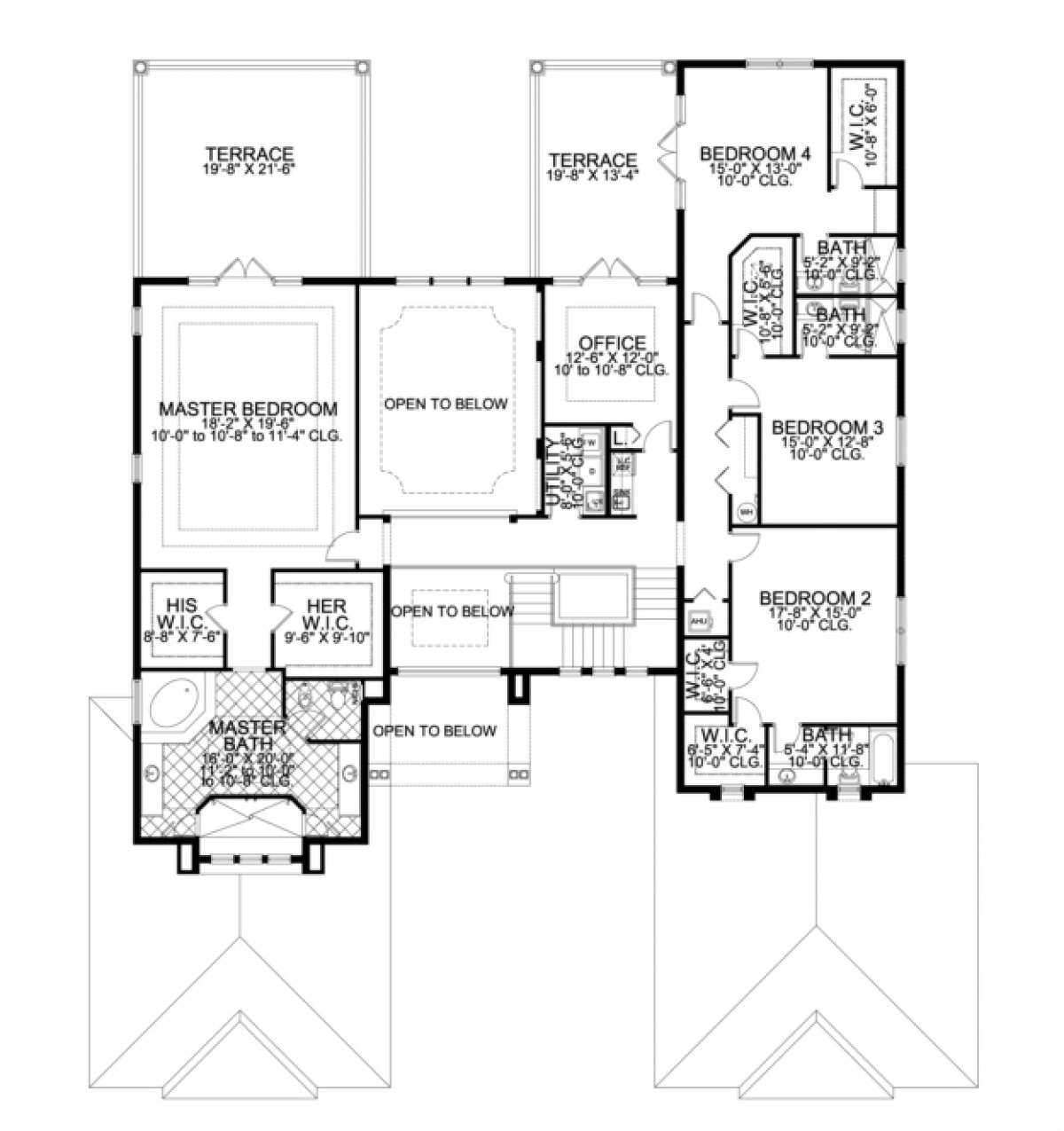

Floorplan 2 for House Plan #168-00085
Floorplan 1
Floorplan 1 for House Plan #168-00085
Floorplan 2
Floorplan 2 for House Plan #168-00085


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This approximately 6,100 square foot Mediterranean house plan definitely has the “wow” factor. This home is a stunning example of a grand Mediterranean style home with architectural details few homes are graced with. The design standards and dramatic detailing such as the stucco exterior, dramatic arches and stately columns definitely impress the most discriminating homeowner and produces massive curb. The brick paved driveway is flanked on both sides with double, two car garages which are oversized and offer additional storage room. The towering front covered entryway is graced with double doors and leads into the spacious grand two story foyer. The formal living and dining room are centrally located and offer outstanding space, raised ceilings and access to the rear covered patio which features a summer kitchen and additional storage. The gourmet kitchen features a center island, breakfast bar, butler’s pantry, a separate walk-in pantry and is open to the large family room with patio access. Maid’s quarters with a private bath and generous closet space along with a large utility room are situated close to the kitchen. Two additional bedrooms, each with a private bath and walk-in closet are located on the main level of the home. The stately proportions and grandeur of the home are continued on the second level of the home as you encounter a bridge which either takes you to the master retreat or three additional, generous size bedrooms. Bedroom two offers double walk-in closets and a private bath while bedroom three features a private bath and generous closet space. Bedroom four is outstanding in its design with double walk-in closet, a private bath and French door access to an oversized terrace. There is an additional utility room located upstairs for convenience as well as a large office which could be utilized as a homework station for the children. The master retreat is stunning and features a large, trey ceiling bedroom with French door access to a private terrace. His and her walk-in closets line the hallway leading to the master bath which features a spacious footprint and is highlighted by an oversized shower, corner garden tub, separate dual vanities and a compartmentalized toilet. This house plan is graced with perfection and architectural details which would delight and impress the most discriminating homeowner.
