Florida House Plan 168-00074

Sq Ft5,642
Beds5
Baths5
1/2 Baths1
Stories2
Cars3
Width69' 8"
Depth106' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

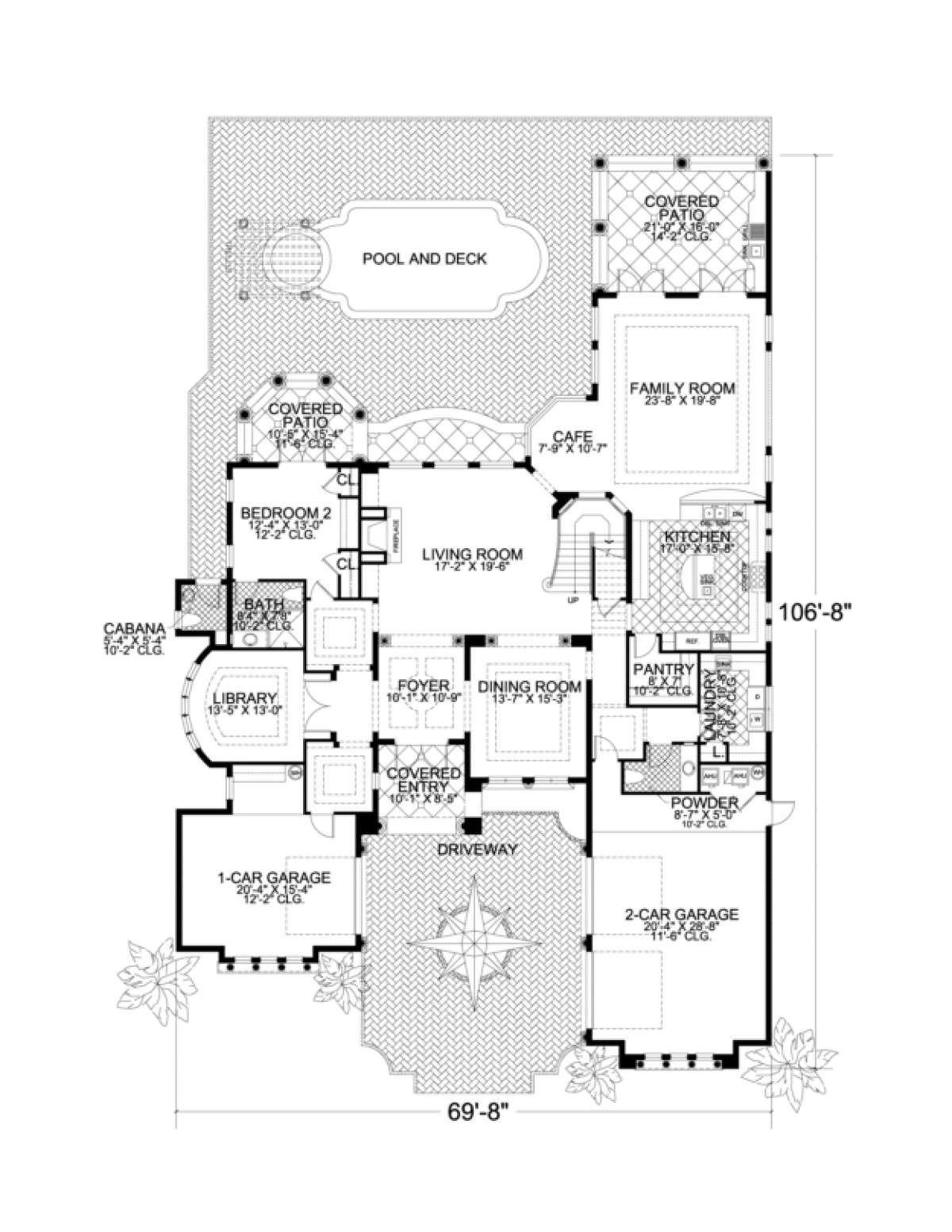

Floorplan 1 for House Plan #168-00074

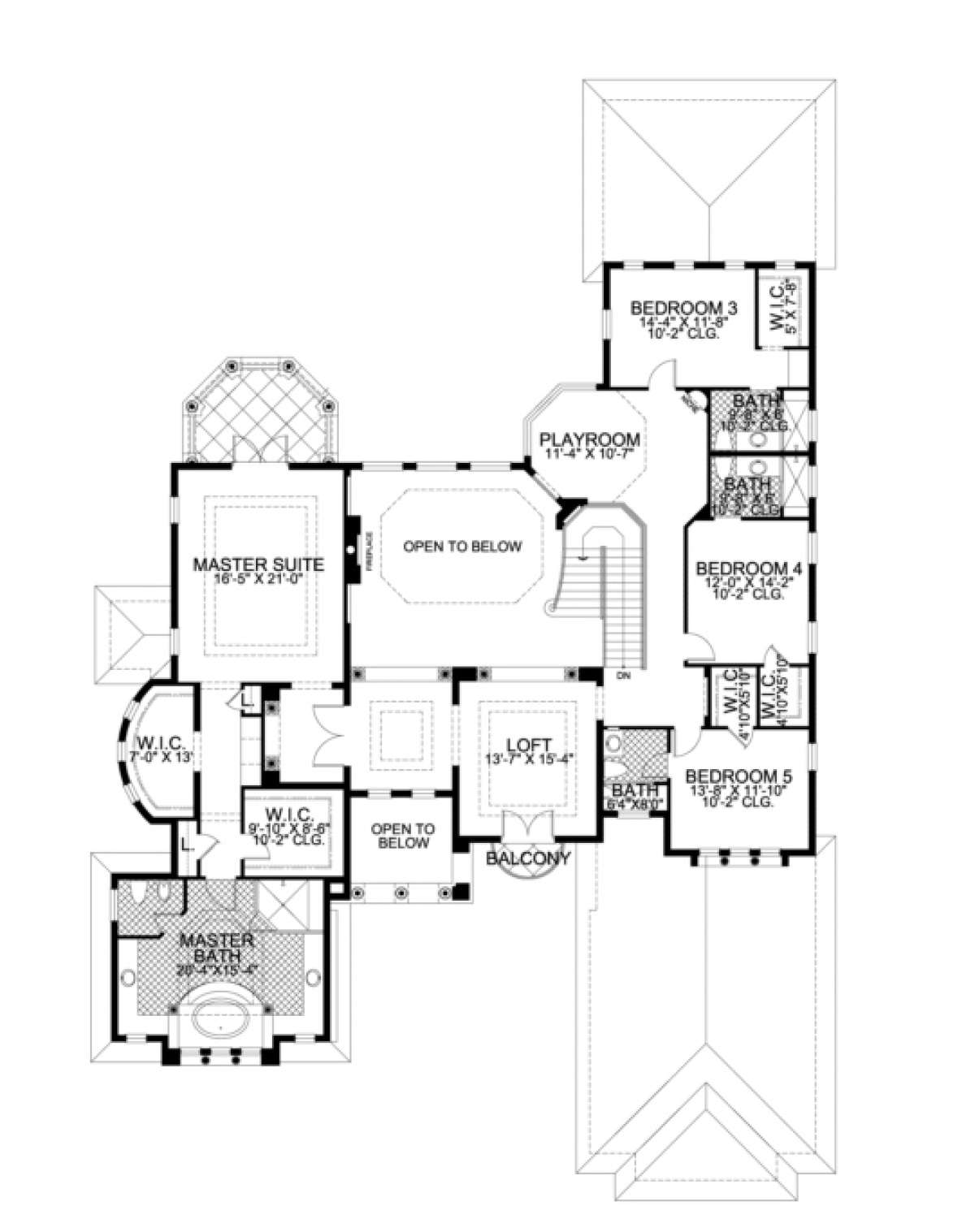

Floorplan 2 for House Plan #168-00074
Floorplan 1
Floorplan 1 for House Plan #168-00074
Floorplan 2
Floorplan 2 for House Plan #168-00074


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This outstanding Mediterranean style home offers a visually stunning exterior façade and a spacious interior floor plan. Curved spiral columns, red tile roofing, curved window arches and splendid balconies add to the magnificent exterior features. A grand covered entryway boasts of a double door feature and the interior floor plan is no less inspiring. This expansive home features approximately 5,600 square feet of living space houses five bedrooms, five plus bathrooms and a three car garage. The spacious foyer leads to the enormous great room with a fireplace and formal dining room with boxed ceiling; these spaces are ideal for entertaining. A private den is accessible through French doors and is accented with a graceful bowed window feature. The gourmet kitchen has a center work top island, a separate breakfast bar and an oversized walk-in pantry. The family café features a triple window bay window overlooking the pool and deck area. The large family room has a double step trey ceiling and access to the rear covered patio with summer kitchen making this a lovely space to dine alfresco with family and friends. The main level guest suite includes a private bath, double closets and private covered patio access. The utility room is quite large with closet space, a sink area and counter space. A powder room, cabana bath and split garage bays complete the first level of the home.
The second story of the home features an awesome layout which includes a large loft area with covered balcony access; this space is ideal for a teenager’s lounge and homework station. There are three additional bedrooms, each with a walk-in closet and private bath along with a uniquely shaped octagon playroom. Additionally, the master suite is situated on this level and occupies one wing of the second floor. The master retreat is simply stunning and features a large master bedroom with double step trey ceiling and French door access to the private balcony. Huge double walk-in closets line the hallway to the master bath. The master bath showcase is the gorgeous Roman spa tub and there is a separate shower, dual vanities and a compartmentalized toilet as well. This is a home that will provide years of pleasure and comfort for your family.
