Florida House Plan 168-00070

Sq Ft5,547
Beds5-6
Baths4
1/2 Baths1
Stories2
Cars3
Width69' 8"
Depth89' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

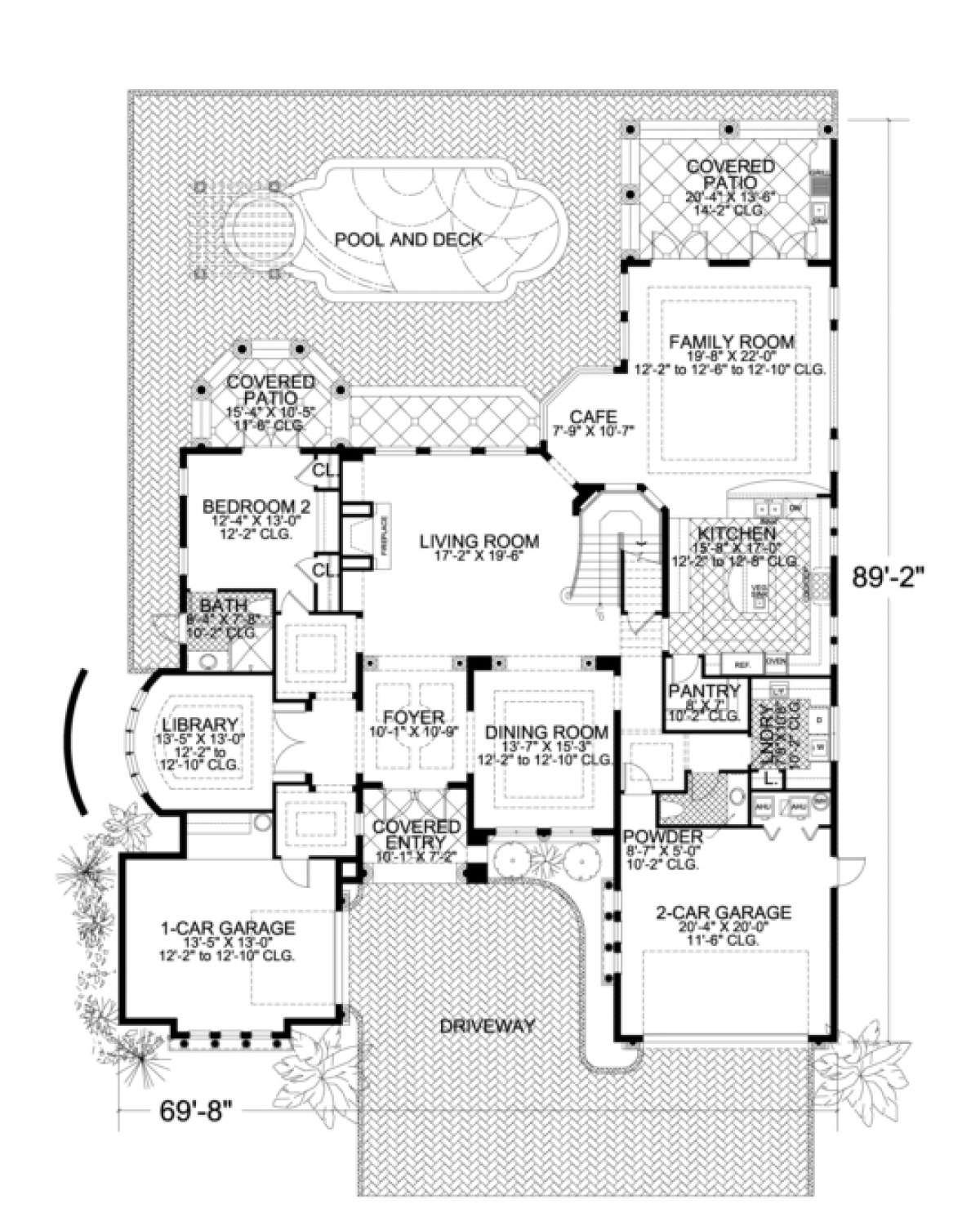

Floorplan 1 for House Plan #168-00070

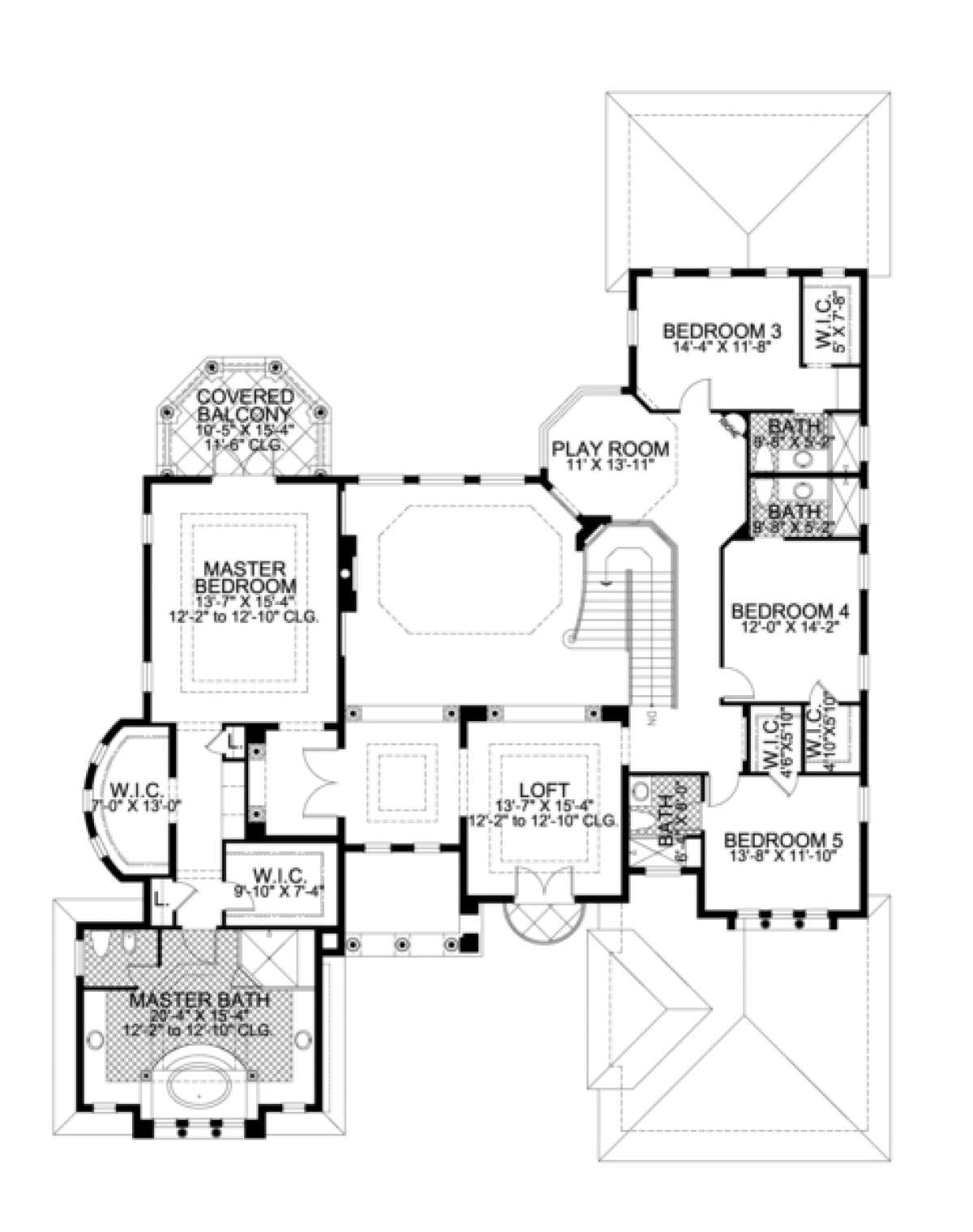

Floorplan 2 for House Plan #168-00070

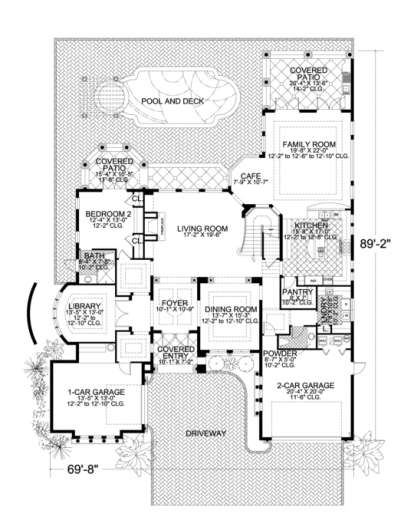

Floorplan 1
Floorplan 1 for House Plan #168-00070
Floorplan 2
Floorplan 2 for House Plan #168-00070


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This visually stunning Mediterranean home offers architectural details such as tile roofing, arched windows, stately columns and balconies reminiscent of old world charm and a modern 21st century floor plan designed to offer your family a spacious and comfortable space to call home. As you enter the brick paved driveway, there are two separate garages, one with a single bay; the other has a double bay. The majestic two story covered entrance with 8’ French doors and arched transom accent leads into a spacious formal foyer. The large formal living room features high ceilings, a stately fireplace and a triple window view of the rear patio and pool area. A gracious dining room with an arched opening, columns and raised coffered ceiling is situated on one side of the foyer while the luxurious library features an extravagant bowed window. The guest suite is highlighted by its own private entrance and features a generous bedroom with double closets and a private bath. The designer kitchen has a beautiful center island, breakfast bar, separate walk-in pantry and centrally located café open to the spacious family room which provides double French door access to the rear covered patio with summer kitchen. A large utility room with generous counter space and a powder room complete the first level of the home. Upstairs, you are initially greeted with a large and inviting loft area which leads to a “Juliet” balcony through French doors and bridges the space between the master retreat and the additional bedrooms. There are three bedrooms, each with a walk-in closet and private bath along with a unique octagon shaped playroom or sitting area for the children. The luxurious master retreat is accessed through French doors and opens onto the large master bedroom with double step trey ceiling and access to a private covered balcony. His and her walk-in closets and double linen closets line the hallway to the beautifully appointed master bath which enjoys a spacious footprint and is highlighted by a large roman tub, oversized separate shower, separate dual vanities and a compartmentalized toilet. This two story Spanish manor home offers grand amenities and an architecturally stunning exterior that exudes luxury inside and out.
