Florida House Plan 168-00051

Sq Ft4,241
Beds4-5
Baths5
1/2 Baths1
Stories2
Cars3
Width70' 5"
Depth82' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

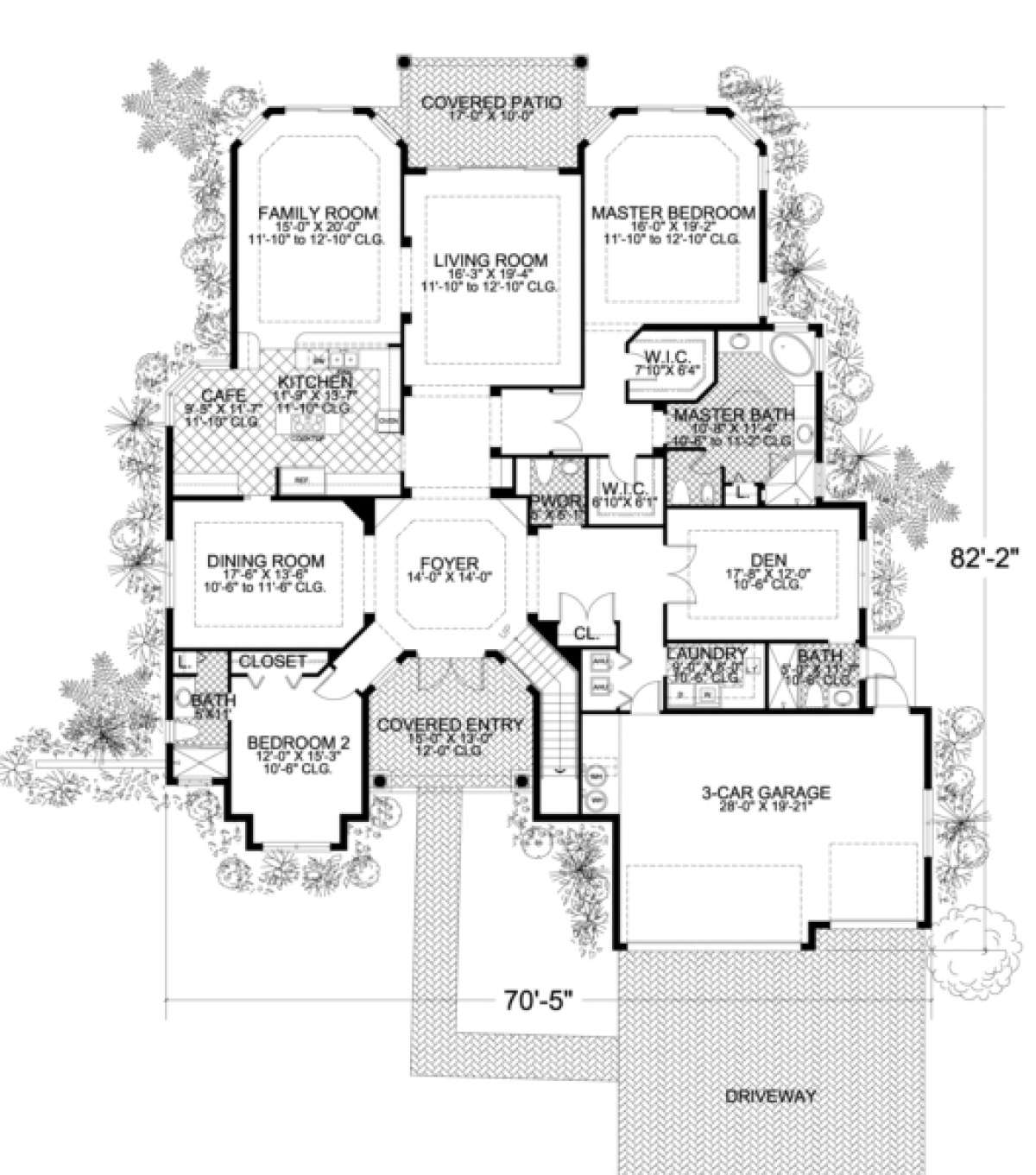

Floorplan 1 for House Plan #168-00051

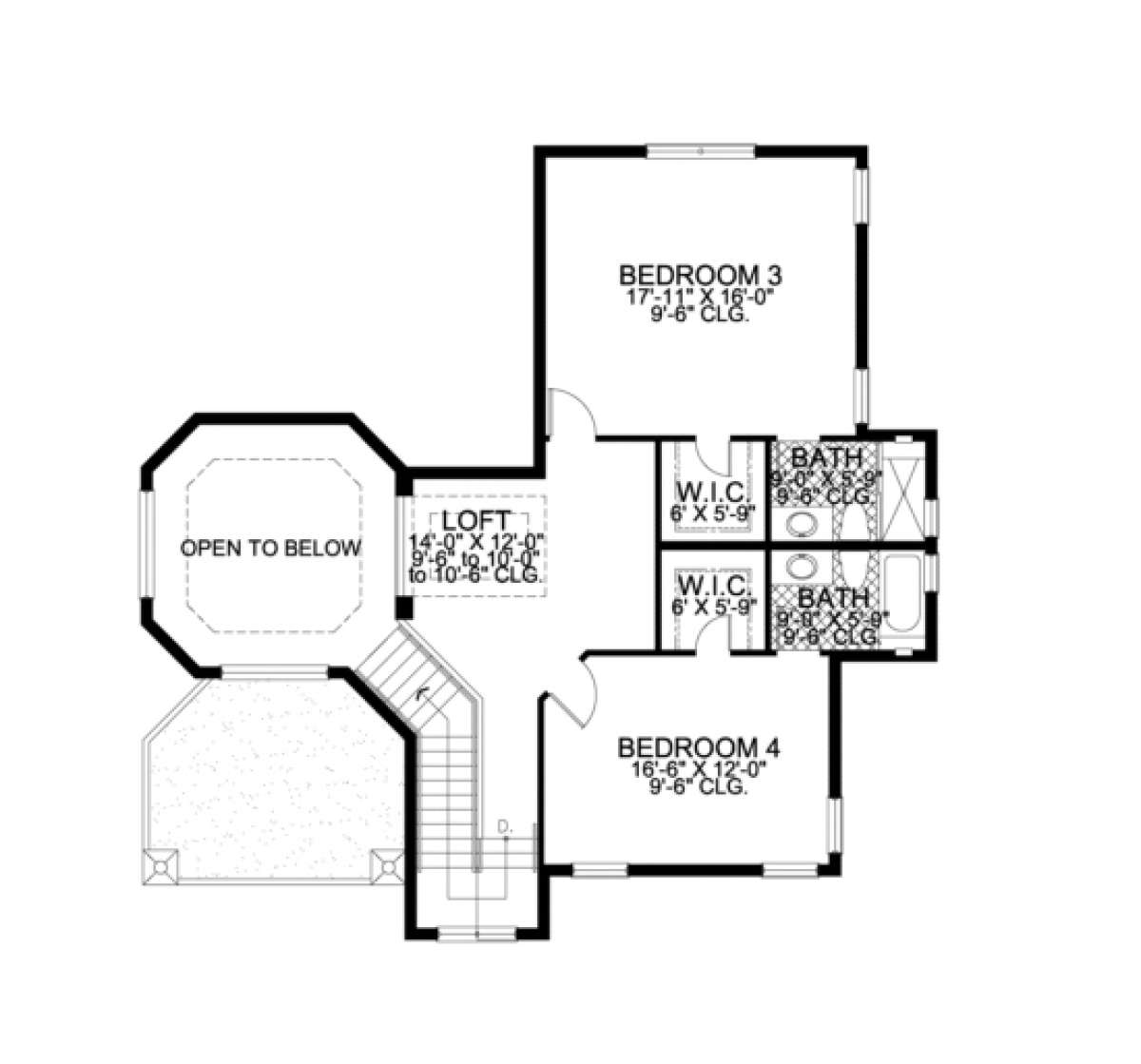

Floorplan 2 for House Plan #168-00051
Floorplan 1
Floorplan 1 for House Plan #168-00051
Floorplan 2
Floorplan 2 for House Plan #168-00051


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Classic and timeless is the key to this elegant Mediterranean exterior façade with warm colors and boundless character. The tiled roof, center balcony and elegant window features combine to make this a striking exterior. The towering grand entrance lends to the overall character of the home and gives it a timeless feel with its double door entry and transom window accent. The versatile interior floor plan is comfortable and offers approximately 4,200 square feet of living space with four bedrooms, four plus baths and a three car garage. The dramatic foyer fans out in multiple directions and houses the staircase to the second floor. The den offers a cozy and private area in which to relax or entertain intimate friends; it is reached through French doors, features a trey ceiling and access to a private bath. The formal dining room is a generous space with a trey ceiling and leads to the gourmet kitchen which features a cook top island, separate breakfast bar and café with a triple bay window. This area is open to the enormous family room and provides an outstanding space to “hang out” with the family. The formal living room is centrally located and another superior use of space as it is quite large with rear covered patio access. This home was designed with entertaining in mind as evidenced by its use of open and luxurious common spaces. A guest suite or second bedroom is situated on the main level and offers generous closet space and a private bath. The large utility room is conveniently located off the three car garage. The main level master retreat is accessed through French doors and features a large bedroom with triple bay window and rear courtyard access. His and her oversized walk-in closets flank the master bath which is highlighted by a corner garden tub, separate shower, double vanities and a compartmentalized toilet.
The common loft area upstairs is ideal for a playroom or homework station. Additionally, there are two enormous bedrooms, each with a walk-in closet and private bath. This home has a functional and comfortable floor plan with an abundance of space for a large family who values their space and loves to entertain.
