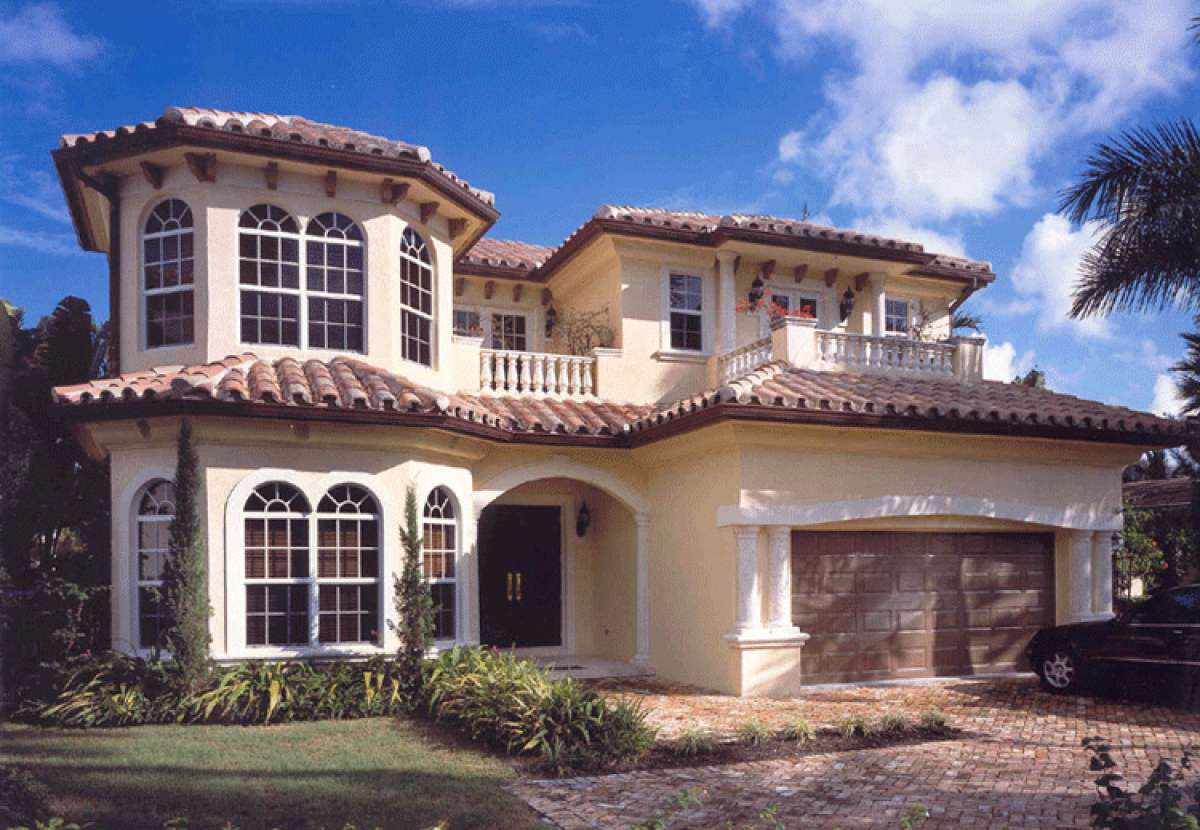

Florida House Plan #168-00050 Elevation Photo

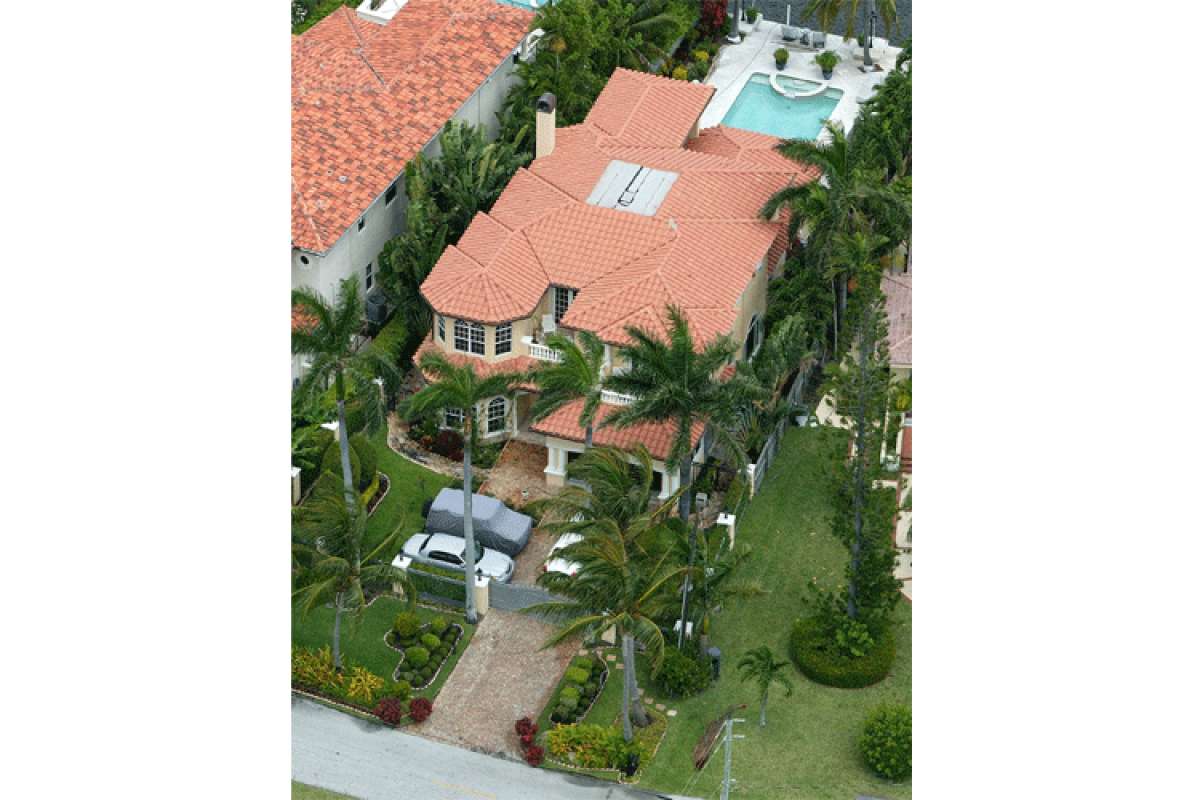

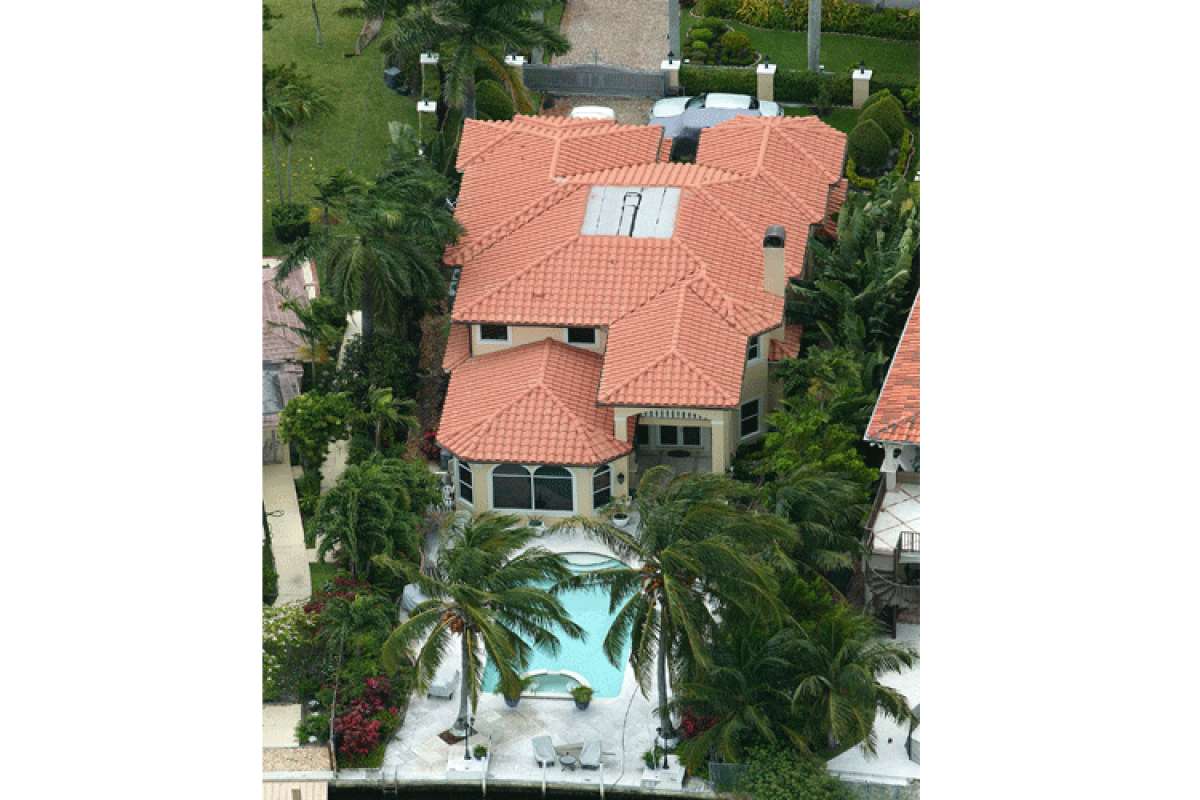

Florida House Plan #168-00050 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 4,224

Beds 5

Bath 4

1/2 Baths 1

Car 2

Stories 2

Width 44' 10"

Depth 82' 10"

See What's Included

Select Package

PDF (Single Build)

$1,500.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,300.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

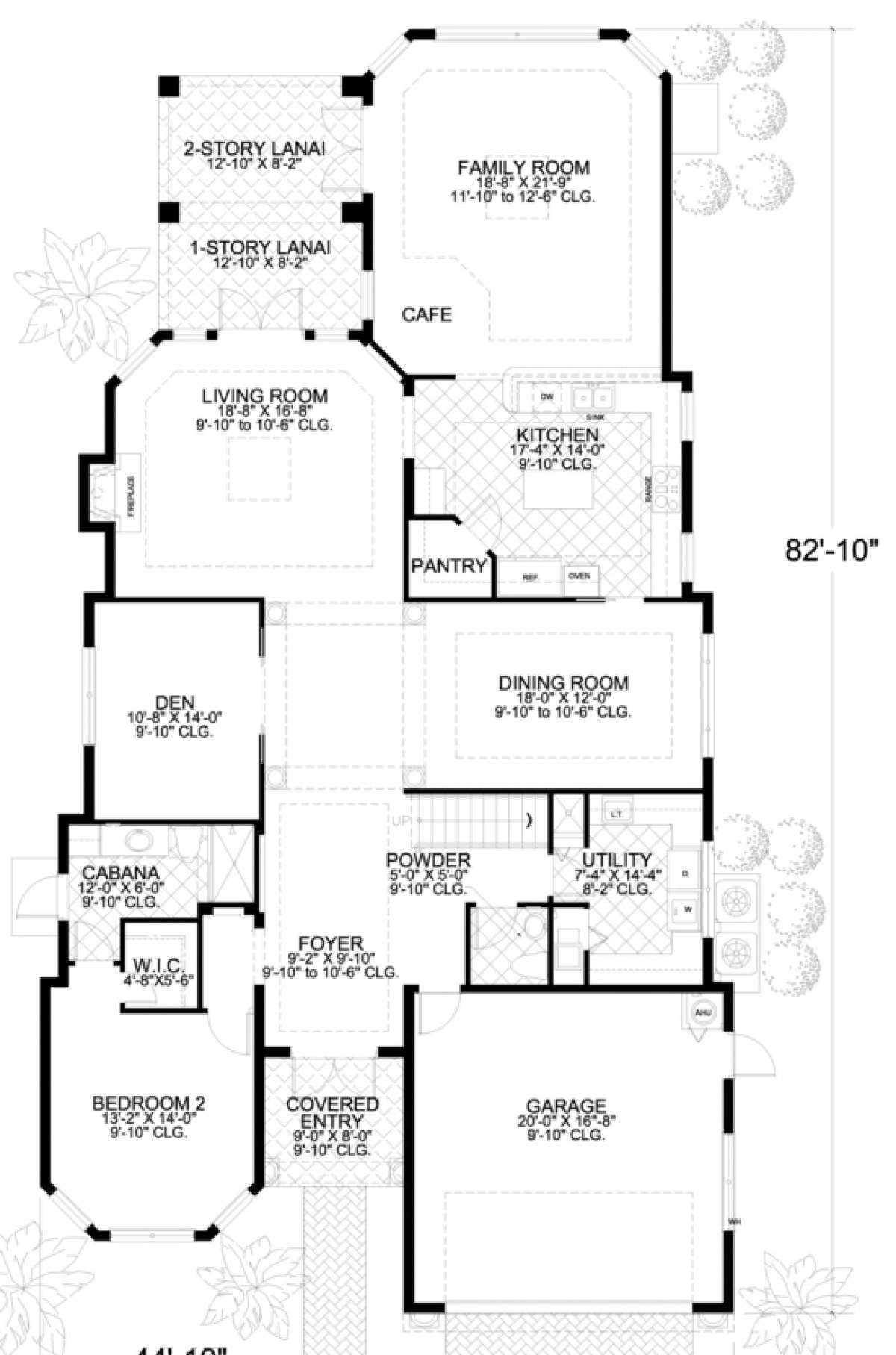

Floorplan 1

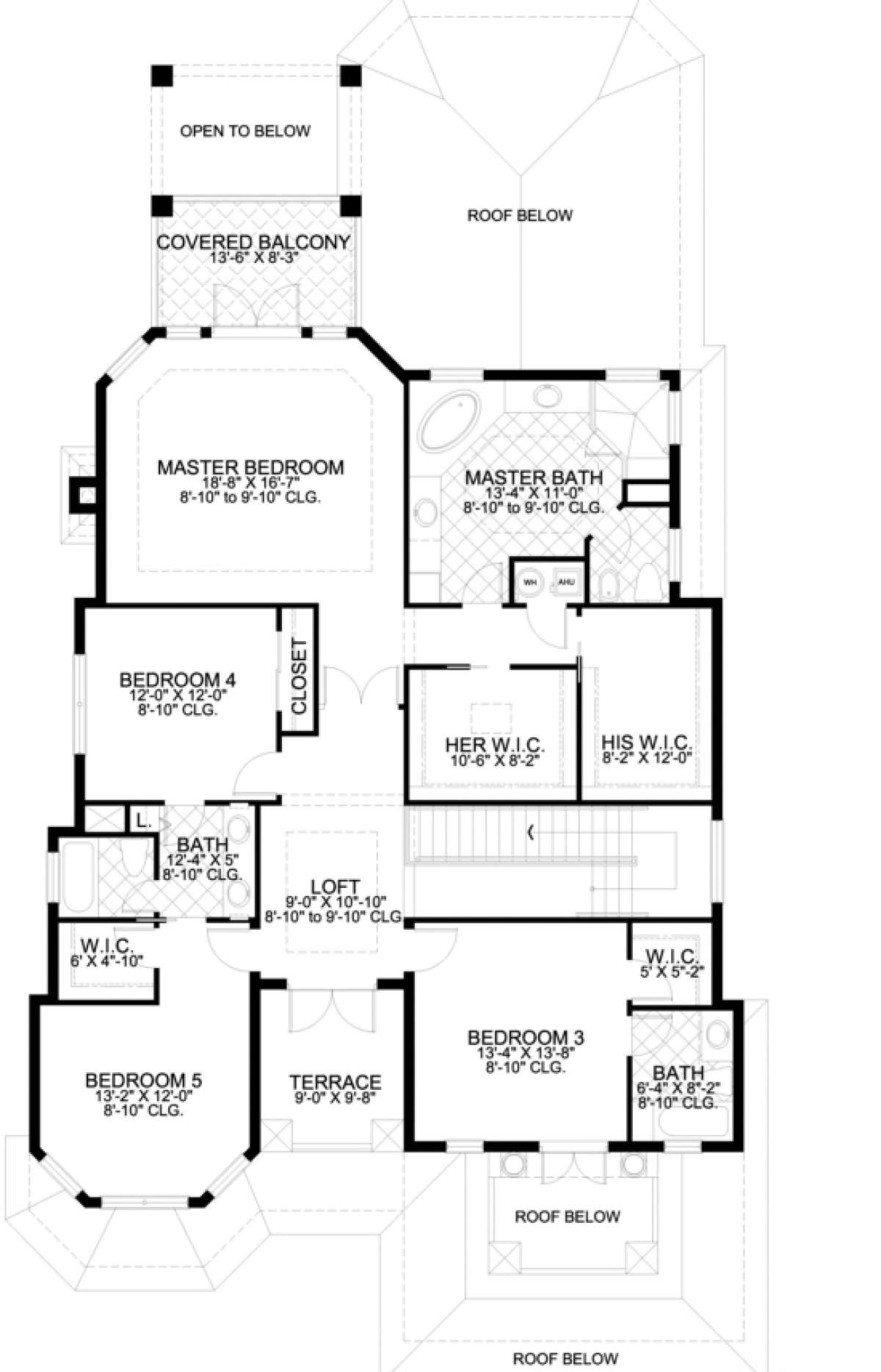

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This stunning Mediterranean style plan offers outstanding curb appeal with its elegant exterior and an equally beautiful interior floor plan. The two story home with its dramatic towering covered front entrance and paneled front doors with transom top detail exudes luxury and leads to the spacious two story foyer. A guest or family bedroom with walk-in closet and cabana bath access is situated at the front of the home off the foyer and is adjacent to the den which would make an excellent retreat or office/study for any family member or guest. A uniquely shaped family room with fireplace and trey ceiling opens to a covered lanai through French doors. The large gourmet kitchen offers a center island, breakfast bar and oversized walk-in pantry which anchors the formal dining room and family room with the café. The family room opens to a covered lanai with summer kitchen which is ideal for entertaining family and friends. An oversized utility room, half bath and two car garage with additional storage room completes the main level of the home. Upstairs, you will find a large loft area with terrace access along with three additional bedrooms and the master retreat. Bedroom three is oversized with a walk-in closet, private bath and French door access to the balcony. Bedroom four offers a generous closet, a jack and jill bath with dual vanities and linen closet which is also accessible from bedroom five. Bedroom five features a unique octagon shaped room with a walk-in closet. The master retreat defines luxury with its oversized, trey ceiling bedroom and double French door access to the covered balcony. The his and her walk-in closets are large and luxurious as is the master bath with its large footprint and features dual vanities, an oversized shower, corner garden tub and compartmentalized toilet and bidet area. This floor plan is ideal for large families and makes a versatile home which can be customized for your family’s needs.
