Florida House Plan #168-00041 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 3,543

Beds 5-6

Bath 3

1/2 Baths 1

Car 2

Stories 2

Width 50'

Depth 80'

See What's Included

Select Package

PDF (Single Build)

$1,400.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,100.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

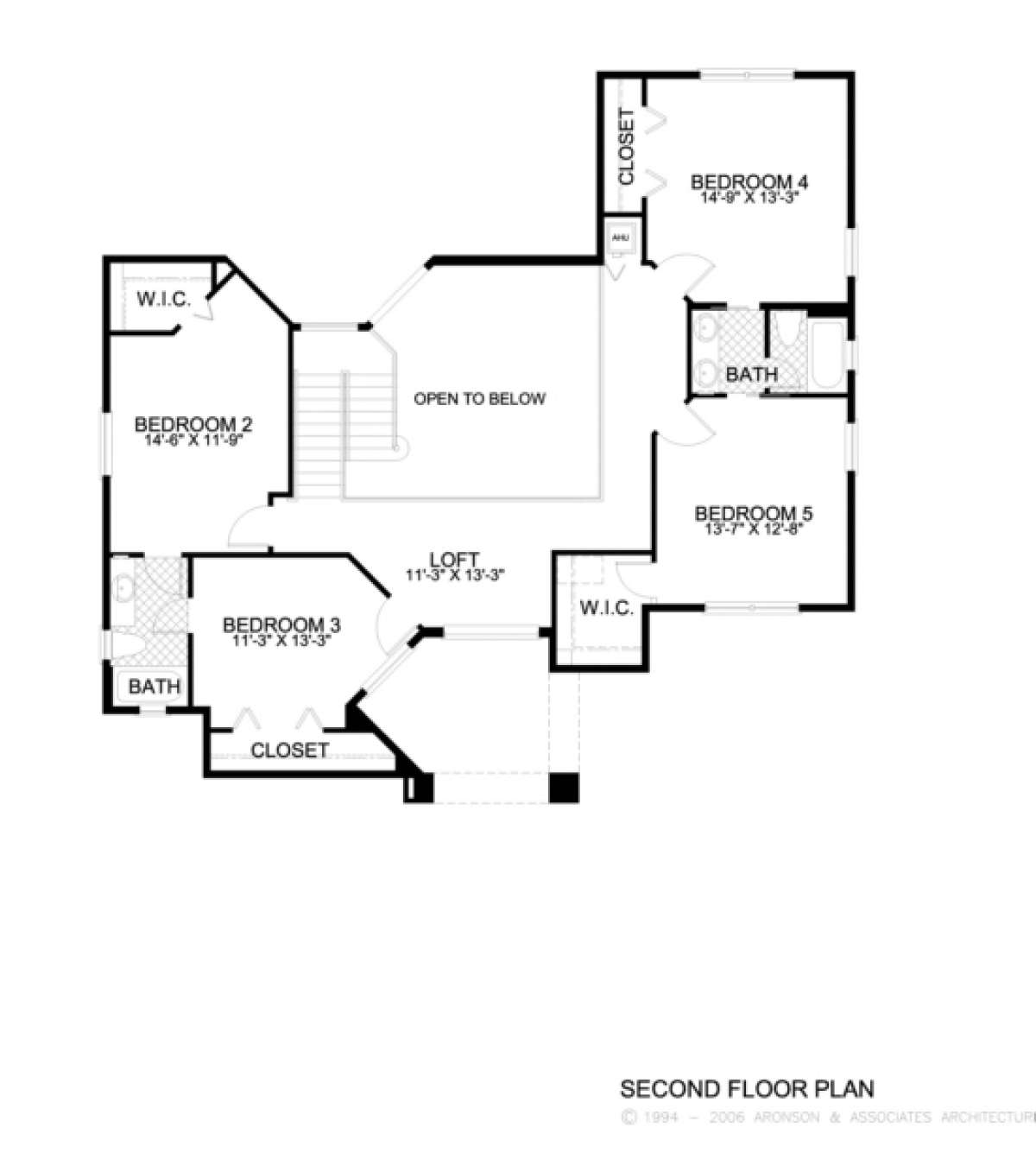

Floorplan Drawings

REVERSE PRINT DOWNLOAD

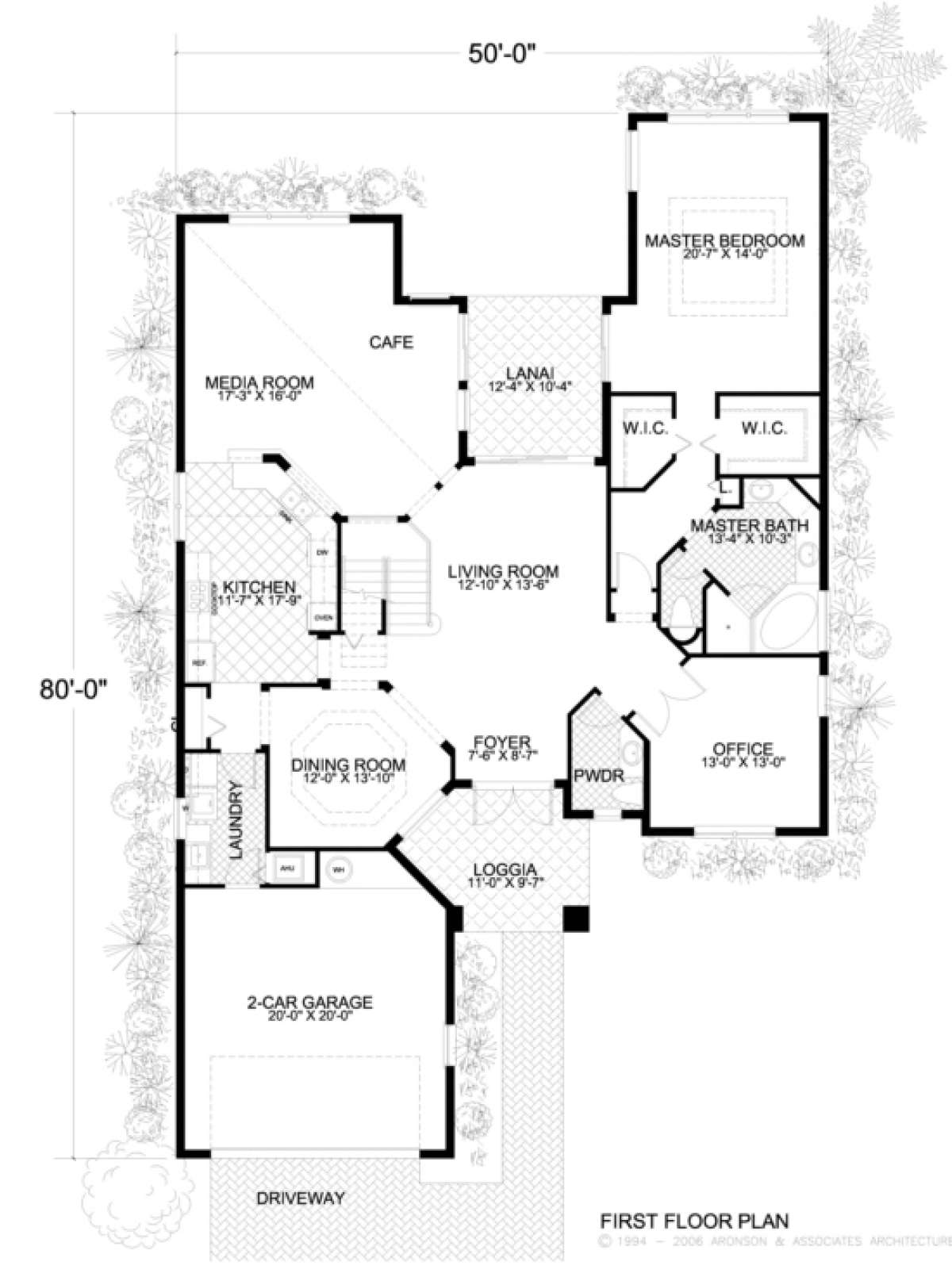

Floorplan 1

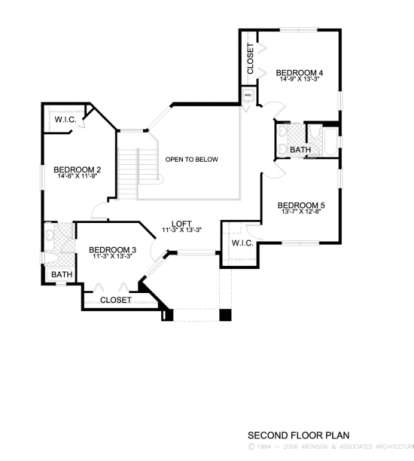

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This traditional home offers a grand towering entrance, tiled roofing and is distinctively Mediterranean in style. The loggia and double door entry into the home adds Spanish flavor and an inviting space in which to greet family and friends. The open foyer fans out in a multitude of directions and is quite spacious. The uniquely shaped, formal dining room features a double step trey ceiling and leads to the kitchen. The gourmet kitchen has a breakfast bar, separate pantry and opens onto the family café and media room. In traditional fashion, these areas are designed for family living and provide an open space in which the entire family can come together to enjoy a meal or relax. The centrally located formal living room is an excellent space to entertain and has lanai access. The rear courtyard provides an anchor for outdoor living and entertaining, perfect for dining al fresco with family and friends. A large utility room with counter sink space is situated off the garage for convenience and ease. The master retreat occupies one wing of the first floor and has a separate office accessible through French doors. Entrance to the master suite is adjacent to the office and leads to the master bath which is elegant appointed and includes a corner garden tub, separate shower, dual vanities, linen closet and private toilet area. His and her oversized walk-in closets line the hallway to the master bedroom offering an abundance of clothing and storage space. The master bedroom enjoys a generous space with double step trey ceiling, beautiful window views and lanai access.
As you travel the staircase to the second floor, you are greeted with an open loft; this space is ideal for a lounge, homework station or playroom for the children. Bedroom two has a walk-in closet and shares a bath with bedroom three, which has double door closet space. Bedroom four has ample closet space while bedroom five enjoys a walk-in closet. A shared hall bath with dual vanities is situated between the two bedrooms. All the bedrooms have generous footprints, plenty of closet space and window views. This home features a versatile floor plan which is ideal for a large family.
