Florida Plan 168-00039



To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,323
Beds 3-4
Bath 3
1/2 Baths 0
Car 2
Stories 2
Width 48'
Depth 79' 10"

Floorplan Drawings

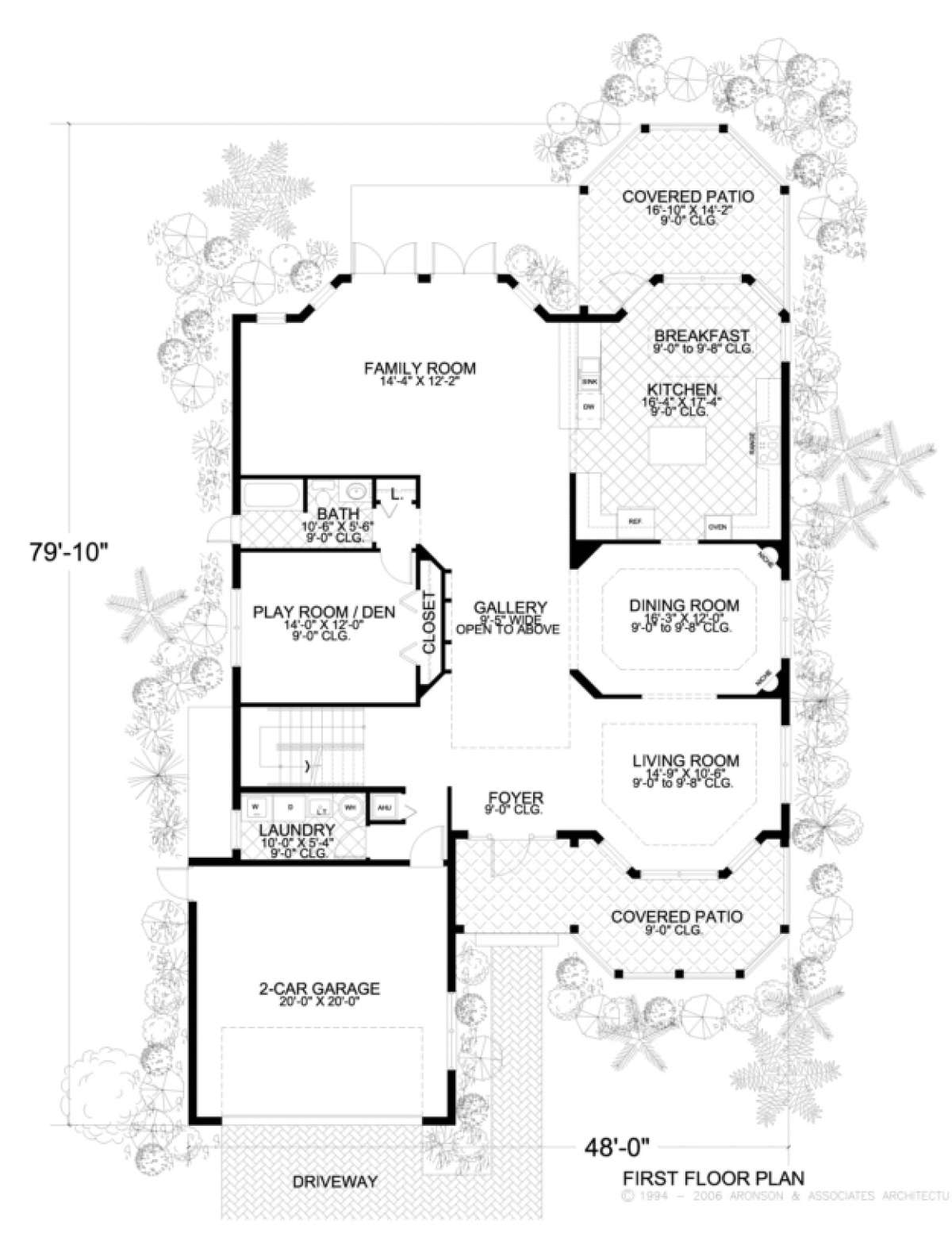

Floorplan 1
Floorplan 1 for House Plan #168-00039

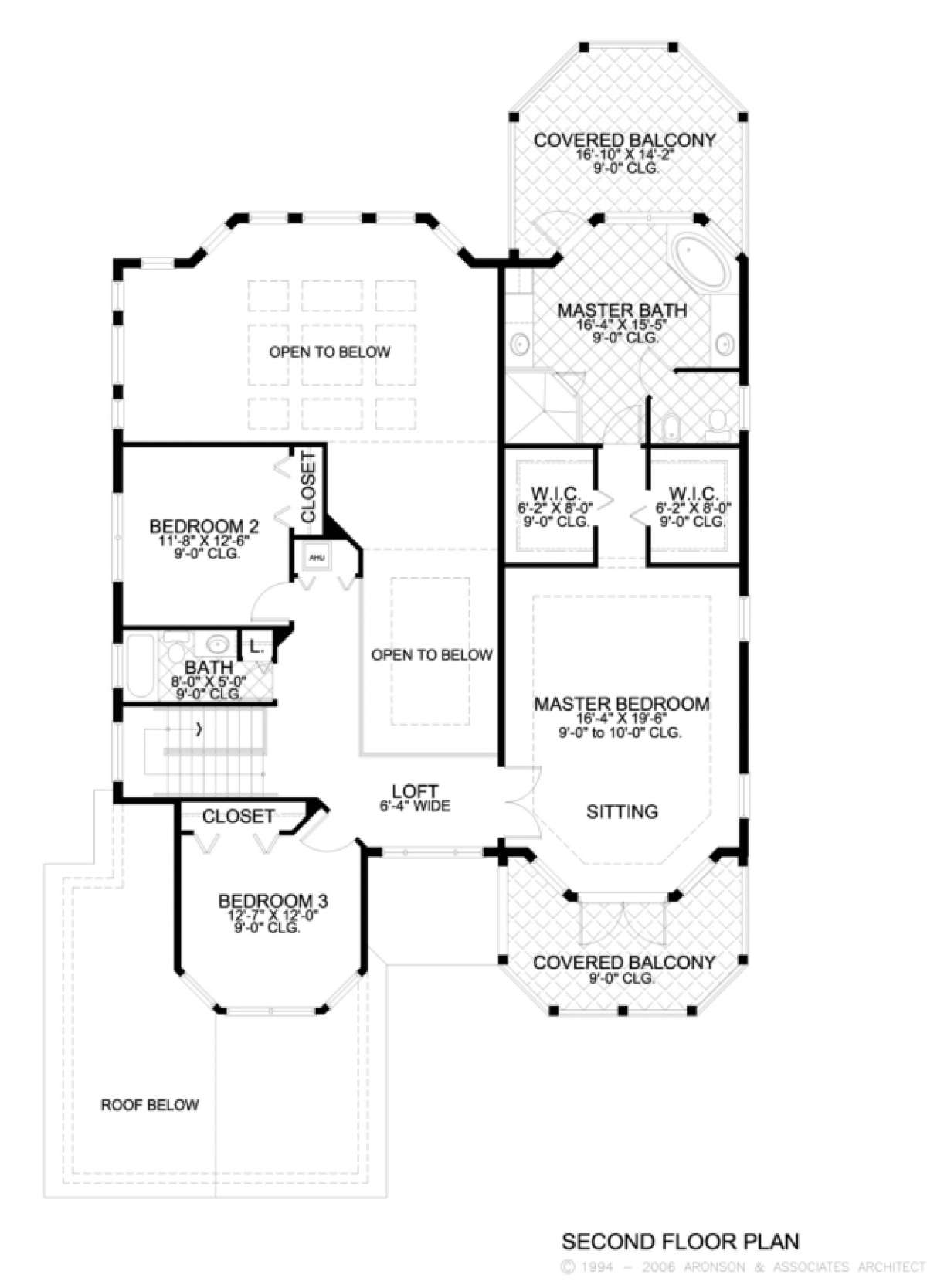

Floorplan 2
Floorplan 2 for House Plan #168-00039

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Key West inspired home offers a unique exterior façade which feature interesting roof lines, double covered front porches and a stunning entryway highlighted with windows. This luxurious home is highlighted by a large central gallery which runs the length of the main floor and extends from the foyer into the rear family room. The formal living room is open with a trey ceiling feature and offers a triple bay window view onto the front porch. The dining room is adjacent to the living room making this space wonderful for entertaining. The gourmet kitchen anchors the formal dining room with the informal breakfast room and showcases a large center island. The breakfast room boasts of a triple bay window and rear covered patio access. The immense family room is a great space for relaxing and has double French door access to the rear patio. There is an enclosed flex space which could double as a den or playroom for the children; it has a spacious closet and access to a full bath. The large laundry room has a sink area and is accessible through the two car garage for convenience.
A loft area is accessed off the second story landing as well as two additional bedrooms. Each bedroom has plenty of closet space and they share a hall bath and linen closet. The master suite is amazing with dual covered balconies on each end of the master retreat. The front end balcony is adjacent to the master bedroom and sitting area. His and her oversized walk-in closets line the hall to the master bath which is elegant and features a garden tub, separate shower, double vanities and a private toilet area. The second covered balcony sits at the rear of the master bath and gives the master wing a regal feel. This unique home offers a functional and versatile floor plan and an exterior façade that is luxuriously styled.
