Narrow Lot House Plan 110-01041

Sq Ft859
Beds2
Baths1
1/2 Baths0
Stories1
Cars0
Width36' 0"
Depth39' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

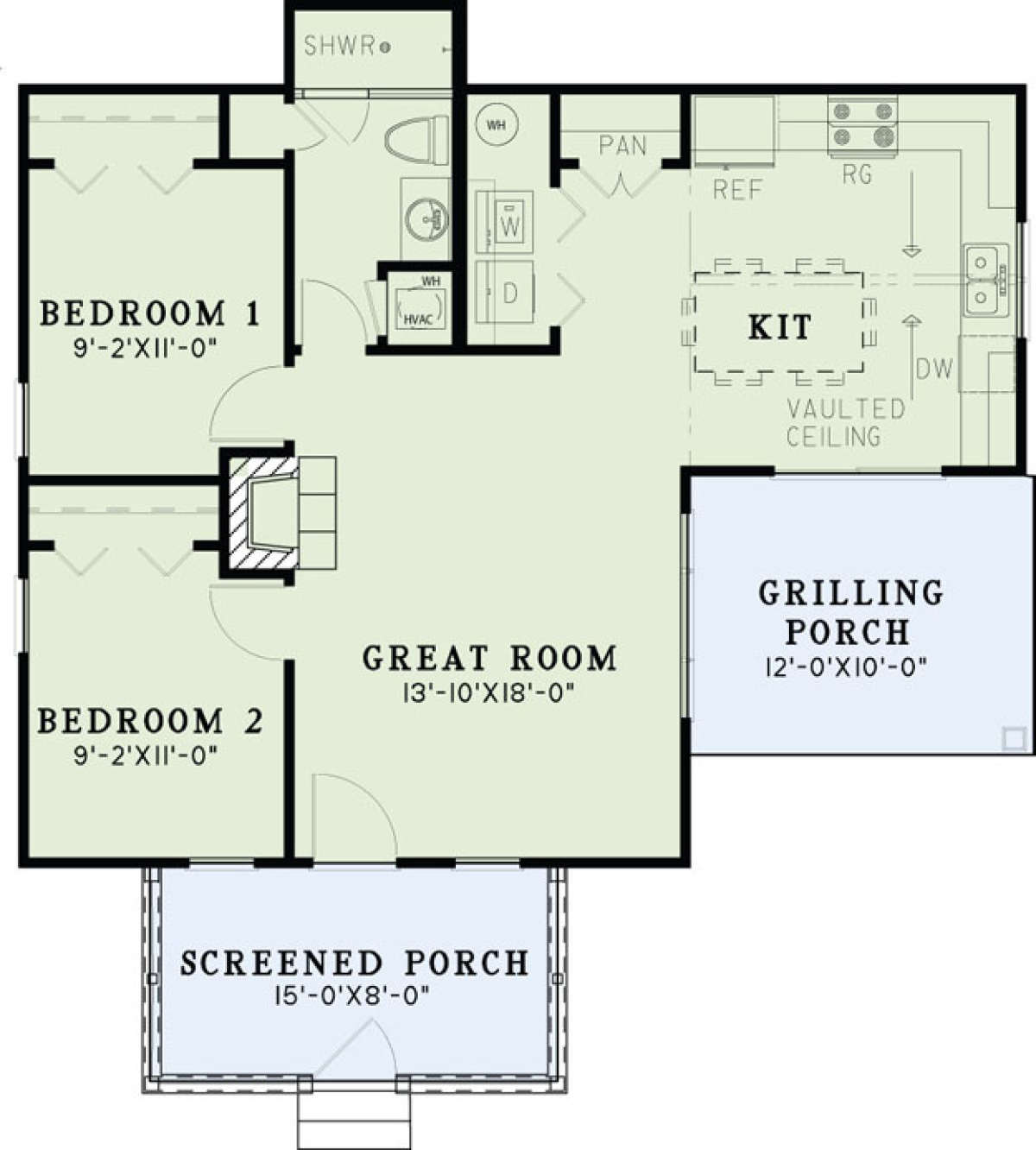

Main Floor Plan for House Plan #110-01041
Main Floor Plan
Main Floor Plan for House Plan #110-01041


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

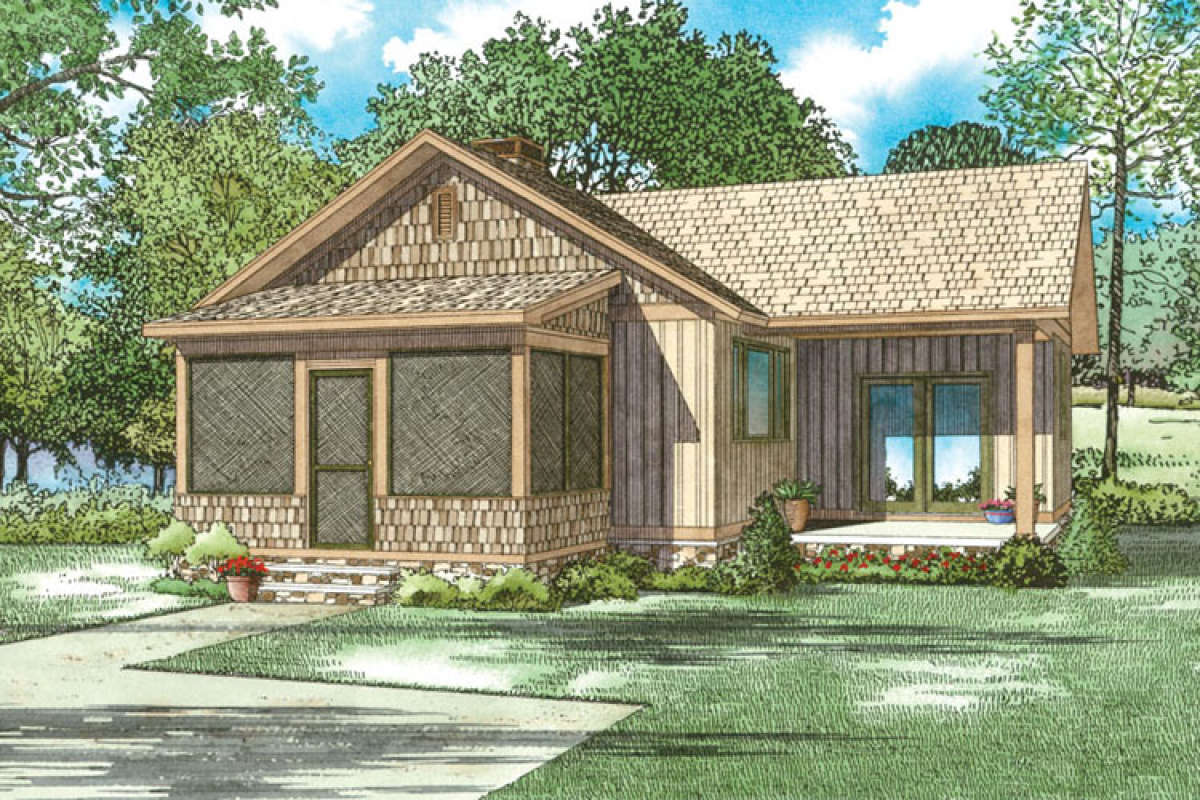

A perfect getaway home or permanent residence for a small family, young professionals or retirees can be found in this narrow lot house plan. The rustic exterior is composed of cedar shakes, board and batten and an overhead gabled roof. The interior of the home features approximately 859 square feet of space which includes two bedrooms and one bath. Ideal for a narrow and/or small property lot, the home’s width and depth dimensions are 36’ and 39’ respectively. Nine foot ceiling heights add to the spacious quality of the home and the choice of a slab or crawl space foundation is a nice option. This home while small, packs a big punch with its open floor plan and double outdoor spaces. The front porch measures 15’ x 8’; plenty of space to greet family and friends while also relaxing; additionally, the front porch is screened but could easily be converted to an open covered porch. There is a large side grilling porch as well with convenient slider access into the kitchen. Imagine coming home from a day of hiking, fishing or other outdoor adventures and having plenty of room for friends to gather, host a cookout and enjoy the remainder of the day. With the convenient access into the kitchen, grilling the day’s catch will be enjoyable and effortless, not to mention, easily contained and creating little or no mess to clean up.

Entrance into the home is off the front screened porch and leads to the open floor plan. There is a large great room with warming fireplace, a great space for putting your feet up and relaxing at the end of the day. The kitchen, lacking nothing found in much larger, more expensive homes, is situated at the rear of the home featuring a wraparound kitchen island where plenty of seating is available for family and friends. There are double window views over the sink, an impressive amount of counter and cabinet space and an adjacent food storage pantry as well as the sliders onto the outdoor grilling porch. A conveniently located washer and dryer nook adds to the efficiency of the home’s interior. Two equivalent sized bedrooms are found on the opposite side of the home; each with window views and generous closet space. There is a shared hall bath containing vanity space, a toilet area, an enclosed linen closet and oversized shower. This house design showcases a smaller footprint; however, the amenities and conveniences are in line with larger, more elaborate homes making this an ideal choice for a small family home or a vacation home for weekend getaways.
