Craftsman Plan 110-00713

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,852
Beds 4
Bath 3
1/2 Baths 0
Car 3
Stories 2
Width 57'
Depth 73' 4"

Floorplan Drawings

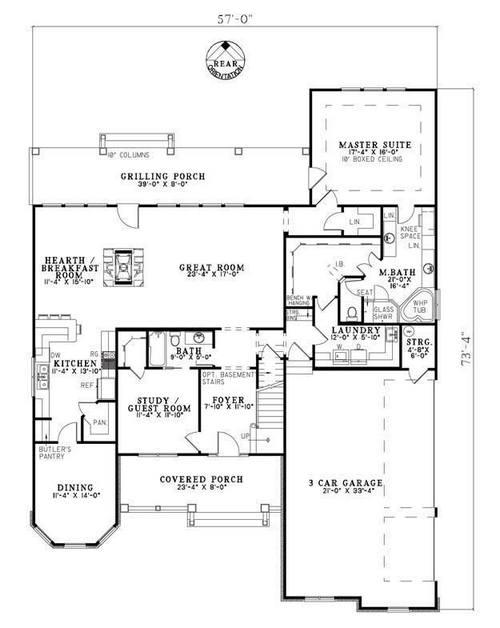

Floorplan 1
Floorplan 1 for House Plan #110-00713

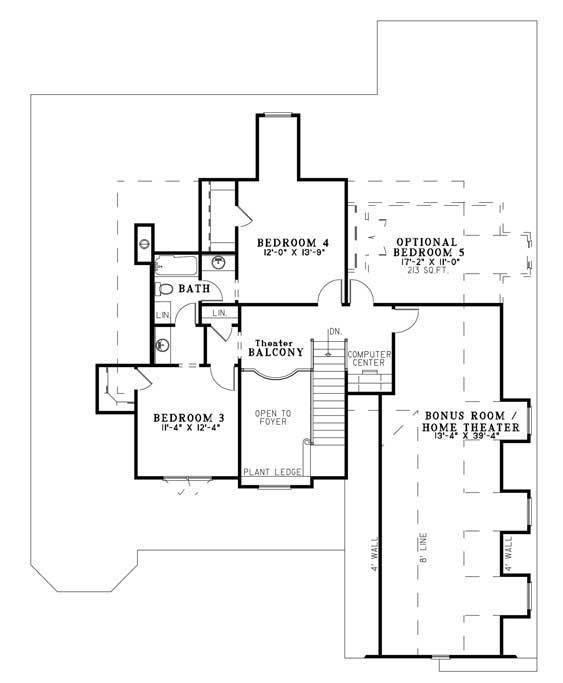

Floorplan 2
Floorplan 2 for House Plan #110-00713


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

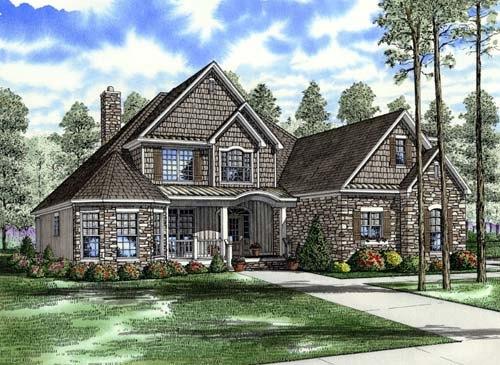

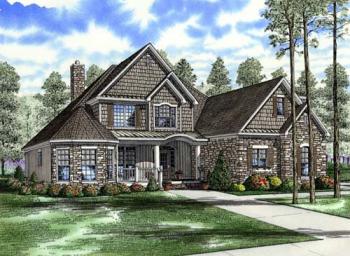

This traditional home has touches of Craftsman flair on the exterior façade resulting in an eclectic combination of style and comfort. The exterior consists of a beautiful blend of building materials such as cedar shakes, stacked stone and multiple split gables lining the roof. There is a barrel vault entrance to the front covered porch where open railing and columned beams are featured as well. This floor plan is perfect for a large and active family with its wide open main living spaces and extensive rear covered porch. There are four bedrooms and three baths incorporated into the approximate 2,852 square feet of living space and an additional 584 square feet is featured in the bonus room. A study or guest suite is situated directly off the spacious foyer and is highlighted with good floor space, a walk-in closet and private access to a full bath. Beyond the main gallery hallway is the great room with uncompromising space for entertaining, a warming fireplace and a rear wall of windows. On the back side of the fireplace is the hearth/breakfast room; an excellent space in which to casually dine or relax as a family. There is a centrally located access point to the rear grilling porch where an expansive amount of space is ideal for grilling, relaxing and gathering with family and friends. The gourmet kitchen features a peninsula breakfast bar that is open to the hearth room, a dedicated corner walk-in pantry and a butler’s pantry lies between the kitchen and formal dining room. The three car side loading garage features additional storage space and conveniently leads to the family laundry room which is enormous and contains a sink area and loads of counter space. The master suite is situated on the main floor for privacy and features two points of access into the retreat. The main entrance showcases the master bedroom and its lovely boxed ceiling feature, spacious floor plan and private porch access. There is a hall linen closet before entering the master suite and two additional linen closets are featured amenities in the en suite bath along with a corner whirlpool tub, a separate shower with seating, dual vanities and a compartmentalized toilet. An enormous walk-in master closet is located off the bath and has a second user friendly exit/entry into the laundry room.
The second story landing features a theatre balcony overlooking the foyer below and a compact computer space is located on the other side of the staircase landing. There are two spacious bedrooms on this floor; each has a walk-in closet and they share a jack and jill bathroom with double private lavatories. An enormous home theatre/media room is available for family and close friend’s entertainment beyond the computer center and an optional fifth bedroom with closet space is featured as well. This large family friendly home has a versatile and comfortable interior floor plan and an inviting exterior façade.
