Florida Plan 110-00412

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,654
Beds 3
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 81' 7"
Depth 97' 2"

Floorplan Drawings

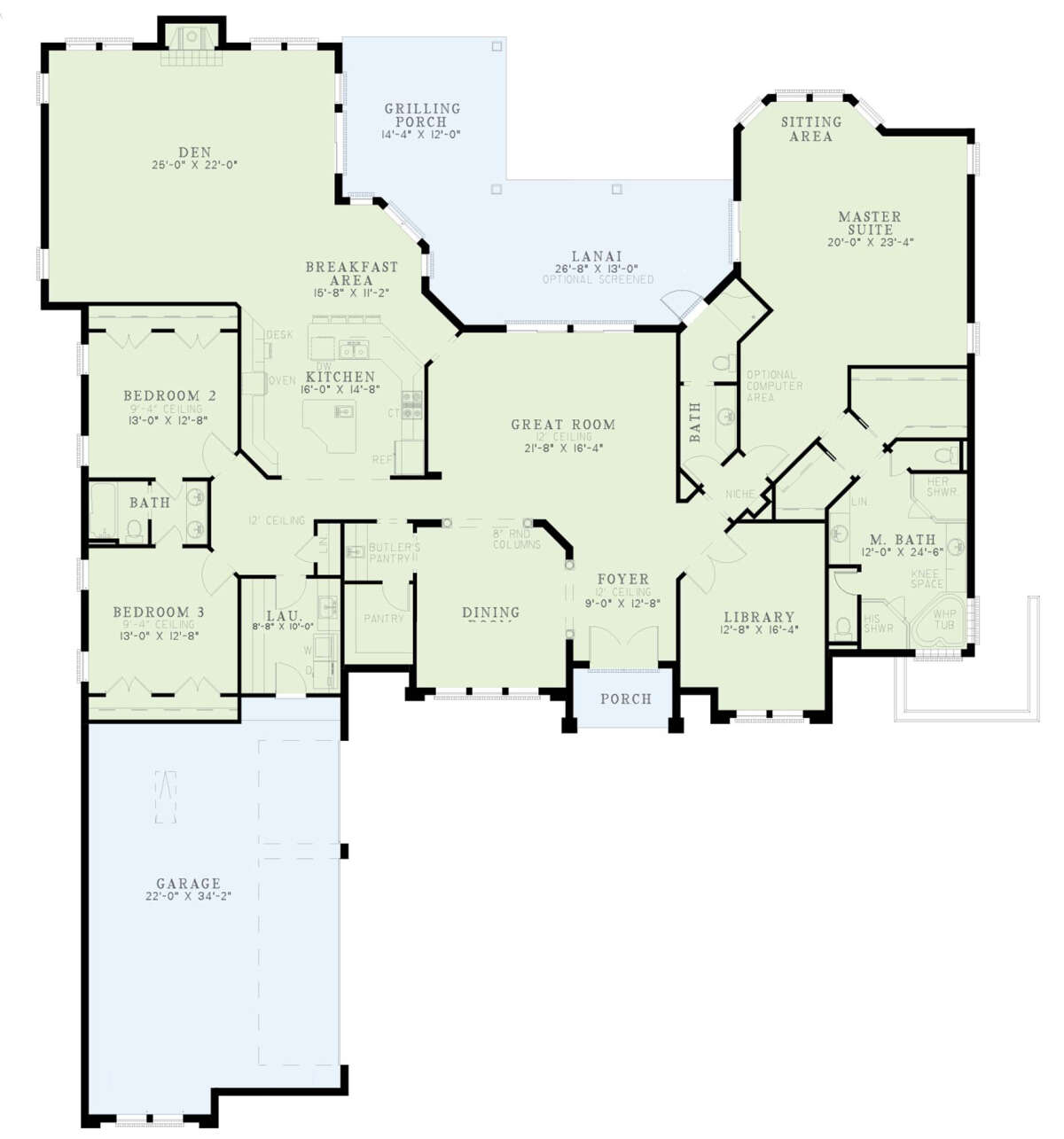

Main Floor
Main Floor  for House Plan #110-00412


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

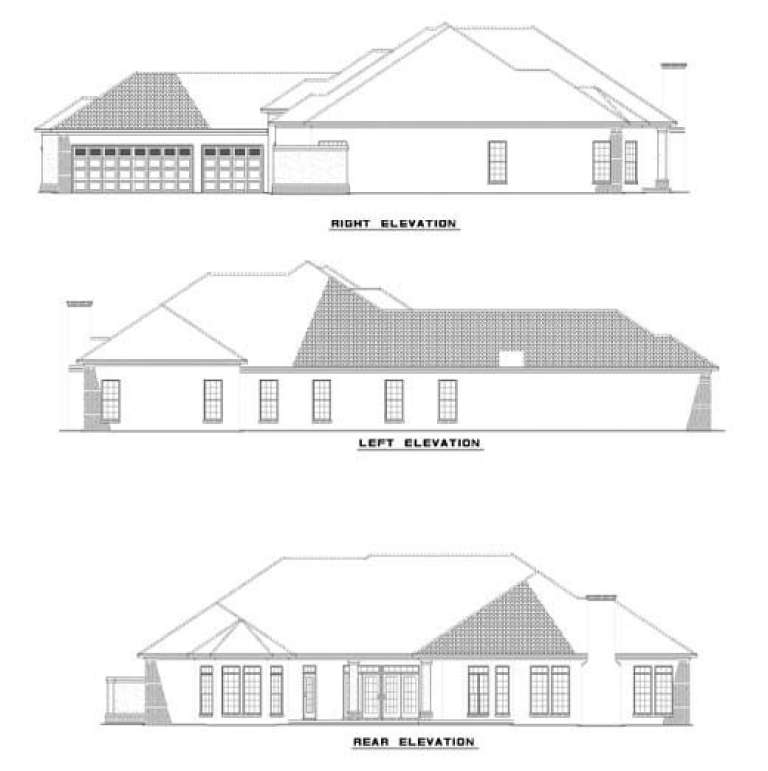

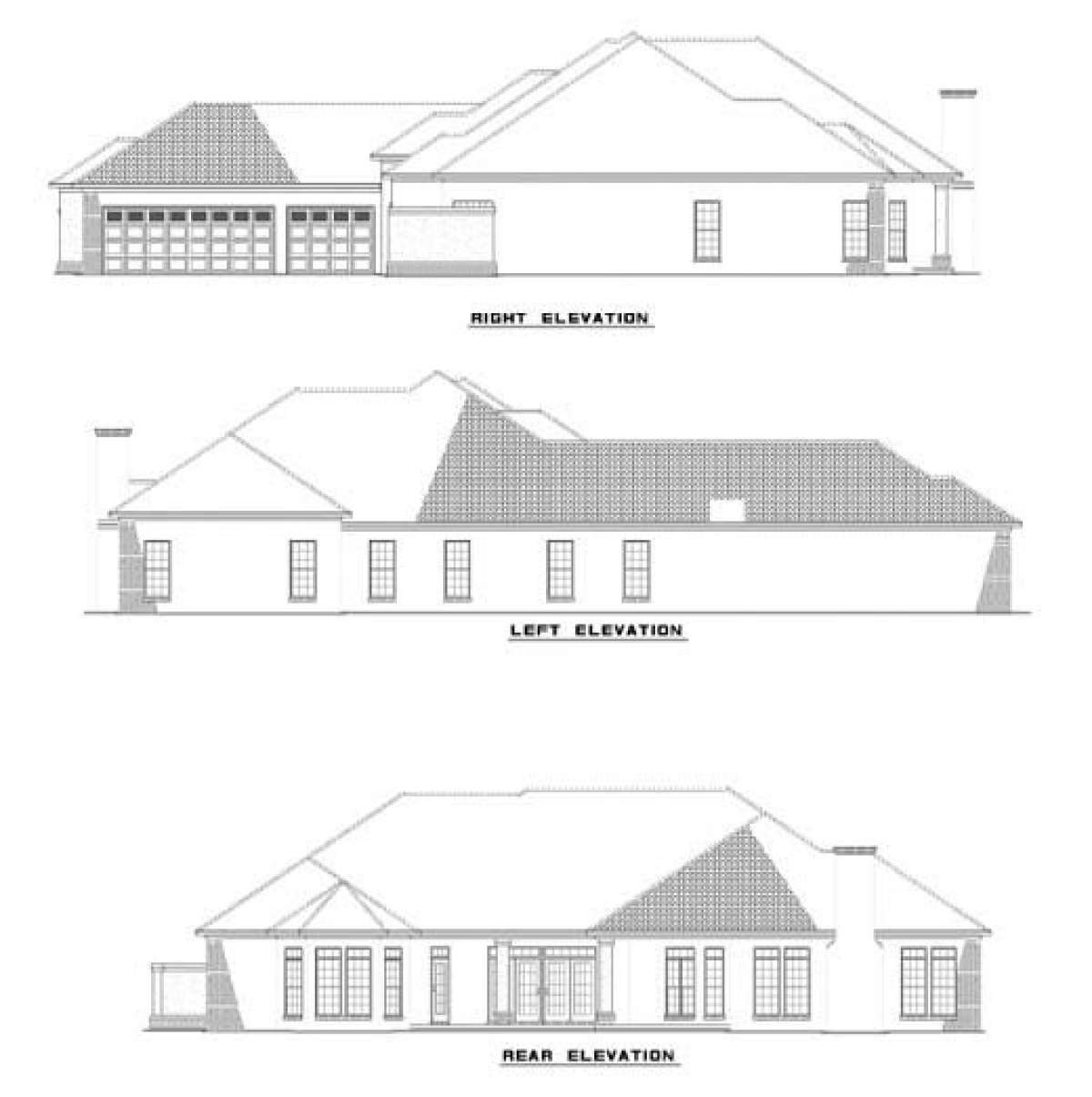

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Spacious interior and conventional exterior architectural elements define this Florida house plan with style and grandeur. The multi-gabled roofline, floor to ceiling window views, a grand front entrance and tidy courtyard entrance balance the home beautifully. The interior floor plan features well-appointed and spacious rooms which include three bedrooms and three baths in approximately 3,654 square feet of usable living space. This is a large home that features plenty of entertaining room along with private family spaces and great outdoor space. The three car garage has loads of space for utility vehicles and other storage gear while leading into the home’s large laundry room that features a sink area and plenty of counter space. The front foyer is accessible through French doors and features an open dining room with columned detailing that subsequently spills into the great room where there are 12’ ceiling heights and access to the rear outdoor space. There is an extensive covered lanai with optional screening and an adjoining grilling porch for family cook-outs and/or large gatherings of family and friends. The kitchen, breakfast room and family den have great views and multiple points of access to the outdoor space. There is a huge food storage pantry and butler’s pantry situated between the formal dining room and grand kitchen where an angled breakfast bar is located. The adjacent breakfast room and family den, which boasts of a warming fireplace, are open to the kitchen and are large spaces to watch movies/television, dine casually and “hang out” as a family. The split bedroom plan features a private and self-contained master retreat which enjoys a large footprint and superior amenities. A cozy study is situated on the main hallway to the suite as well as a guest bath with outdoor access. An optional computer area sits at the front of the suite with a huge master bedroom and sun drenched sitting room at the rear. Double oversized his and her master walk-in closets line the hallway to the en suite bath where an elegant oasis awaits; there are dual vanities, his and her separate showers and toilets, a whirlpool tub and a linen closet. The opposite side of the home features two additional bedrooms and a shared bath. The bedrooms are of equal size and both feature generous closet space while the jack and jill bath is highlighted with double lavatories. Rich detailing outlines both the exterior and interior of the home which along with a spacious interior and great outdoor space makes this a perfect arrangement for busy and active families.
