Narrow Lot Plan 1070-00125

Sq Ft 1,539
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 40'
Depth 69' 3"

Floorplan Drawings

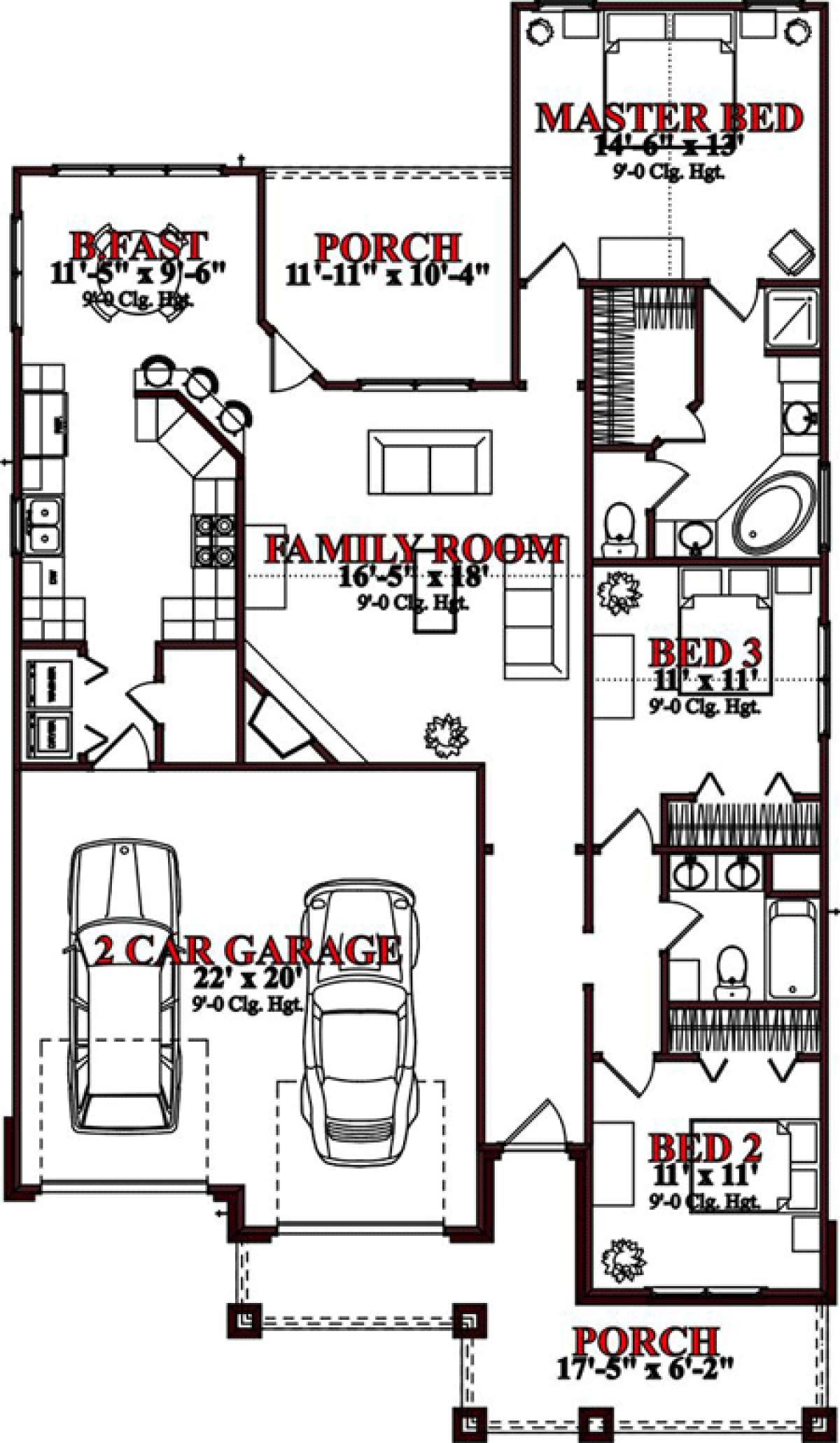

Floorplan 1
Floorplan 1 for House Plan #1070-00125
Images copyrighted by the designer.

What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

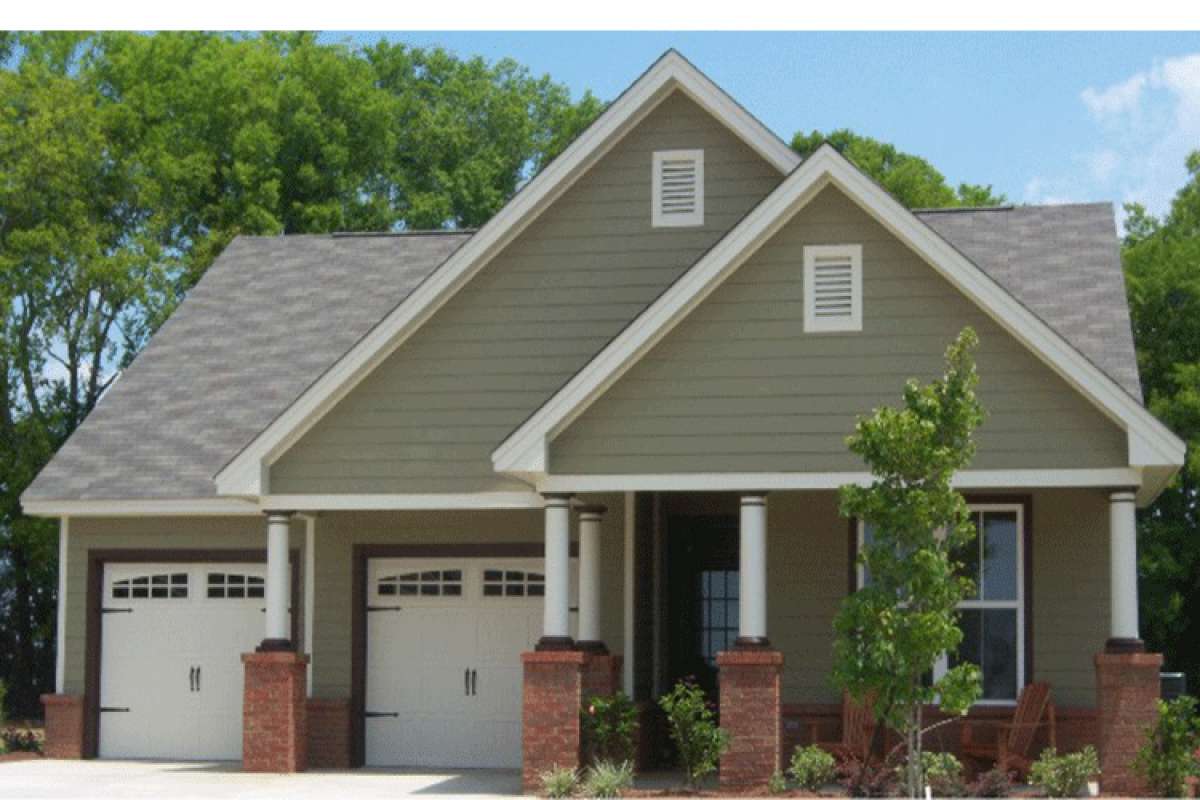

This Traditional styled home features the perfect assortment of modern design elements both on the exterior and interior of the home. The façade is highlighted with large overhead gables containing wide eaves, a brick perimeter and tall brick pillars and substantial columned beams outlining the front covered porch. The front covered porch is the ideal spot to greet family and friends as well as a relaxing space to unwind. This house design is specifically designed for a narrow lot with its 40’ width dimension and yet, great floor space is found in the home’s interior. There are approximately 1,539 square feet of usable living space in the interior that features three bedrooms, two baths and nine foot ceiling heights. The large front rocking chair porch grants entry into the home’s elongated foyer which leads to the secondary bedroom hallway. Bedrooms two and three are equivalent sized with large closet space and double window views. There is a shared hall bath with a toilet area, a tub/shower combination and double sinks as a solution designed to reduce morning chaos.

Further down the foyer is the large family room; this inviting space offers a corner fireplace, plenty of entertaining room and a window wall overlooking the rear covered porch. The gourmet kitchen features a peninsula bar for additional seating options, loads of counter and cabinet space and a large corner room which could be utilized as a separate pantry/mechanical room or additional space for the adjacent laundry nook. There is a two car front loading garage which offers plenty of vehicle and storage room which is situated directly off the kitchen and laundry space, perfect for ease of clean-up and a tidy home environment. The opposite end of the kitchen houses the casual breakfast room which is drenched in sunlight for a bright and airy space and provides access to the rear covered porch. The master suite is positioned at the rear of the home for privacy and features great floor space and beautiful window views. There is an en suite master bath highlighted with dual vanities, a corner garden tub, separate shower and a compartmentalized toilet area. The walk-in closet is quite large and is accessed through the master bath. This home features a traditional exterior, great outdoor space and an open floor plan.
