Ranch Plan 1020-00016

Sq Ft 2,784
Beds 3
Bath 2
1/2 Baths 0
Car 3
Stories 1
Width 117'
Depth 50' 8"

Floorplan Drawings

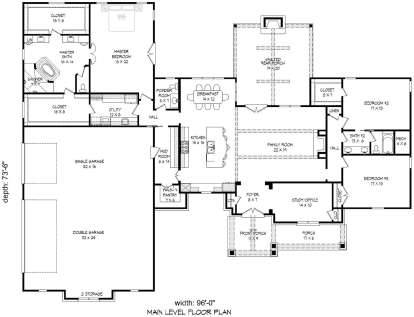

Main Floor
Main Floor  for House Plan #1020-00016


What's Included in these plans?

  • Page One - General Notes
  • Page Two - Elevations (front, rear, left and right)
  • Page Three - Main Floor
  • Page Four - Second Floor (if applicable)
  • Page Five - Foundation
  • Page Six - Wall and Stair Sections
  • Page Seven - Cross Sections and Kitchen Elevations
  • Page Eight - Roof Plan and Electrical Plan

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Ranch house plan features 2,784 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
