Ranch House Plan 098-00266

Sq Ft1,897
1/2 Baths1
Width66' 6"
Depth56' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

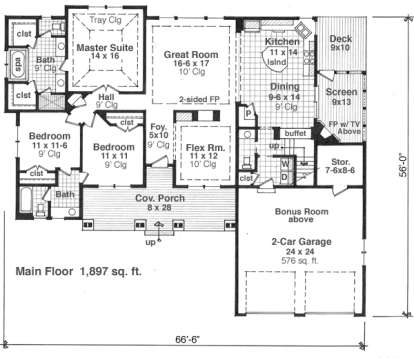

Main Floor for House Plan #098-00266

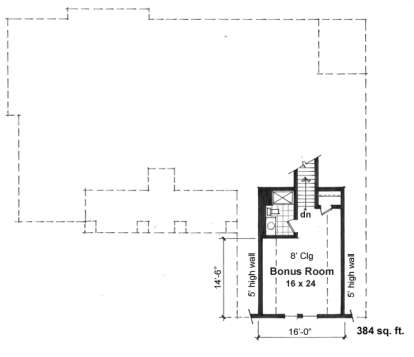

Bonus Room for House Plan #098-00266
Main Floor
Main Floor for House Plan #098-00266
Bonus Room
Bonus Room for House Plan #098-00266

Frequently Asked Questions


What's Included in these plans?

  • Exterior Elevation Views of front, side and rear elevations
  • Foundation Plan
  • Floor plan(s)
  • Roof Plan
  • Cross Section(s)
  • Electrical
  • General Notes


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch house plan displays comprehensive design elements that include a fully functional layout, expansive outdoor space and an exceedingly attractive exterior façade. The home’s exterior boasts of visually pleasing architectural design elements comprised of an L-shaped perimeter that includes an expansive front covered porch lined with widely proportioned column beams atop brick supports, triple window dormers and myriad of additional window views. The combination of cedar shakes and brickwork balance the front façade providing symmetry and a low maintenance composition. The interior floor plan features in excess of 1,890 square feet of living space that contains three bedrooms and two plus baths and the home’s renderings include a crawl space and a basement foundation; the latter, of course, designed to add additional square footage and value to the home. An added feature is the second story bonus space with attached full bath featuring 384 square feet to be used as a multi-purpose family room, home office or writer’s studio. The front foyer is open to the flex space; the room could function as a formal dining room or study and benefits from the two sided fireplace which is situated between the flex space and great room. The great room boasts of 10’ ceiling heights, a rear wall of window views and opens onto the kitchen and casual dining space. The grand kitchen is chocked full of modern amenities including a center island, a separate pantry and the dining space features a built-in buffet and access onto the adjacent deck and screened porch. The deck and porch are perfect for dining al fresco, entertaining family and friends and the screened porch is highlighted with an outdoor fireplace and entertainment alcove. A powder room for guests, coat closet and the laundry nook are conveniently located off the two car garage which features an additional storage space.
The single story home features a minimal hallway from which all three bedrooms are accessed. Both bedrooms are spacious with good closet space and each have private entrance into the secluded shared bathroom where a large vanity and separate toilet area along with a tub/shower combination is situated. The master bedroom features a French door entryway into the suite where a beautiful master bedroom with trey ceiling is revealed. There is an elegantly designed master bath offering dual separate vanities, a large separate shower, a compartmentalized toilet and a spa tub. His and her walk-in closets sit on either end of the en suite bath for privacy. This Craftsman styled home features an attractive exterior, abundant outdoor space and a versatile and functional interior floor plan that perfectly meets the modern family’s needs.
