Luxury House Plan 098-00172

Sq Ft3,015
1/2 Baths1
Width70' 0"
Depth57' 0"

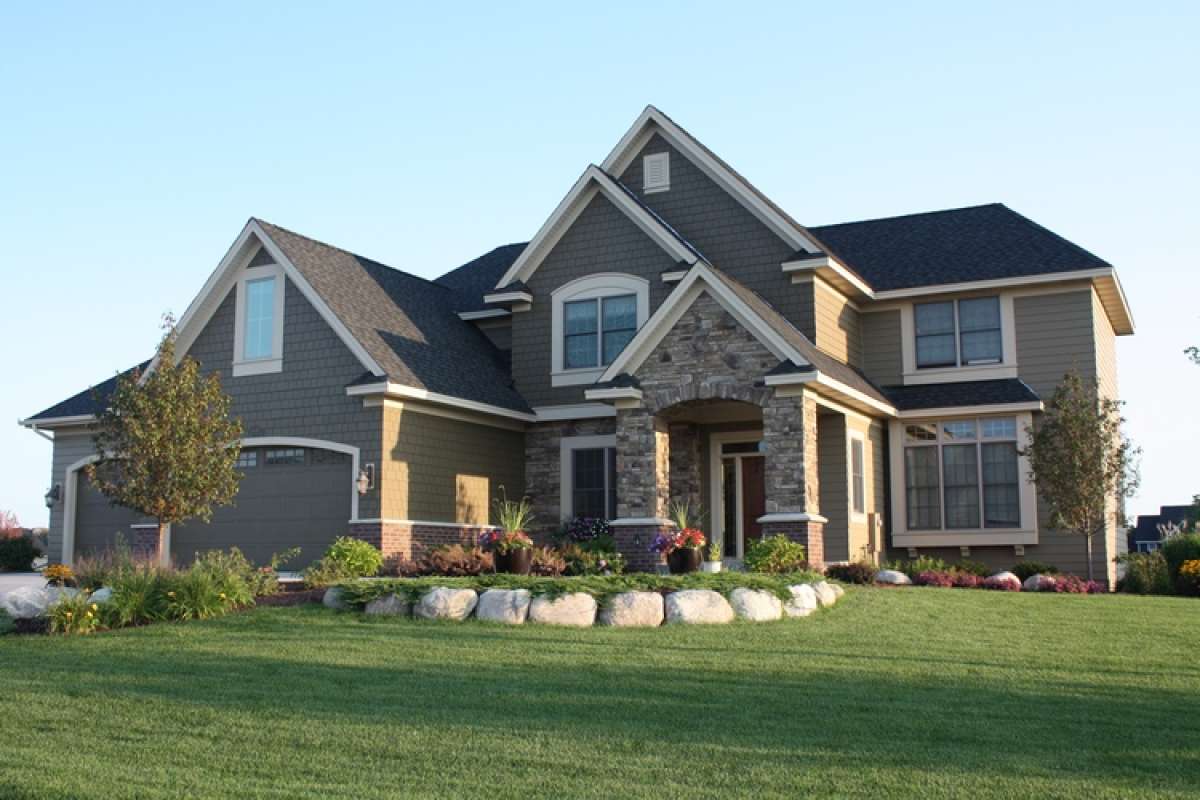

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

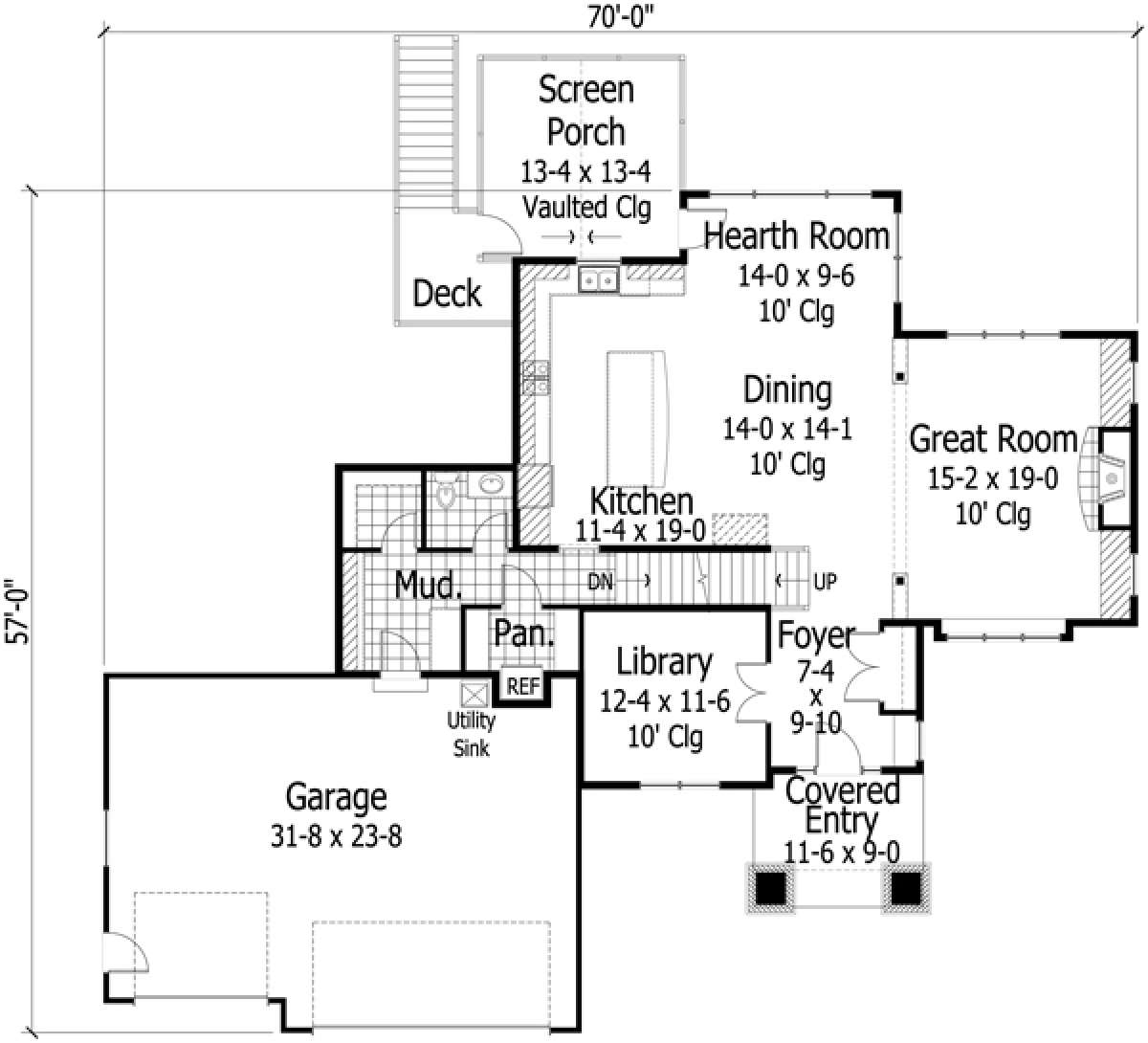

Main Floor for House Plan #098-00172

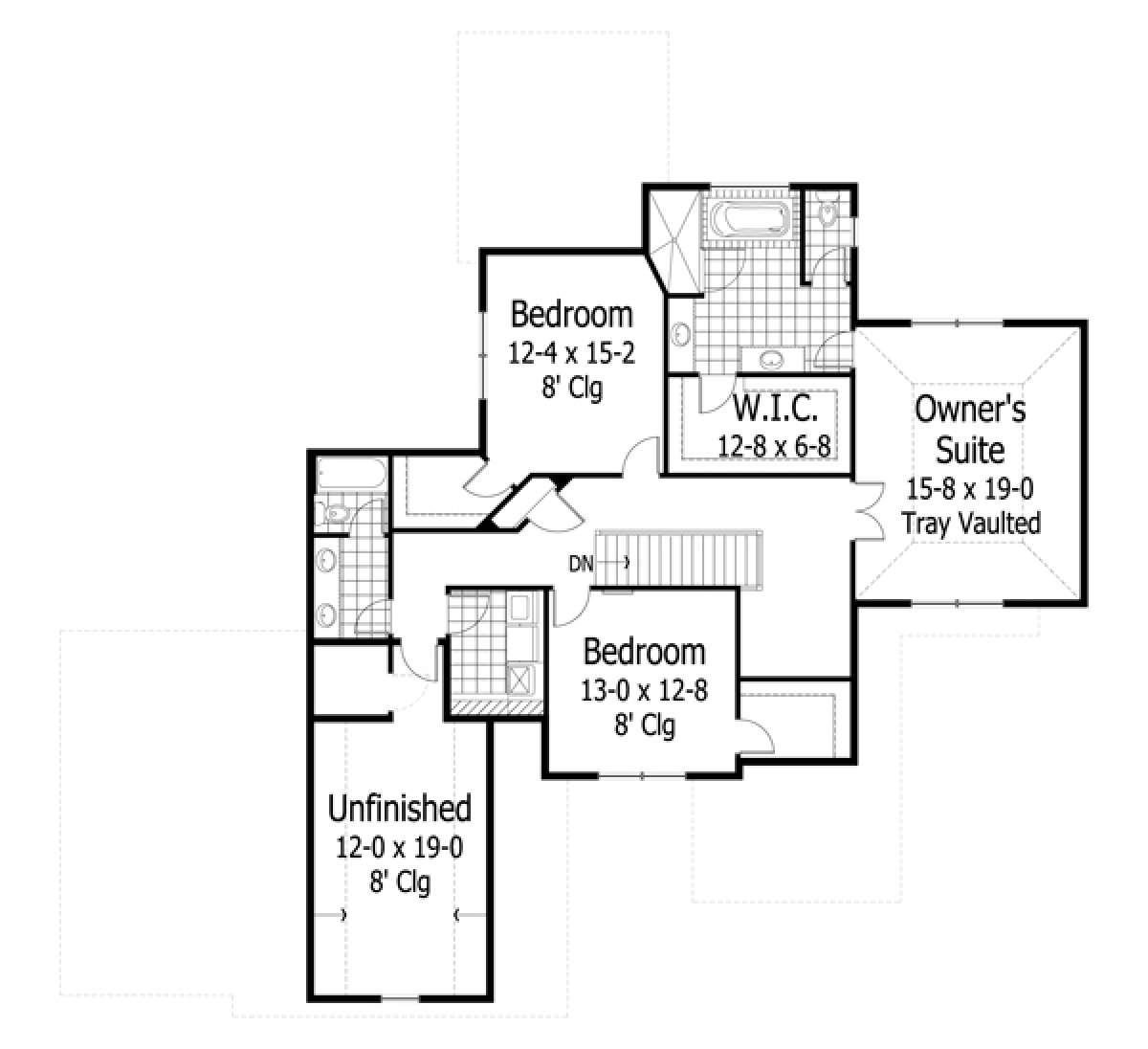

Second Floor for House Plan #098-00172
Main Floor
Main Floor for House Plan #098-00172
Second Floor
Second Floor for House Plan #098-00172

Frequently Asked Questions


What's Included in these plans?

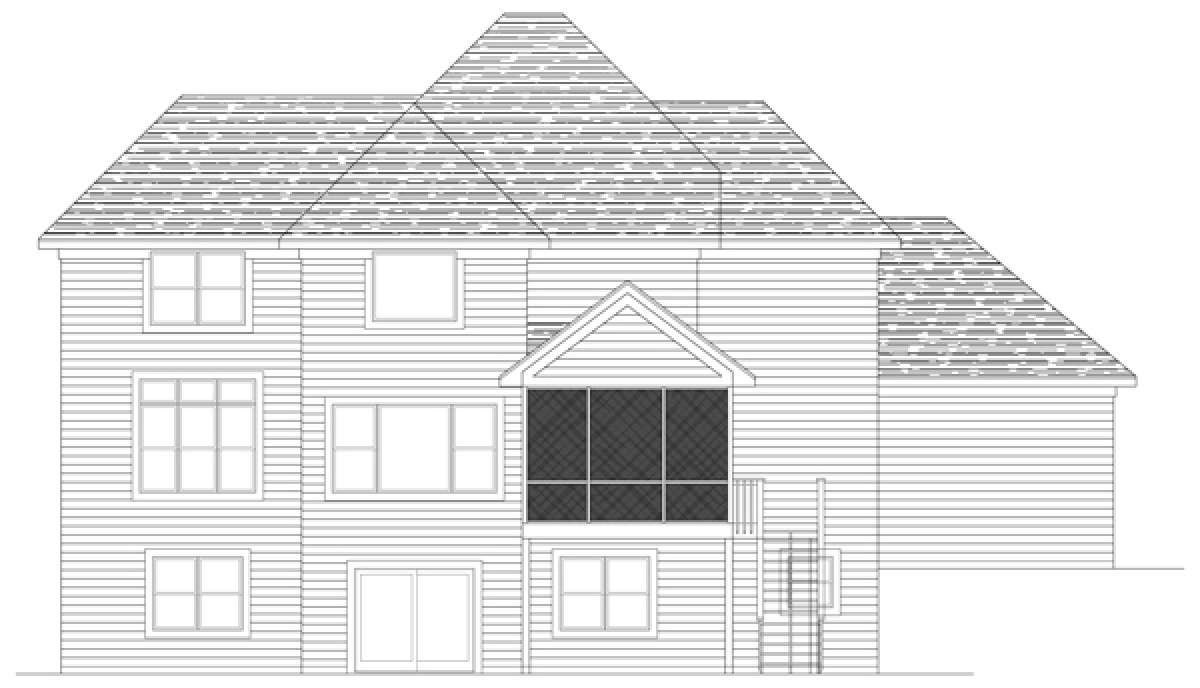

  • Exterior Elevation Views of front, side and rear elevations
  • Foundation Plan
  • Floor plan(s)
  • Roof Plan
  • Cross Section(s)
  • Electrical
  • General Notes


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

An exciting entrance is the centerpiece of the exterior façade in this traditionally styled home. The arched soaring stacked stone covered entryway complements the remainder of the exterior beautifully where numerous split gables enhance the dramatic flair of the façade. This attractive exterior houses an equally stunning interior floor plan where there are approximately 3,015 square feet, an additional large bonus room and a three car garage. Plenty of space and well appointed rooms are special interior features of this home where three bedrooms and two plus baths reside above the first floor open layout. The spacious foyer features a coat closet and access through French doors into the cozy library. Wide open spaces dominate the remainder of the first floor where 10’ ceilings are featured and superior entertaining space is revealed. The grand kitchen boasts of an enormous center island with raised bar and modern amenities line the rear and side walls. There is a centrally located dining space and hearth room before accessing the great room which is highlighted with a warming fireplace and expansive window views. The rear screened porch is vaulted and accessible from the hearth room while the open deck is situated to the side of the porch. The mudroom, half bath for guests and a walk-in pantry are conveniently located off the garage which contains a utility sink for clean-up.
An extensive hallway fans out in multiple directions once on the second story landing where three bedrooms, two baths and a bonus room are situated. The bonus room measures 12’x19’ and could be utilized as a fourth bedroom, craft room or artist’s studio. Two additional bedrooms feature excellent floor space and walk-in closets while sharing the hall bath containing double vanities. The family laundry room is also located on this floor as an added convenience. An elegantly designed master suite features a trey vaulted ceiling in the master bedroom, outstanding window views and an enormous walk-in closet. The master bath enjoys a large footprint while containing a plethora of modern conveniences including dual separate lavatories, a compartmentalized toilet, an oversized shower and huge soaking tub. Grand and luxurious define the exterior and interior of this traditional styled home.
