Narrow Lot House Plan 048-00033

Sq Ft1,110
Beds2
Baths2
1/2 Baths0
Stories1.5
Cars2
Width32' 0"
Depth34' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

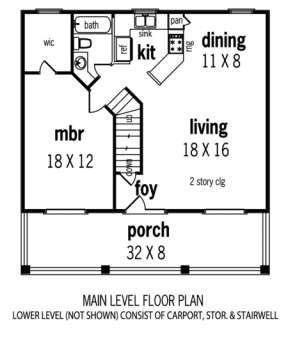

Floorplan 1 for House Plan #048-00033
Floorplan 2 for House Plan #048-00033
Lower Level for House Plan #048-00033

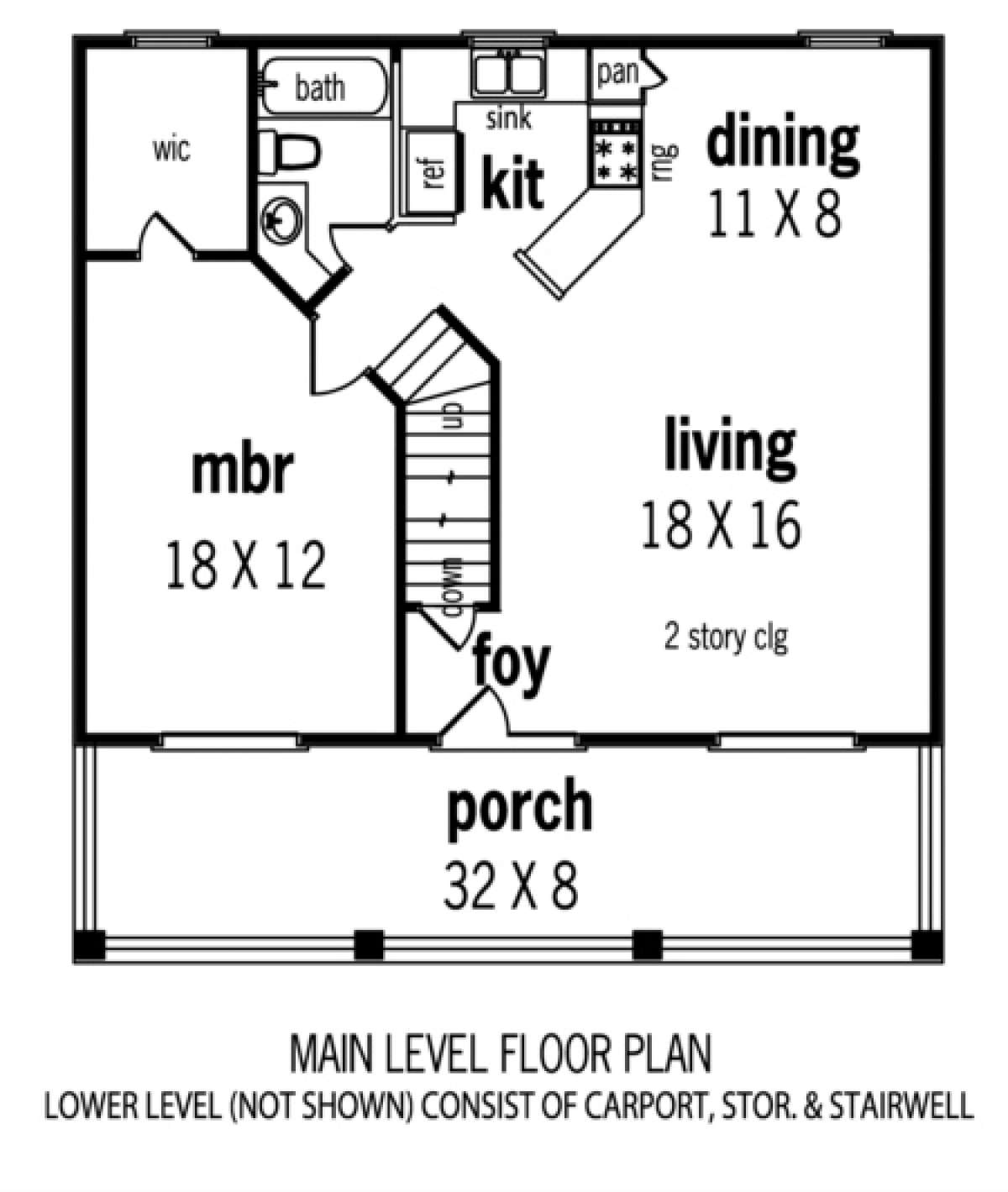

Floorplan 1
Floorplan 1 for House Plan #048-00033

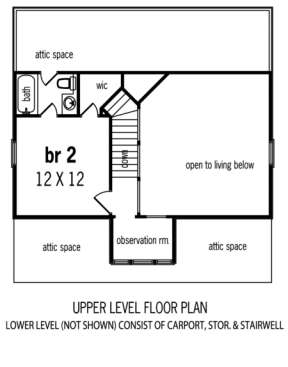

Floorplan 2
Floorplan 2 for House Plan #048-00033

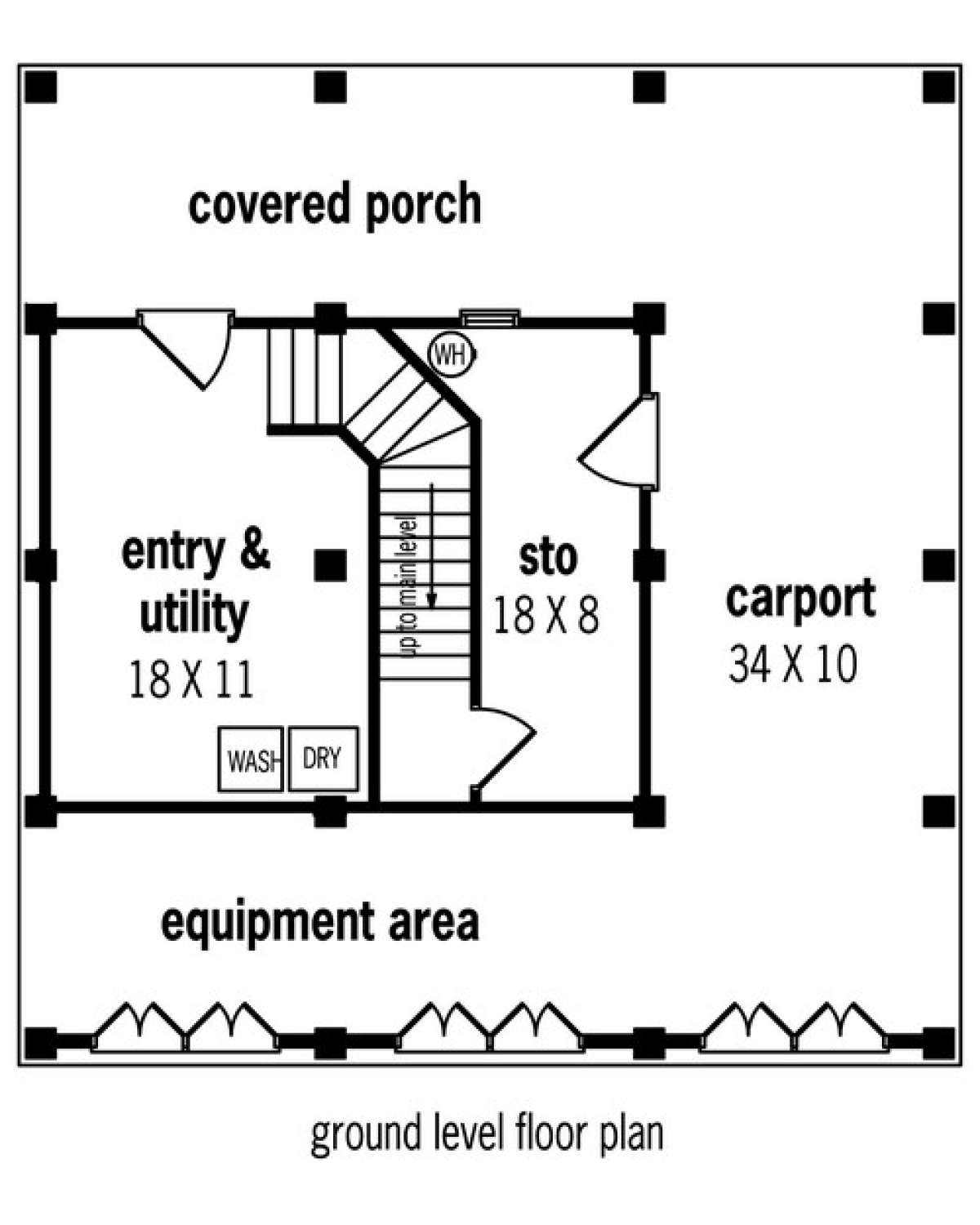

Lower Level
Lower Level for House Plan #048-00033


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation plan - each plan is drawn on a particular type of foundation (crawl space, slab or basement).
  • Foundation details - includes details for all three foundations listed above.
  • Floor plan drawn to ¼" scale.
  • Door, window and square footage schedule.
  • four exterior views - front, rear and both sides
  • interior elevations for all cabinets
  • electrical plan - may be included as part of floor plan but is usually a separate drawing
  • electrical symbols
  • Sections through the building that illustrates the construction configuration
  • Details - includes cornice, fireplace, typical section, cabinet construction and other items that may need special detailing
  • Specifications which includes the type materials specified in the construction plus interior finish schedules, cost allowance schedules, plumbing and electrical schedules.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

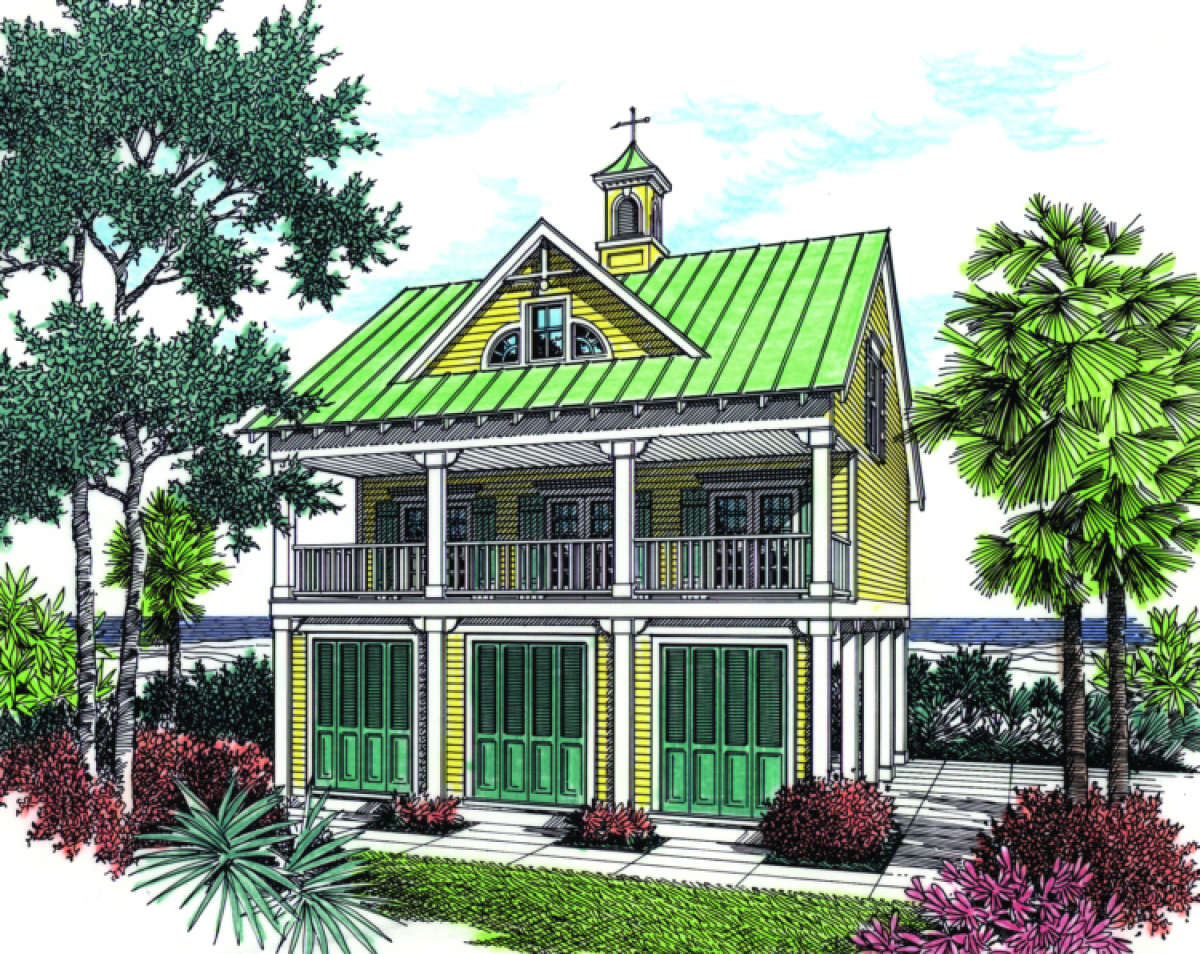

This narrow lot home features a width of 32’ and a depth of 34’ with approximately 1,110 square feet of usable living space that incorporates two bedrooms and two baths into the floor plan. The exterior façade of the home is characterized with traditional seaside home design features that enhance the casual “vibe” of oceanfront living. The 1.5 storied home is highlighted with an expansive covered porch, open railing, a multitude of wooden beams, a gorgeous window gable and overhead cupola. This traditional styling provides a rich color contrast and specialized architectural features that are found in seaside coastal resorts and beachside living. Approximately 1,100 square feet of interior living space is featured in the home and the piling foundation adds character and practical application to the home’s exterior. The bottom third of the home features floor to ceiling shutter elements; perfect for conventional beach equipment items such as kayaks, jet skis and surfboards to be stored. There is a large side carport area for vehicles and the like and a rear covered porch leads to the home’s entrance. The entryway and utility room is quite spacious, measuring 18’x11’ that provides a staircase to the main level and houses a second storage area. The main level of the home is highlighted with a two story living room and foyer leading to the expansive front covered porch. The 32’x8’ front covered porch is perfect for relaxing, entertaining and features optimal viewing vistas for the ocean and/or other water views. There is a casual dining space and U-shaped kitchen which is open to the living room. The kitchen features an angled peninsula bar, a separate pantry and double window sink views. The master suite is highlighted with a spacious bedroom with window views overlooking the front covered porch, a large walk-in closet and an adjacent full bath with large vanity space and a tub/shower combination.
The upper level floor plan could also be used as a master suite or guest suite; there is a large bedroom with walk-in closet and a private full bath. The back side of the second story features an attic storage space which spans the width of the home and the front of the home boasts of double attic spaces situated on either side of the observation room where beautiful seaside views can be enjoyed. This Coastal style home features traditional seaside design elements, excellent outdoor space and a unique floor plan perfect for beachside living.
