Narrow Lot House Plan 041-00078

Sq Ft1,800
Beds3
Baths2
1/2 Baths1
Stories1
Cars2
Width30' 8"
Depth98' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

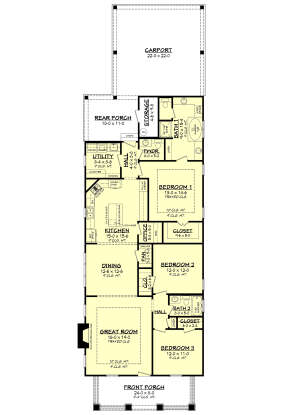

Floorplan 1 for House Plan #041-00078
Floorplan 1
Floorplan 1 for House Plan #041-00078


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

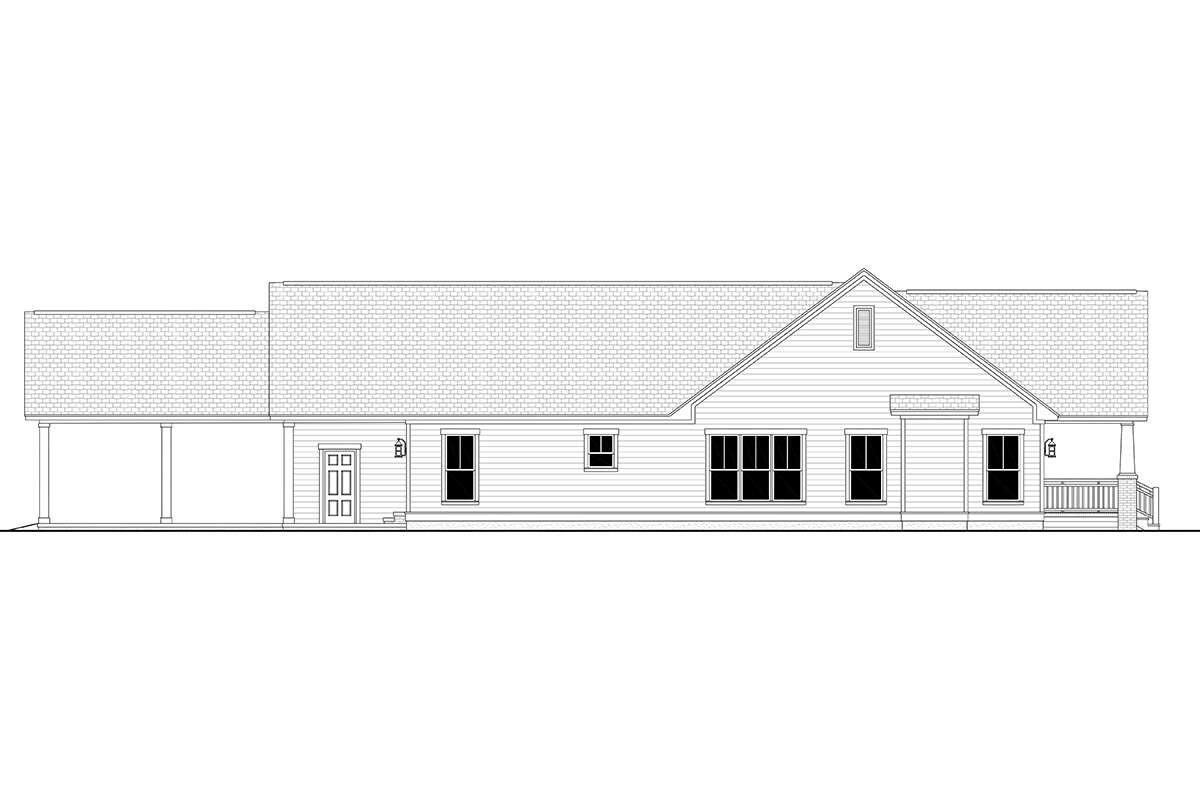

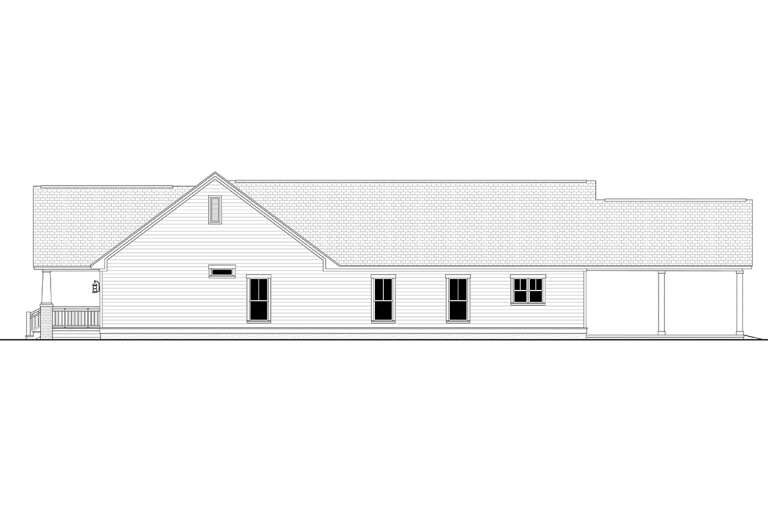

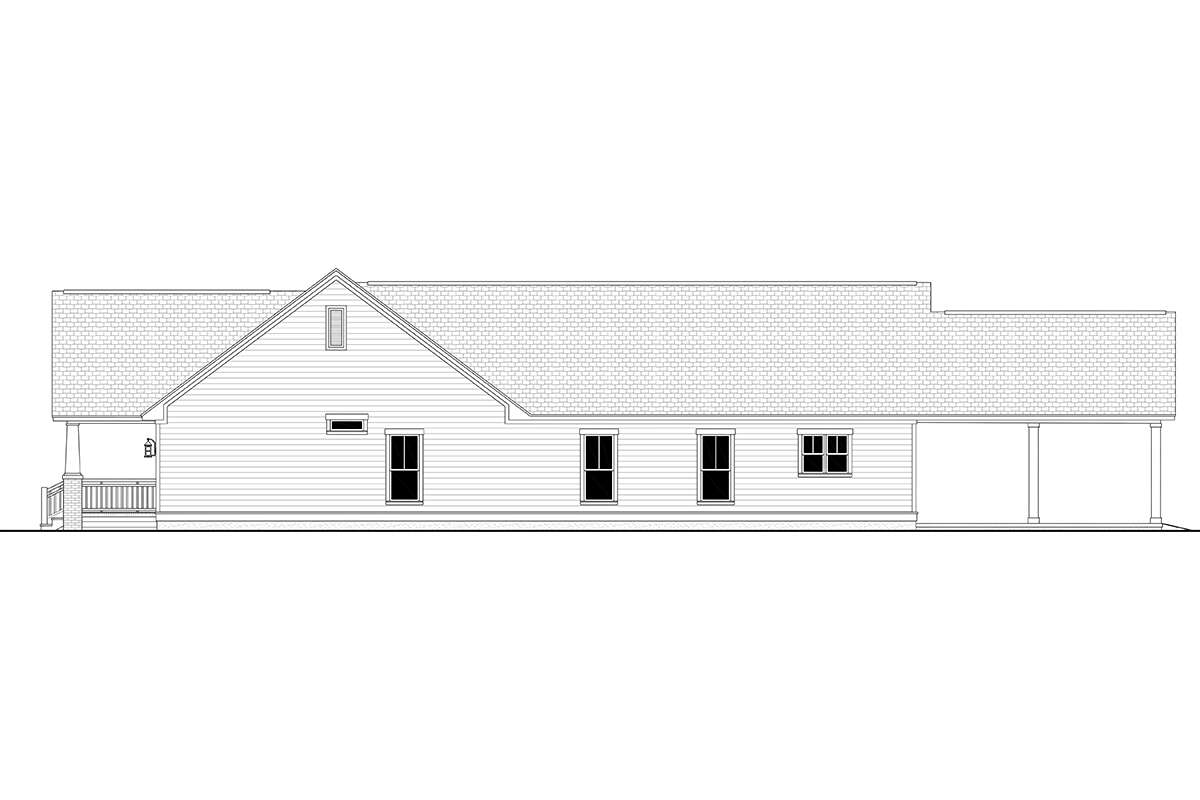

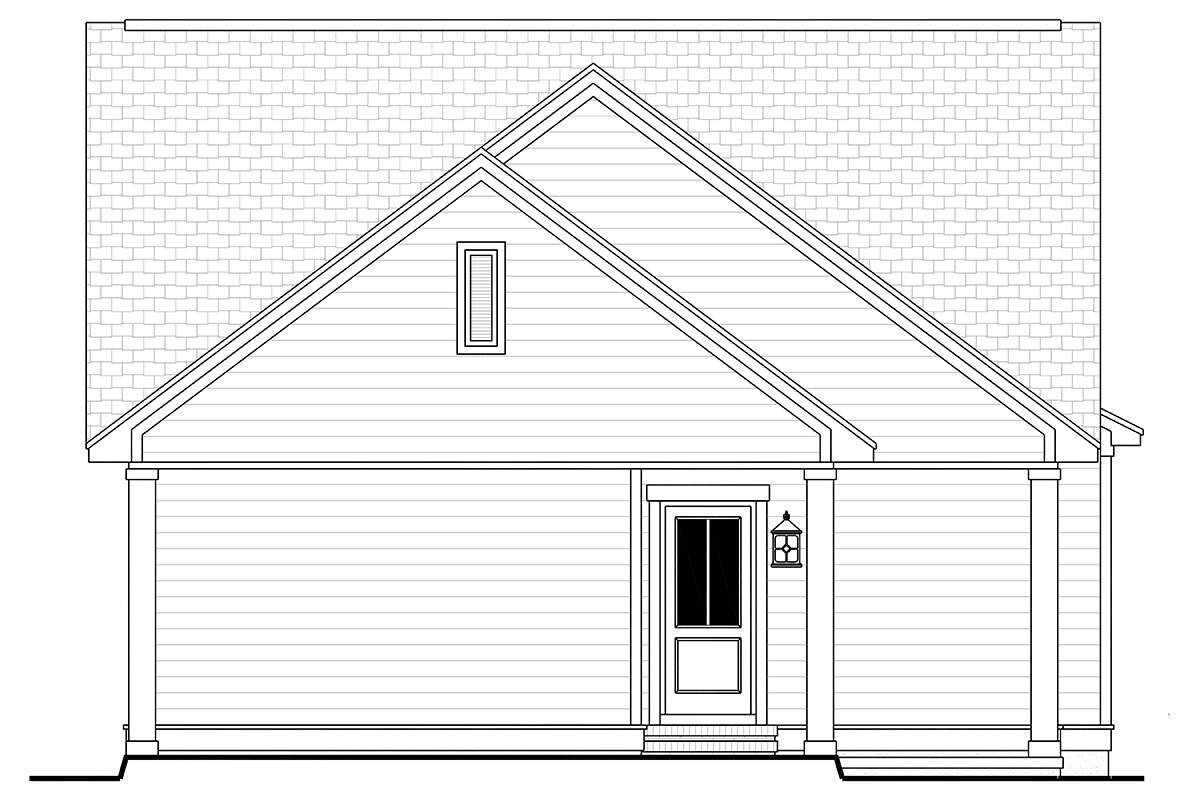

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This narrow lot plan would be adaptable in either an urban or rural housing landscape with its generous use of natural materials and simple form. The low pitched roof line with an intersecting window gable is highlighted with wide eaves and the home’s siding and board and batten finish further enhance the Craftsman style house plan. The ubiquitous front porch which boasts of tapered column beams supported by brick work and open railing further cement the home’s organic elements. The interior floor plan features approximately 1,800 square feet of living space that provides three bedrooms and two plus baths into the space. Specialized detailing increases the functionality and efficiency of the home’s floor space while simultaneously enhancing the homeowner’s comfort and pleasure. An enormous great room with handsome fireplace and 10’ ceiling heights is revealed when you enter the single story home. Beyond the great room is a formal dining space boasting of a triple wall of windows and opens onto the family friendly kitchen. A walk-in pantry occupies space between the dining room and kitchen; the kitchen, itself, features an oversized center island with breakfast bar, an appliance garage and a large amount of counter and cabinet space. The home office/flex space is cleverly designed and is strategically located off the kitchen. There is a rear carport, a covered porch for enjoyable entertaining and an adjacent storage room located at the home’s back exterior. The conveniently located laundry/mudroom features a sink area, counter space and a space for hanging laundry up to dry. The guest powder room is situated across the hall from the laundry room.
The small main hallway contains two family style bedrooms; each one of which is spacious with window views and generous closet space. There is a hall linen closet as well as a shared hall bath with a tub/shower combination for the bedroom’s use. The master suite is situated at the rear of the home for privacy and features a spacious master bedroom with wonderful window views and 10’ ceiling heights. The large master walk-in closet is accessed through French doors on one end of the room while the en suite master bath is located on the opposite end of the bedroom. The master bath’s focal point is the gorgeous garden tub encased in window views; additionally, there are separate dual vanities, a linen closet, a separate shower and a compartmentalized toilet. This home is characteristically styled in Craftsmanship form which includes efficient use of space, minimal hall space and a layout that maintains good flow for entertaining family and friends.
