Narrow Lot House Plan 041-00074

Sq Ft1,900
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width40' 0"
Depth95' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

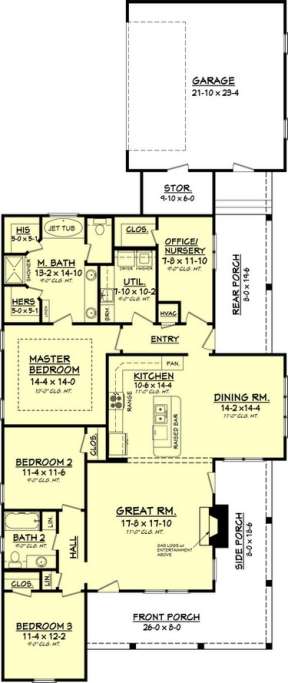

Main Floor for House Plan #041-00074
Main Floor
Main Floor for House Plan #041-00074


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

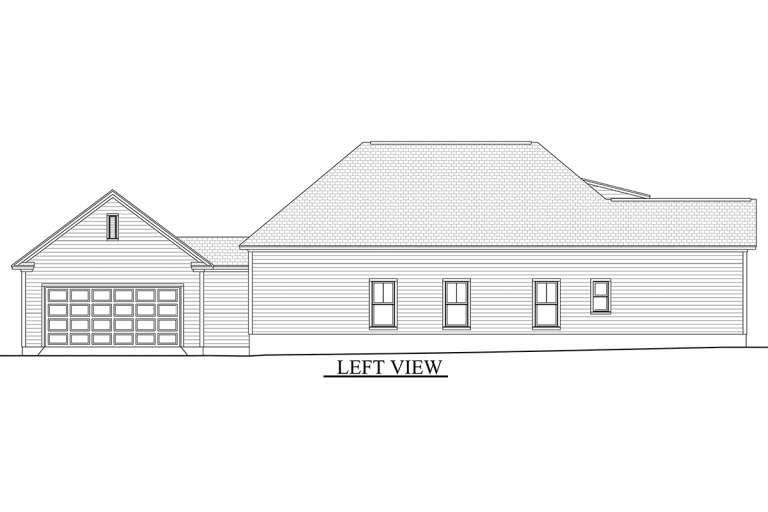

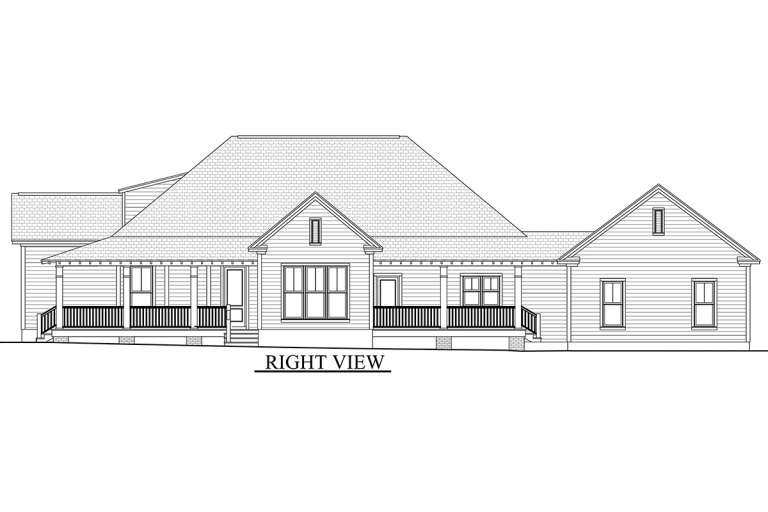

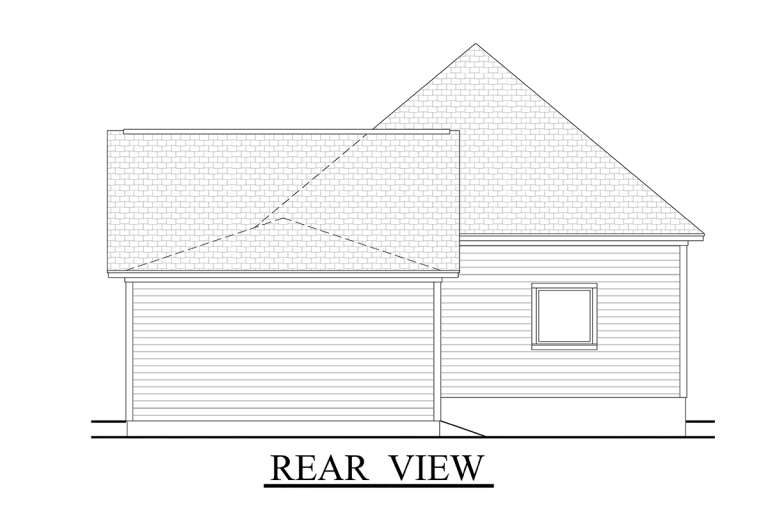

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Cottage styled house plan features an exterior packed with plentiful outdoor living spaces that include a front, side and rear porch. The L-shaped front covered porch with open railing and substantial beams, an overhead window dormer and horizontal siding beautifully contribute to the cottage design. An excellent arrangement of outdoor spaces provides the homeowners with exceptional entertaining and relaxing space for large gatherings of family and friends. There are approximately 1,900 square feet of living space within the home’s interior which incorporates three bedrooms, two baths and an open concept into the floor plan. Entrance into the home reveals an enormous great room boasting of soaring ceiling heights, a handsome gas log fireplace with an overhead entertainment niche and access onto the side porch. Beyond the great room there is an open kitchen and dining room where there is a center island with plenty of work/prep space, a raised bar for casual dining and a separate pantry. The spacious dining room is ensconced in window views and there is adjacent access to the rear covered porch for delightful outdoor dining. The rear positioned garage features side entry and assist with unobstructed sight lines onto the front of the home; additionally, there is extra storage space off the garage and convenient access onto the rear porch and subsequent rear hallway. Back entry into the home leads to the large laundry room which features W/D space, sink space and plenty of counter space. The rear flex space can be utilized as a small child’s nursery, home office or playroom for the children.
There are two spacious family styled bedrooms; each features window views, plentiful closet space and there is a hall linen closet and shared bath highlighted with a second linen closet, an extended vanity and a tub/shower combination. The master suite’s location at the rear of the home bodes well for a private oasis of luxuriously designed rooms; there is a large bedroom with a trey ceiling accent and attached his and her walk-in closets that flank the en suite bath. The master bath enjoys a large footprint where dual vanities, a separate shower, jetted tub and a compartmentalized toilet are standard issue. This lovely family home features an attractive façade, generous outdoor space and a functional and versatile floor plan.
