Vacation Plan 039-00060

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,469
Beds 1
Bath 1
1/2 Baths 0
Car 0
Stories 2
Width 26'
Depth 42' 6"

Floorplan Drawings

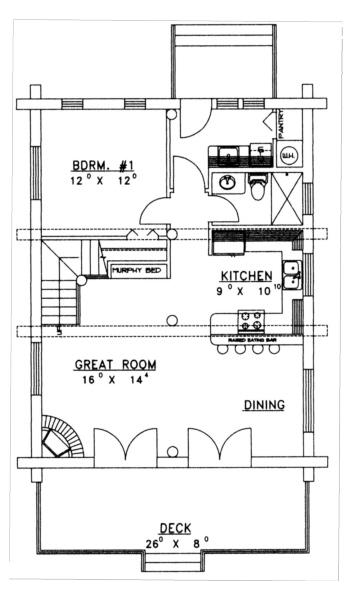

First Floor
First Floor for House Plan #039-00060

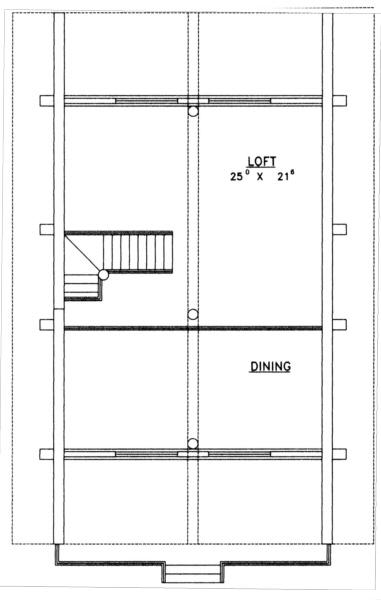

Second Floor
Second Floor for House Plan #039-00060


What's Included in these plans?

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.




Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

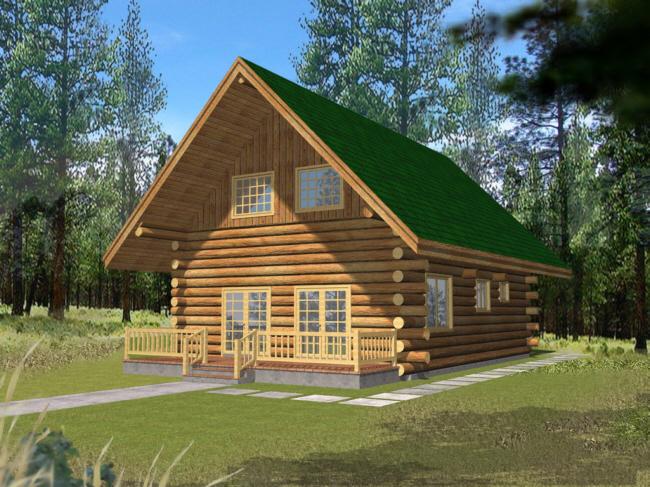

Set back deep in the woods, this Log Cabin home would be ideal for the outdoorsman, family members or a group of like minded friends. Alternatively, the home would make a splendid addition to waterfront property and provide a spacious and comfortable place to relax and unwind. The rustic exterior is highlighted with rough hewn timber logs, a simple gable roof with log supports and the top portion of the gabled inset resembles a hay pitching door. The remainder front exterior features plenty of window views, double French door access into the home and a front porch that spans the width of the home. One bedroom and one bath is featured in the two storied home that consists of approximately 1,469 square feet of usable living space. The open concept floor plan in combination with the outdoor space and double set of French doors assist in bringing the outdoors in and makes for some pretty spectacular entertaining space. There is a warming fireplace in the corner of the great room and the U-shaped kitchen is open to both the dining and great room. A peninsula breakfast bar makes for companionable casual dining and there is plenty of additional counter and cabinet space available. A Murphy bed is cleverly designed into the rear space of the main living area providing additional sleeping space for family members and friends.
Beyond the open concept is private space for sleeping and bathing; there is a spacious bedroom with great window views and the adjacent bath contains a vanity space, toilet area and a shower. The rear of the home has a large laundry room with room for a sink area, pantry storage and there is a rear access point off the hallway. The T-shaped staircase off the great room leads to the second floor loft space with overviews into the dining space below. The space measures in excess of 20’x 21’, and would be perfect for additional sleeping space, a reading nook or an artist’s studio.
