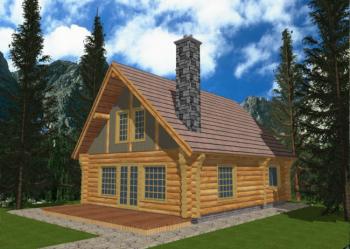

Cabin House Plan #039-00027 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,040

Beds 1

Bath 1

1/2 Baths 0

Car 0

Stories 2

Width 24'

Depth 38'

See What's Included

Select Package

PDF (Single Build)

$1,195.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,095.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,345.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,195.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$1,895.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Crawlspace Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $195.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

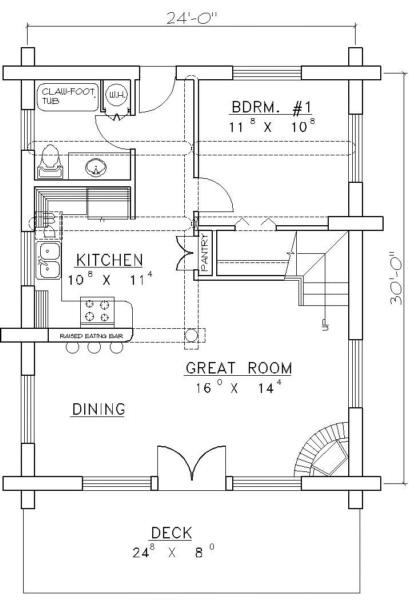

Main Floor

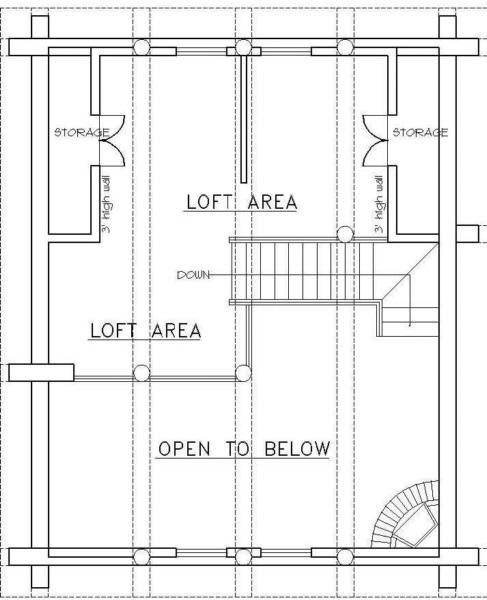

Loft Floor

Images copyrighted by the designer.

What's Included in these plans?

Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
Upper floor framing plans are included with two story homes or homes with lofts.
The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.

Ask Us A Question

About This Plan

This Log Cabin house design brings the outdoors in allowing for a comprehensive “Mother Nature” vibe to the layout. Interlocking rough hewn logs form the timber frame while the unique front gable end resembles a barn pitching door resulting in the ultimate in Log cabin assembly. A simple gable roofline, stone chimney accent and decorative accents inside the gables lend practical and aesthetically pleasing design features to the home. The home’s interior is approximately 1,040 square feet of living space which incorporates one bedroom, one bath and a second story loft into the home’s drawings. The front porch features a step-up platform which provides expansive entertaining options and space delineation between the exterior and interior of the home. Ideally designed as a vacation home or small family home, the 24’ width and 38’ depth dimensions allow for a small or narrow lot to be utilized. Beyond the front porch is the double door entrance into the home where open concept living and dining spaces are revealed. There is a large great room with corner warming fireplace, a separate dining space and a peninsula breakfast/snack bar for casual dining. The kitchen additionally features a separate pantry and plenty of additional counter and cabinet space. A spacious bedroom is situated at the rear of the home for privacy and there is plentiful closet space attached. The adjacent bathroom has space for a claw foot tub, a toilet area and large vanity.
The second story staircase originates off the great room and leads to the 320 square foot loft which overlooks the main living spaces below. This loft area could be used as additional sleeping space, an artist’s studio or a home office/study. Double attic storage spaces are on either side of the loft area and are easily accessible providing plenty of space for seasonal storage, personal items or craft/hobby supplies. This highly desirable Log Cabin home possesses undeniable rustic character and charm while offering a functional and comfortable interior floor plan.
