Barn Garage Plan 036-00169

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 912
Fin Sq Ft 792
Cars 2
Beds 1
Width 38'
Depth 24'

Floorplan Drawings

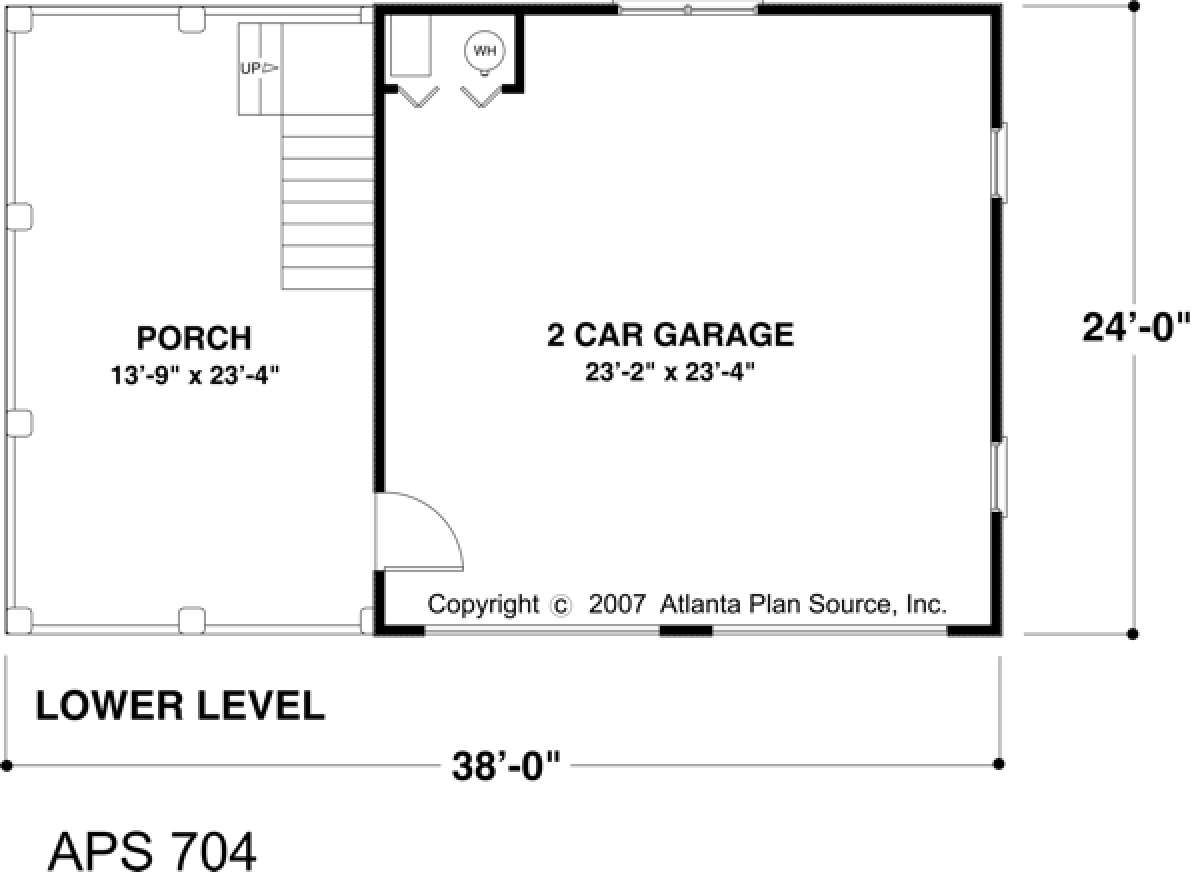

Floorplan 1
Floorplan 1 for House Plan #036-00169

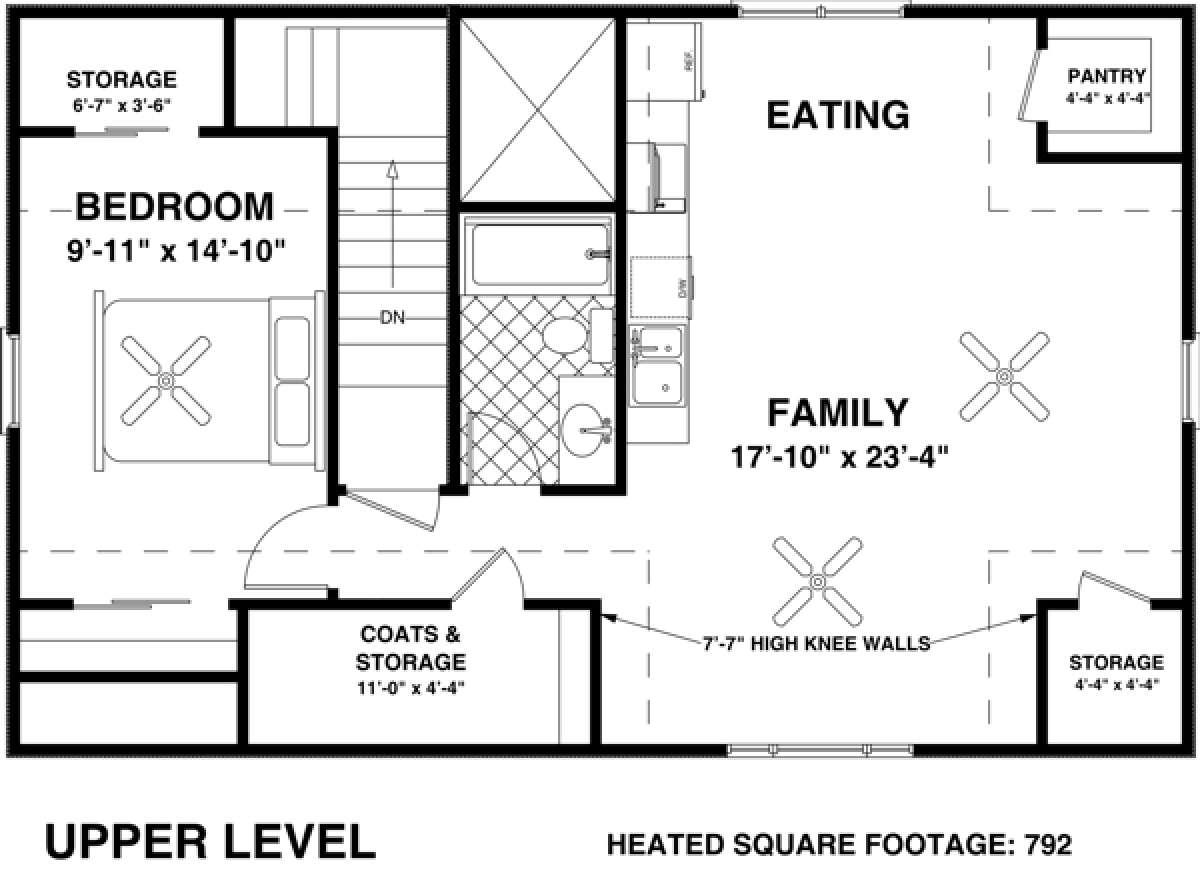

Floorplan 2
Floorplan 2 for House Plan #036-00169


What's Included in these plans?

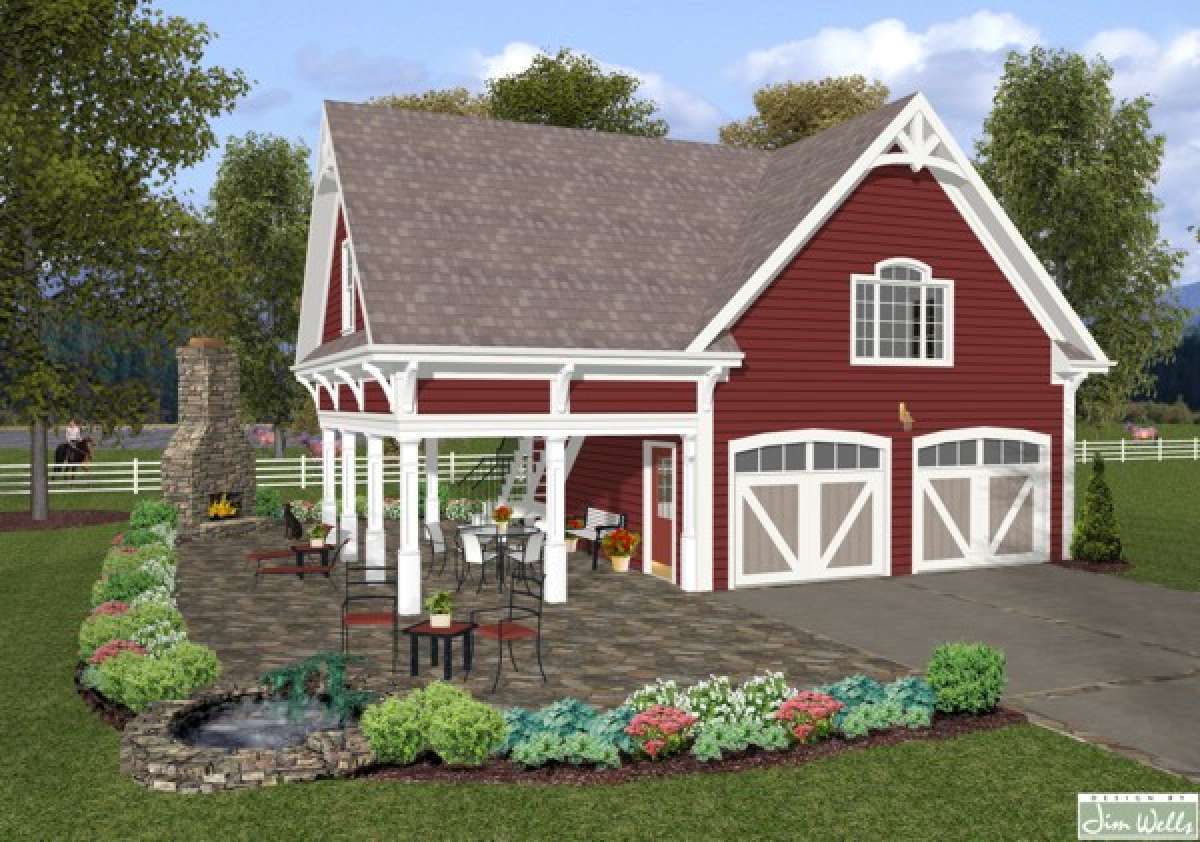

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 Car Barn Garage Plan features 912 unfinished sq. ft., and 792 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
