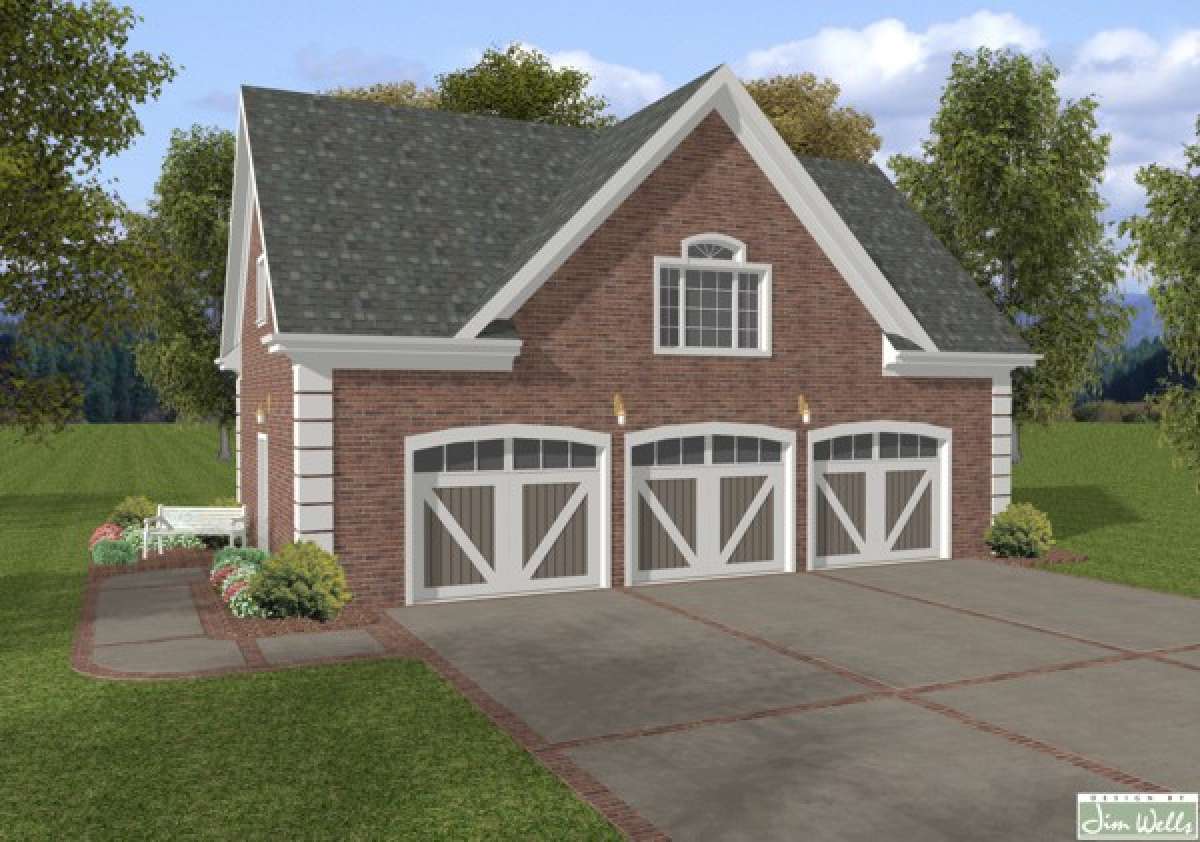

Southern House Plan #036-00167 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Unfin Sq Ft 1,661

Fin Sq Ft 0

Cars 3

Beds 0

Width 38'

Depth 24'

See What's Included

Select Package

PDF (Single Build)

$1,045.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,045.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$1,195.00

PHYSICAL FORMAT
Eight printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,495.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $55.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $295.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

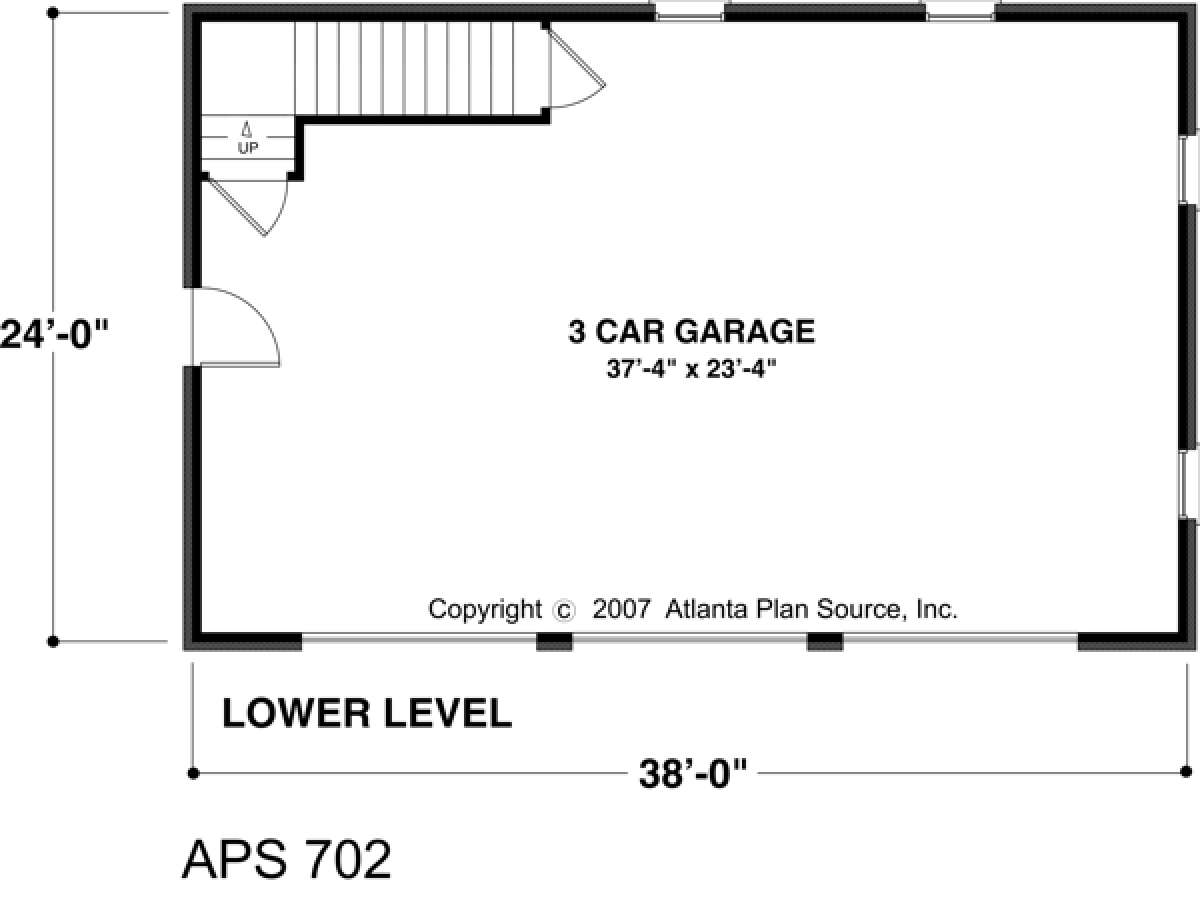

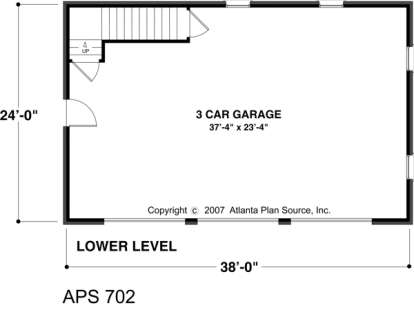

Floorplan 1

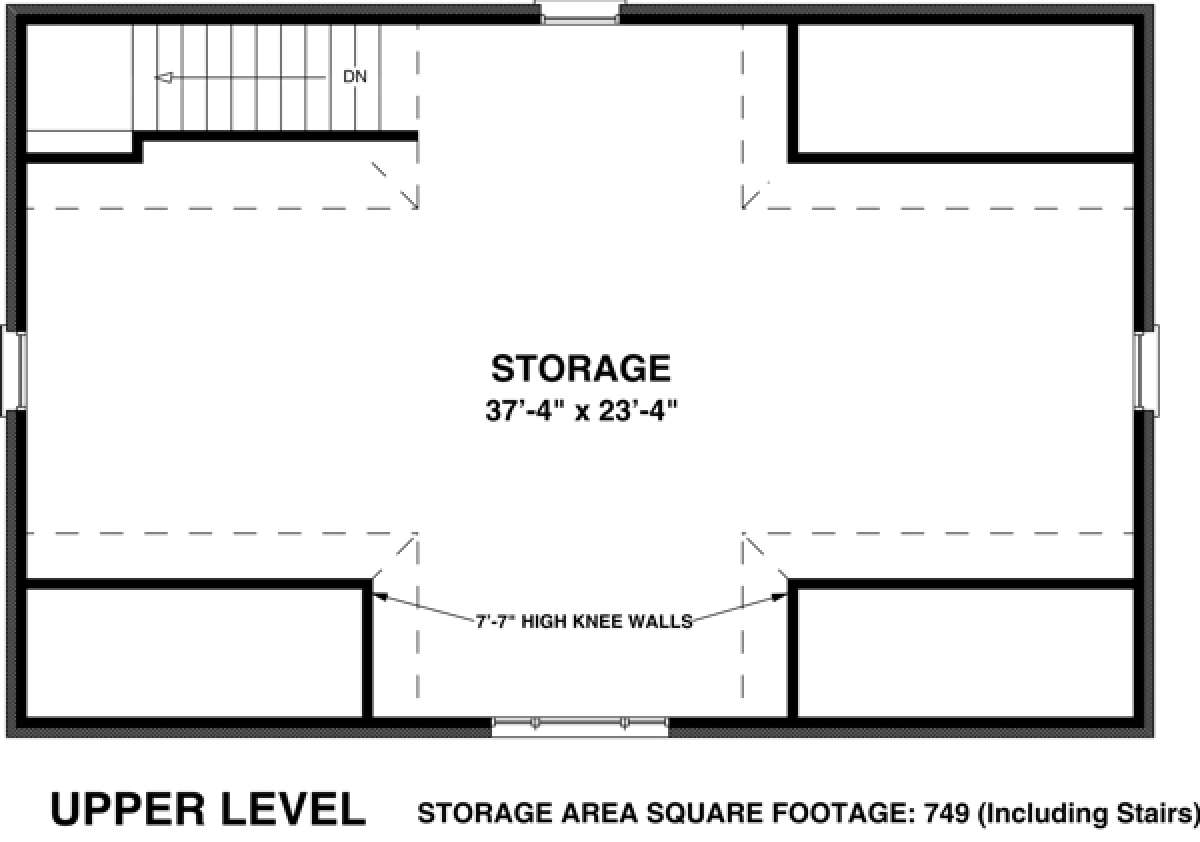

Floorplan 2

Images copyrighted by the designer.

Details

HEATED Sq Ft

UNHEATED Sq Ft

Total Unheated Area: 1,661 sq. ft. Second Floor: 749 sq. ft. Garage: 912 sq. ft.

Full Baths: 0

Floors: 2

Garage Size: 3 car

Width: 38ft.

Depth: 24ft.

Height: 24ft.-8in.

Foundation: Slab Foundation

Main Roof Pitch: 12/12

CEILING HEIGHTS

First Floor: 8 feet

Second Floor: 9 feet

What's Included in these plans?

Artist Rendering
Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
Floor Plans: Scale: 1/4"=1'
Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
Roof Plan: Scale: Either 1/4" or 1/8"=1'
Building Sections: Included with most plan sets
Wall Sections: Included with all plans in Detail Sheet Package
General Notes and Details: Included with all plans in Detail Sheet Package

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

The Georgetown Carriage House is a 3 car garage with 749 sq. ft. or storage space above. With a rich brick exterior and carriage style doors, this design is reminiscent of a simpler time. The upper level storage area could be a studio, a home office, a playroom or just a getaway. The possibilities are limitless!
