Traditional House Plan #036-00160 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 3,614

Beds 4

Bath 3

1/2 Baths 1

Car 2

Stories 2

Width 58'

Depth 70'

See What's Included

Select Package

PDF (Single Build)

$1,695.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$3,195.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,745.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$1,795.00

PHYSICAL FORMAT
Eight printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,395.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$3,895.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Basement Foundation $0.00

Slab Foundation $350.00

Crawlspace Foundation $350.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $85.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $295.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $350.00

Convert the exterior framing to 2x6 walls.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

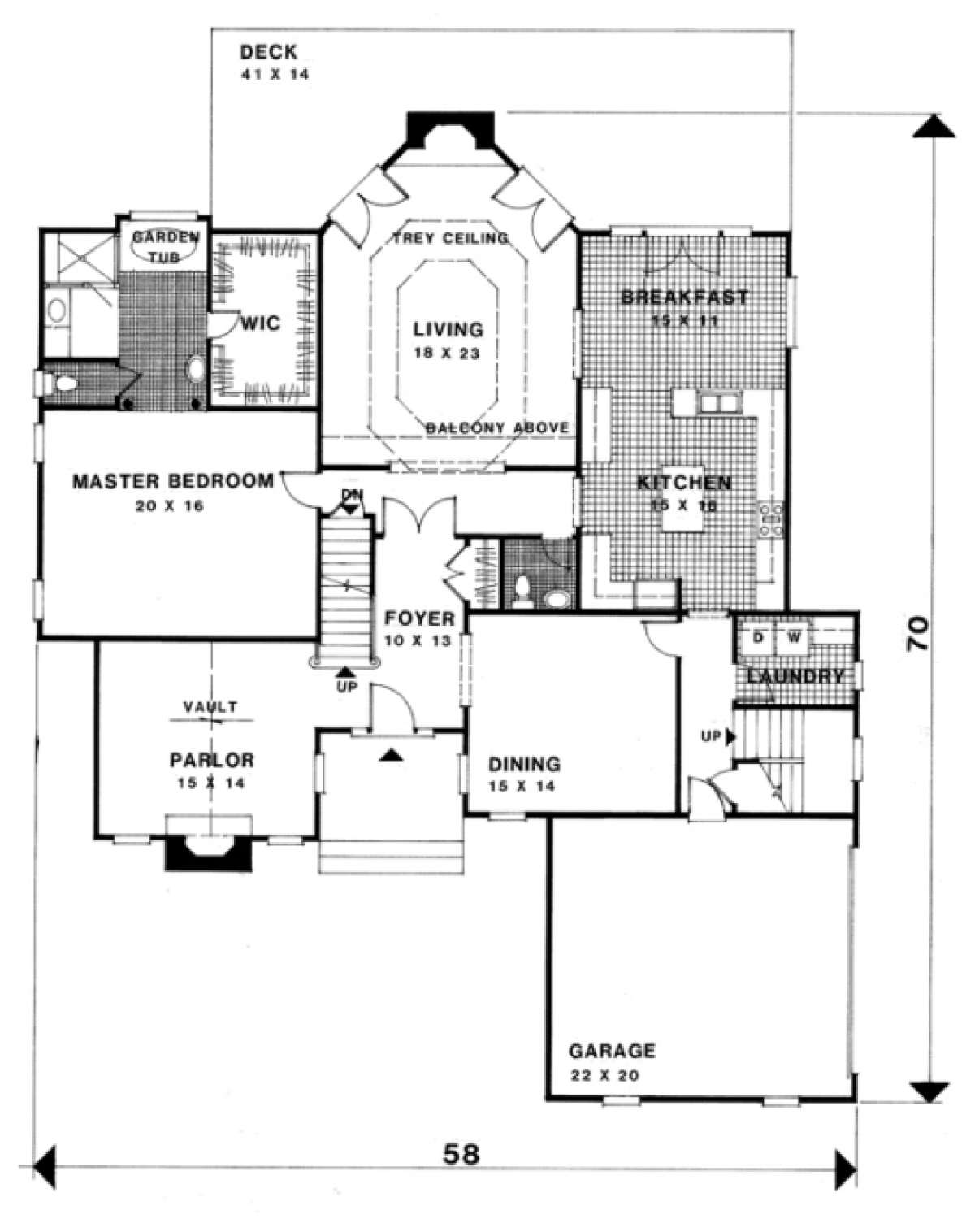

First Floor

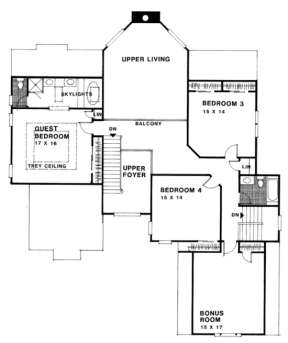

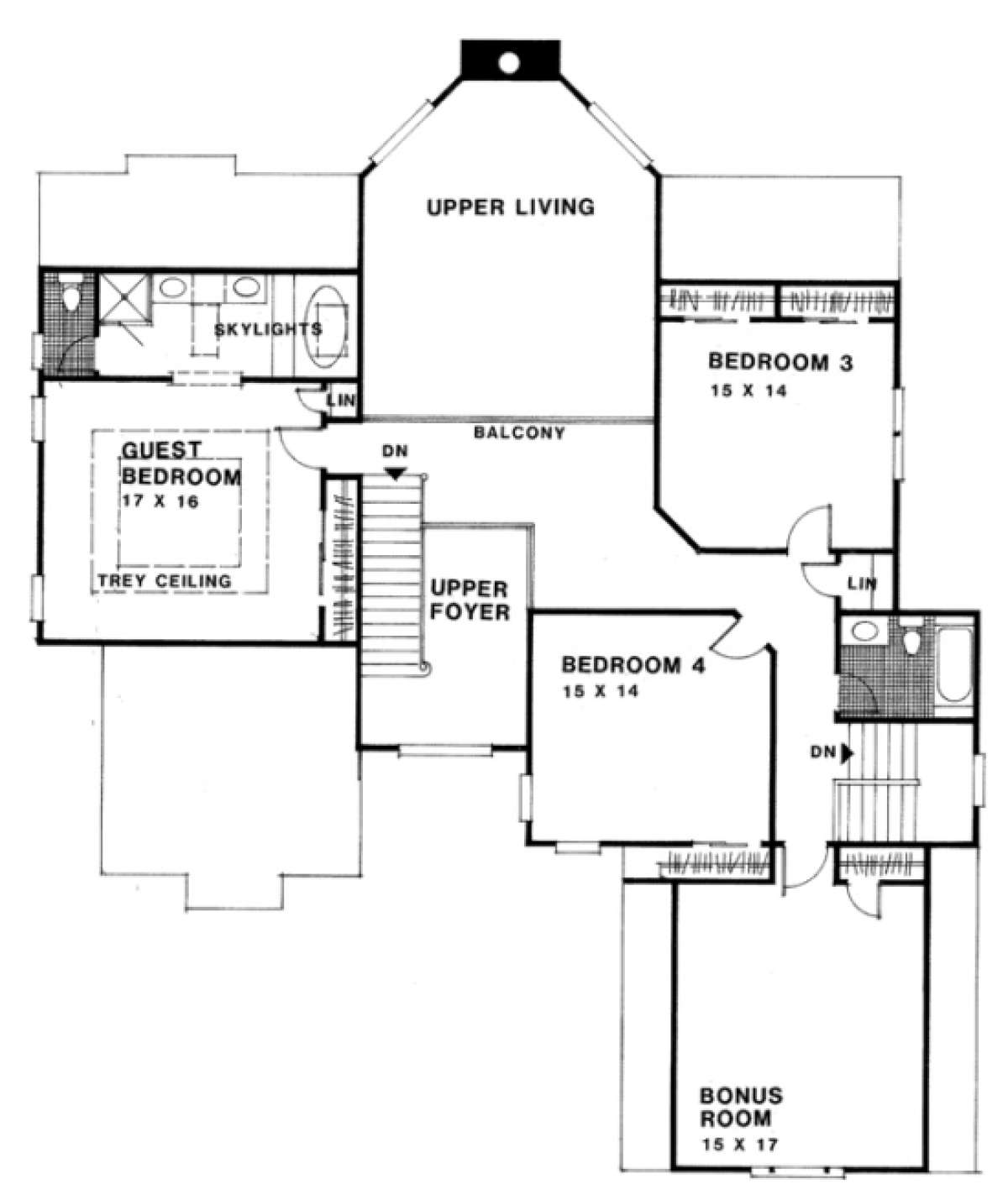

Second Floor

Images copyrighted by the designer.

What's Included in these plans?

Artist Rendering
Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
Floor Plans: Scale: 1/4"=1'
Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
Roof Plan: Scale: Either 1/4" or 1/8"=1'
Building Sections: Included with most plan sets
Wall Sections: Included with all plans in Detail Sheet Package
General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

About This Plan

This European beauty offers a stucco and stacked stone exterior in approximately 3,600 square feet with an additional 308 sq. foot bonus room. The dramatic two story foyer anchors the formal dining room and vaulted parlor with fireplace. The lovely living room has a double step trey ceiling, rear fireplace and double French doors leading to the rear deck. The kitchen and breakfast room are large with rear deck access, a center island and an abundance of additional counter and cabinet space. A powder room, large utility room and two car, side entry garage are situated on the main level as well as the master suite. The master bedroom measures 20’x16, has an oversized walk-in closet situated at the rear of the master bath which includes a garden tub and separate shower. Upstairs, bedroom three and four measure 15’x14’, have plenty of closet space and share a hall bath. The large bonus room could also be used as a fifth bedroom as it has closet space as well. The guest bedroom has a trey ceiling, ample closet space and a beautifully appointed bath with skylights, dual vanities, a garden tub and separate shower. This home has an abundance of livable space and was designed with function and comfort in mind.
