Narrow Lot House Plan 036-00156

Sq Ft3,586
Beds5
Baths4
1/2 Baths0
Stories2
Cars2
Width37' 0"
Depth43' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Basement Floor for House Plan #036-00156
First Floor for House Plan #036-00156
Second Floor for House Plan #036-00156

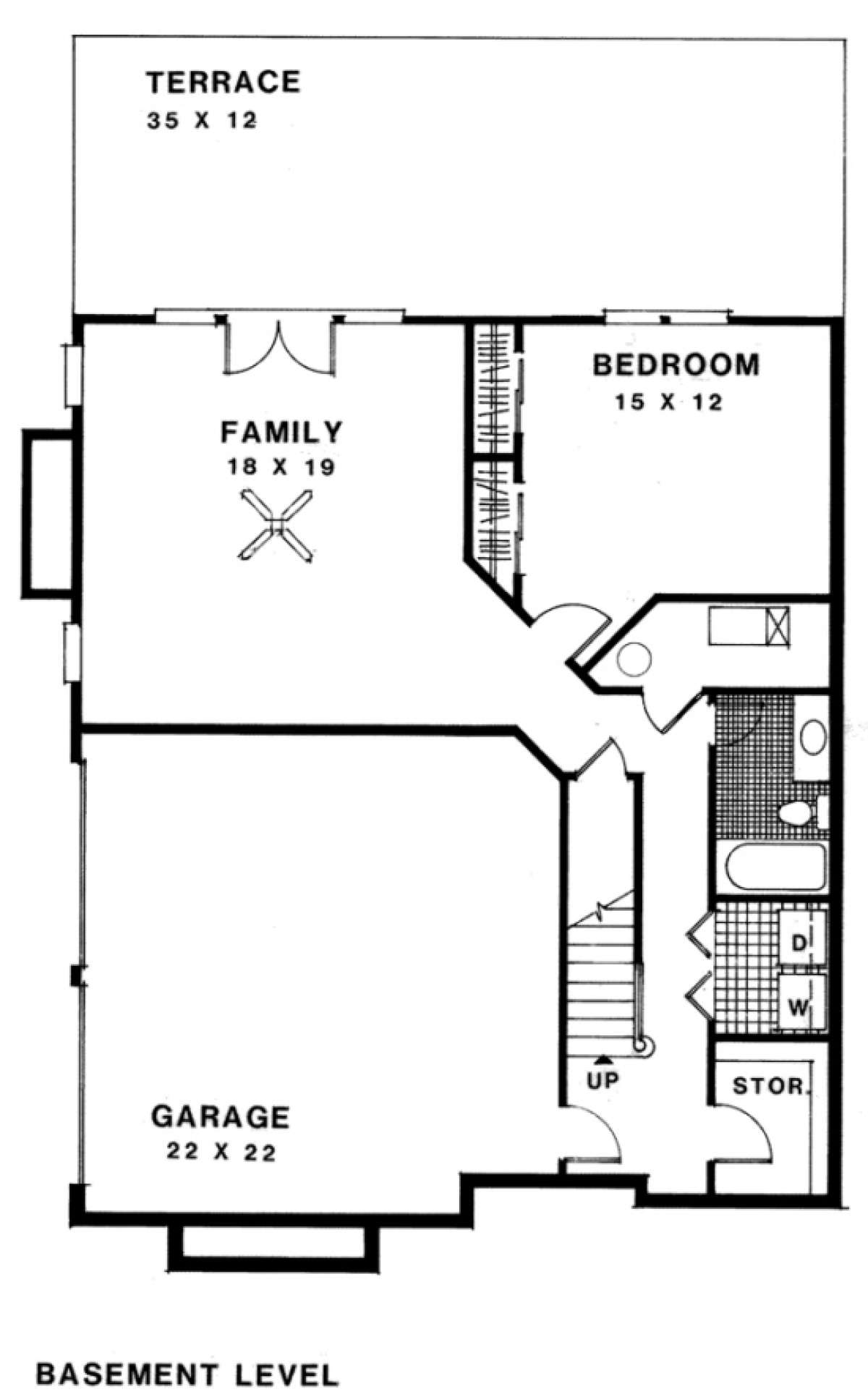

Basement Floor
Basement Floor for House Plan #036-00156

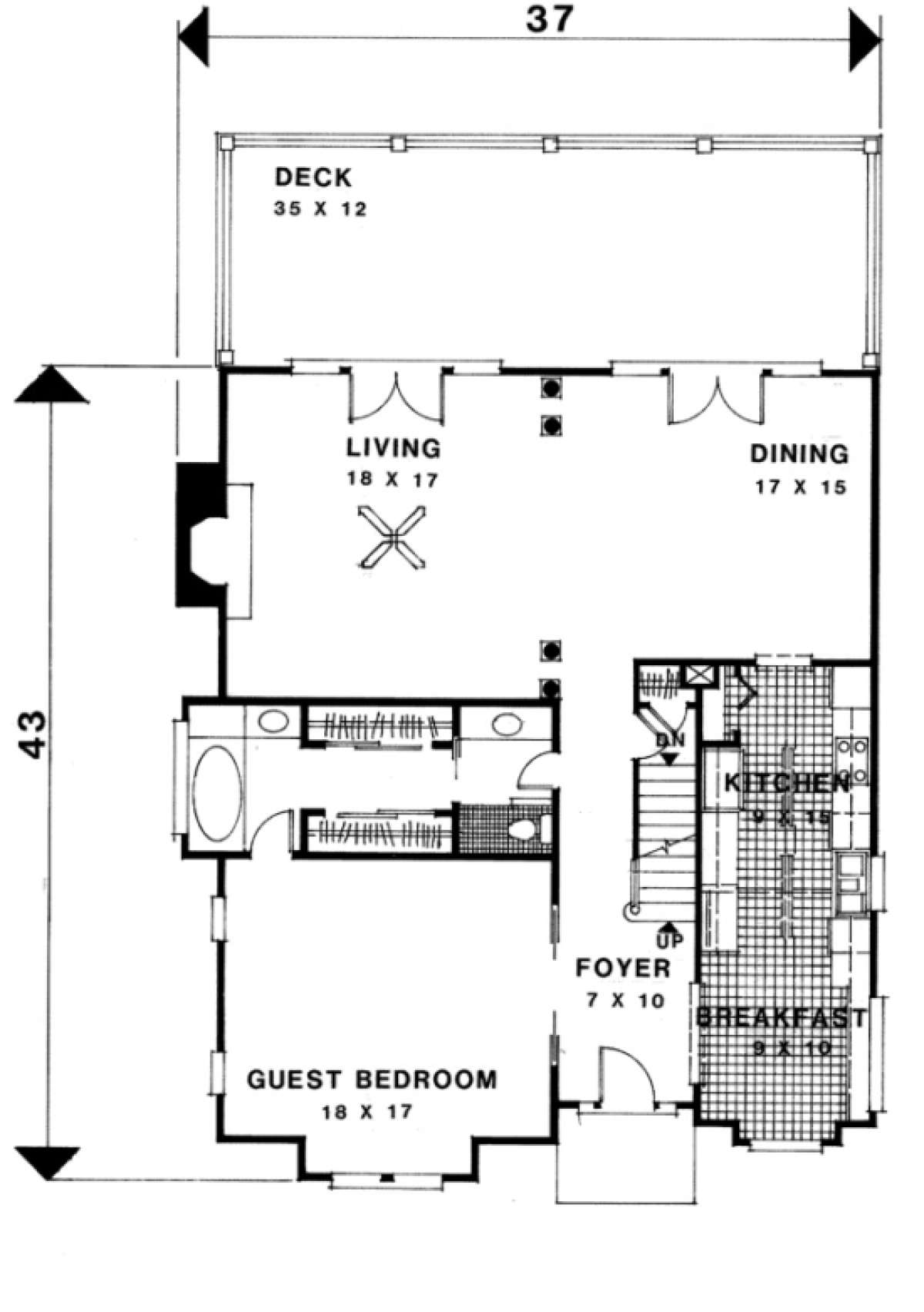

First Floor
First Floor for House Plan #036-00156

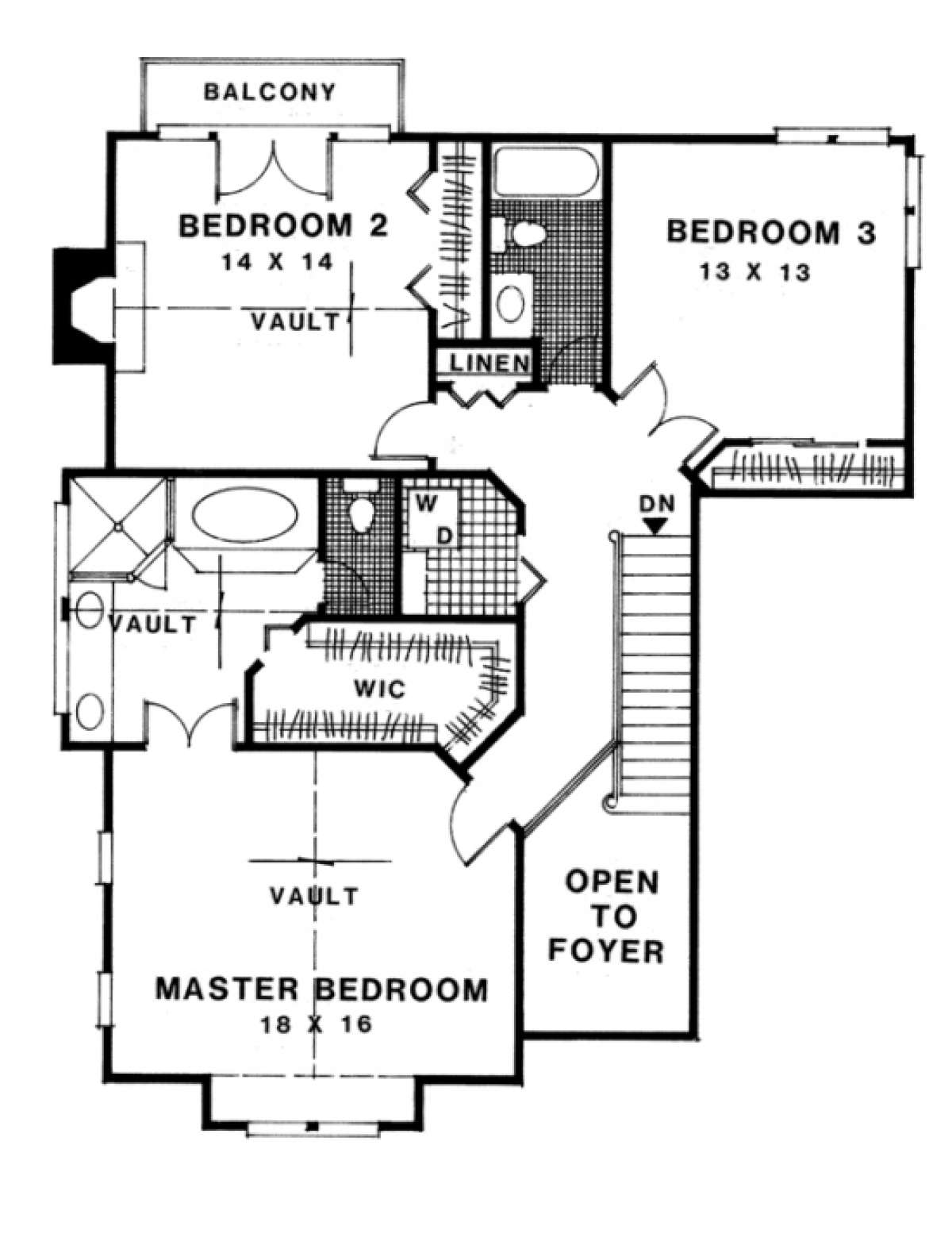

Second Floor
Second Floor for House Plan #036-00156


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Artist Rendering

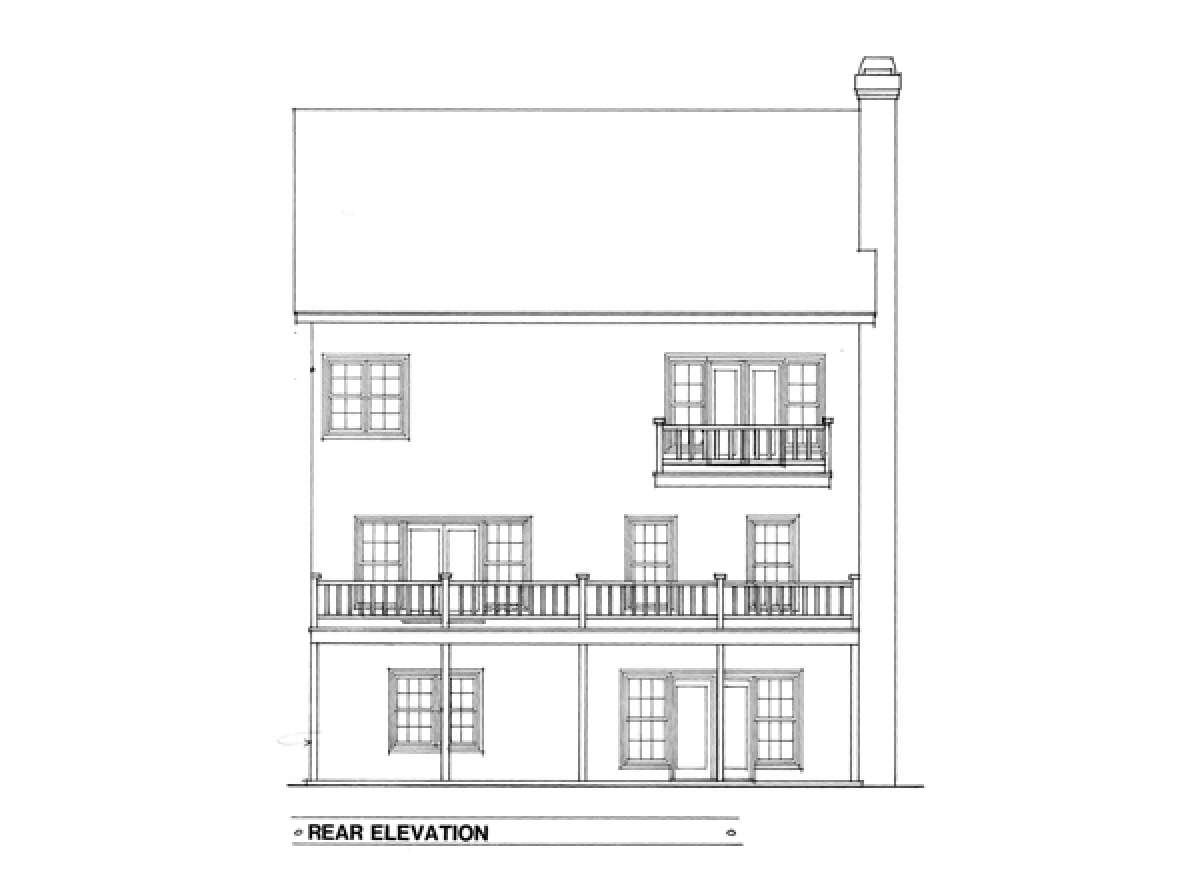

  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This elegant tri-level home is ideal for a narrow lot with the house plan measuring 37’wide by 43’ deep and comes with a side loading two car garage. The basement level of the home includes a full bath, laundry room and storage area. Additionally, the large family room with fireplace and double French doors leading to the terrace and a fifth bedroom are located on the basement level. The main level of the home includes a dramatic two story foyer, guest room with full bath and dual vanities and an 18’x17’ living room with fireplace and French doors leading to the oversized deck. The kitchen anchors both the formal dining room with French door access to the deck and the informal breakfast room with radius top window. The kitchen features a built-in recipe desk, vaulted ceiling and separate pantry. Upstairs, you will find the laundry room and three additional bedrooms. Bedroom two is large with vaulted ceilings, a fireplace and French doors leading to the private balcony. Bedroom three is accessed through double French doors and provides maximum light exposure with corner windows. There is a shared hall bath and linen closet provided for the two bedrooms. The master suite has vaulted ceilings in both the bedroom and bath and an oversized walk-in closet. The master bath offers dual vanities, a garden tub, separate shower and compartmentalized toilet. This is a beautifully appointed home with character and plenty of usable living space.
