Luxury House Plan 036-00147

Sq Ft3,264
1/2 Baths1
Width60' 0"
Depth99' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

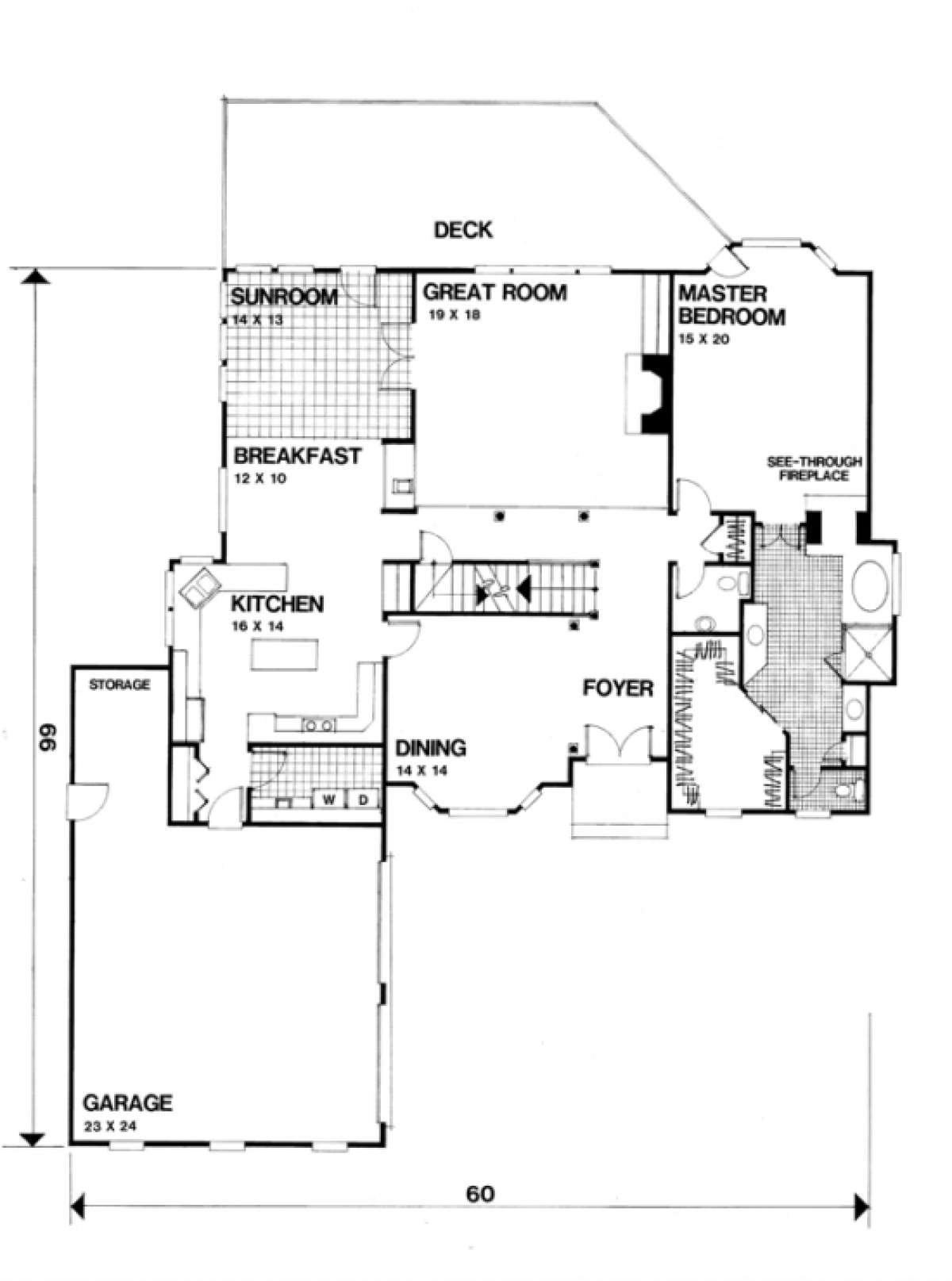

First Floor for House Plan #036-00147

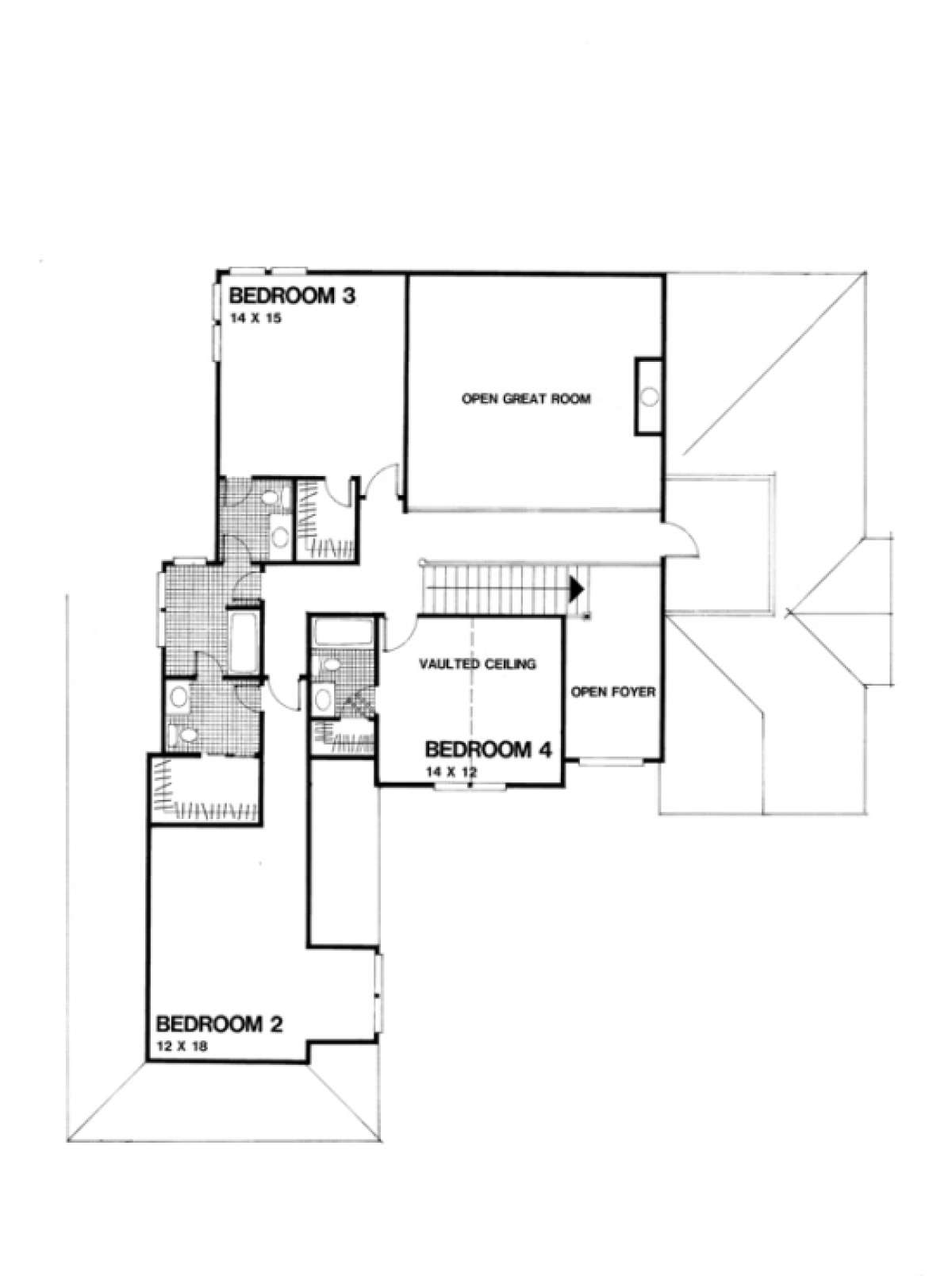

Second Floor for House Plan #036-00147
First Floor

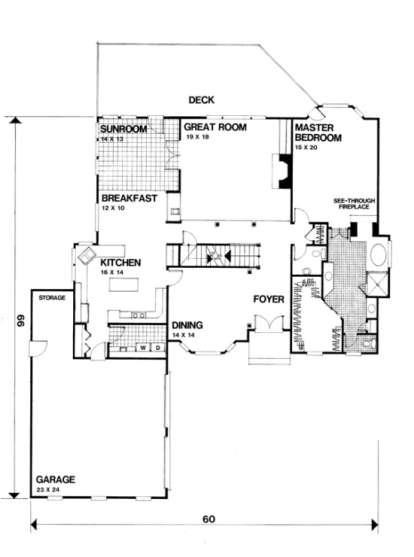

First Floor for House Plan #036-00147
Second Floor
Second Floor for House Plan #036-00147

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This elegant European stucco is highlighted with stacked stone and a courtyard entry. The foyer opens onto the formal dining room with a bay window and column features. The great room is spacious with a fireplace, built-in cabinetry and rear deck views. The 14’x13’ sunroom is accessible through French doors off the great room and provides access to the large deck. The breakfast room and kitchen are spacious and offer a center island, separate pantry, corner sink window views and an abundance of additional counter and cabinet space. The master suite is situated on the main level and consists of a large bedroom with bay window, private access to the deck and a see-thru fireplace into the master bath. The master bath offers dual vanities, a separate shower, garden tub and a compartmentalized toilet. An oversized walk-in closet is located at the rear of the master bath. A half bath, large utility room and a two car garage with additional storage completes the first level of the home. Upstairs, bedroom two and three offer walk-in closets, separate vanity and toilet areas along with a shared bath. Bedroom four offers vaulted ceilings, a walk-in closet and private full bath. This is home is ideal for those who desire function and elegance.
