Save 15% off your Dream House Plan with our Fall Savings Sale!

Limited plans not eligible for discounts.

Traditional House Plan 036-00140

Sq Ft3,052
1/2 Baths1
Width60' 0"
Depth38' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

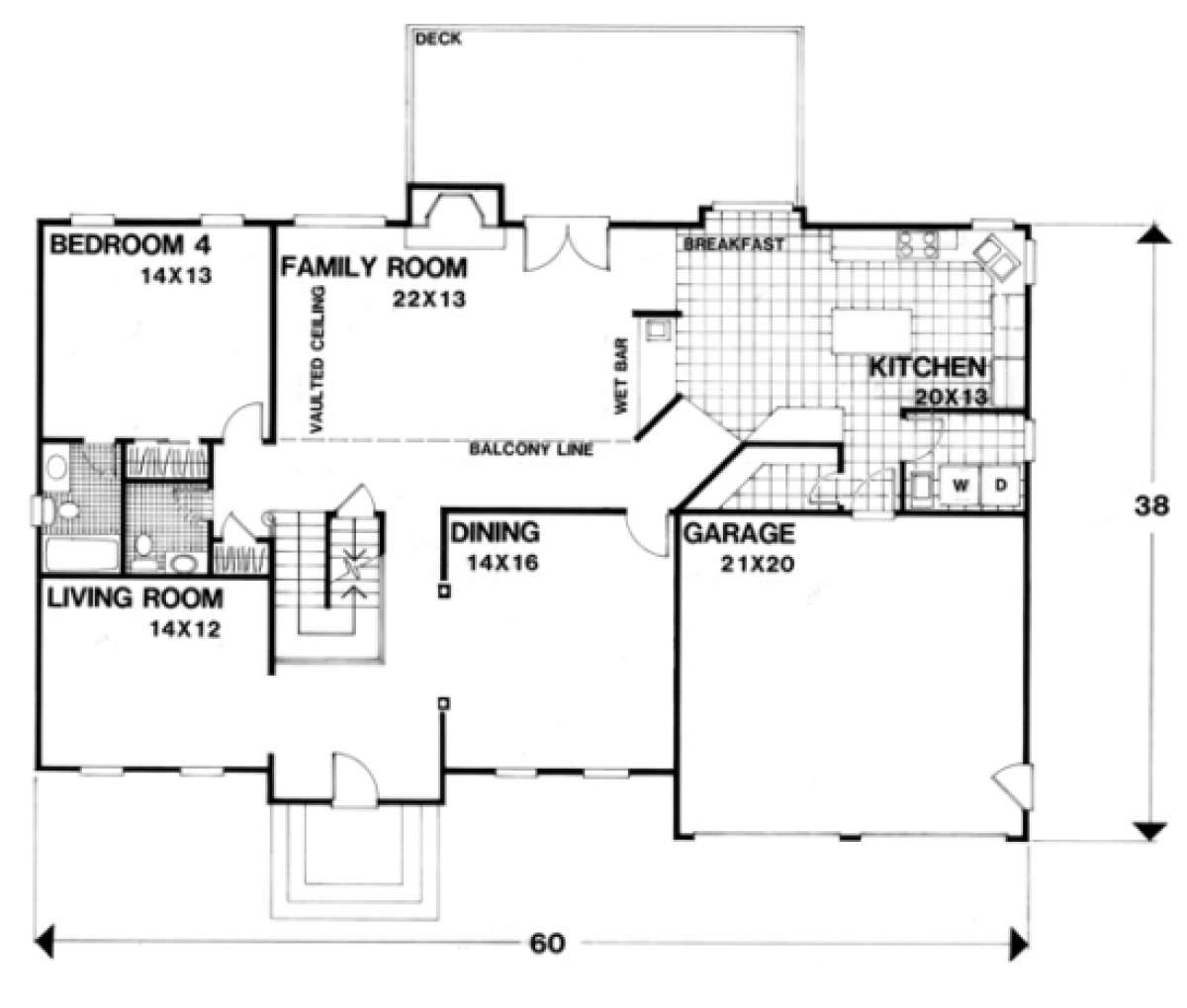

First Floor for House Plan #036-00140

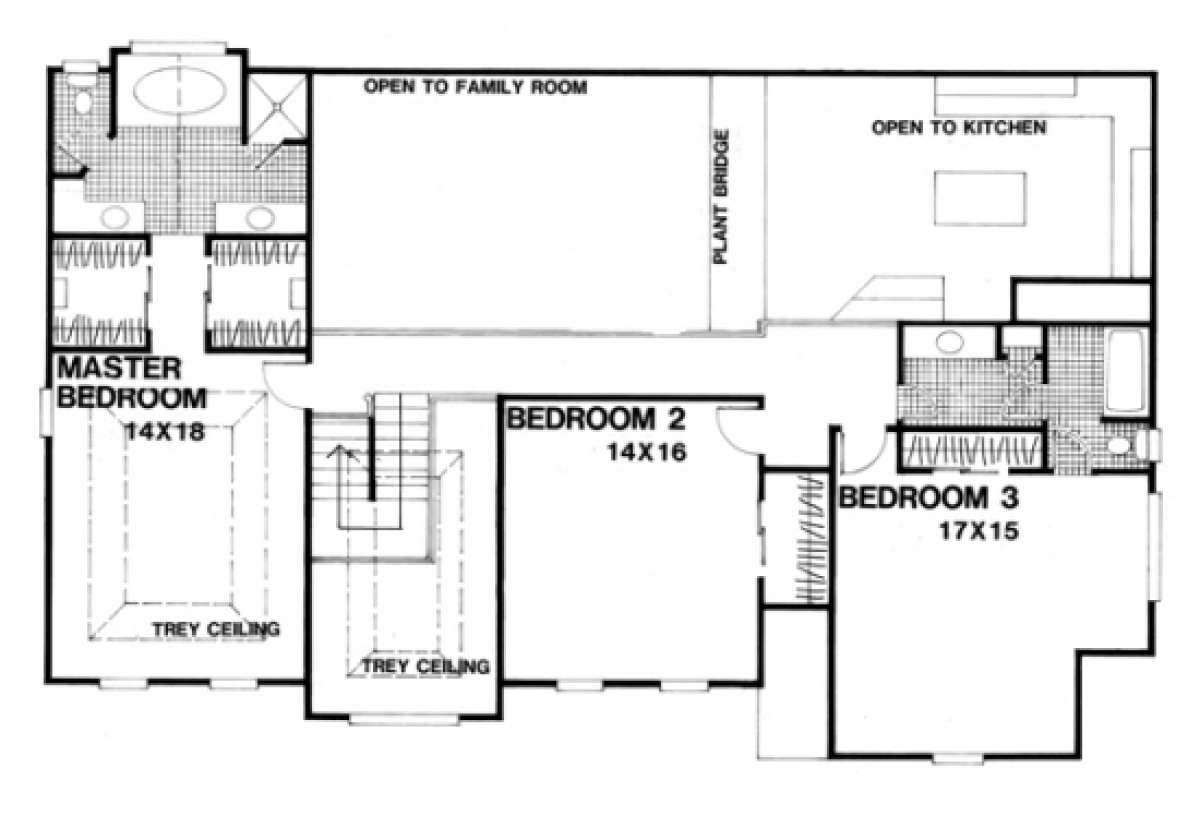

Second Floor for House Plan #036-00140
First Floor
First Floor for House Plan #036-00140
Second Floor
Second Floor for House Plan #036-00140

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This elegant stucco home provides luxurious design elements in over 3,000 square feet. The spacious foyer anchors the formal living and dining room situated on either side of the foyer. The 22’x13’ family room offers vaulted ceilings, wet bar area, rear wall fireplace and French door access to the rear deck. Additionally, there is an overhead plant bridge spanning the space between the family room and breakfast area. The breakfast area is large with rear deck views and opens to the kitchen which includes a center island, separate pantry and a plethora of additional counter and cabinet space. An oversized fourth bedroom is located on the main level and includes ample closet space and a private full bath. A half bath, large laundry room and two car garage are also located on the main level. The upstairs master suite offers a trey ceiling bedroom, his and her walk-in closets and a master bath with dual vanities, garden tub, separate shower and a compartmentalized toilet. Two additional bedrooms which measure 14’x16’ and 17’x15’ respectively offer ample closet space and the larger bedroom offers private access to the hall bath. Some of the design elements upstairs include a plant bridge, trey ceiling complimenting the two story foyer and a rail overhang open to the family room. This four bedroom home offers style and versatility to the most discriminating homeowner.
