Traditional House Plan #036-00089 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,111

Beds 4

Bath 2

1/2 Baths 1

Car 2

Stories 1

Width 55'

Depth 70'

See What's Included

Select Package

PDF (Single Build)

$1,395.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$2,895.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,445.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$1,495.00

PHYSICAL FORMAT
Eight printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,895.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$3,395.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $350.00

Basement Foundation $350.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $70.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $295.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $350.00

Convert the exterior framing to 2x6 walls.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

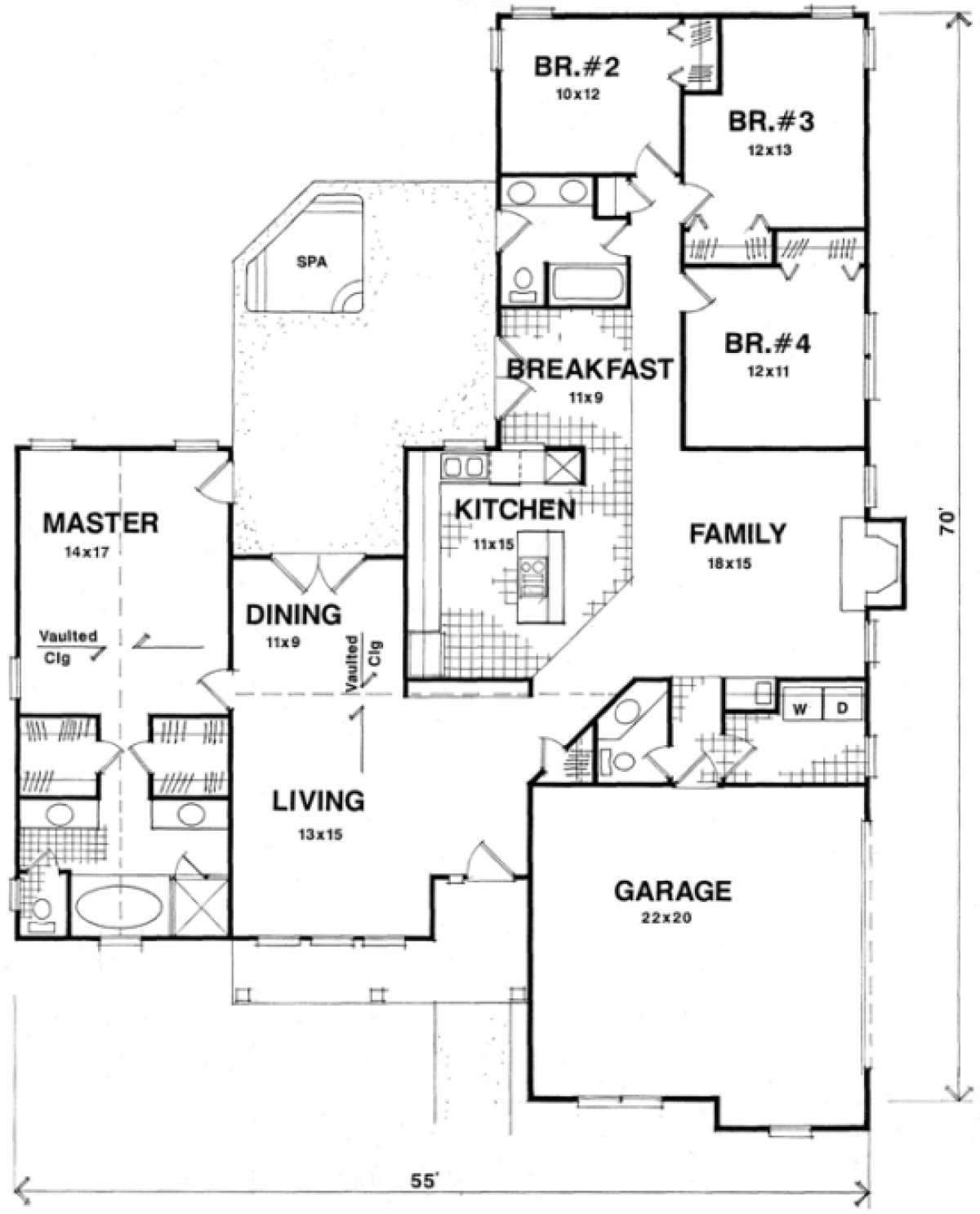

Floorplan

Images copyrighted by the designer.

What's Included in these plans?

Artist Rendering
Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
Floor Plans: Scale: 1/4"=1'
Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
Roof Plan: Scale: Either 1/4" or 1/8"=1'
Building Sections: Included with most plan sets
Wall Sections: Included with all plans in Detail Sheet Package
General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

About This Plan

This traditional ranch is highlighted with exterior stucco and stacked stone accents and the two car, side entry garage along with outside dimensions of 55’ width by 70’ depth make it ideal for a corner lot. The covered front porch is aesthetically pleasing and opens onto the spacious vaulted living/dining area with double French door access to the outdoor spa area. The less formal family room has a gas fireplace and is open to the kitchen and breakfast area. The kitchen is large with a center island, a plethora of counter and cabinet space and is adjacent to the breakfast area which leads to the outdoor spa. The master suite has a vaulted bedroom and, again, provides access to the spa area, his and her walk-in closets and a master bath which offers dual vanities, a separate shower, garden tub and compartmentalized toilet. The split bedroom plan includes three additional bedrooms, each with ample closet space and a shared hall bath which includes dual vanities and access to the spa area. A half bath and large utility room complete the home. This home design is unique, yet functional and provides an abundance of living space.
