Narrow Lot House Plan 036-00087

Sq Ft2,098
1/2 Baths2
Width35' 0"
Depth46' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

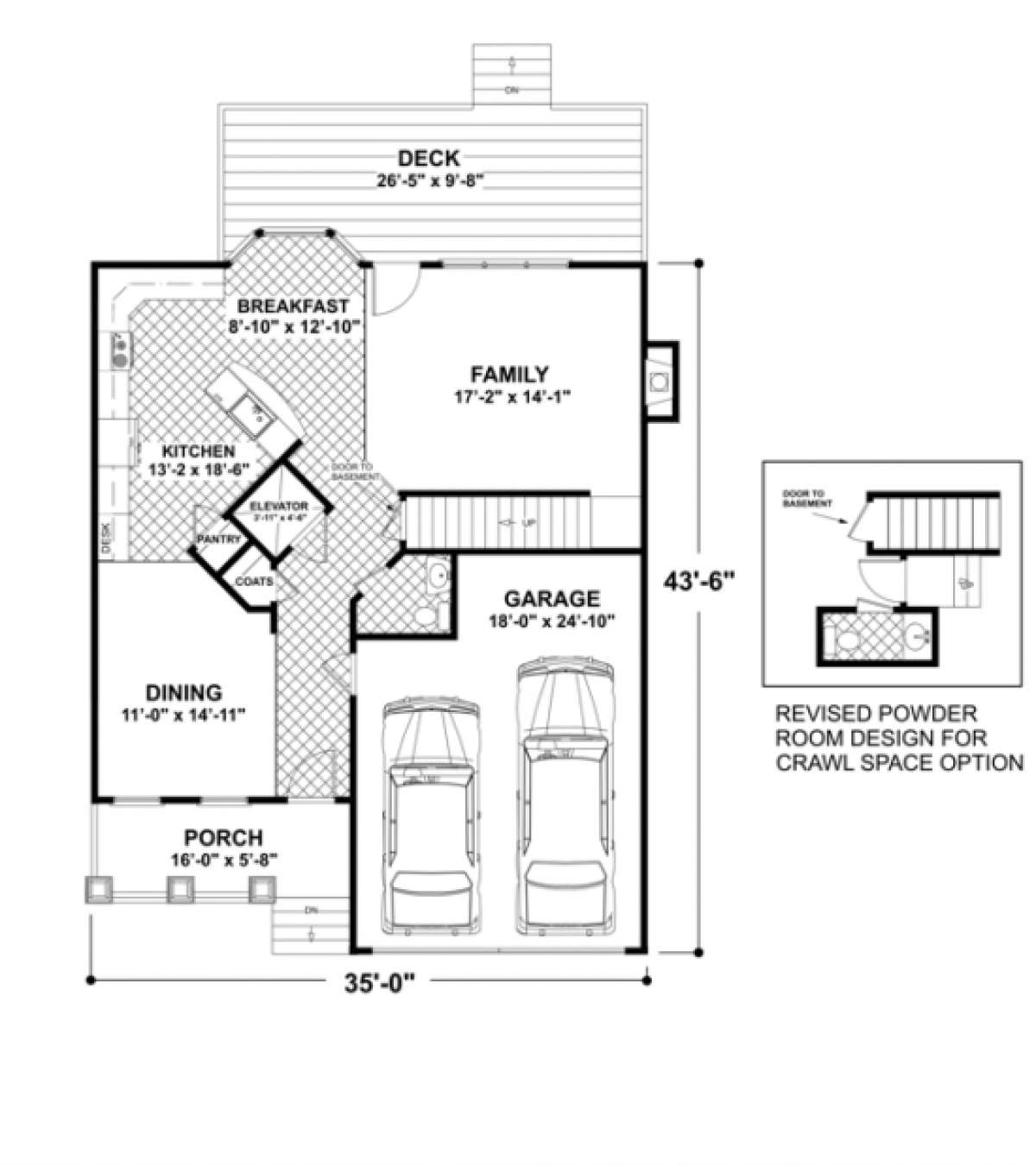

First Floor for House Plan #036-00087

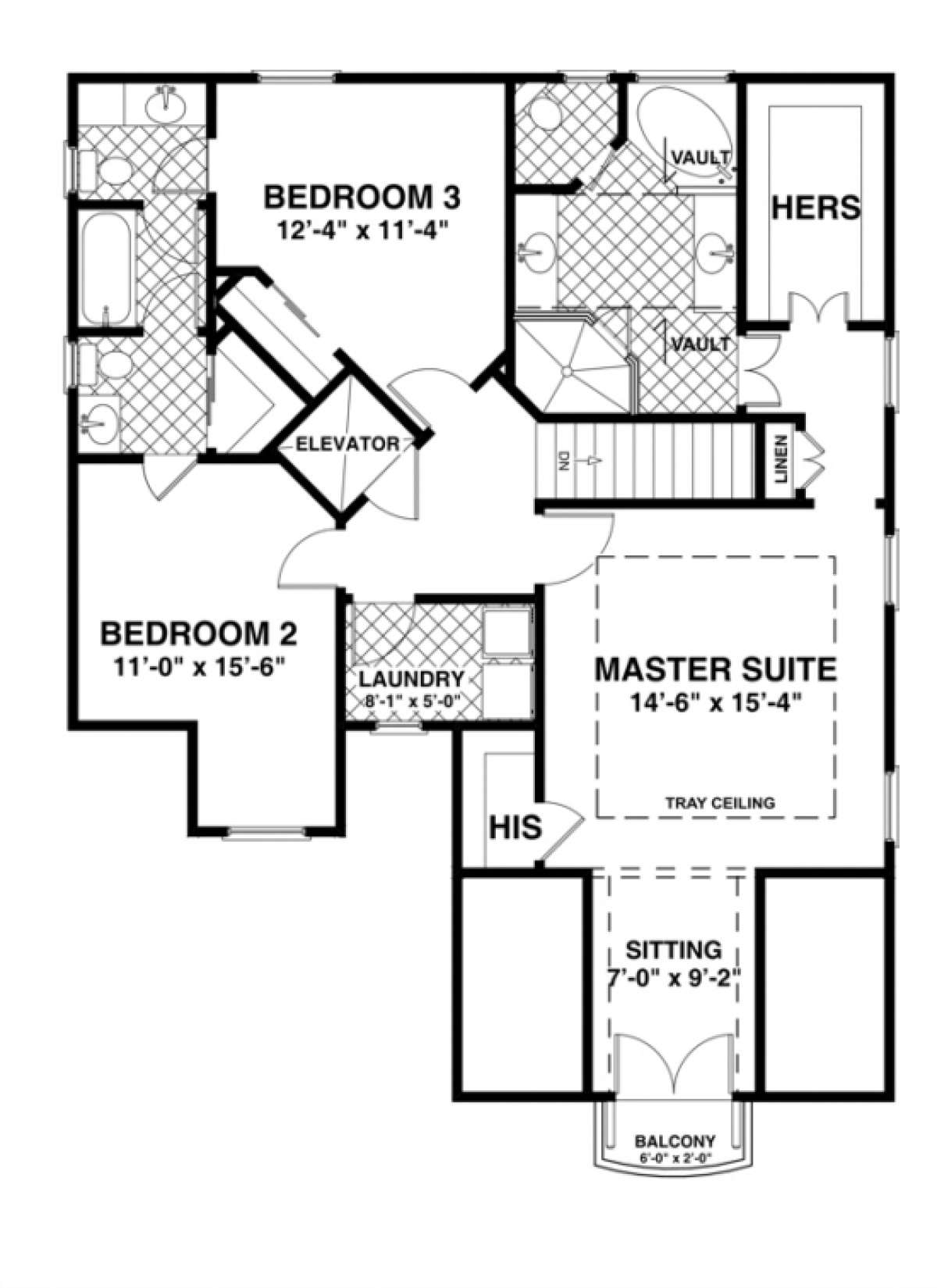

Second Floor for House Plan #036-00087
First Floor
First Floor for House Plan #036-00087
Second Floor
Second Floor for House Plan #036-00087

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Craftsman style home retains all the charm of yesteryear; however, it has been updated in an unexpected and unique way perfect for baby boomers or special needs families. The home’s interior contains an elevator for access to the upstairs bedrooms and conveniently placed laundry room. There are two oversized bedrooms with ample closet space and a shared bath which is luxurious and offers dual vanities, a large tub and separate toilet areas. The master suite contains a large bedroom with trey ceiling, his and her walk-in closets and a master bath which is beautifully designed with vaulted ceilings, dual vanities, an oversized shower and corner garden tub. Downstairs, you will find a large, front facing dining room off the spacious foyer while the kitchen, breakfast area and family room are located at the rear of the home. The kitchen and breakfast area is a large space with an angled counter, a built in desk, separate pantry and highlighted by a triple bay window overlooking the rear deck. The family room is oversized with fireplace and rear deck access. A half bath and two car garage complete this house plan making it ideal for families of all sizes and needs.
