Traditional House Plan 036-00050

Sq Ft1,886
1/2 Baths0
Width66' 0"
Depth49' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

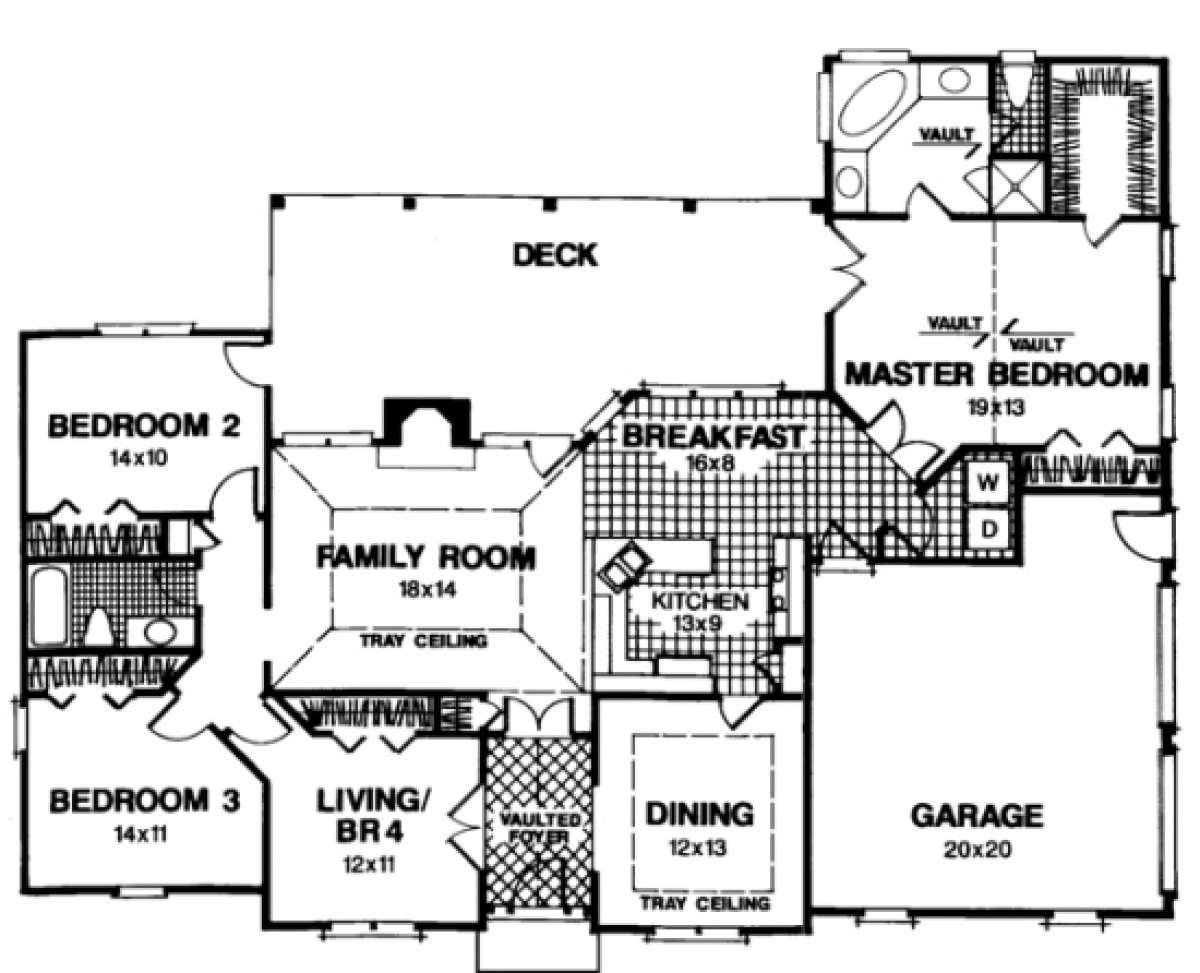

Floorplan for House Plan #036-00050
Floorplan for House Plan #036-00050

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

The ever popular ranch takes a step up in this approximate 1900 square foot house with its innovative and design friendly floor plan. The spacious and vaulted foyer provides a bridge to either the vaulted dining room or a fourth bedroom with French doors which could be used as an office. The dining room is spacious with a trey ceiling and leads into the oversized kitchen and breakfast room. The kitchen has corner bar area, plenty of cabinet and counter space and is open to the triple window breakfast room with the laundry room conveniently located nearby. The family room is 18’x14’, has a trey ceiling, a fireplace and leads to the massive back deck. Three bedrooms, all with spacious closets, share a hall bath on one side of the home while the master suite is situated on the opposite side for privacy. The master bedroom measures an impressive 19’x13’, is vaulted and contains one oversized walk-in closet, an additional closet and rear deck access. The master bath is vaulted as well with dual vanities, a corner garden tub and separate shower. This house plan offers plenty of space and design options in which to customize you and your family’s dream home.
