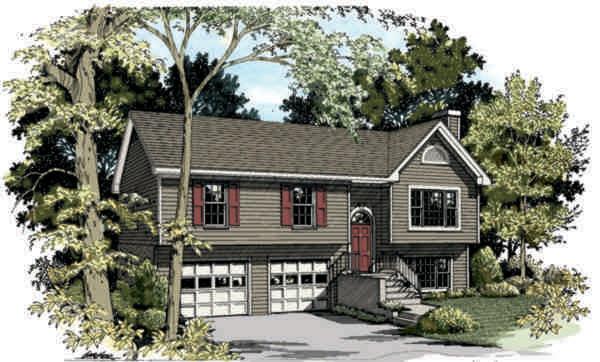

Traditional House Plan #036-00022 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,496

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 2

Width 48'

Depth 30'

See What's Included

Select Package

PDF (Single Build)

$1,195.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$2,695.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,245.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$1,295.00

PHYSICAL FORMAT
Eight printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,595.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$3,095.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $350.00

Basement Foundation $350.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $60.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $295.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $350.00

Convert the exterior framing to 2x6 walls.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

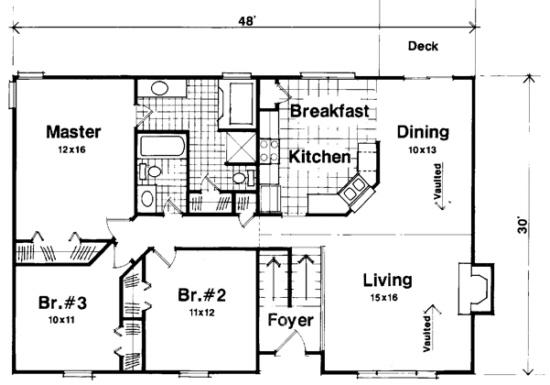

Floorplan

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Artist Rendering
Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
Floor Plans: Scale: 1/4"=1'
Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
Roof Plan: Scale: Either 1/4" or 1/8"=1'
Building Sections: Included with most plan sets
Wall Sections: Included with all plans in Detail Sheet Package
General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

About This Plan

This awesome split level home offers an abundance of design ideas perfect for the growing family. The family and dining room are vaulted, open and large with a fireplace cozily situated in the family room. The dining room is spacious and offers rear deck access. The breakfast room offers additional dining space and is open to the dining room while the kitchen has an angled counter area making this the perfect location to entertain large gatherings of family and friends. Two bedrooms with ample closet space share a hall bath while the master suite offers a large bedroom, a walk-in closet and a bath which includes a garden tub and separate shower. Downstairs, you will find an oversized garage with a tucked away work space, a large utility room and a massive unfinished space which would be ideal for a family bonus room, teen suite or in-law suite. This home is well suited for the family who enjoys open living spaces and the option to expand in the future.
