Ranch Plan 036-00017


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,304
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 61'
Depth 38'

Floorplan Drawings

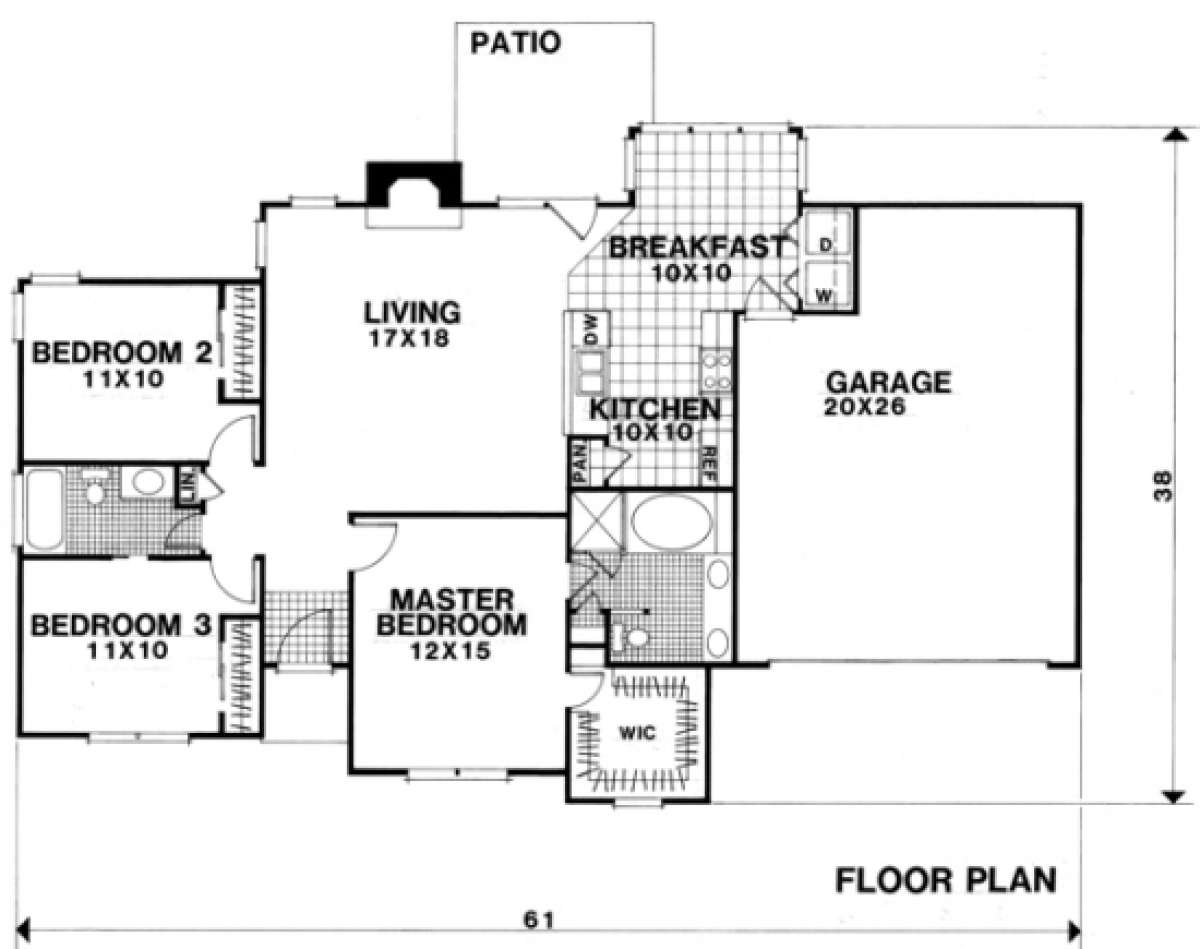

Floorplan for House Plan #036-00017

What's Included in these plans?

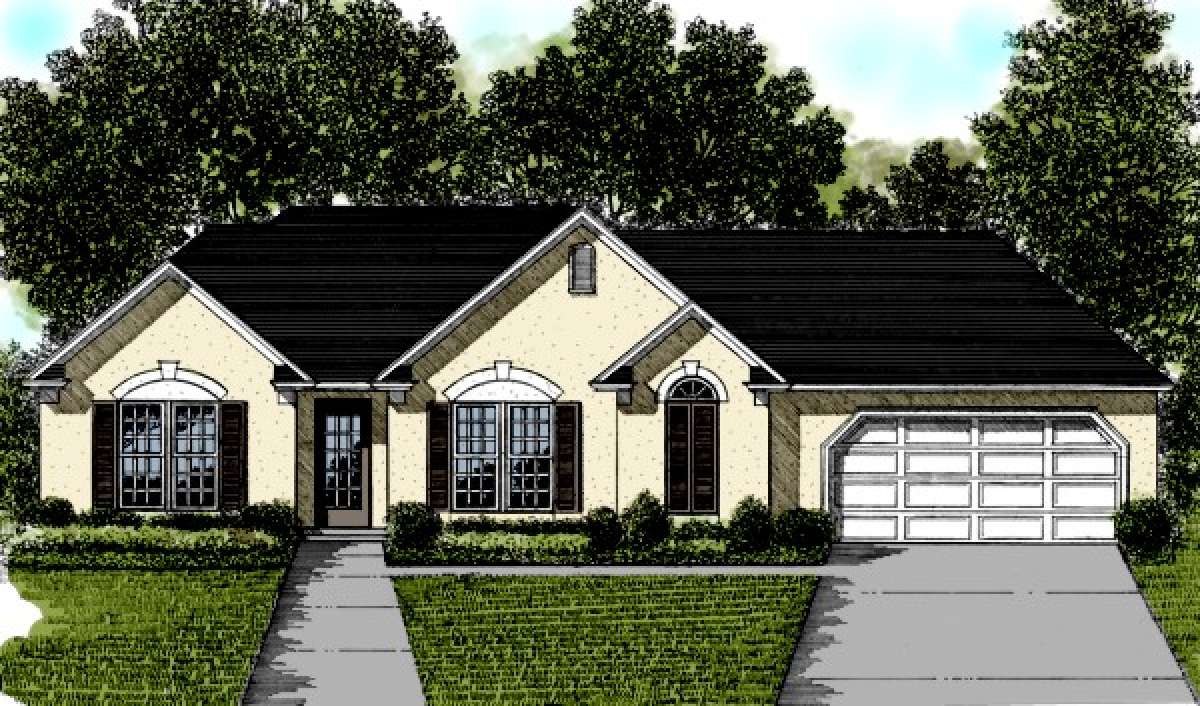

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This lovely European ranch plan is designed for maximum utilization of space. With an exterior of stucco, this traditional plan features many appointments found in larger custom homes. This house plan features the split bedroom plan with two bedrooms, generous closets and a shared hall bath on one side of the home while the master suite is located on the opposite side of the home for privacy. The master bedroom is large with an oversized walk-in closet and the master bath includes dual vanities, a separate shower and large garden tub. The living room is spacious and includes a fireplace and rear access to the patio. The kitchen and breakfast area is open to the living room and include a three window rear yard view and corner pantry. The oversized two car garage leads into the breakfast area where a W/D are conveniently tucked away. This home provides ample space and beautiful design features and is ideal for a small family.
